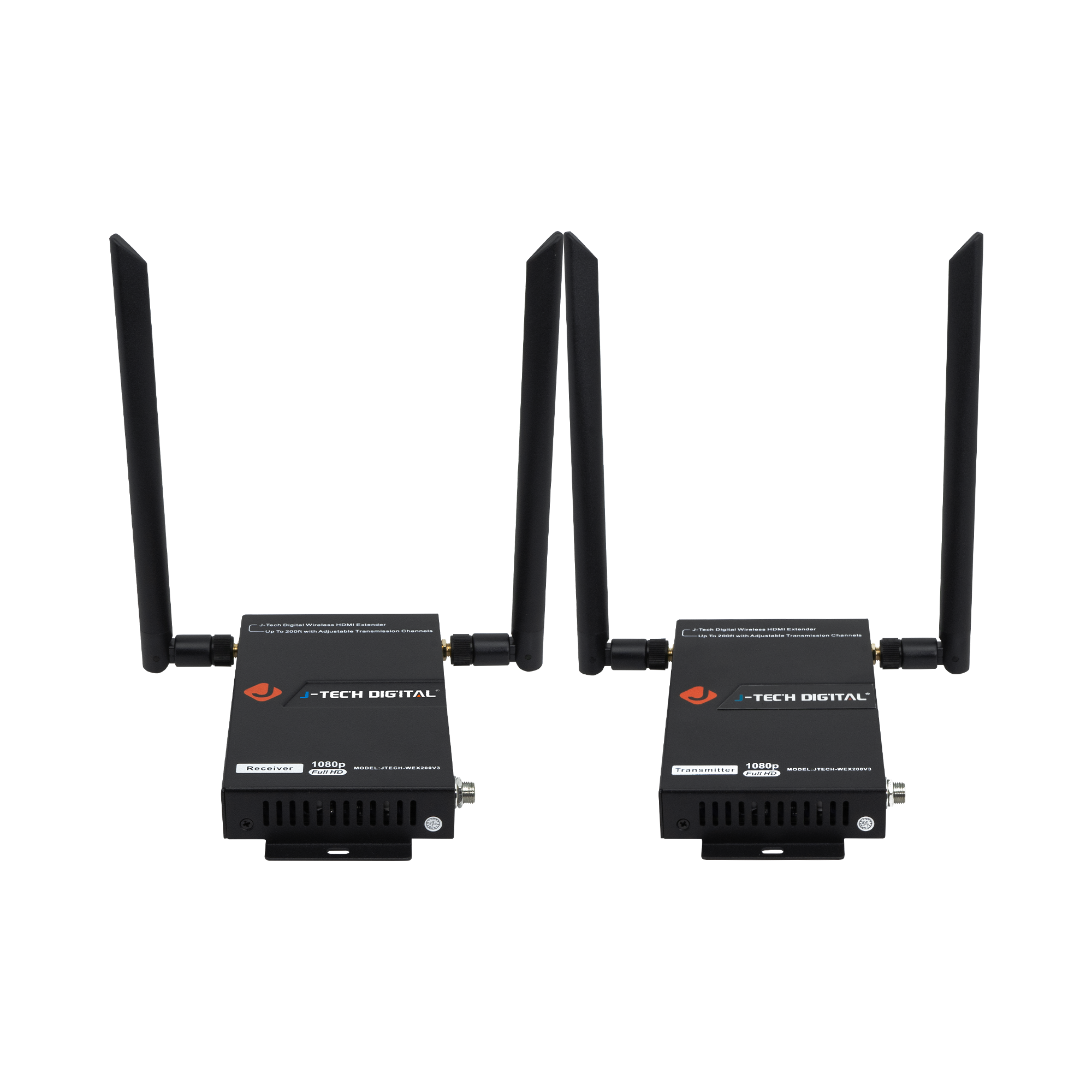

1080P 60Hz Wireless HDMI Extender Kit (200ft.)

Regular price $186.99

Shipping calculated at checkout

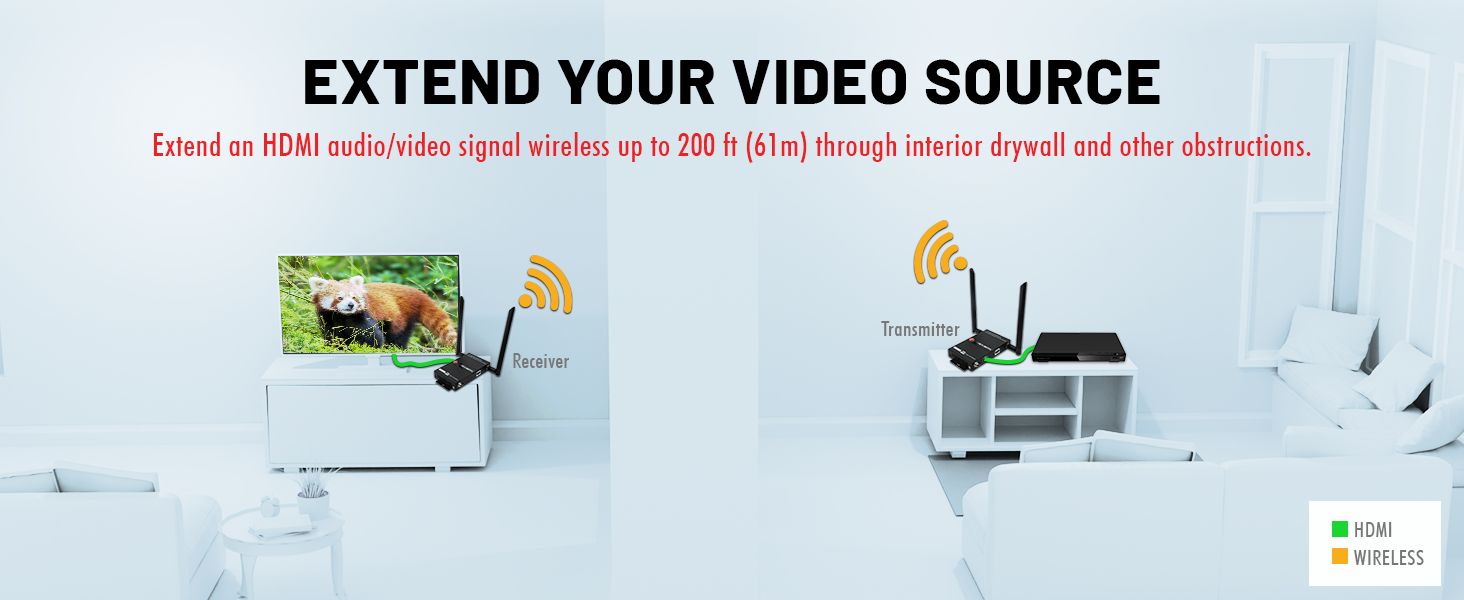

  • ✅ Amazing Video Quality Up To 200 Ft Away: JTECH-WEX200V3 is the most powerful wireless HDMI extender on the market. Extend an HDMI audio/video signal wirelessly up to 200 ft (61m) through interior drywall and other obstructions.
  • ✅ Two Receivers At Same Time: Connect one transmitter to two JTECH-WEX200V3 receivers and a local HD display simultaneously! Perfect for sharing content like movies or security systems throughout the house or business. Additional receiver sold separately.

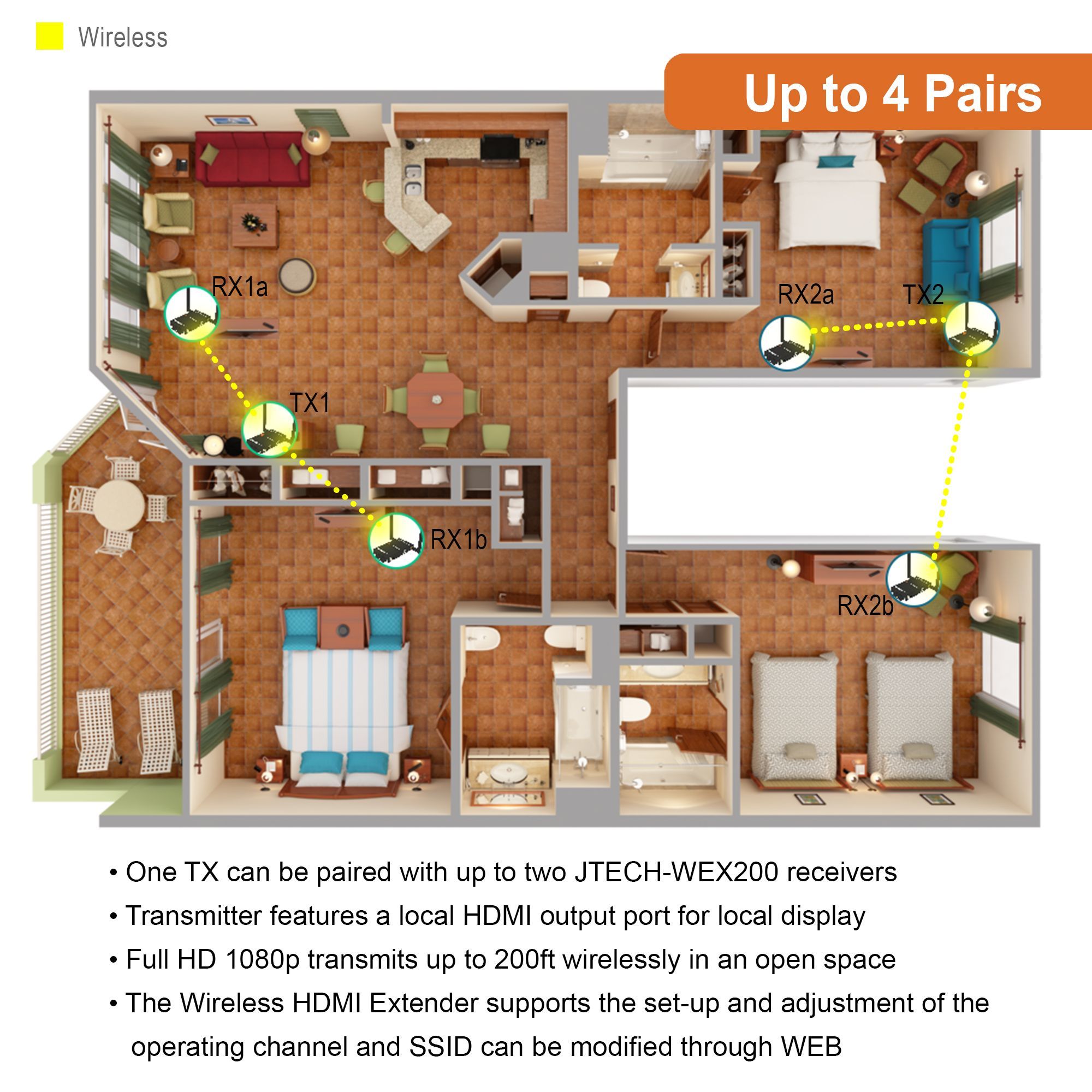

  • ✅ Up To 4 Sets In The Same Environment: Connect up to 4 independent pairs of JTECH-WEX200V3 in the same environment without interference. Users can customize both the SSID and 5GHz operating frequency of each set to allow for multiple extender sets in the same environment.
  • ✅ Variable 5GHz Frequency Selection: Avoid Wi-Fi and other wireless 5GHz interference in high-traffic wireless areas by choosing the operating channel of your JTECH-WEX200V3 set. Users can now access the JTECH-WEX200V3’s web interface to customize SSID, operating channels, & more.
  • ✅ 0.1-0.3 Seconds Delay/Latency: Good for video playback. NOT for real-time shooting or PC gaming.

Overnight shipping*:

Two days shipping:

Availability:
In stock
SKU:
JTD-611
Model:
JTECH-WEX200V3

This innovative transmitter and receiver pair are capable of streaming full HD 1080p video with support for the latest movie content up to 200ft. away within the home, through walls and ceilings for your desired setup. The extender is greatly improved the signal stability and transmission range, unlike WHDI technology, for which loss of signal is a common issue.

The J-Tech Digital wireless extender provides full compatibility with HDMI signal up to 1080P FULL HD. The innovative 1×2 function allows you to wireless split HDMI signal to broadcast over 2 TVs. It does not require a line-of-sight placement, so you can keep your home theater devices neatly out of sight. Compared with the single antenna version, the dual antenna version has improved data transmission rate and video stability.

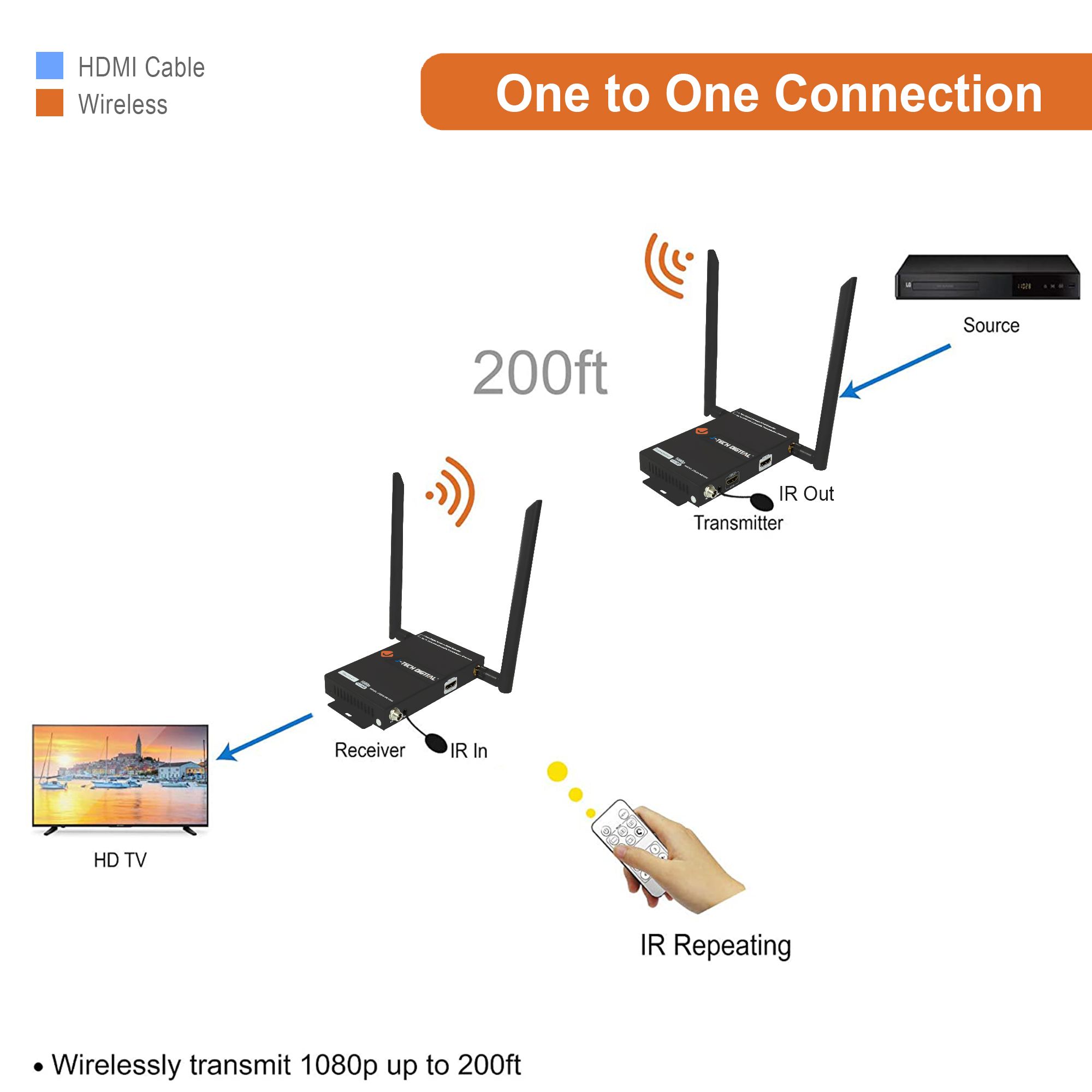

Wireless HD audio / video streaming from up to 200 feet away through standard home walls

Supports two receivers at the same time | Up to 4 pairs in the same environment

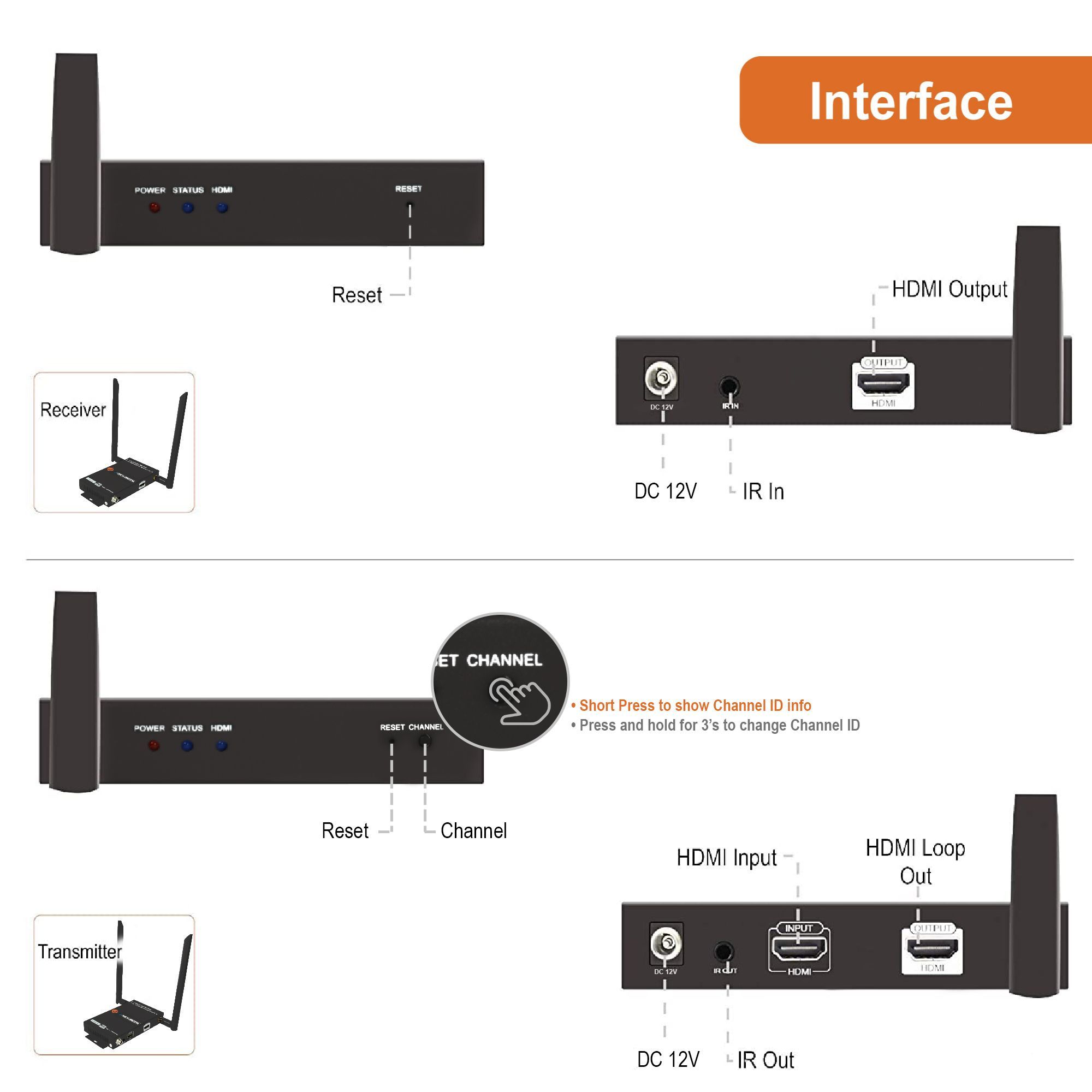

Wireless Full HD 1080P with HDMI loop output | Wi-Fi channel and SSID name can be changed.

Improved data rates and video stability | Wide frequency IR control

Lockable DC power plug design

Supports video resolutions of 480p, 720p, 1080i and 1080p

200ft Wireless HDMI Extender Kit
1080P 60Hz Wireless HDMI Extender Kit (200ft.)

Specifications

Video

Name Values
Resolution Up to 1080P@50/60Hz
Max bandwidth 225MHz
Max baud rate 6.75Gbps
Input/Output TMDS signal 0.5 ~ 1.5 Volts p-p (TTL)
Input/Output DDC signal 5 Volts p-p (TTL)
HDMI Output Cable Distance ≤12m AWG26 HDMI standard cable
Transmission Distance Up to 200ft. (in open space)
Storage Temperature Range -20°C to +60°C

Audio

Name Values
Audio Format LPCM2.0/48KHz/16Bit

General

Name Values
Antenna type External dual 3dBi gain antenna
Wireless standard IEEE 802.11a/n
Wireless Band 5GHz ISM Band
Max Data rates 2T2R up to 300Mbps
Transmit Output Power(IPEX) 20dBm Max
TX/RX Max working current 1A
Power Adapter Format Input AC 100V~240V 50HZ/60Hz, DC12A
Operating Temperature Range -5°C to + 45°C
Operating Humidity Range 10 to 90%RH (No Condensation)
Storage Humidity Range 5 to 95%RH (No Condensation)

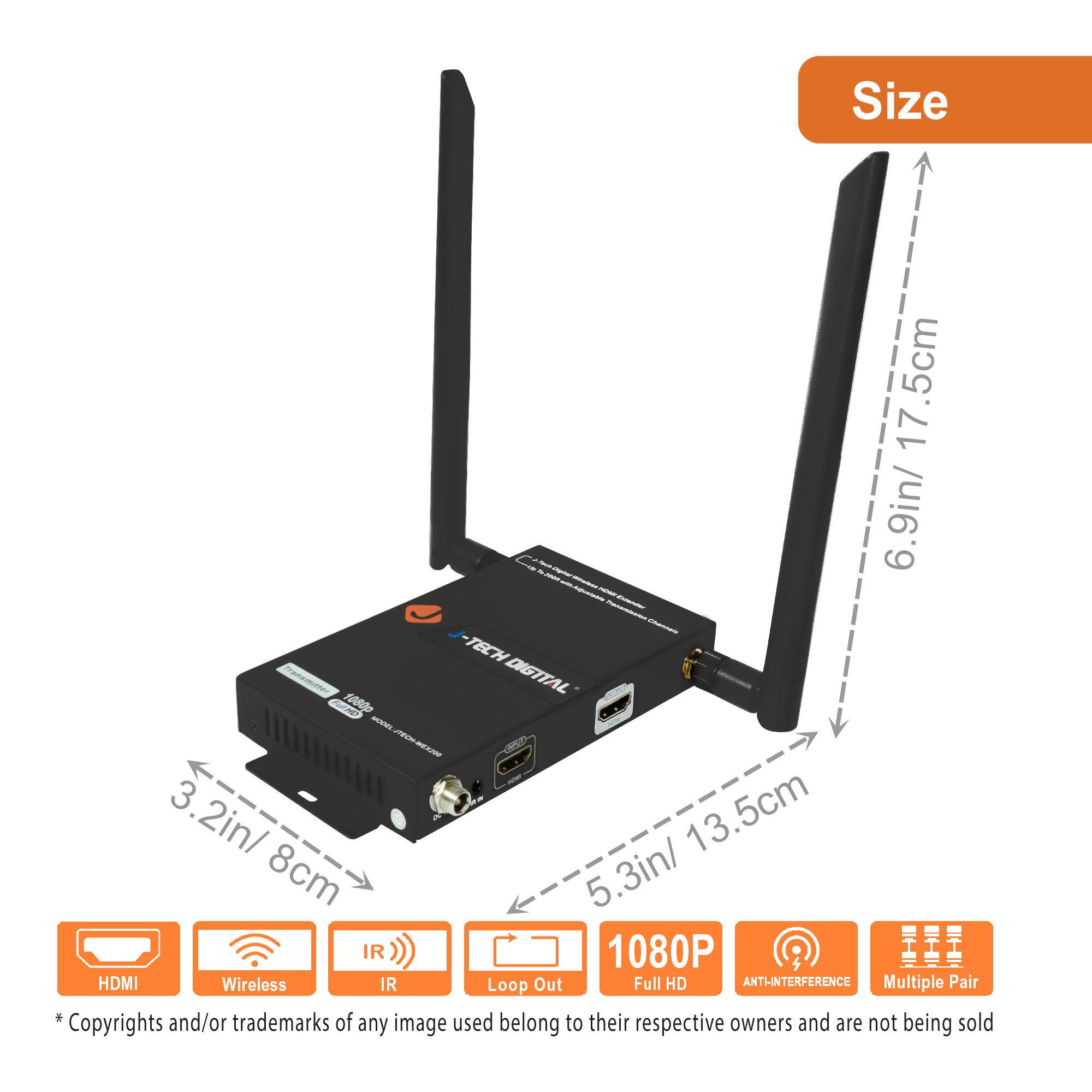

Case Dimension (L x W x H) 5 x 5 x 0.98 (in)
Weight TX .359 lbs / RX.352lbs

Communications

Name Values
IR Carrier frequency 20-60KHz

Resources & Downloads

Category Description Version File
MANUAL User Manual 1.0 jtd-611-user-manual-v1.0.pdf
FIRMWARE Firmware Update 1.0 jtd-611-firmware-update-v1.0.bin

Category: MANUAL

Description: User Manual

Version: 1.0

File: jtd-611-user-manual-v1.0.pdf

Category: FIRMWARE

Description: Firmware Update

Version: 1.0

File: jtd-611-firmware-update-v1.0.bin
