✅ 4x1 Multiviewer - 4 Inputs For HDMI Devices: Reduce the mess of cables and switch between 4 HDMI source devices to your display for seamless transitions between cable, game consoles, Blu-ray and more
-

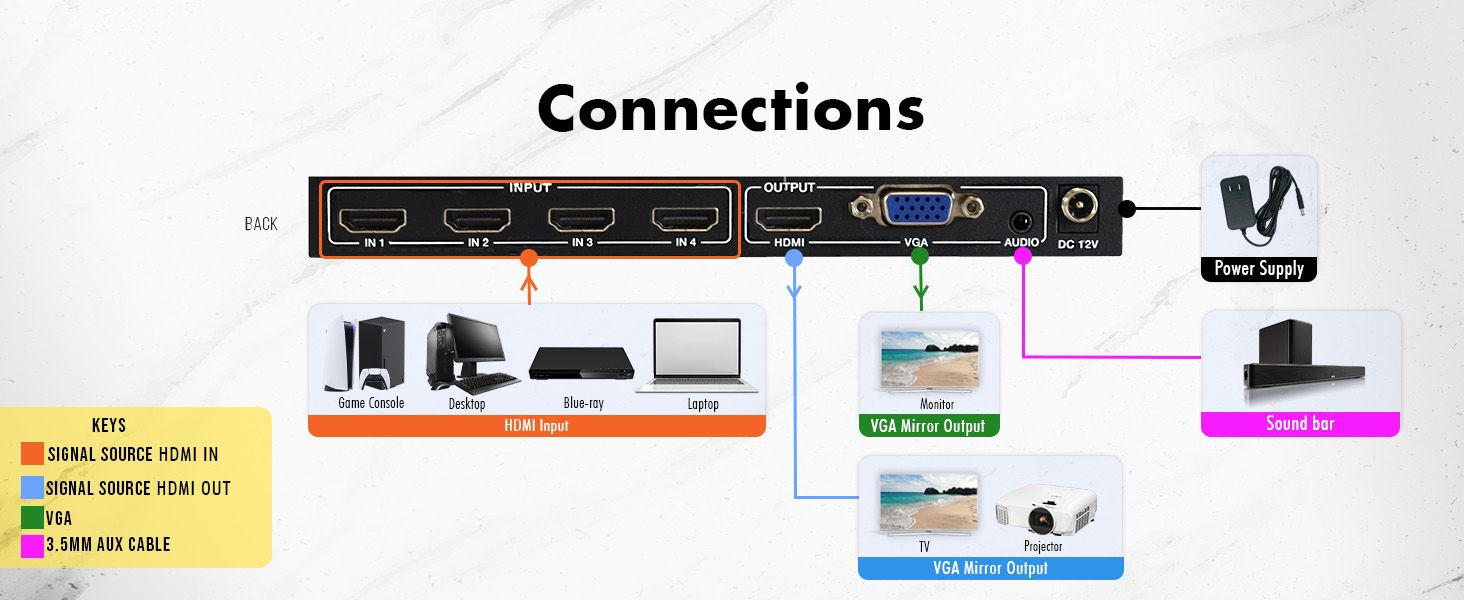

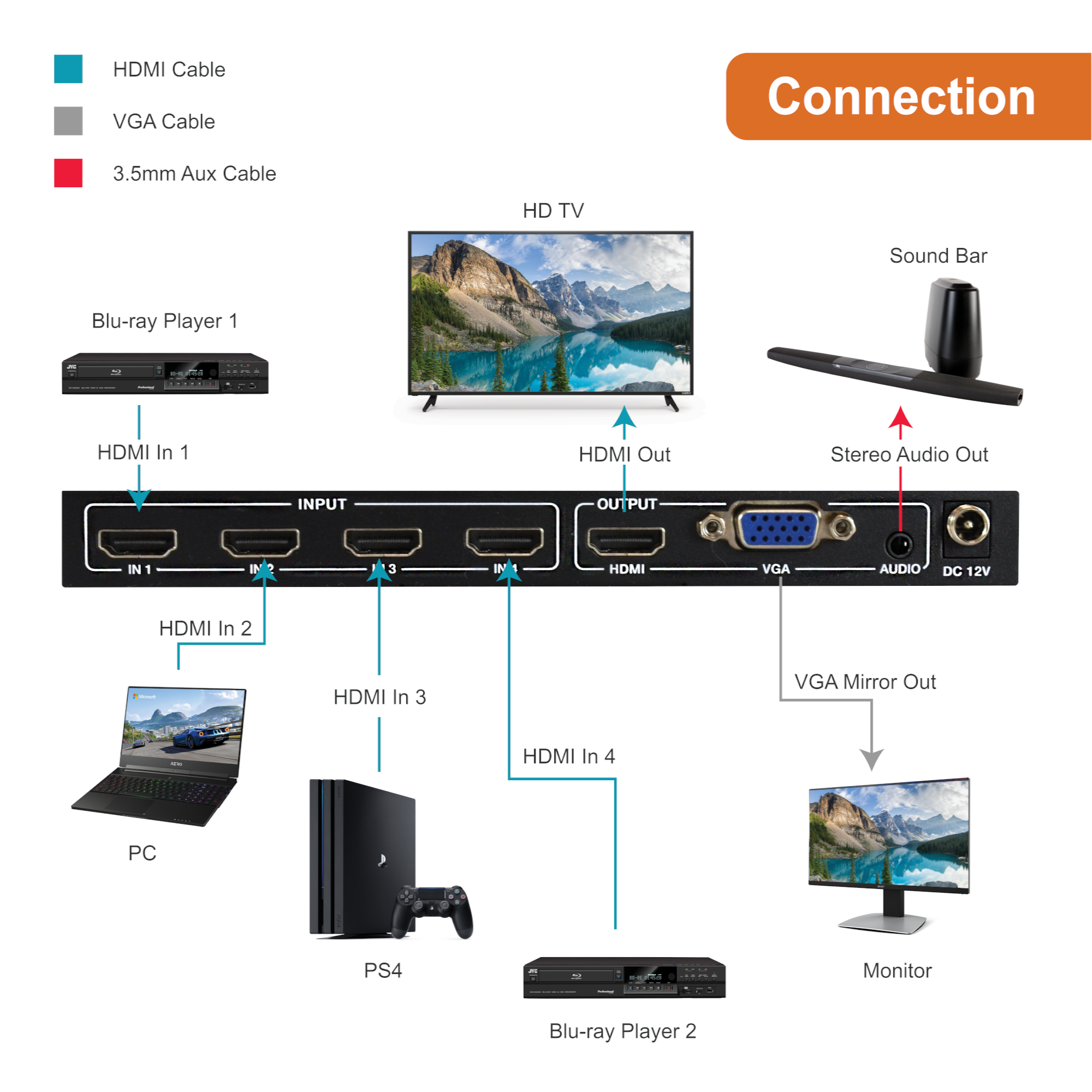

✅ Simultaneous HDMI & VGA Outputs: Utilize both the HDMI and VGA output to connect simultaneously to an HDMI display and a VGA display, with 0 latency between both videos. Experience HD video with the following supported resolutions: 1080p@60Hz, 720p@60Hz, 480p@60Hz
-

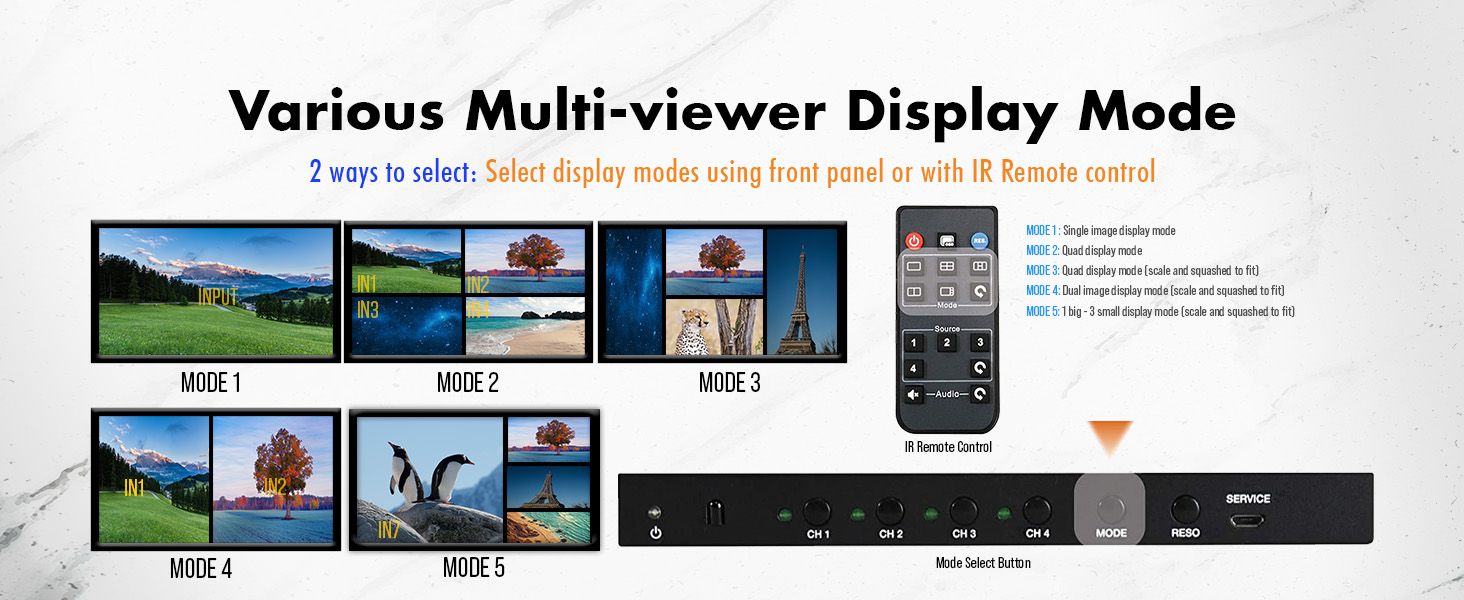

✅ 5 Different Display Modes: This switch offers multiple ways to watch your source devices, allowing you to display 1 device, 2 devices, or all 4 devices at the same time
-

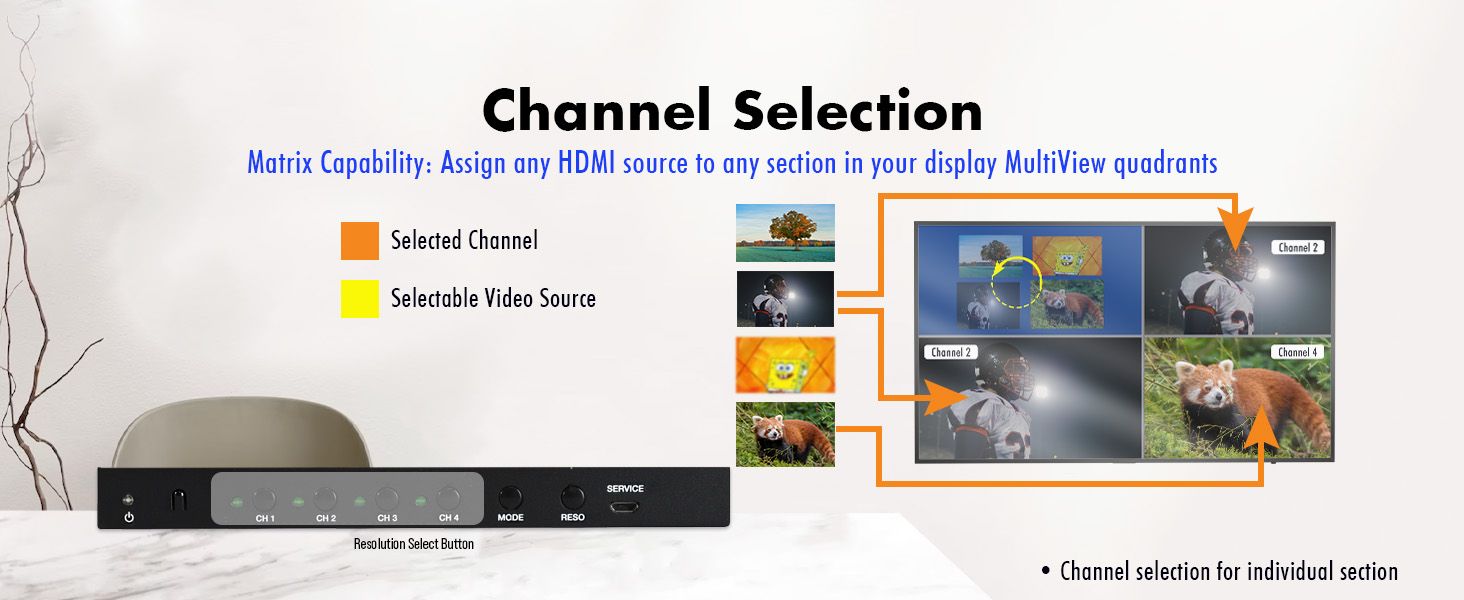

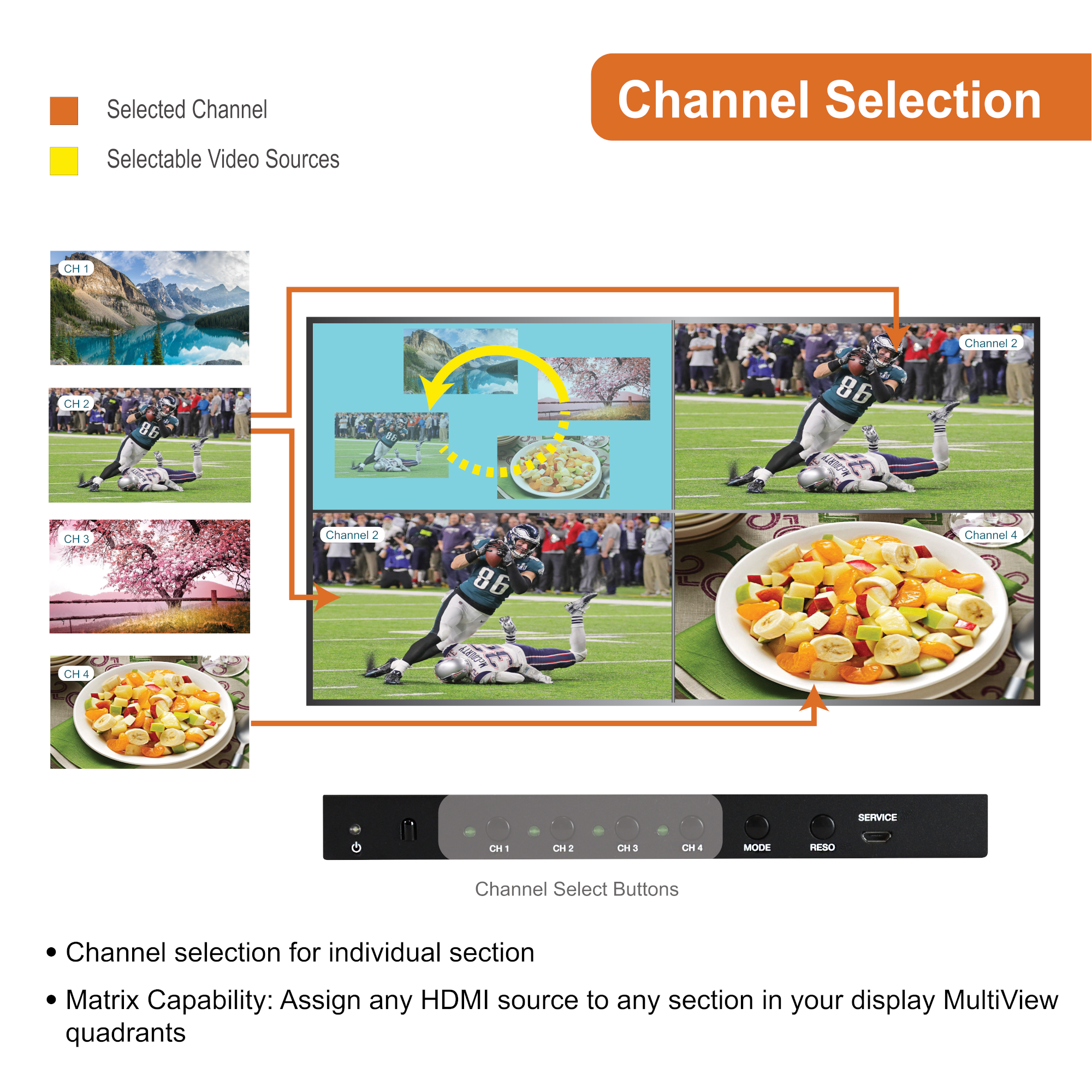

✅ Custom Multi-view Layout Control: Rearrange any of your HDMI video sources to any of the quadrants, to set the layout to your liking in all of the featured multi-view modes

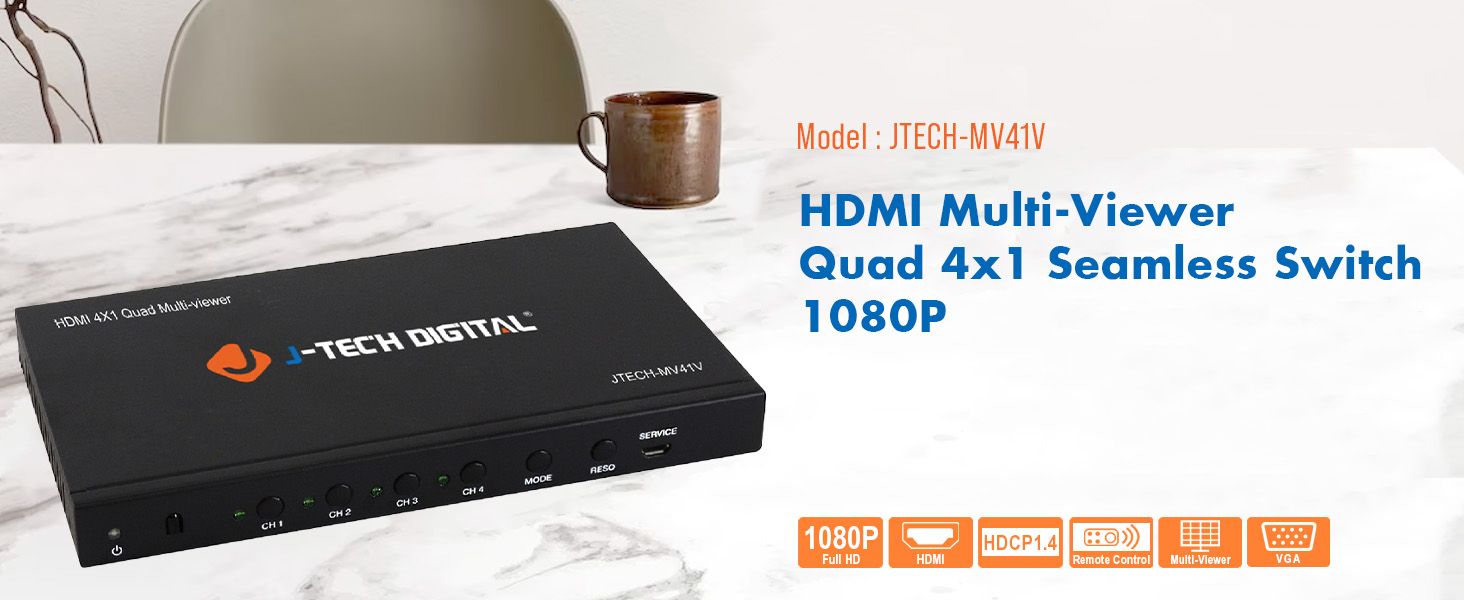

1080P 60Hz 4x1 Multiviewer with HDMI and VGA Outputs
Regular price
$89.95
Specifications
Video
| Name | Values |
|---|---|
| Inputs ports |
|
| Outputs ports |
|
| Protocols |
|
| Bandwidth | 4.95Gbps |

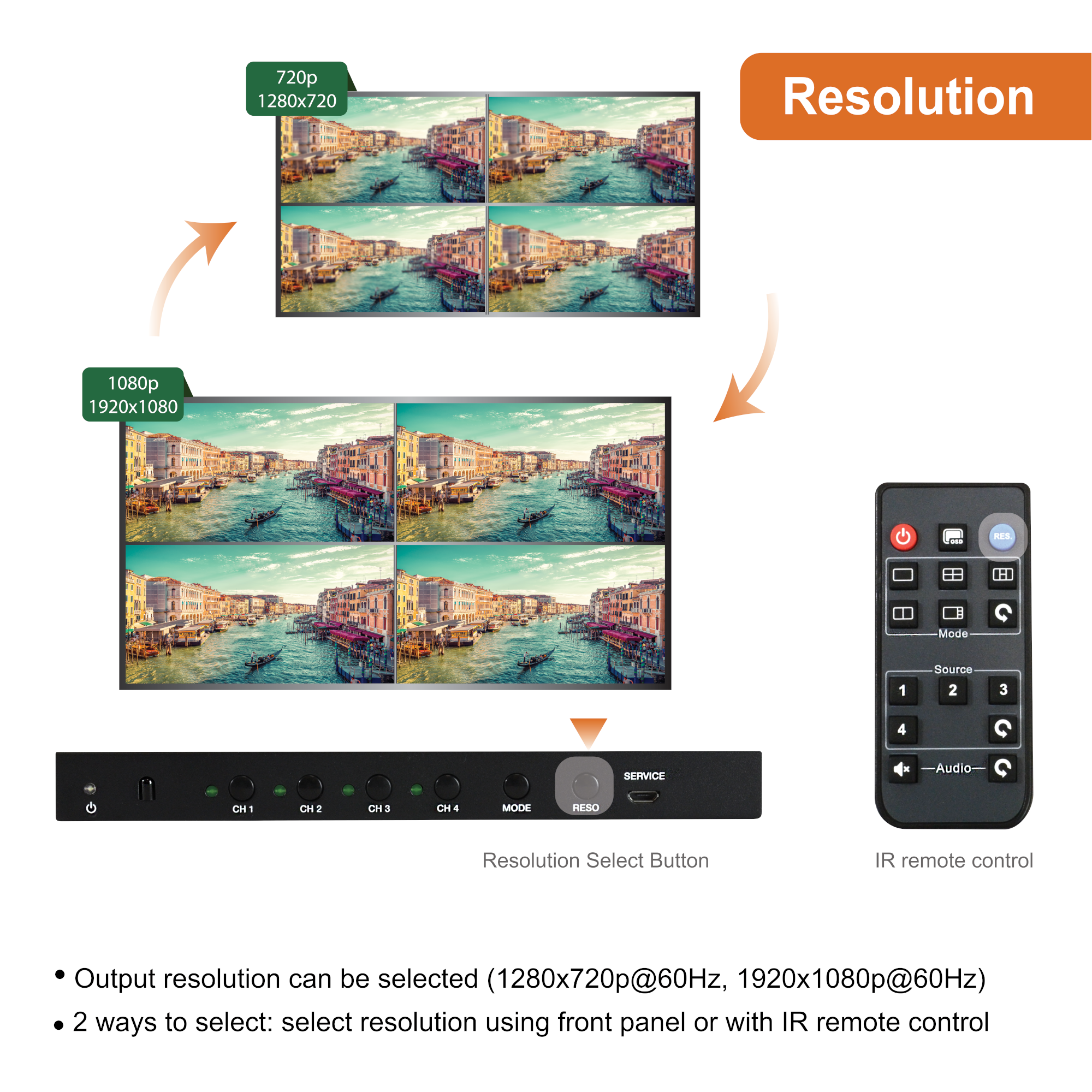

| Resolution | Up to 1920×1080P@60Hz |
| Color Depth | 8-bit |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
| Power Supply | Input: AC100~240V 50/60Hz, Output: DC12V/1A (US/EU standards, CE/FCC/UL certified) |
Audio
| Name | Values |
|---|---|
| Analog Audio Formats | LPCM2.0 44.1KHz 48KHz |
General
| Name | Values |
|---|---|
| Housing | Metal Enclosure |

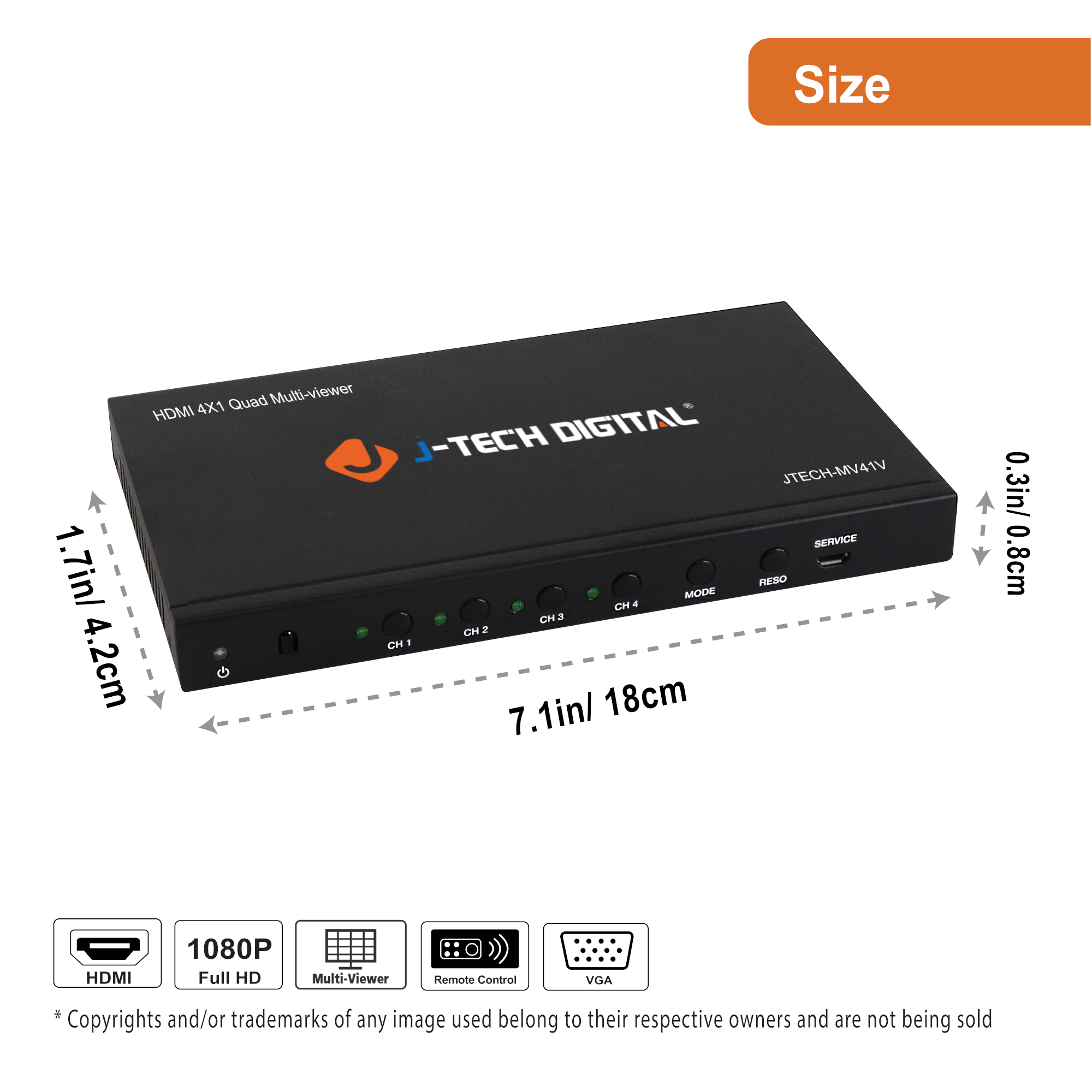

| Dimensions |
|
| Weight | 1.10lbs |
| Power Consumption | 5.28W (max) |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20~90% RH (non-condensing) |
Resources & Downloads
| Category | Description | Version | File |
|---|---|---|---|
| MANUAL | User Manual | 1.0 | jtd-440-user-manual-v1.0.pdf |
| COMMAND_LIST | IR Codes | 1.0 | jtd-440-ir-codes-v1.0.docx |
| FIRMWARE | Firmware to Remove OSD | 1.0 | jtd-440-firmware-to-remove-osd-v1.0.zip |
