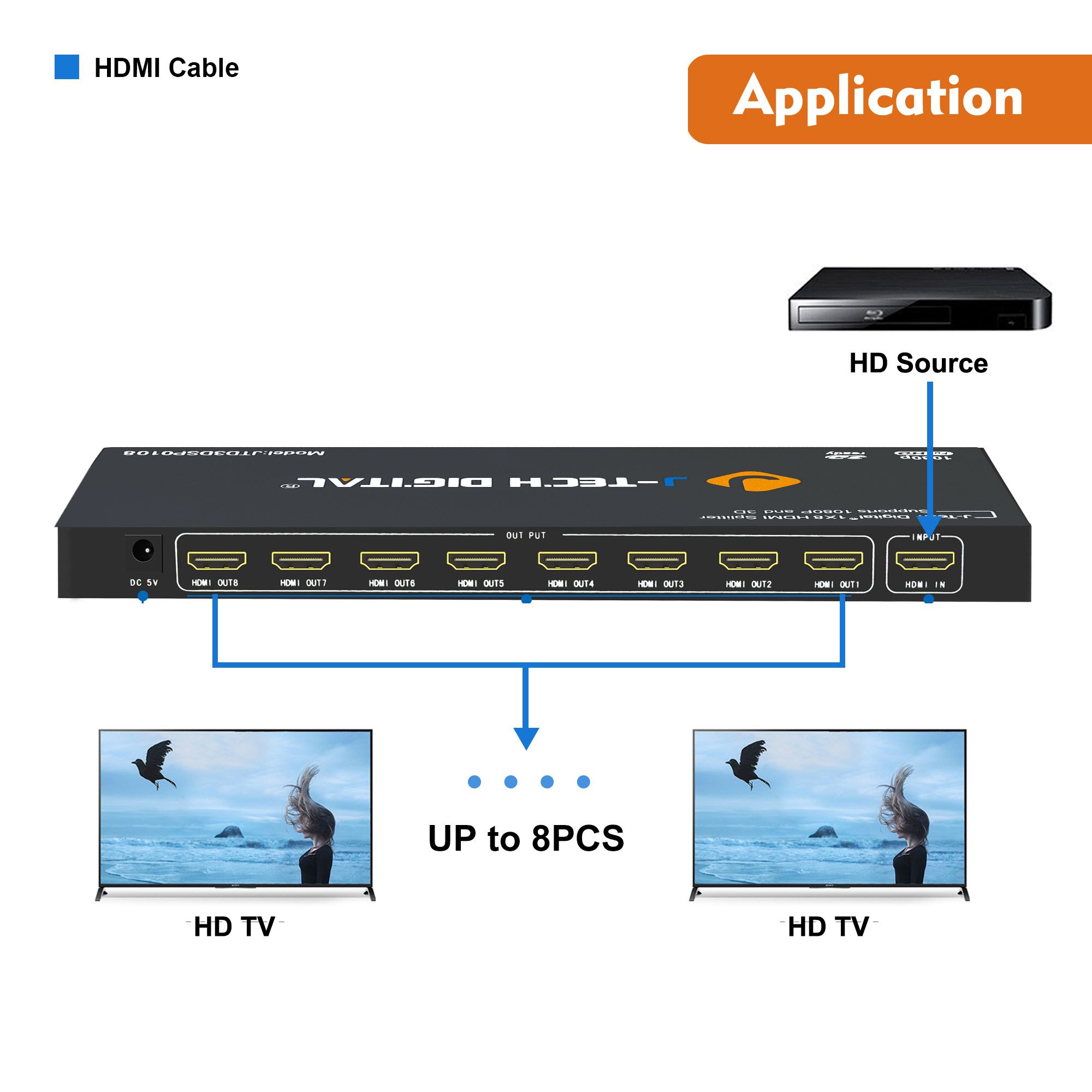

✅ 1 Input Source to 8 HDMI Displays: Connect 1 HDMI v.1.3 source device, such as a cable box, output signal to 8 compatible HDMI v.1.3 displays
-
✅ HDCP 1.2 Compliant: Full HD 1080P resolution with 3D capabilities, also compatible with lower resolutions such as 1080i, 720P, 576P, 576i, 480P and 480i
-
✅ HD Audio Formats Supported: Experience high quality Digital Audio with the following supported formats: AC3/Dolby Digital, DTS, DTS-HD, DSD, Dolby-True-H, LPCM 7.1
-
✅ Supports Deep Color: See more realistic colors on your display with 36-bit color depth and xvYCC color space
1080P 60Hz 1x8 HDMI Splitter – Distribute Full HD Signal to 8 Displays
Regular price
$42.99
Specifications
General
| Name | Values |
|---|---|
| HDMI connector Type | HDMI Type A 19-Pin Female |
| HDMI Version | HDMI Ver 1.3b |
| Power Adapter | Input – AC(50/60Hz) 100V-240V; Output – DC 5V/2A |
Video
| Name | Values |
|---|---|
| HDMI Resolution | 1080p/1080i/720p/576p/576i/480p/480i/3D Video |
| Color Format | Xv-YCC/Deep Color 36-Bit |
Audio
| Name | Values |
|---|---|
| Refresh Rate | 30/60Hz |
| Audio Formats | PCM/Dolby Digital/DTS/DTS-HD Master Audio/Dolby True-HD |
Resources & Downloads
| Category | Description | Version | File |
|---|---|---|---|
| MANUAL | User Manual | 1.0 | jtd-100-user-manual-v1.0.pdf |
