1080P 60Hz HDBaseT HDMI Extender Balun Over Ethernet (492ft)

Regular price $152.99

Shipping calculated at checkout

JTD-223

Specifications

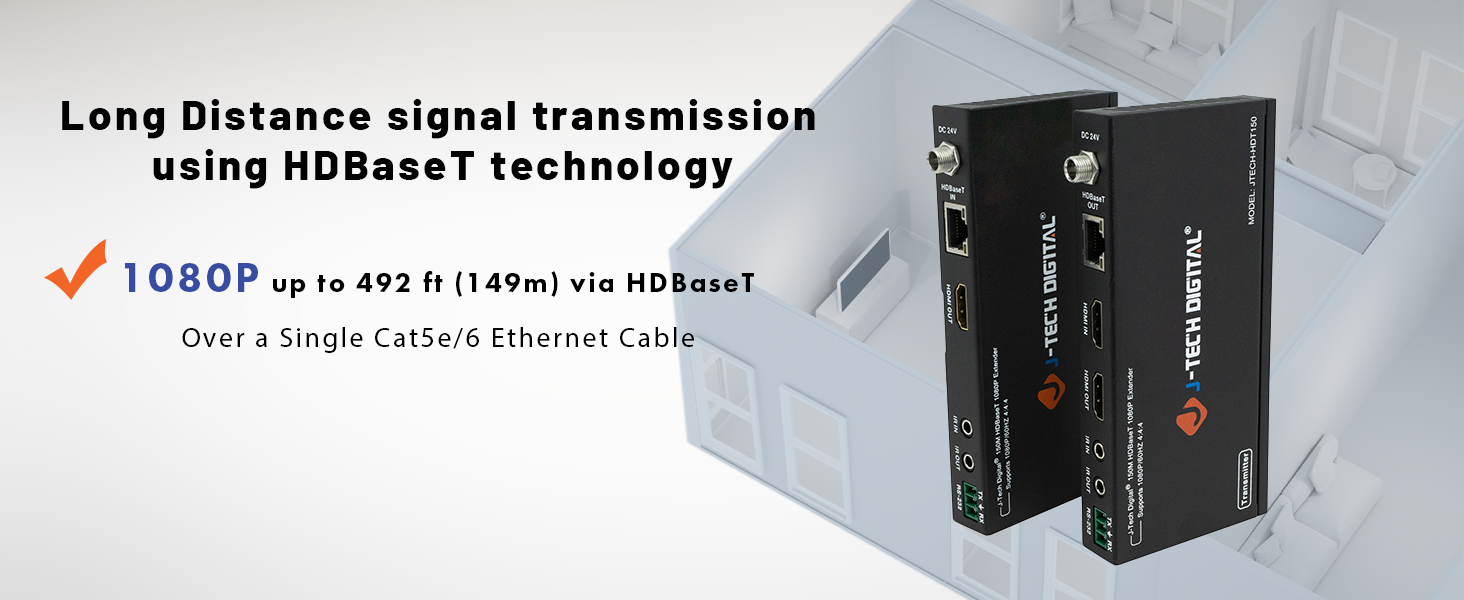

  • ✅ Extend Your HDMI Signal Over Ethernet: Extend your 1080P HDMI signal up to 500 feet (150 meters) over Cat5e/6 UTP cable using the latest HDBaseT transmission technology with this HDBaseT HDMI extender.

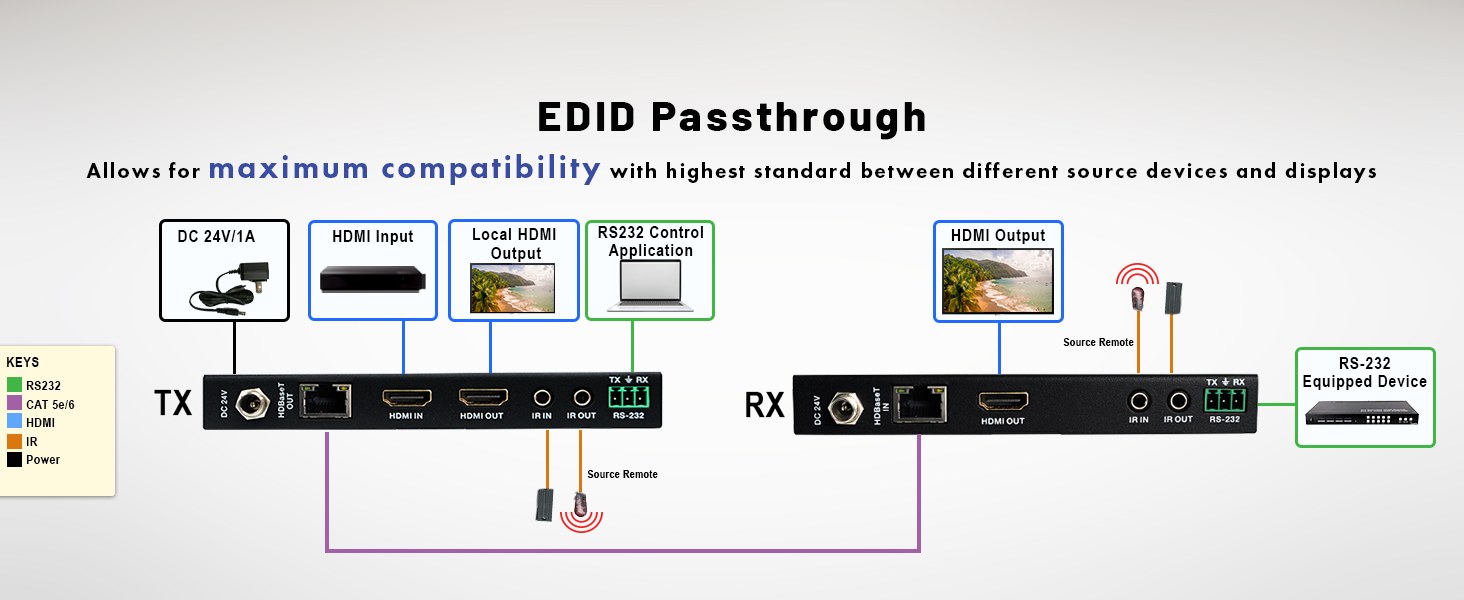

  • ✅ Bi-Directional PoC & EDID Pass-Through: Power is only required one end of the JTECH-HDT150, and with the Bi-Directional PoC feature, you can set the power on either the transmitter OR receiver, for maximum convenience. EDID pass-through settings also make for a quick and easy set up allowing you to experience audio and video in the highest settings possible based on the capabilities of your display.

  • ✅ Bi-Directional IR & CEC, RS232 Pass-Through: Control your source from your display/receiver side, or vice-versa with through Bi-Directional IR, source devices and displays can be turned on and off with the JTECH-HDT150 through supported CEC commands, and pass RS-232 commands from a computer to your source and display with a Phoenix jack.

  • ✅ Digital Audio Format Support: The JTECH-HDT150 also supports many HD audio formats, including Dolby Digital, Dolby TrueHD, DTS 5.1, and PCM

HDBaseT HDMI Extender Balun for 1080P signal up to 500 feet
1080P 60Hz HDBaseT HDMI Extender Balun Over Ethernet (492ft)

Specifications

Video

Name Values
Ports

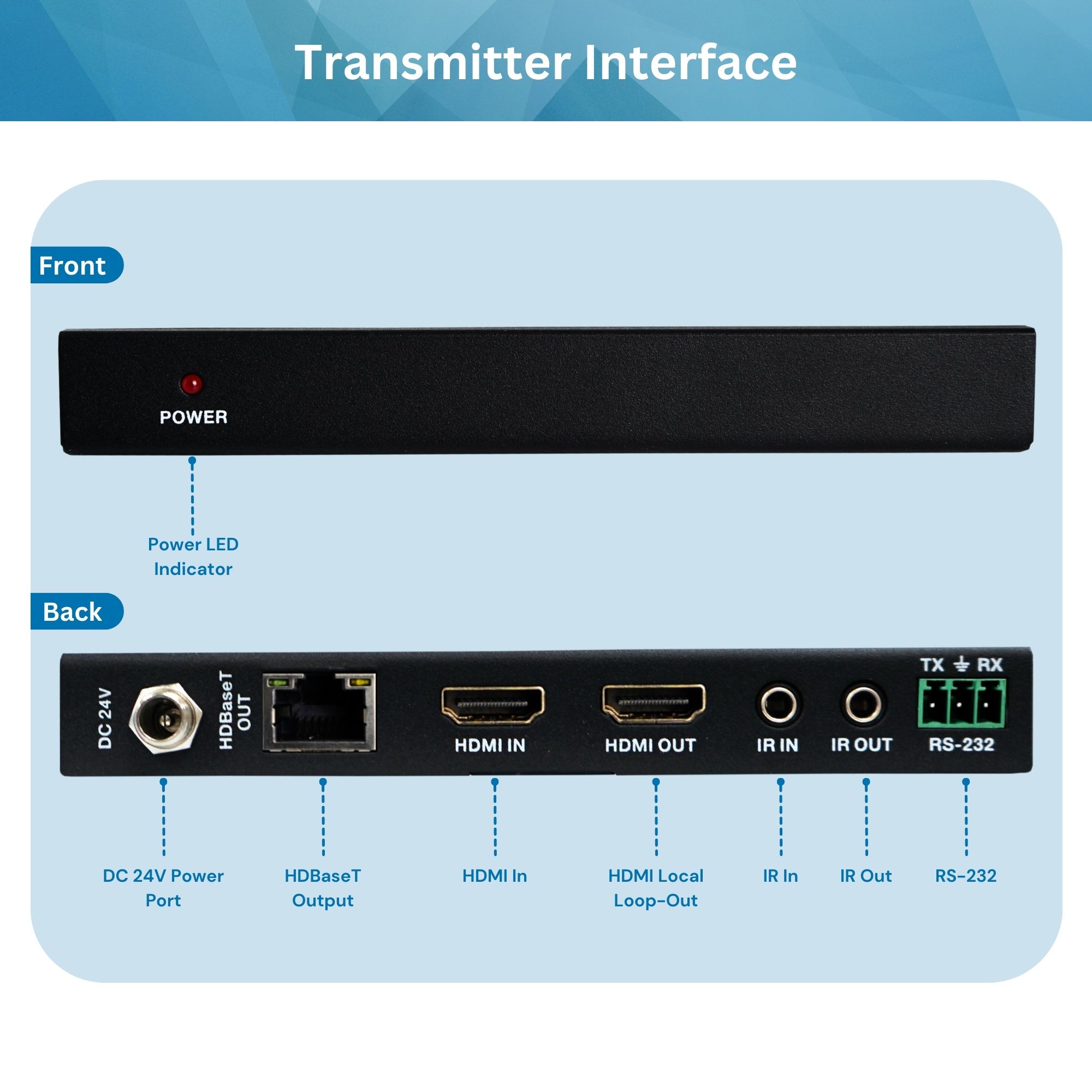

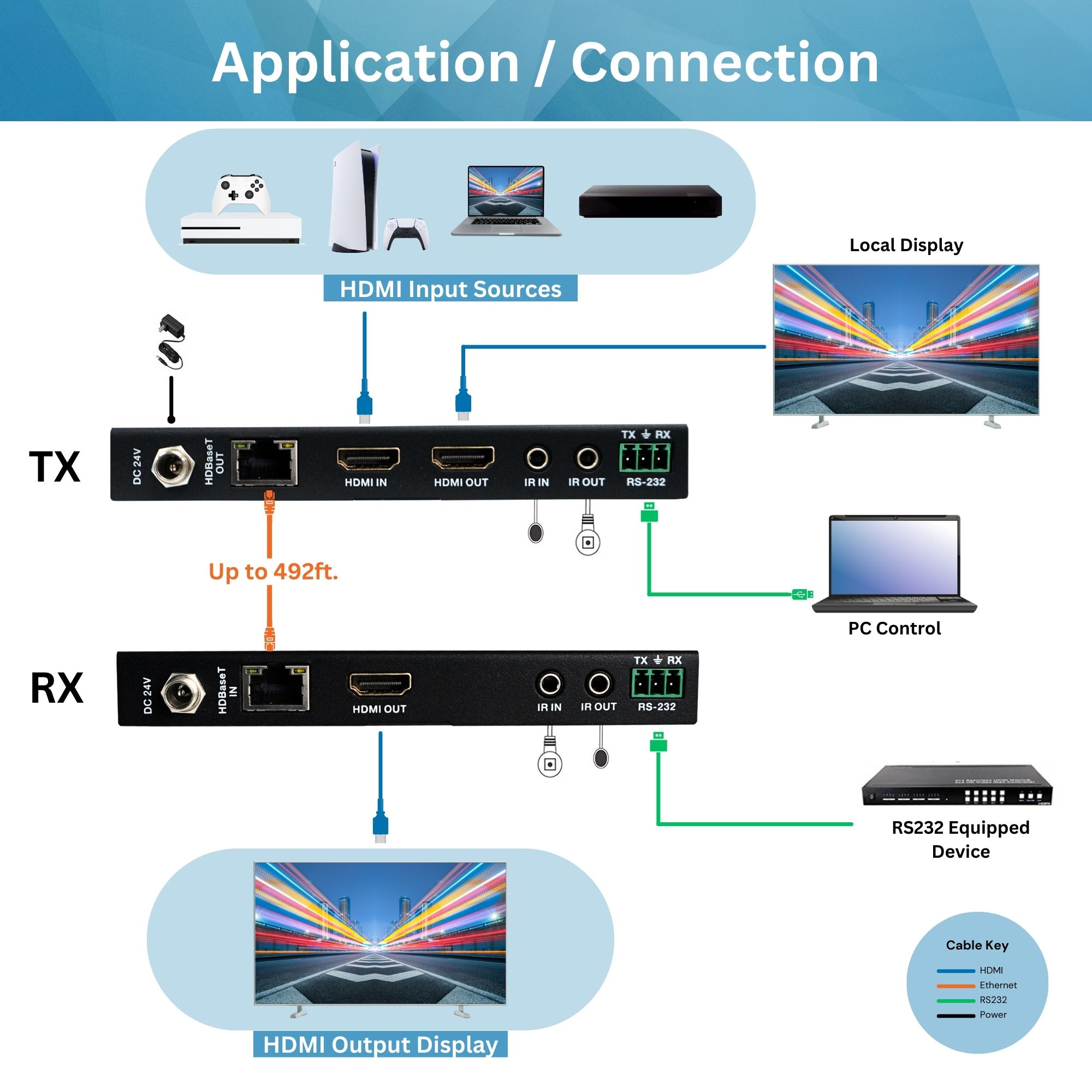

  • Transmitter: 1 x HDMI Input | 1 x HDBaseT Out | 1 x IR (3.5mm Stereo Mini-jack) | 1 x RS232 (Phoenix)

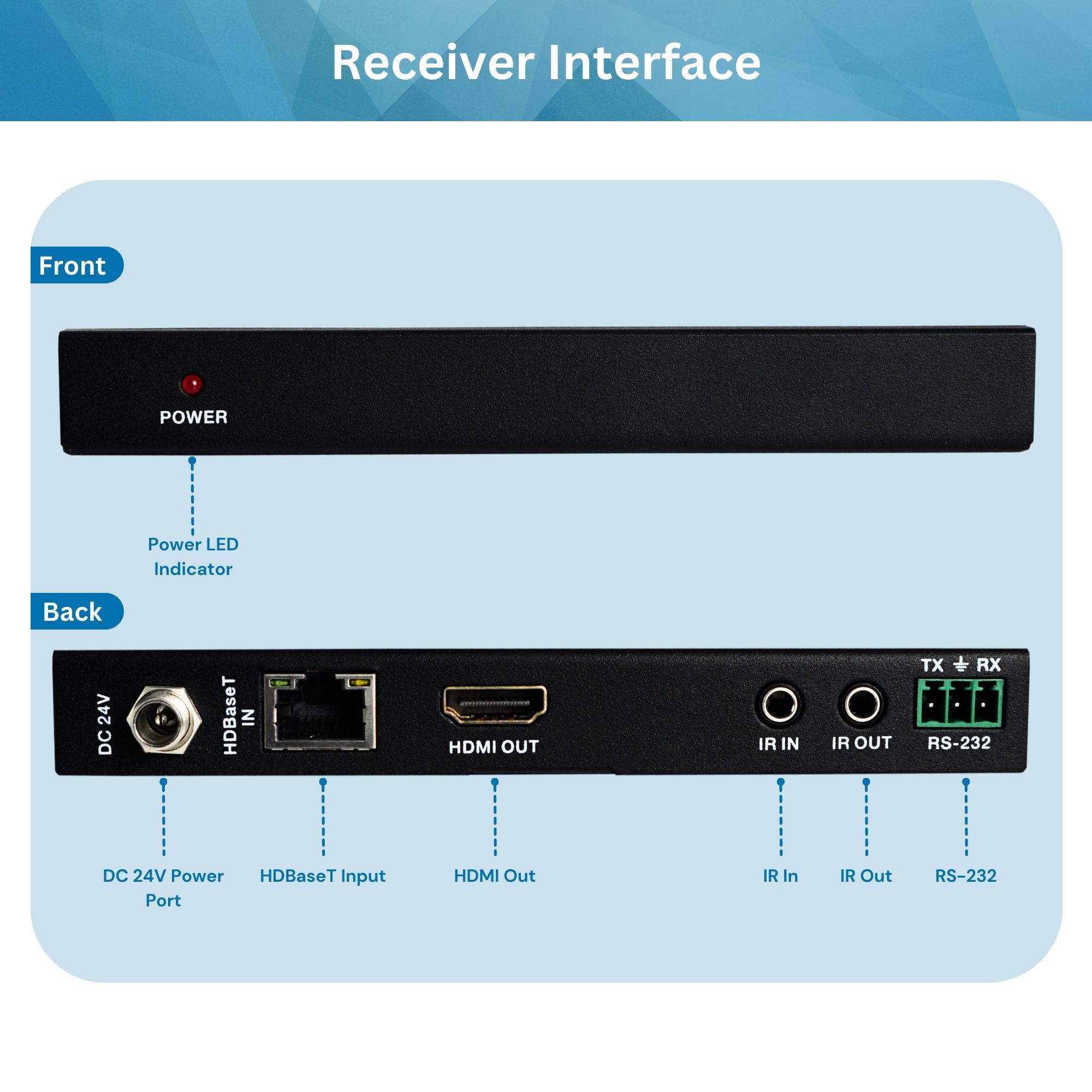

  • Receiver: 1 x HDMI Out | 1 x HDBaseT In | 1 x IR (3.5mm Stereo Mini-jack) | 1 x RS232 (Phoenix)
Video Protocols
  • HDMI 1.4
  • HDCP 1.4
Transmission Distance 492ft. Over Single CAT5e/6
Video Bandwidth 225MHz
Resolution Up To 1080P 60Hz YUV 4:4:4, RGB 4:4:4
Color Space RGB, YUV 4:4:$, YUV 4:2:2
Color Depth 8-bit

Audio

Name Values
Audio Format Support LPCM 2/5.1/7.1Ch, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X

General

Name Values
Housing Metal Enclosure

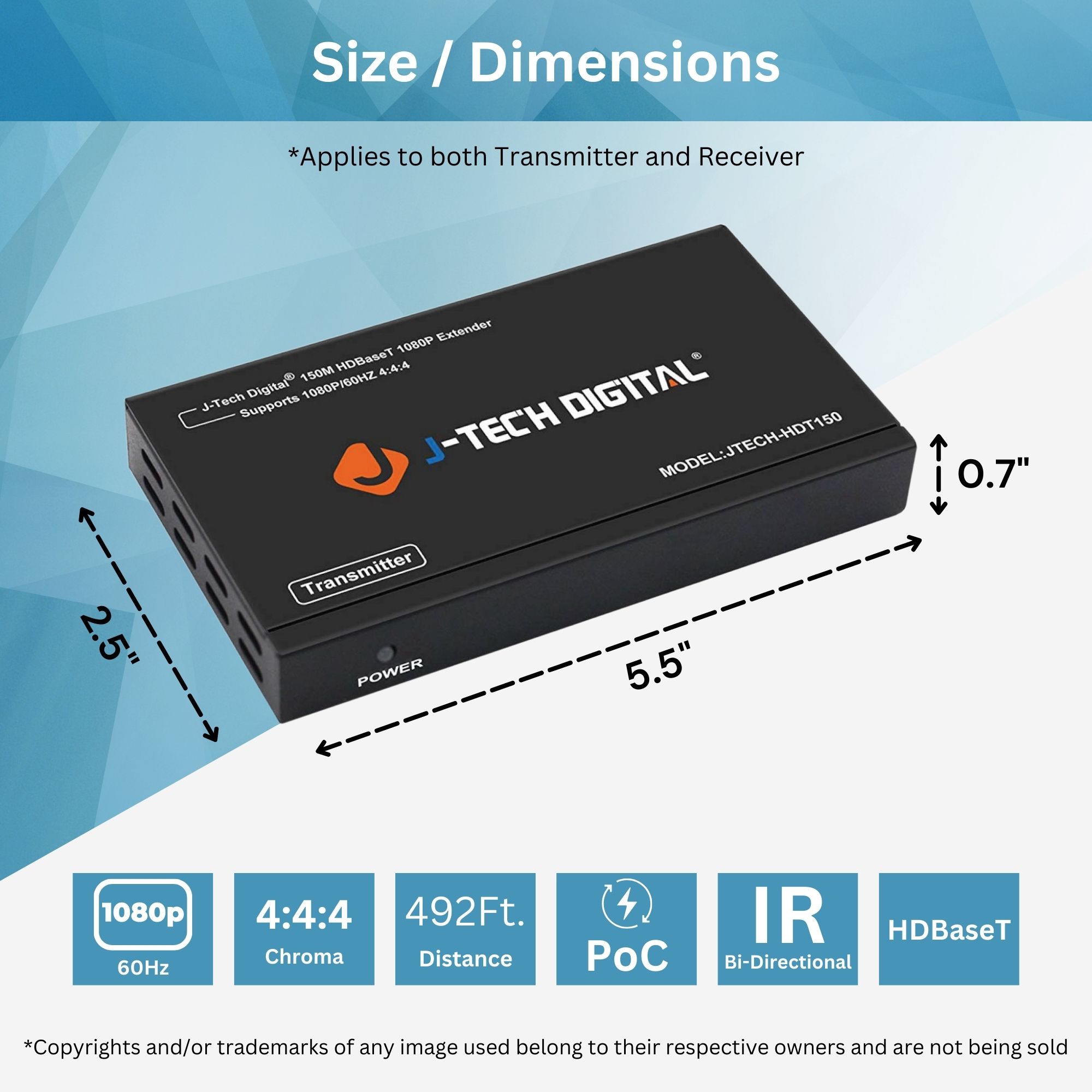

Dimensions (WxDxH)
  • 115mm x 64.7mm x 17mm
  • 4.53" x 2.55" x 0.67"
Weight 0.90lbs
Power Supply
  • Input: AC100 - 240V 50/60Hz
  • Output: DC 5V/1a
Power Consumption 5.76W (Max)
Operation Temperature 0° ~ 40°C
Storage Temperature -20°C ~ 60°C
Relative Humidity 20 - 90% RH (No Condensation)

Resources & Downloads

Category Description Version File
MANUAL User Manual 1.0 jtd-223-user-manual-v1.0.pdf
