4K 30Hz 4x1 Quad HDMI Multiviewer, Seamless Switcher with Audio Extraction

Regular price $76.99

Shipping calculated at checkout

  • ✅ Quad HDMI Multiviewer & Seamless Switcher: Supports viewing up to 4 HDMI sources on a single display. This 4K HDMI quad multiviewer and switcher also features seamless switching between source devices—no black screen or delay when switching from one source to another.

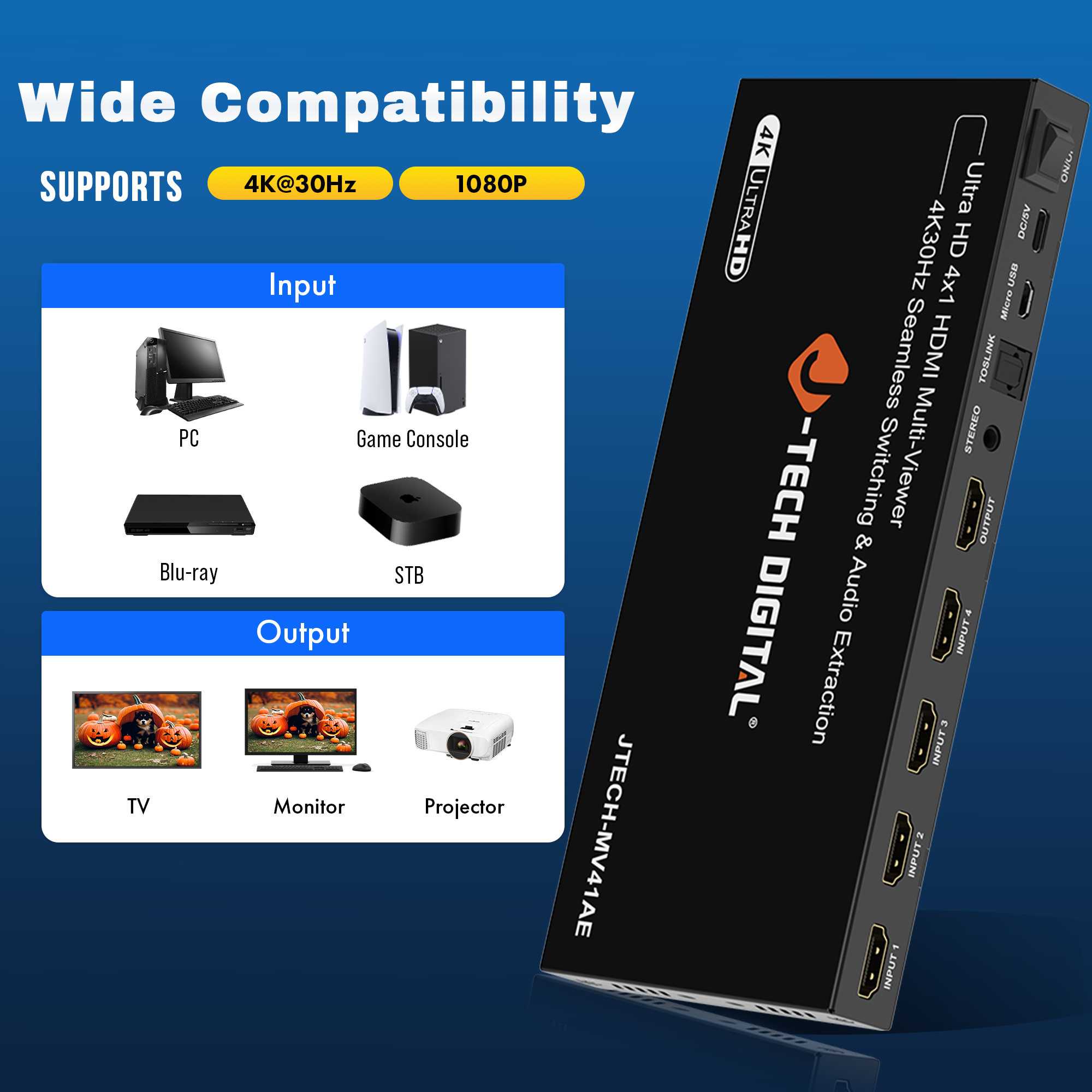

  • ✅ 4K@30Hz Resolution Support: This 4x1 HDMI multiviewer supports up to 4K@30Hz resolution and is compatible with gaming consoles (Xbox, PlayStation, Nintendo, etc.), security systems, and media players (Roku, Apple TV, Chromecast

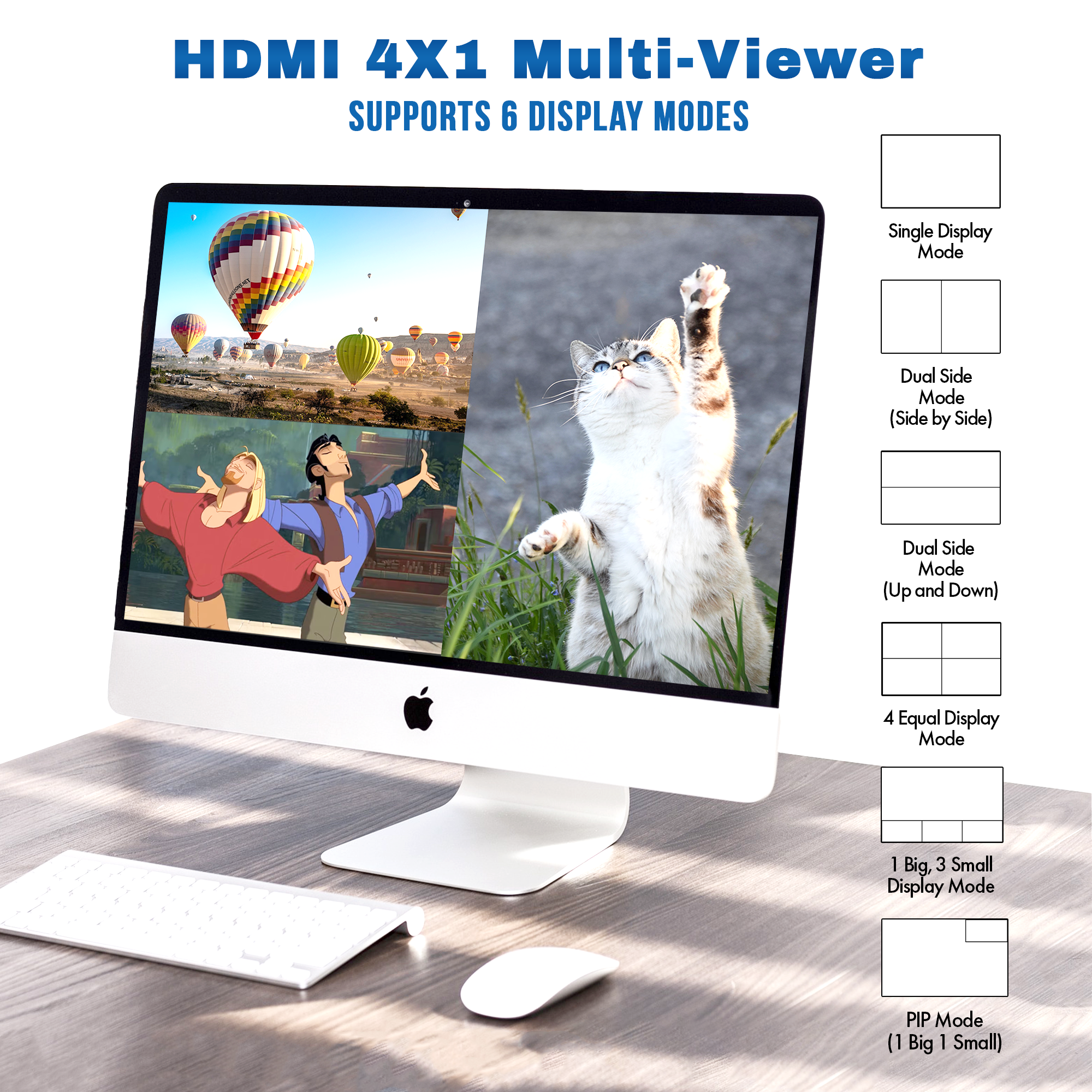

  • ✅ 6 Different Viewing Modes with PiP Function: View all connected source devices on a single display using the HDMI quad multiviewer’s built-in 6 viewing modes. Also features a customizable Picture-in-Picture (PiP) function.

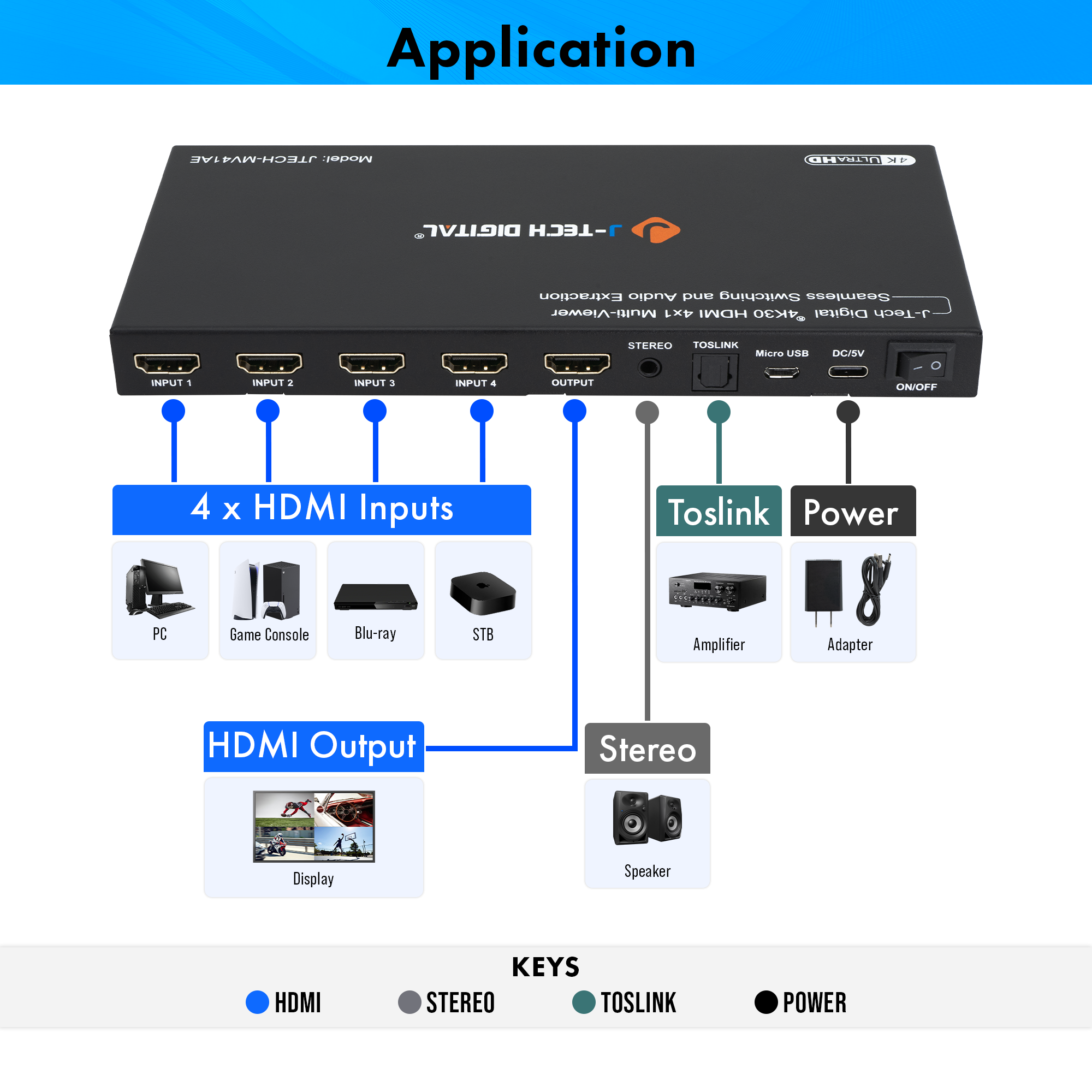

  • ✅ Audio Extraction via Optical and 3.5mm: Extract audio from any of the incoming HDMI signals to an external sound system using the multiviewer’s optical or 3.5mm audio outputs. Offers flexible control via remote control, front panel buttons, or RS232.

Overnight shipping*:

Two days shipping:

Availability:
In stock
SKU:
JTD-3185
Model:
JTECH-MV41AE

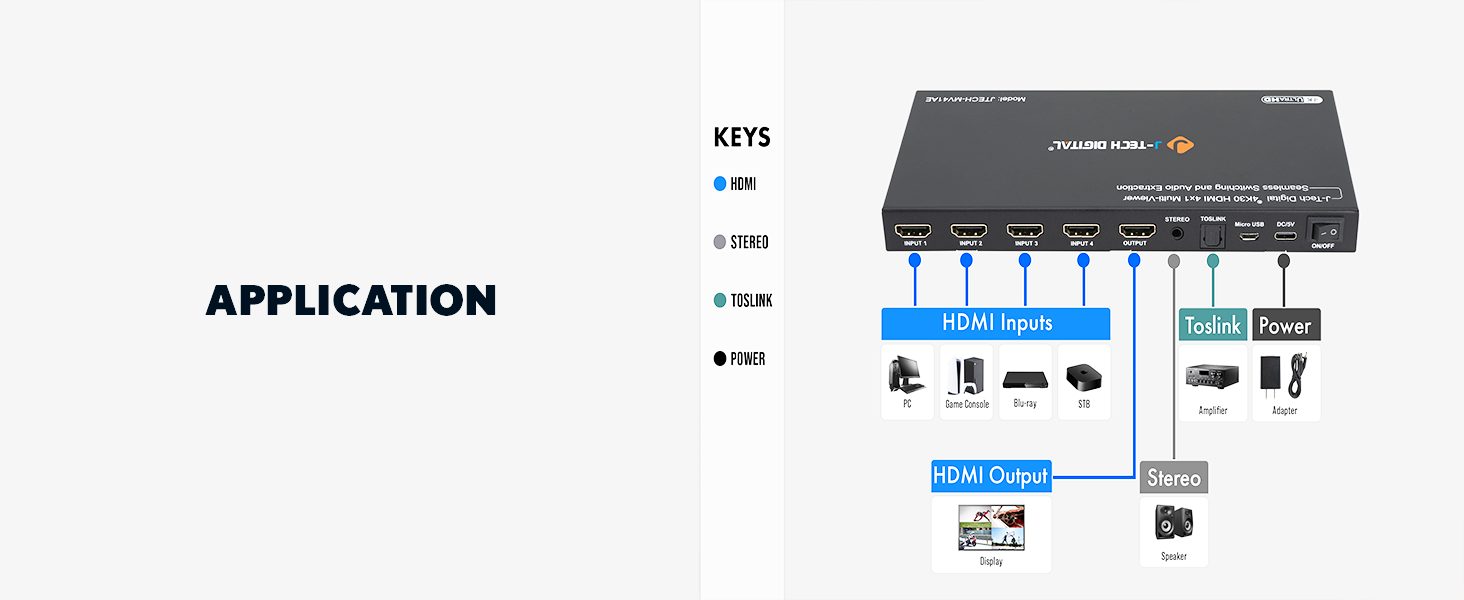

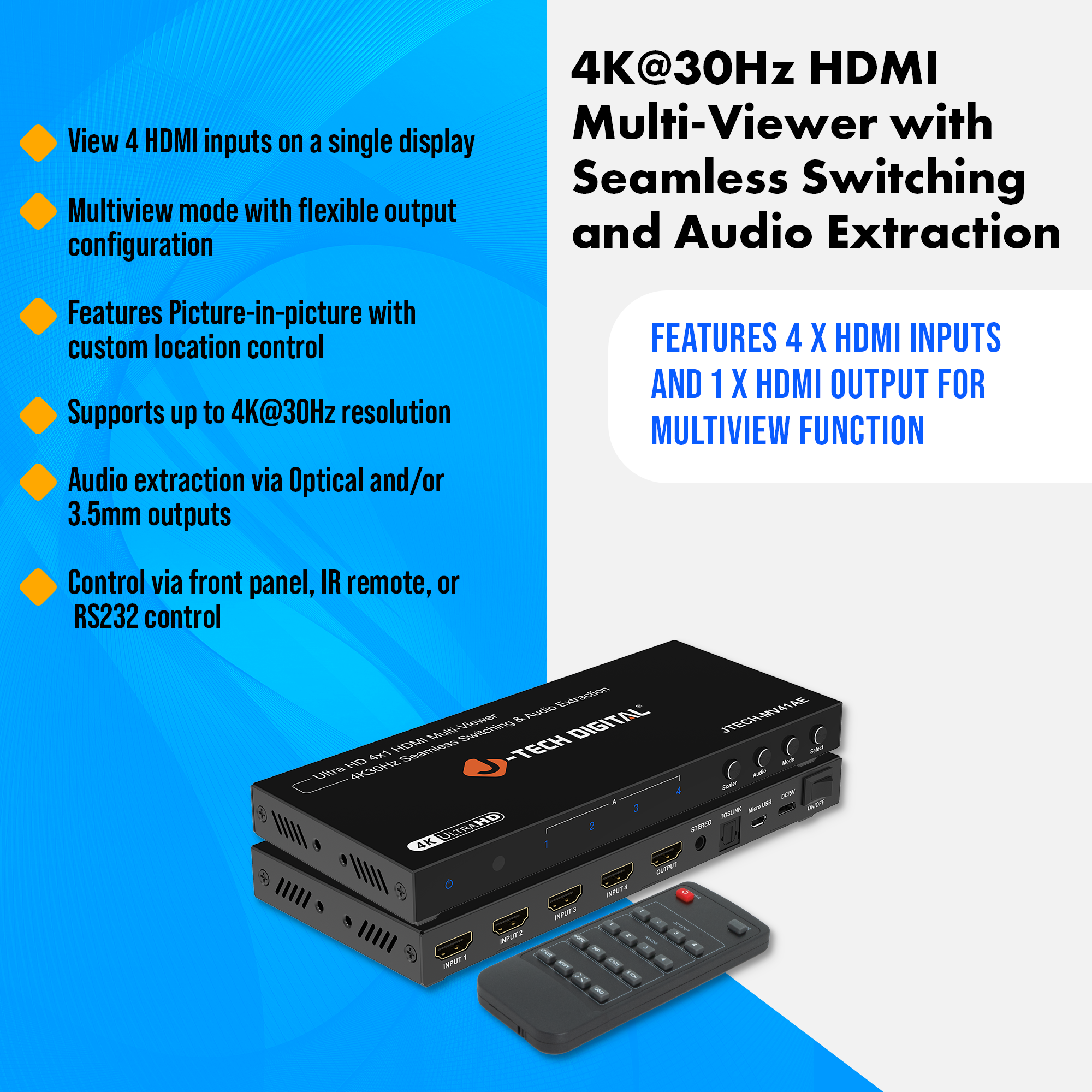

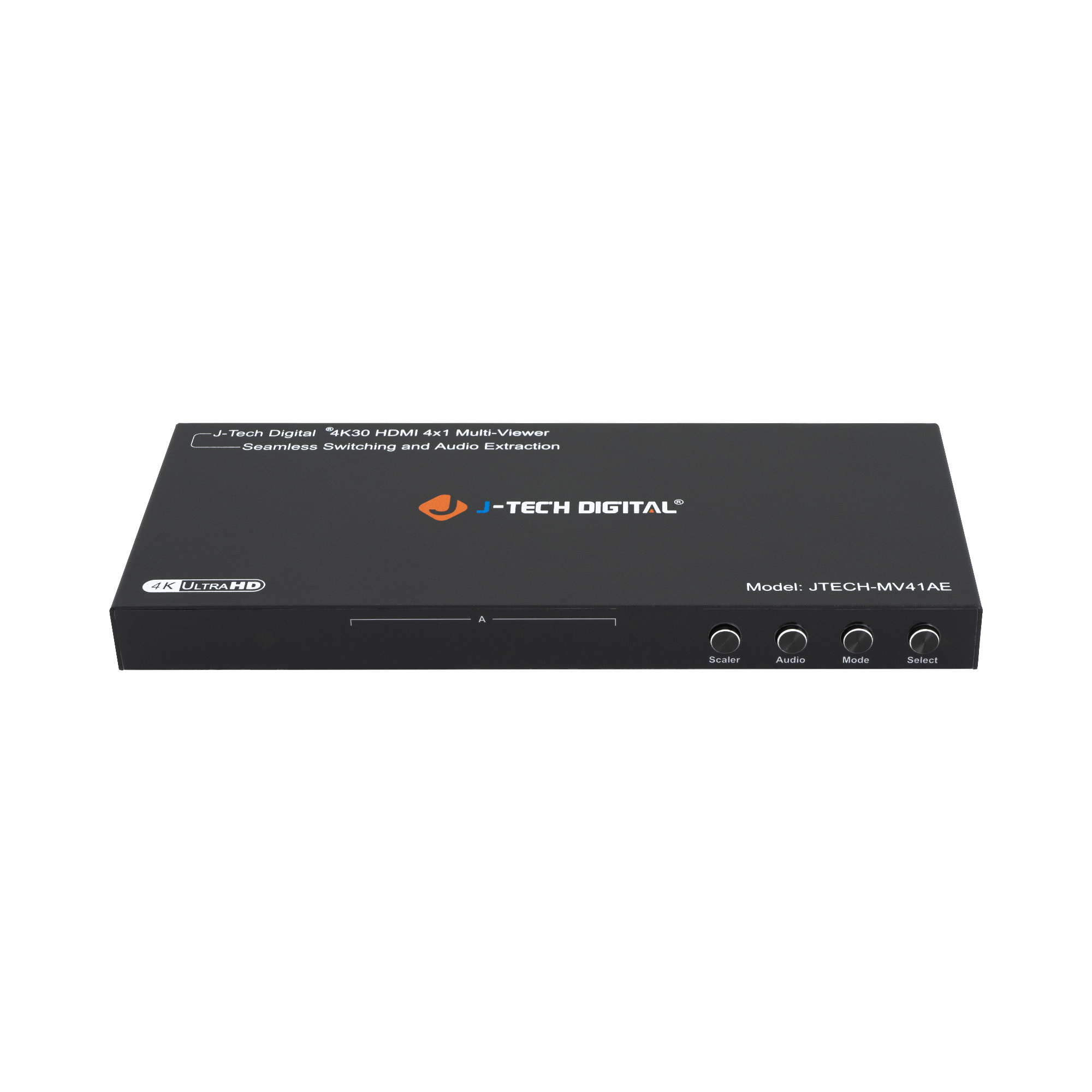

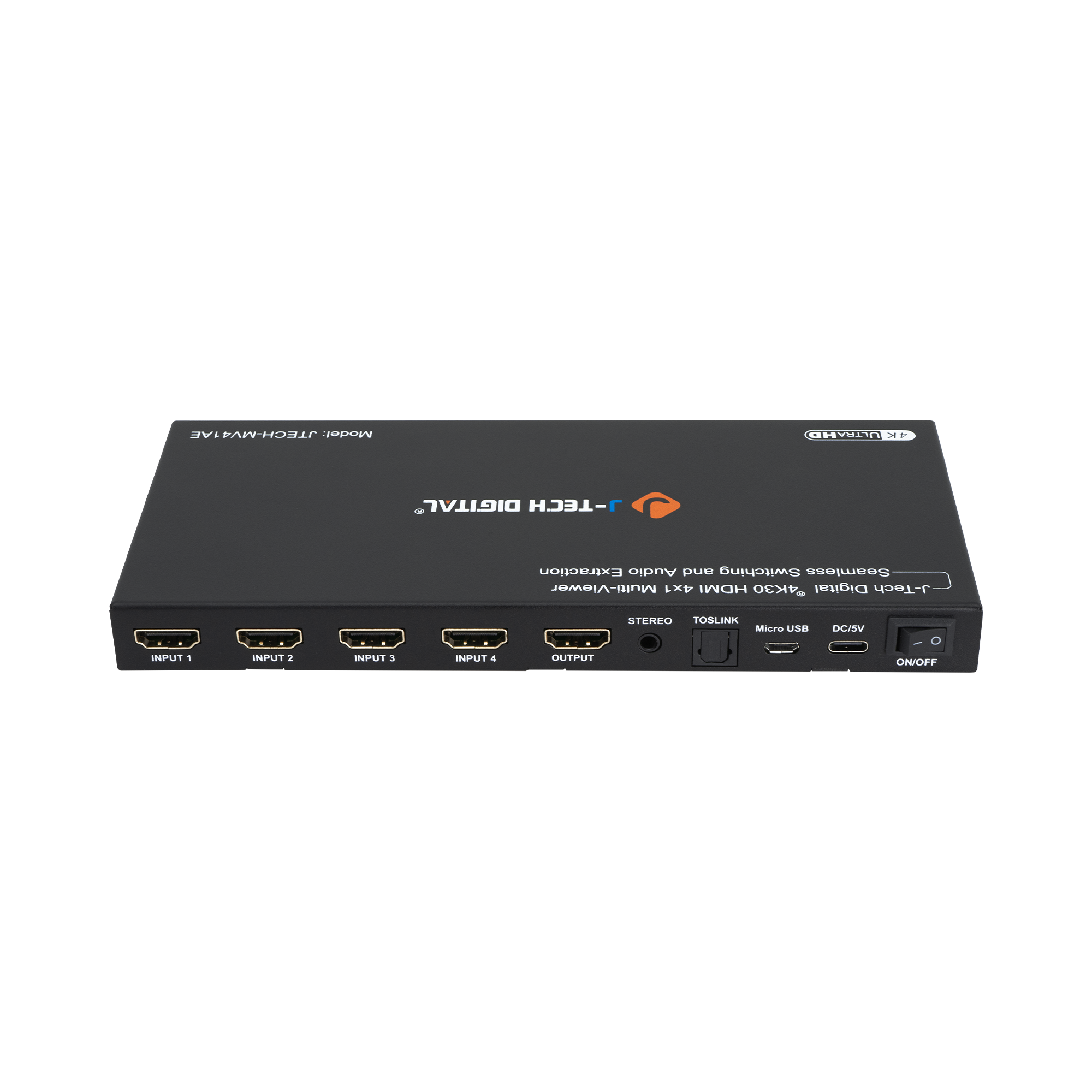

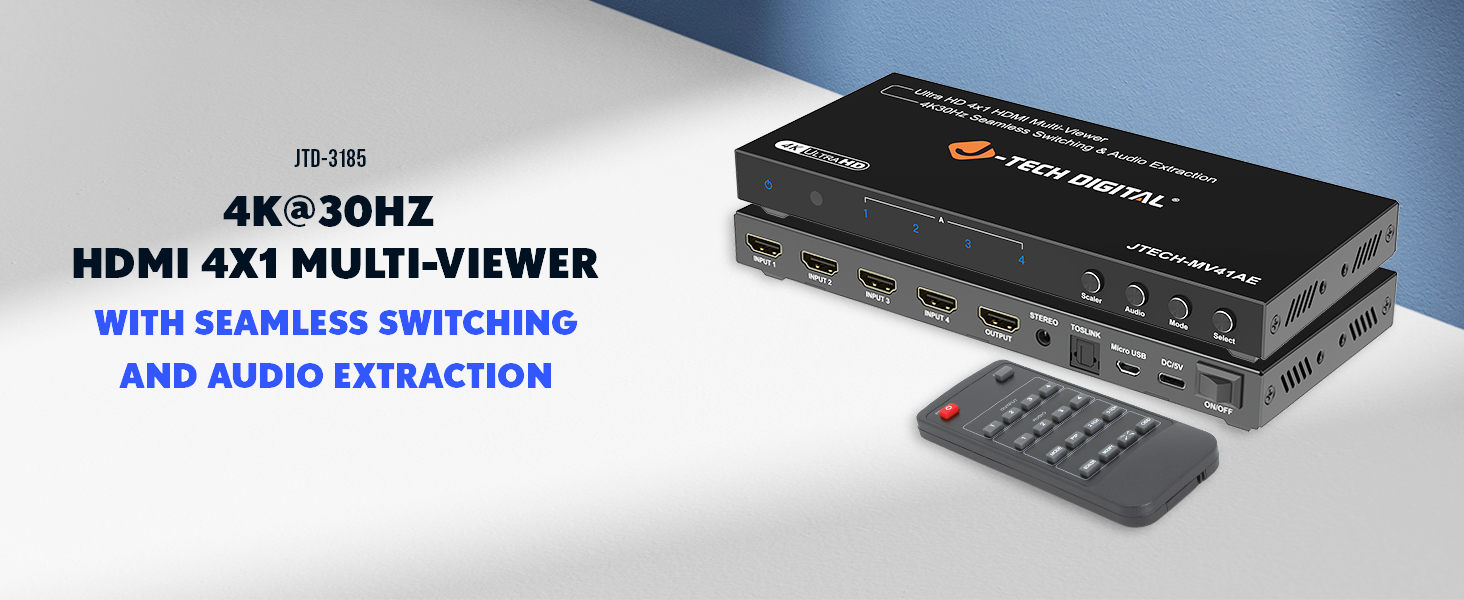

Introducing the JTECH-MV41AE 4x1 4K@30Hz HDMI multiviewer and seamless switcher. With 4 In and 1 Out HDMI ports, this HDMI quad multiviewer allows you to view up to four HDMI sources on a single display with seamless switching between devices, eliminating delays or black screens. Supporting resolutions up to 4K@30Hz, it is compatible with gaming consoles, security systems, and media players. With six viewing modes and a customizable Picture-in-Picture (PiP) function, it offers versatile display options. Additionally, it features audio extraction via optical and 3.5mm outputs for external sound systems and provides convenient control through included remote control, front panel buttons, and RS232 control.

4x1 HDMI quad multiviewer and seamless switcher. Features 4 In and 1 Out HDMI ports

Seamless switching between source devices without delay or black screen

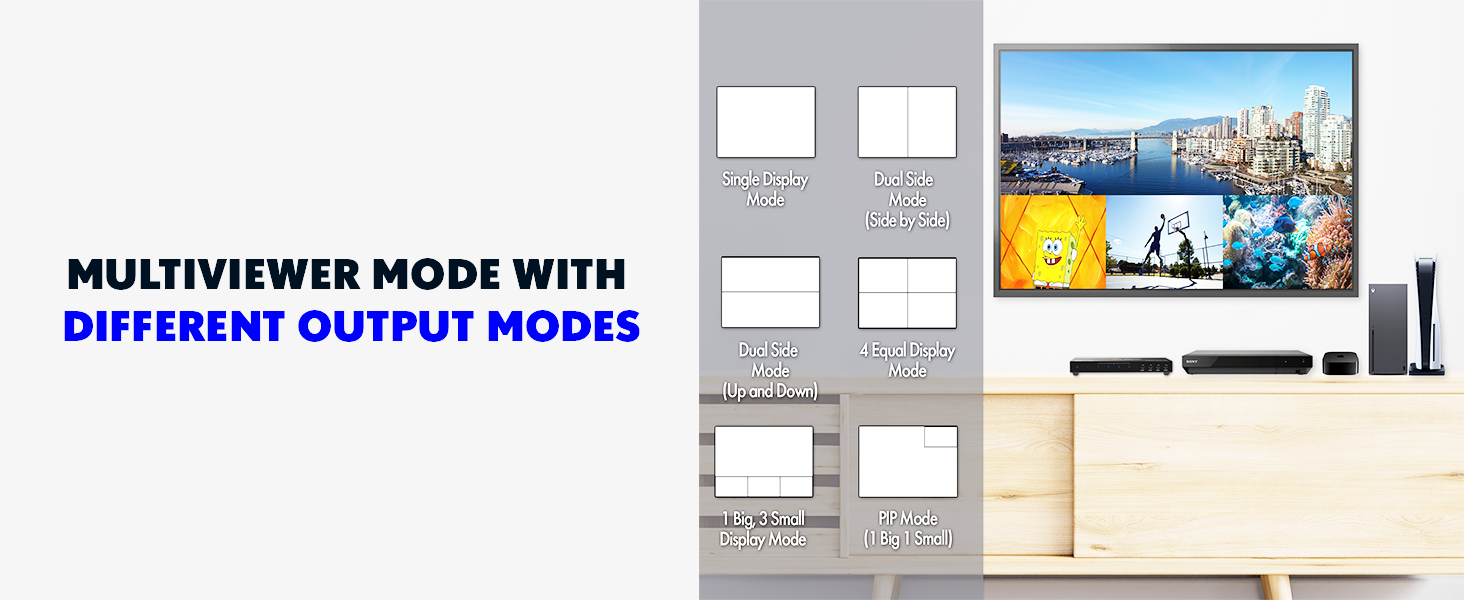

Features 6 different viewing modes and custom location picture-in-picture (PiP) function

Supports up to 4K@30Hz resolution for crystal clear quality

Audio extraction function via Optical or 3.5mm audio output ports

J-Tech Digital multiviewer and seamless switcher with 4K 30Hz support
4K 30Hz 4x1 Quad HDMI Multiviewer, Seamless Switcher with Audio Extraction

Specifications

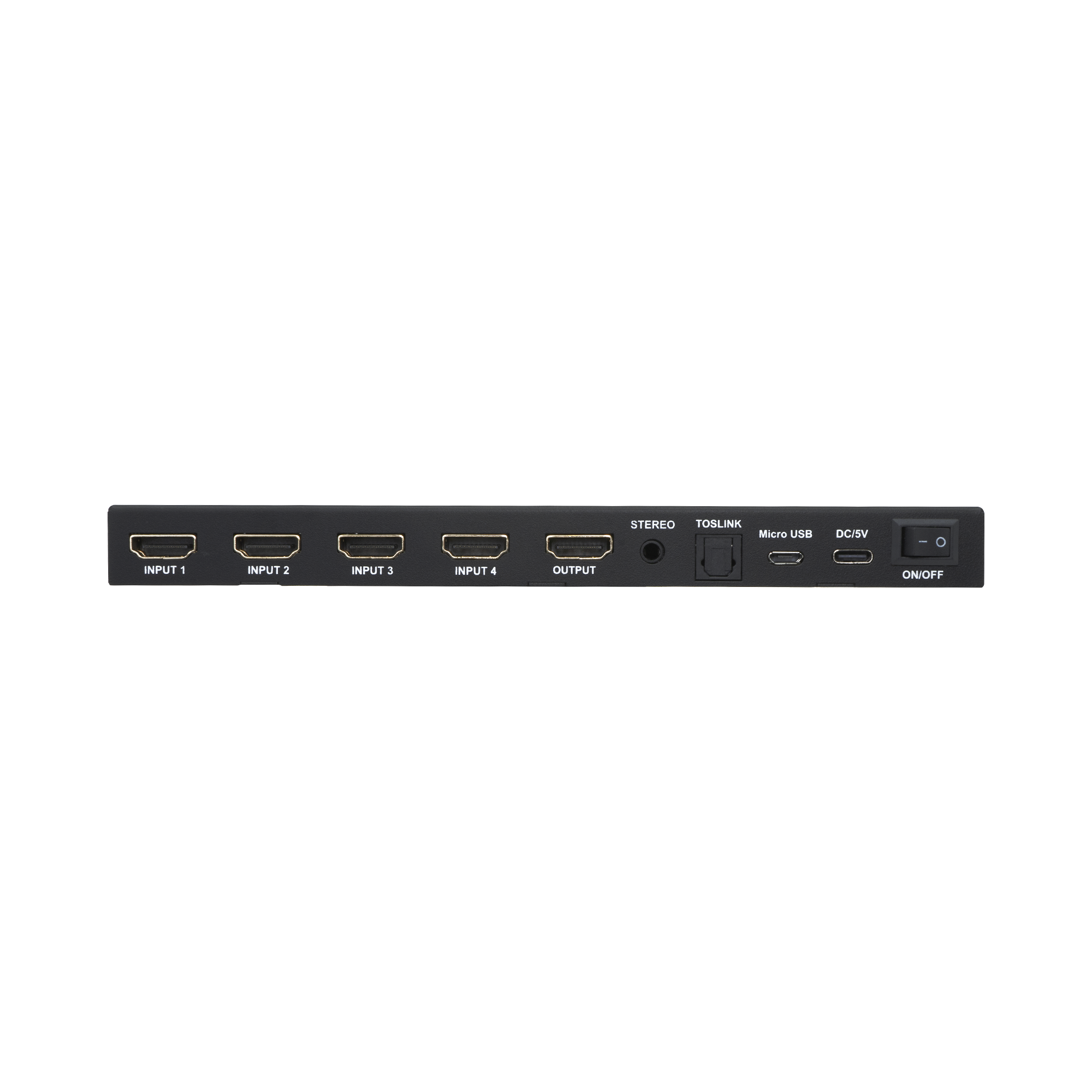

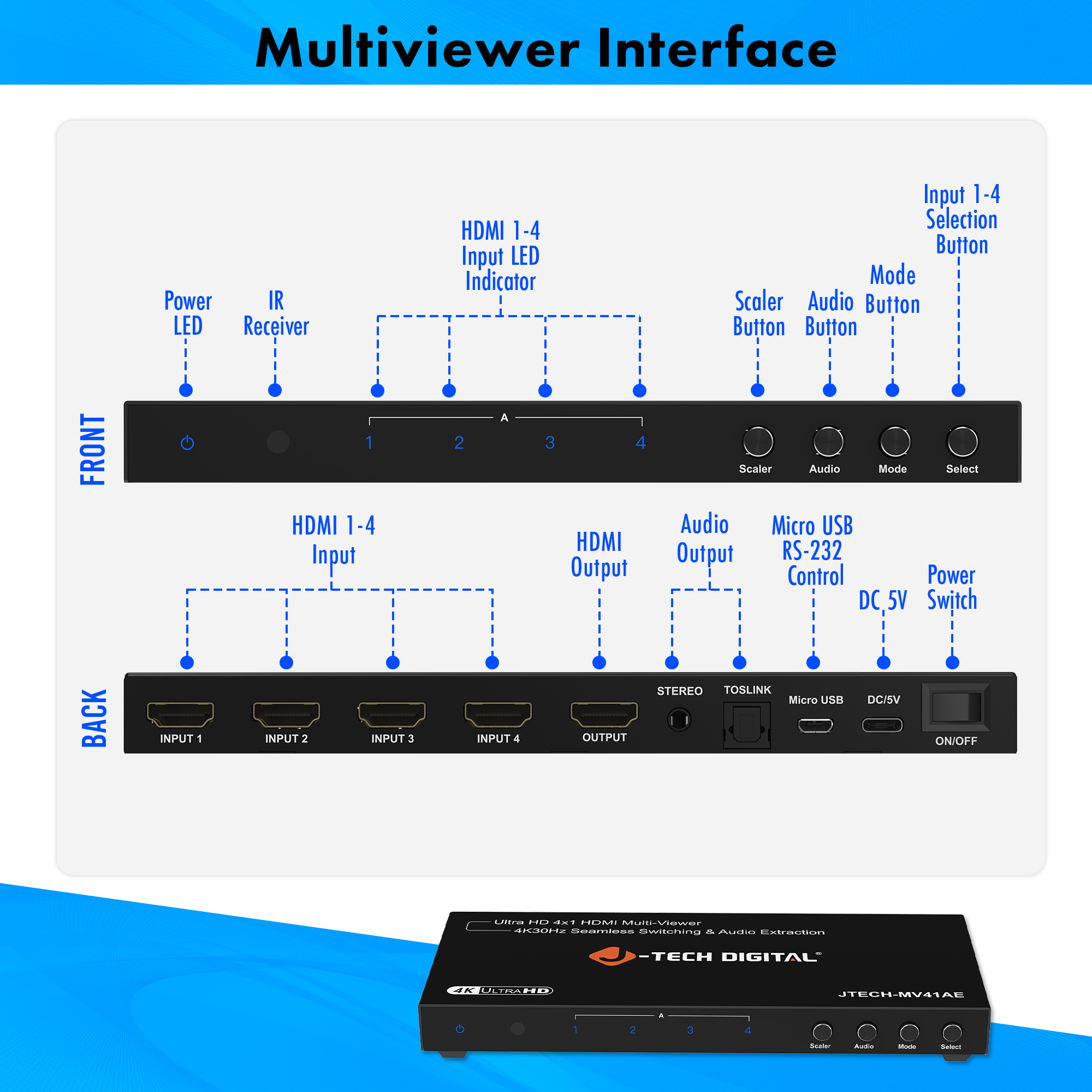

Ports

Name Values
Inputs 4 x HDMI
Outputs
  • 1 x HDMI
  • 1 x Stereo
  • 1 x SPDIF Optical

Video

Name Values
Vertical Frequency Range 24/25/30/50/60Hz
Video Amplifier Bandwidth 3.4Gbps/340MHz per channel (10.2Gbps all channel)
Resolution (Interlaced 50 and 60Hz)
  • 480i
  • 576i
  • 1080i
Resolution (Progressive 50 and 60Hz)
  • 480p
  • 576p
  • 720p
  • 1080p
  • 4K@24/25/30

General

Name Values
Operating Temperature 0° ~ 70°C
Storage Humidty 5% to 90% RH non-condensing
Power Supply 5V DC 1A
Power Consumption (Max) 2W
Matrix Switcher Unit Cert
  • CE
  • FCC
  • RoHS
Power Supply Cert
  • CE
  • FCC
  • RoHS

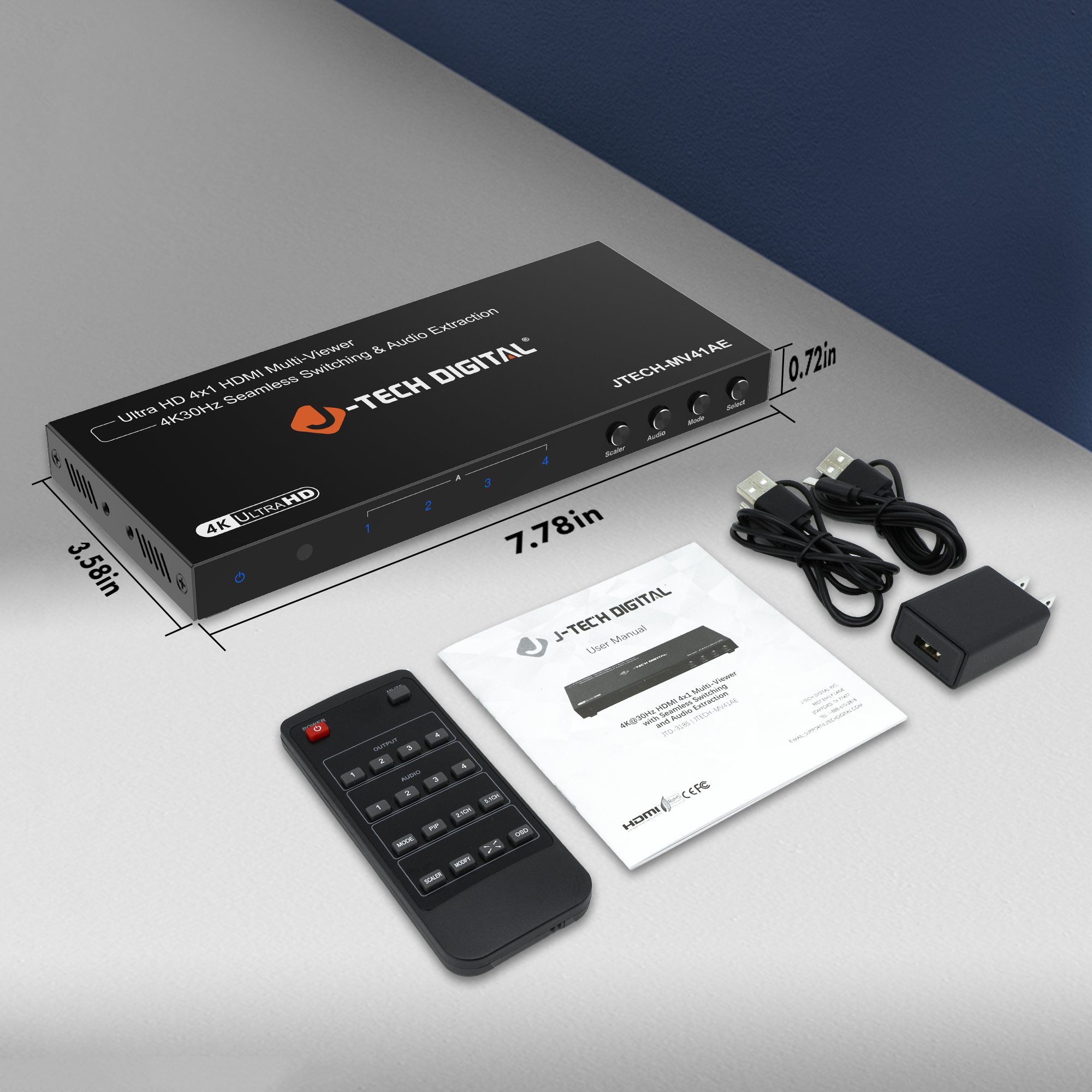

Dimensions 197.5 x 91 x 18.5 (mm)
Net Weight 361g
Material Metal

Resources & Downloads

Category Description Version File
MANUAL User Manual 1.0 JTD-3185-Manual.pdf

Category: MANUAL

Description: User Manual

Version: 1.0

File: JTD-3185-Manual.pdf
