4K 30Hz HDMI and KVM Extender Over Ethernet with Dual HDMI Outputs and Audio Extraction

Regular price $129.79

Shipping calculated at checkout

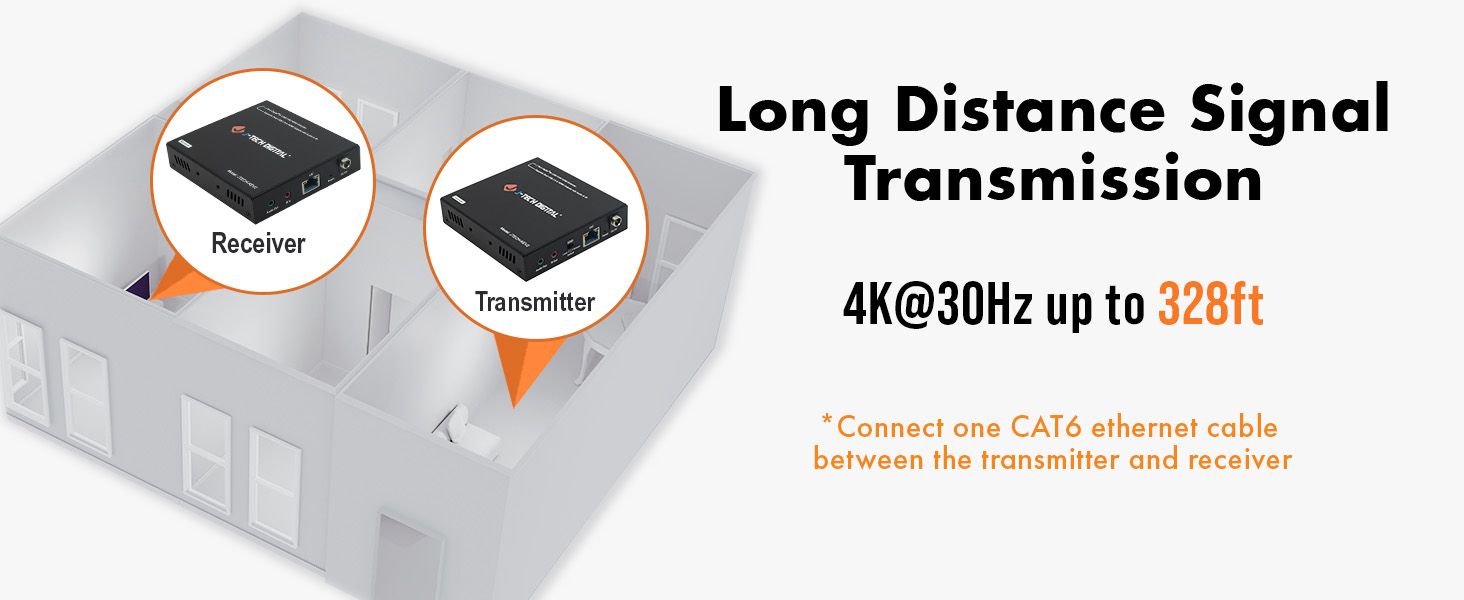

  • ✅ 4K@30Hz Up To 328Ft: Extend 4K 30Hz HDMI signals up to 328 feet / 100 meters away over CAT6 ethernet cable. High resolution 4K image extension with near zero latency (ideal for PC use).
  • ✅ Dual USB 1.0 (480Mbps) KVM Extension: 2 x USB ports found on the receiver extend USB 1.0 signals up to 328 feet away over CAT6 ethernet cable. Plug and play installation makes setup a breeze with no need for additional drivers.
  • ✅ Dual HDMI Outputs on Receiver: Connect two HDMI displays to the receiver’s dual HDMI output ports and a local HDMI display to the transmitter’s local loop HDMI output port for flexible monitoring options.
  • ✅ 3.5mm Audio Extraction Ports: Extract source device audio via the 3.5mm analog audio output ports found on both the transmitter and receiver. Flexible audio routing options mean that you can incorporate 3rd party audio processors with ease.

Overnight shipping*:

Two days shipping:

Availability:
In stock
SKU:
JTD-677
Model:
JTECH-KVE2

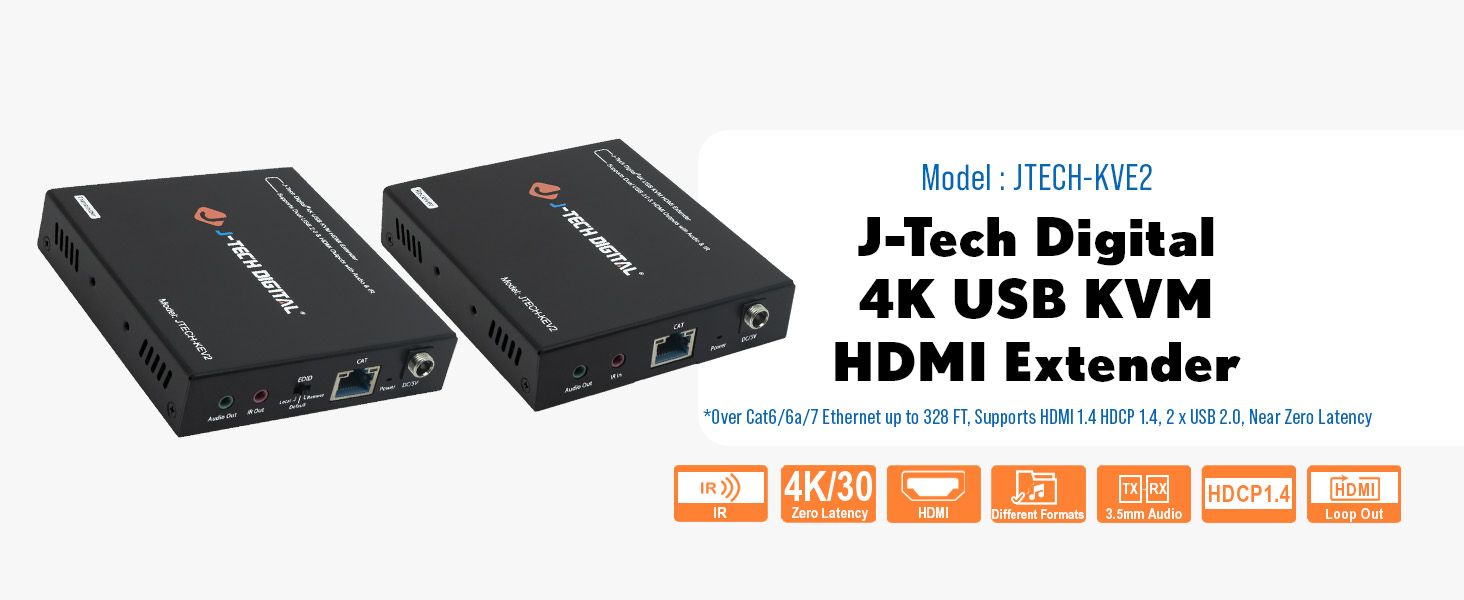

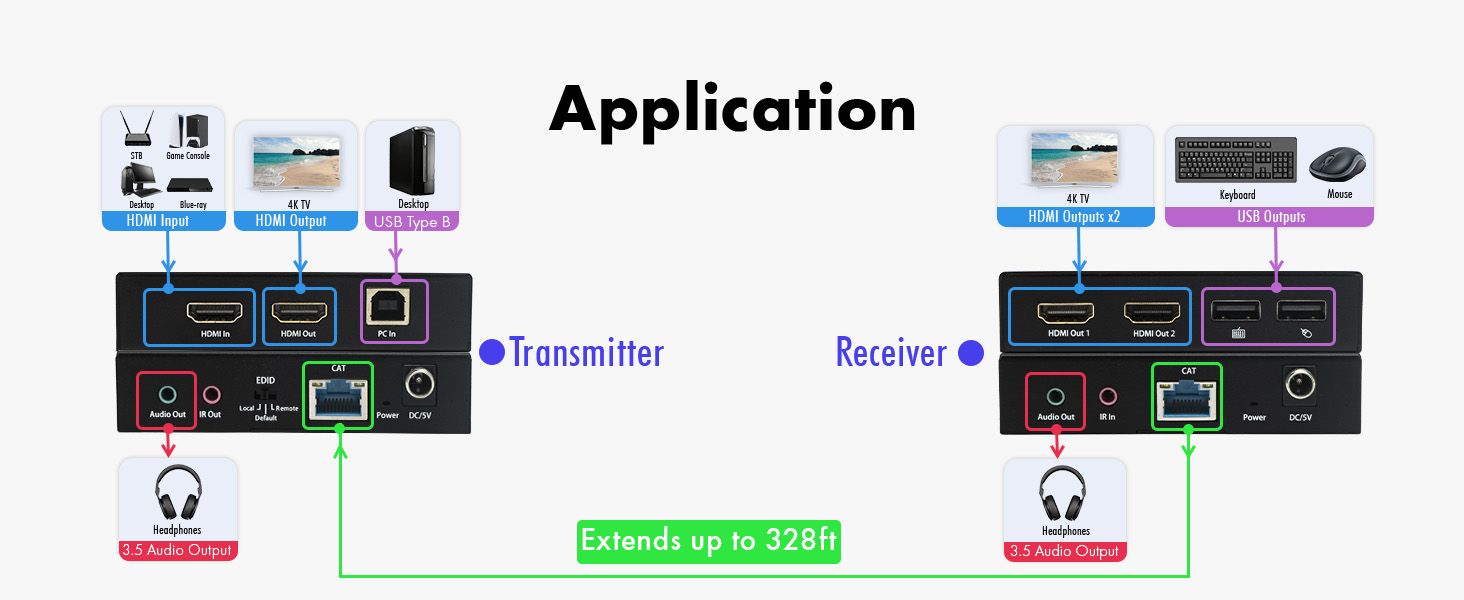

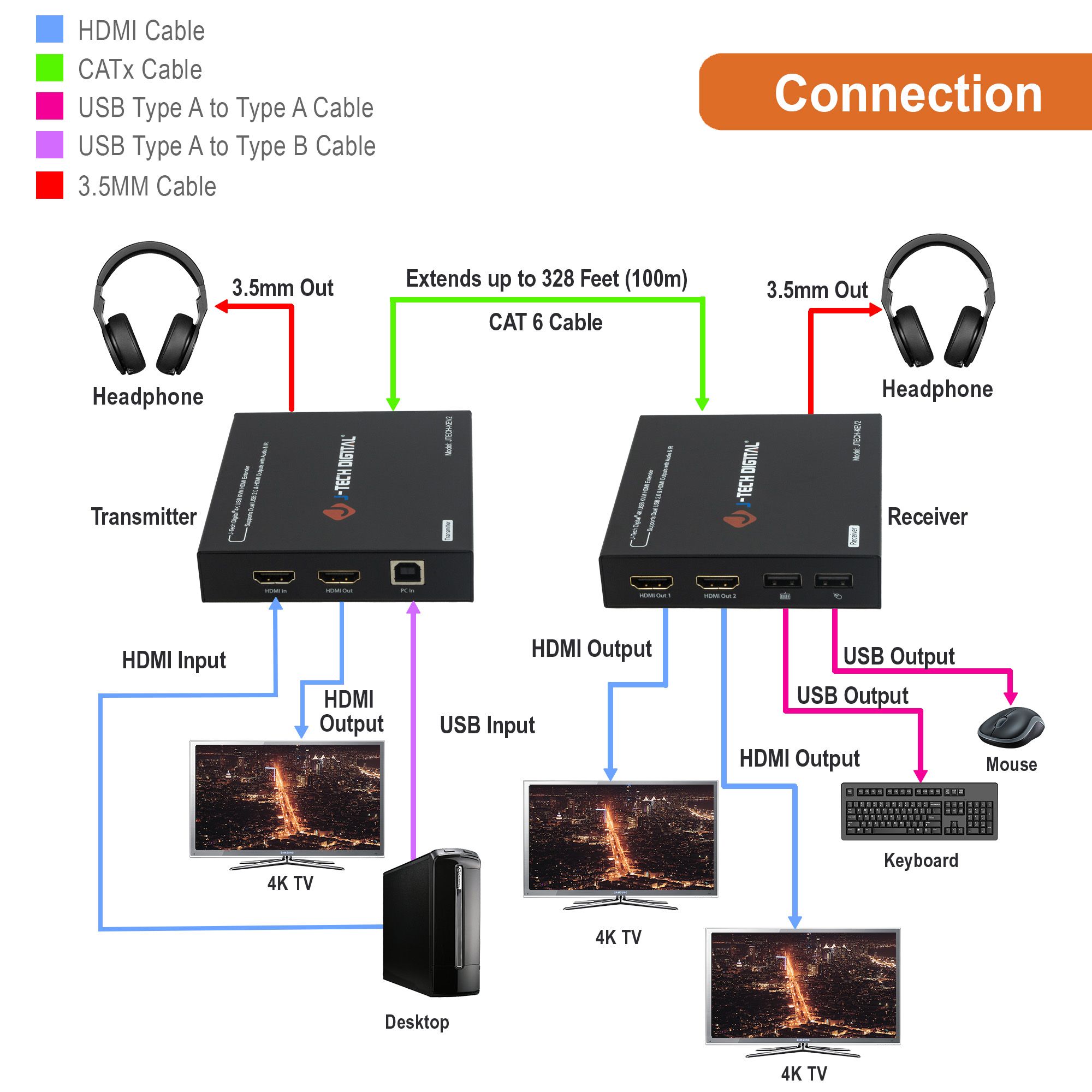

The J-Tech Digital JTECH-KVE2 HDMI & USB 2.0 KVM extender allows users to extend USB keyboard, mouse and HDMI signals up to 328 feet over CAT6 ethernet cable with near zero latency. This allows users to control a computer (or USB device) remotely up to 300+ feet away. Connect two remote HDMI displays to the receiver’s dual HDMI output ports and one local HDMI display to the transmitter’s local loop HDMI output port for flexible monitoring options. Extract source audio via the 3.5mm analog audio output ports found on both the transmitter and receiver so that users can route audio to a 3rd party audio processor/amplifier.

Need to control multiple sources/computers? Check out the J-Tech Digital JTECH-KV41 4-Port HDMI USB KVM Switch (ASIN: B088WDDQQ2)

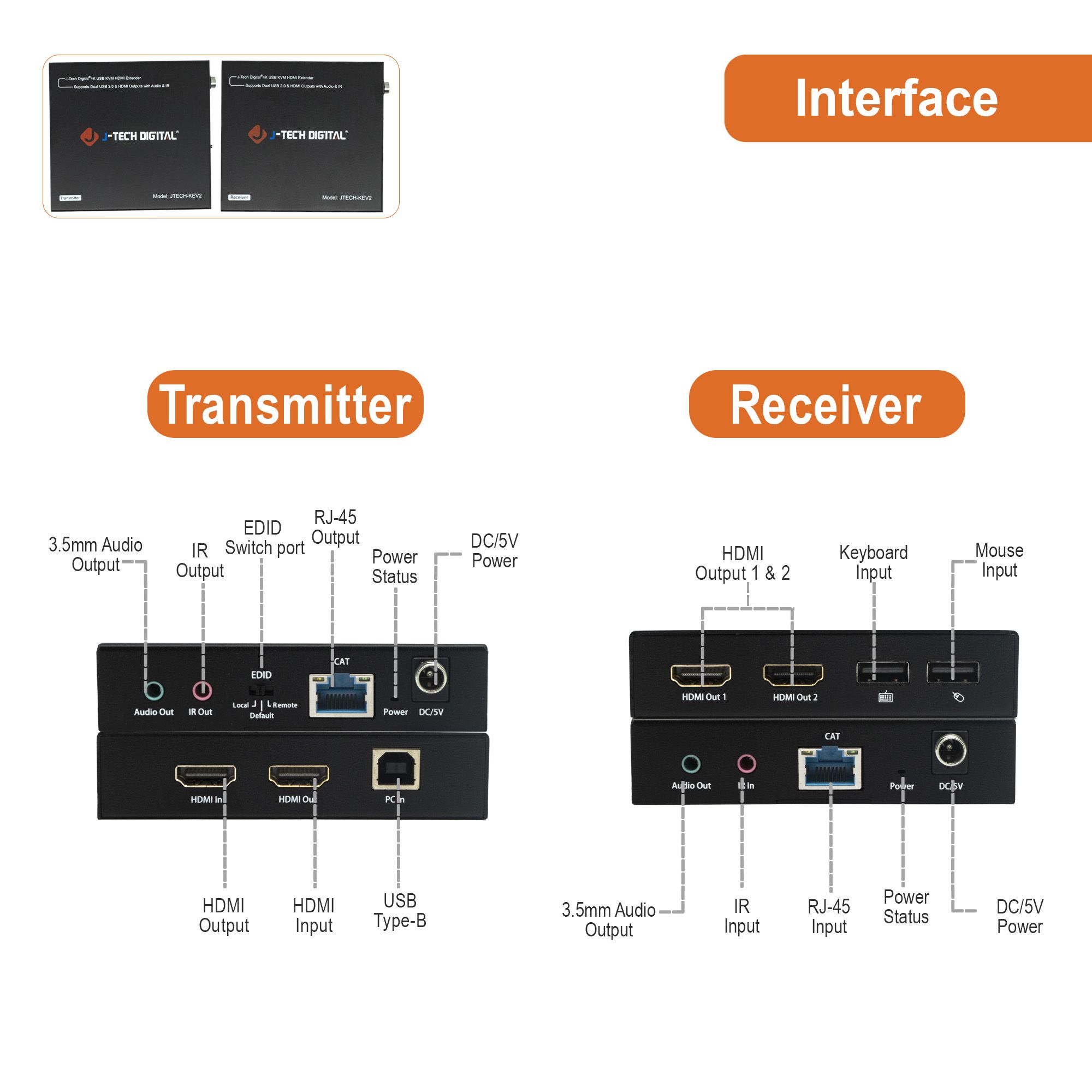

Input Ports – (1) TX – 1 x HDMI In | 1 x USB 2.0 Type-B (2) RX – 1 x HDMI | 1 x RJ-45 | 1 x IR In | 2 x USB 2.0 Type-A

Output Ports – (1) TX – 1 x HDMI Out (Pass-thru) | 1 x RJ-45 | 1 x IR Out | 1 x 3.5mm Audio Out (2) RX – 2 x HDMI Out | 1 x 3.5mm Audio Out

Supported Resolutions– Up to 4K@30Hz

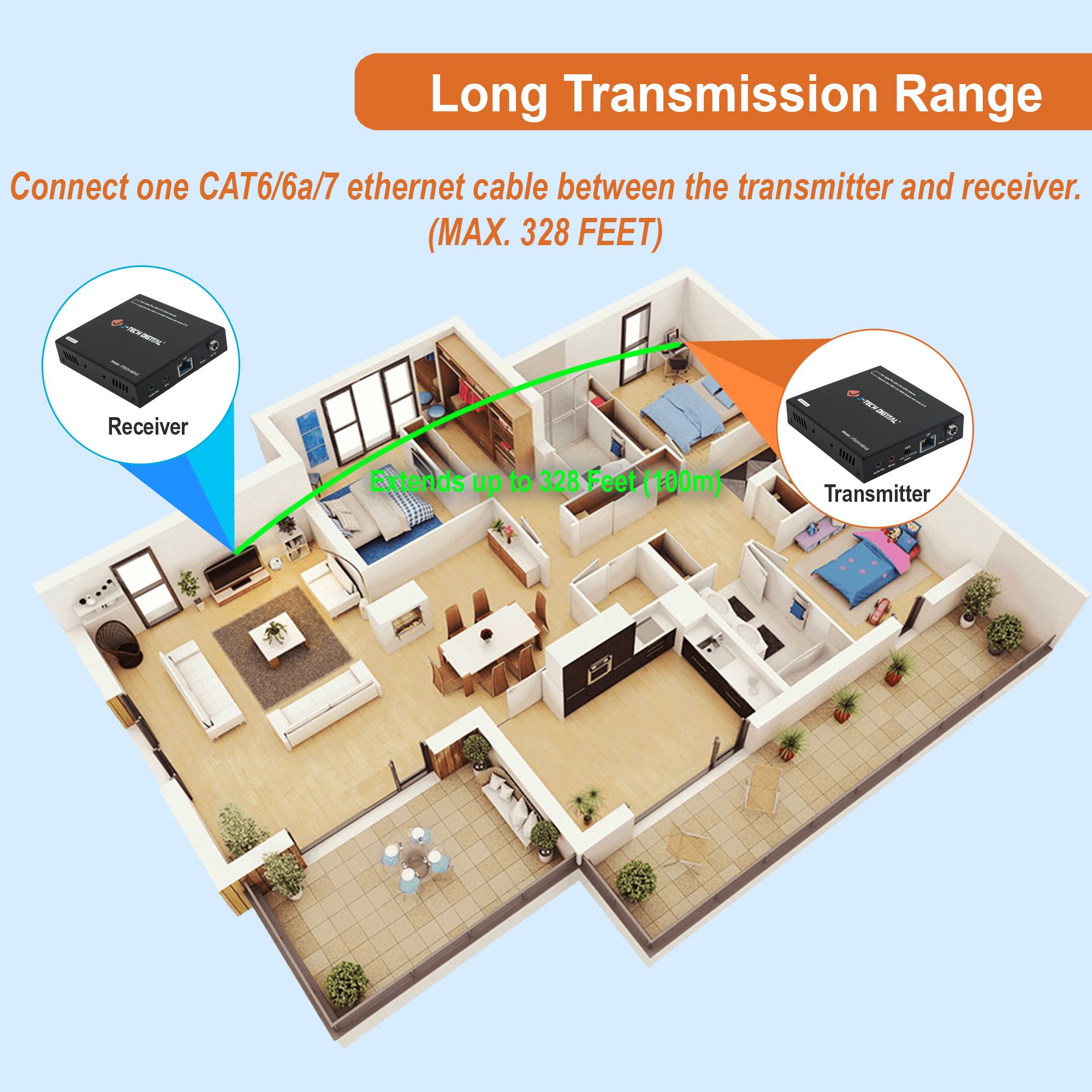

Transmission Distance– 328 FT / 100M over CAT6 Solid Copper

Supported Audio Formats– PCM, LPCM, Dolby Digital, DTS

Power Supply– Input: 100-240VAC, 50/60Hz | Output: 5VDC 2A

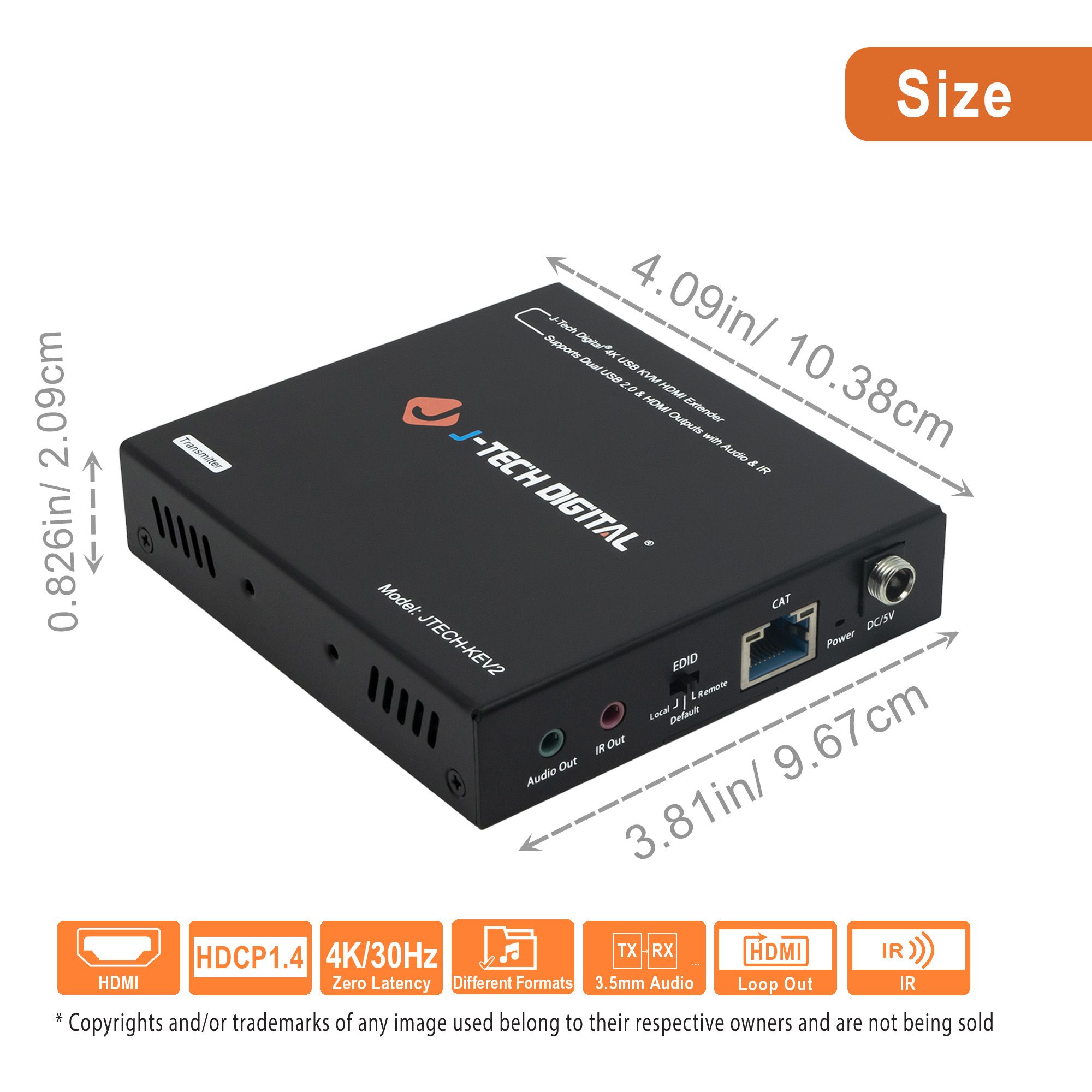

Dimensions– 5.12 in x 3.94 in x 0.87 in

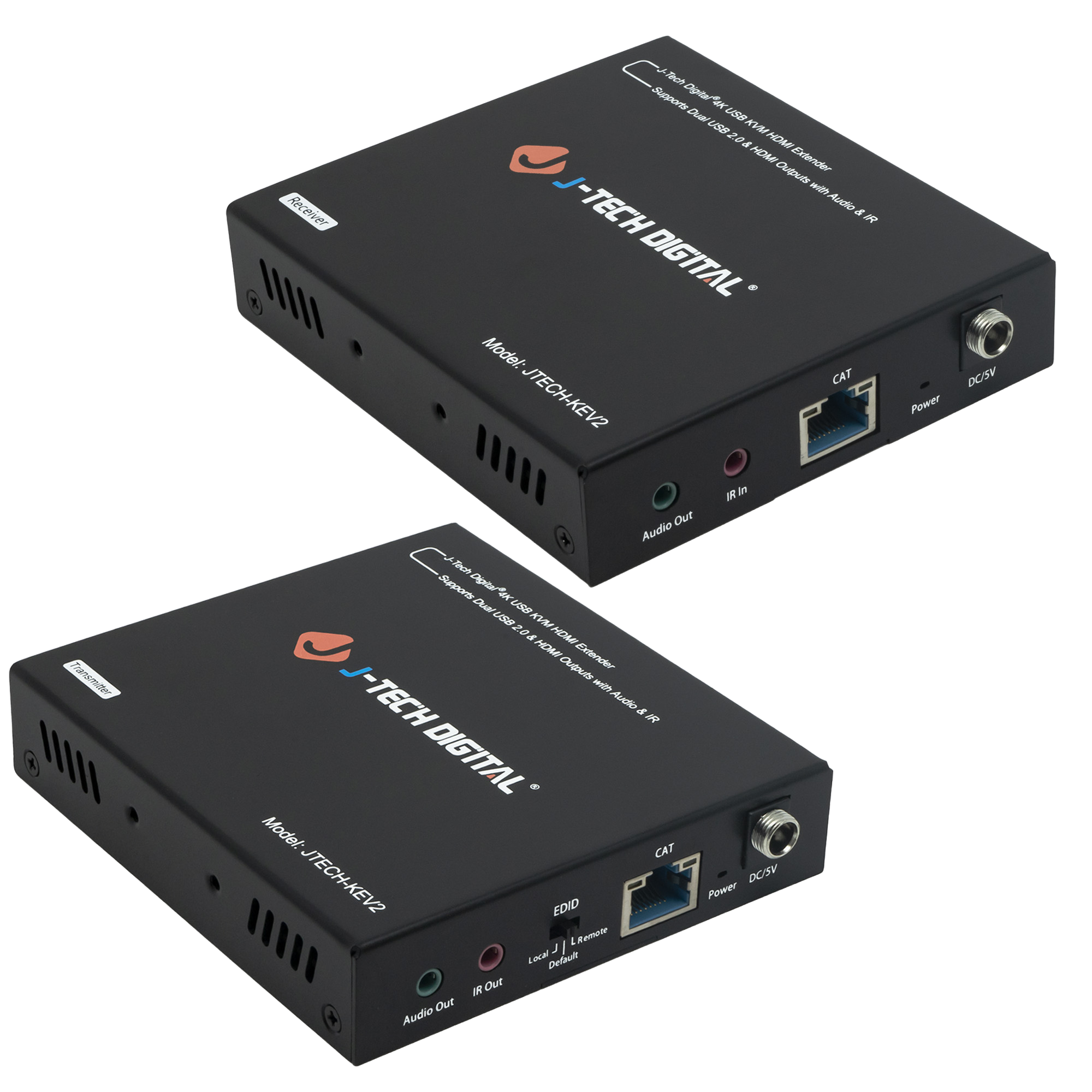

4K HDMI KVM HDMI Extender Over Ethernet
4K 30Hz HDMI and KVM Extender Over Ethernet with Dual HDMI Outputs and Audio Extraction

Specifications

General

Name Values
Input Ports
  • TX – 1 x HDMI In | 1 x USB 2.0 Type-B
  • RX – 1 x HDMI | 1 x RJ-45 | 1 x IR In | 2 x USB 2.0 Type-A
Output Ports
  • TX – 1 x HDMI Out (Pass-thru) | 1 x RJ-45 | 1 x IR Out | 1 x 3.5mm Audio Out
  • RX – 2 x HDMI Out | 1 x 3.5mm Audio Out
Transmission Distance 328 FT / 100M over CAT6 Solid Copper
Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity 20 ~ 90% RH (Non-condensing)
Power Consumption (Max) 20W
Housing Aluminum alloy
Dimension (L x W x H) 130x100x22(mm)
Weight
  • TX:260 (g)
  • RX:250 (g)

Video

Name Values
Supported Resolutions Up to 4K@30Hz
Bandwidth 10.2 Gbps

Audio

Name Values
Supported Audio Formats Supported Audio Formats
Power Supply DC 5V 2A

Resources & Downloads

Category Description Version File
MANUAL User Manual 1.0 jtd-677-user-manual-v1.0.pdf

Category: MANUAL

Description: User Manual

Version: 1.0

File: jtd-677-user-manual-v1.0.pdf
