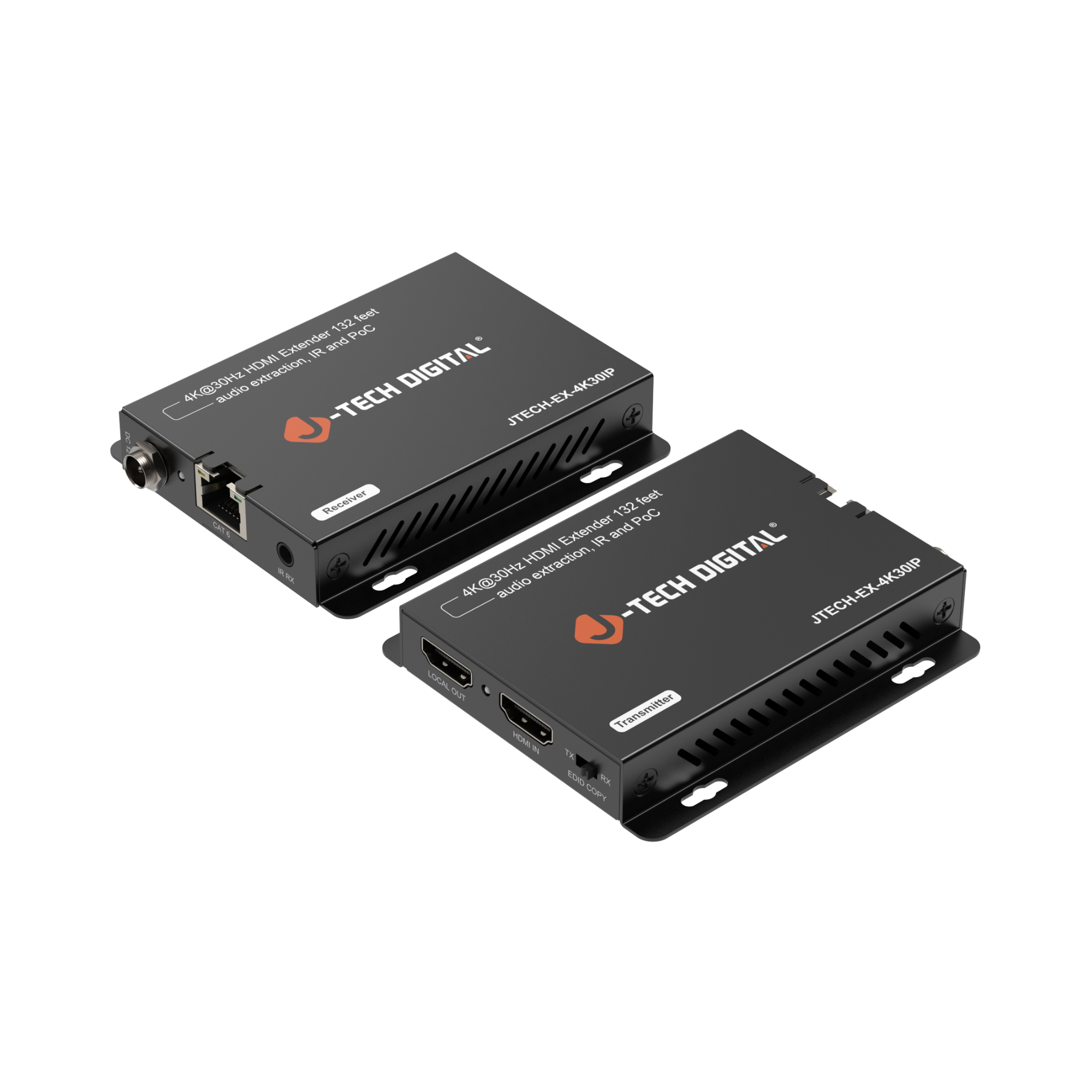

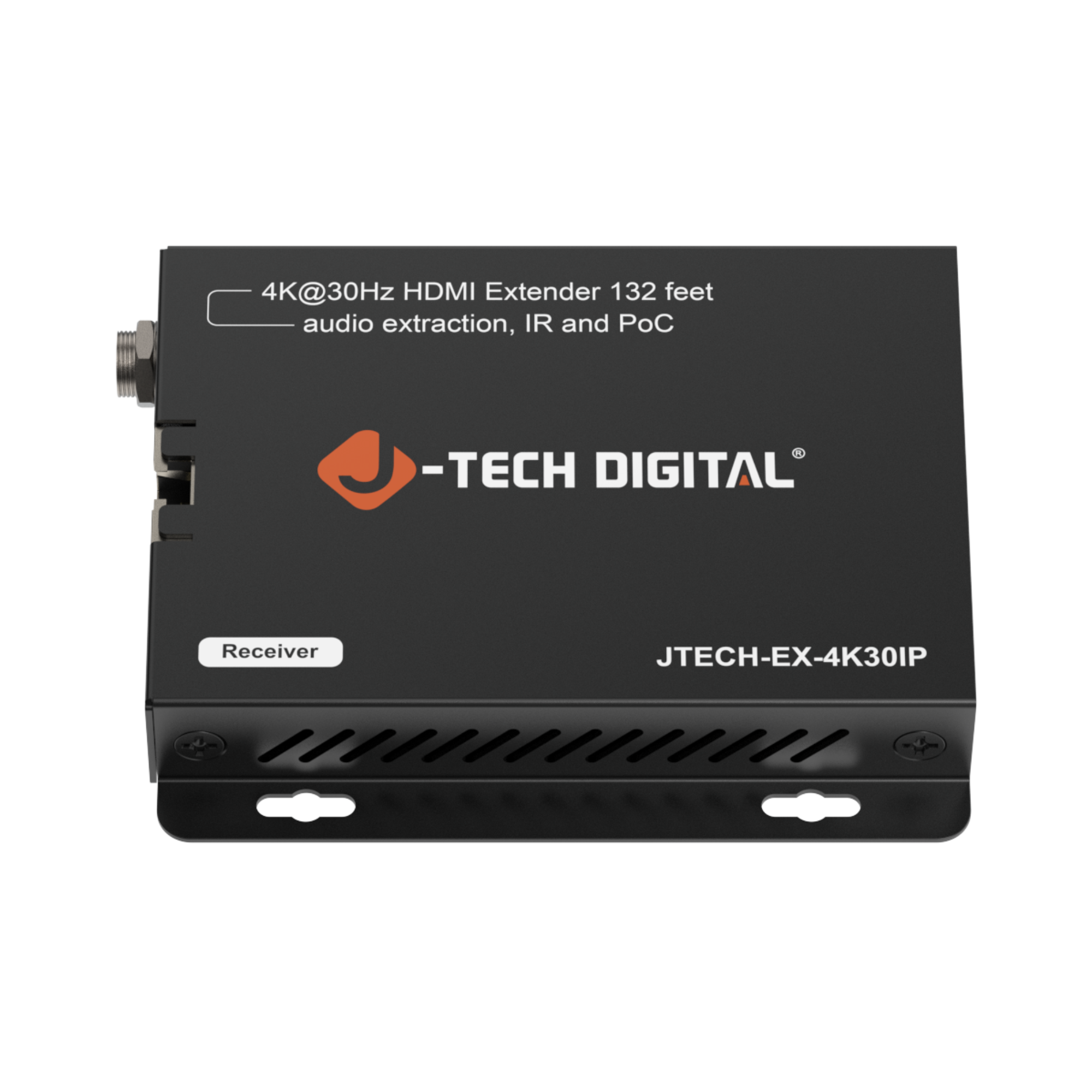

4K 30Hz HDMI Extender Over Ethernet w/ Audio Extraction, IR, PoC

Regular price $76.99

Shipping calculated at checkout

  • ✅ 4K@30Hz HDMI Extender with EDID Switch: Transmit HDMI signals up to 132 feet in 4K@30Hz and up to 230 feet in Full 1080P using CAT6/7 LAN cable. Features an EDID toggle switch to help with compatibility between connected source device and display.

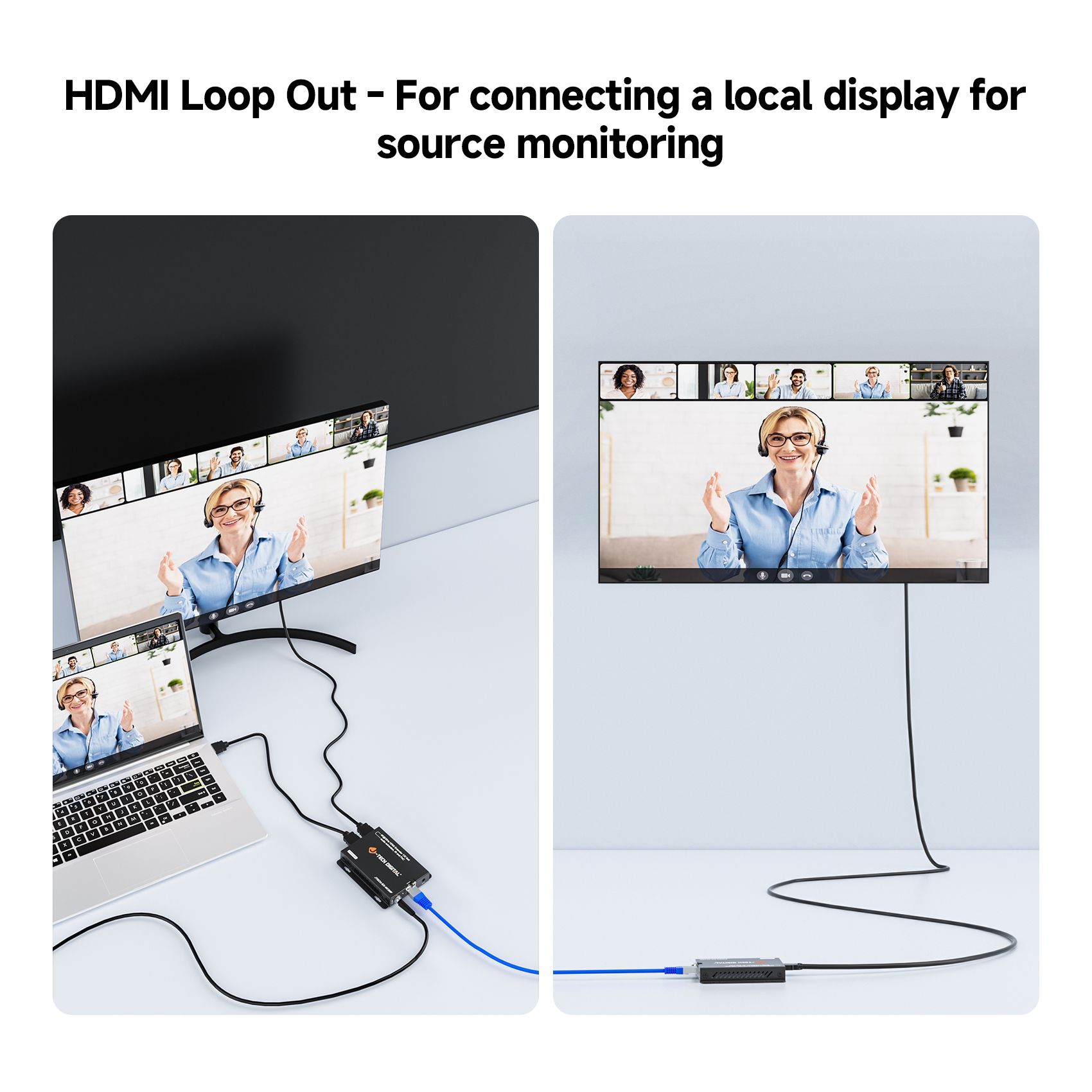

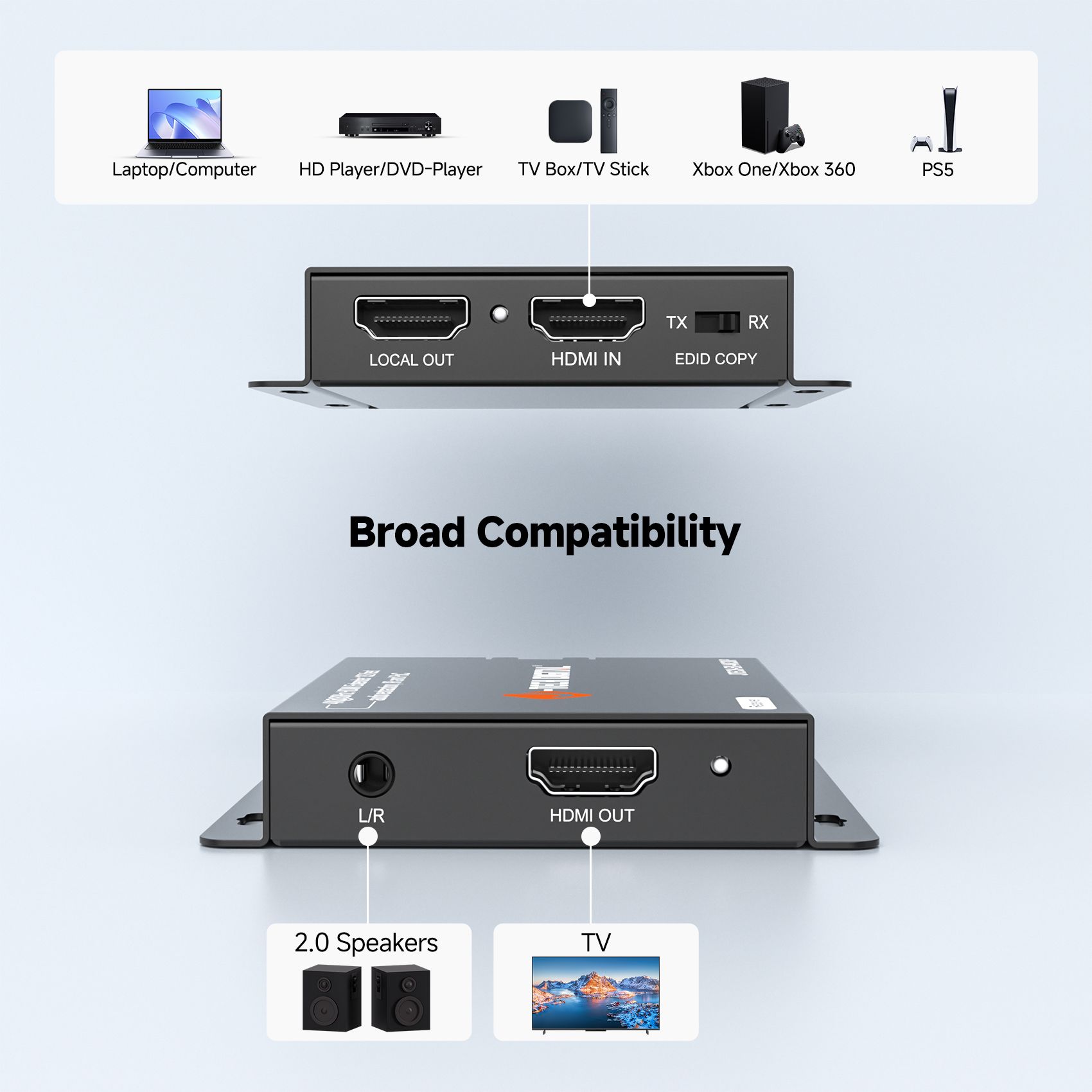

  • ✅ HDMI Local Loop Out Feature: Simultaneously display content at the transmitter and receiver ends. This HDMI extender transmitter features a local HDMI loop out port for connecting a local display for monitoring.
  • ✅ Power Over Cable (PoC) HDMI Extender: Simplifies setup with power delivered over the Ethernet cable from the transmitter to the receiver (or vice versa), requiring only one power adapter. Plug and play functionality; no drivers needed.
  • ✅ Audio Extraction via 3.5mm Audio Out: This HDMI extender receiver features a 3.5mm audio out port for extracting audio from the signal, and sending it to an external sound system. Note that for audio extraction, the incoming audio signal must be set to stereo.

Overnight shipping*:

Two days shipping:

Availability:
In stock
SKU:
JTD-3183
Model:
JTECH-EX-4K30IP

Easily extend your HDMI signal over long distances with this 4K HDMI Extender over Ethernet. Transmit stunning 4K@30Hz video up to 132 feet and 1080P Full HD up to 230 feet using a single CAT6/7 cable — no signal loss, no lag. Featuring convenient Power over Cable (PoC) technology, this extender requires just one power adapter for both transmitter and receiver. Ideal for home theaters, conference rooms, digital signage, classrooms, and more. Includes local HDMI loop out for on-site display monitoring and a 3.5mm audio out for external audio system integration. Features an EDID toggle switch on the transmitter to help with compatibility issues between the connected input HDMI source device and the display.

HDMI extender over ethernet Cat6/Cat7

4K@30Hz up to 132ft.

1080P up to 230ft.

Features a local HDMI loop out on transmitter for source monitoring

3.5mm audio extraction port on the receiver for extracting and sending audio to an external sound system

Power over cable (PoC) function; power adapter is only required on the transmitter or the receiver side

IR function to help control the source device from the display’s location

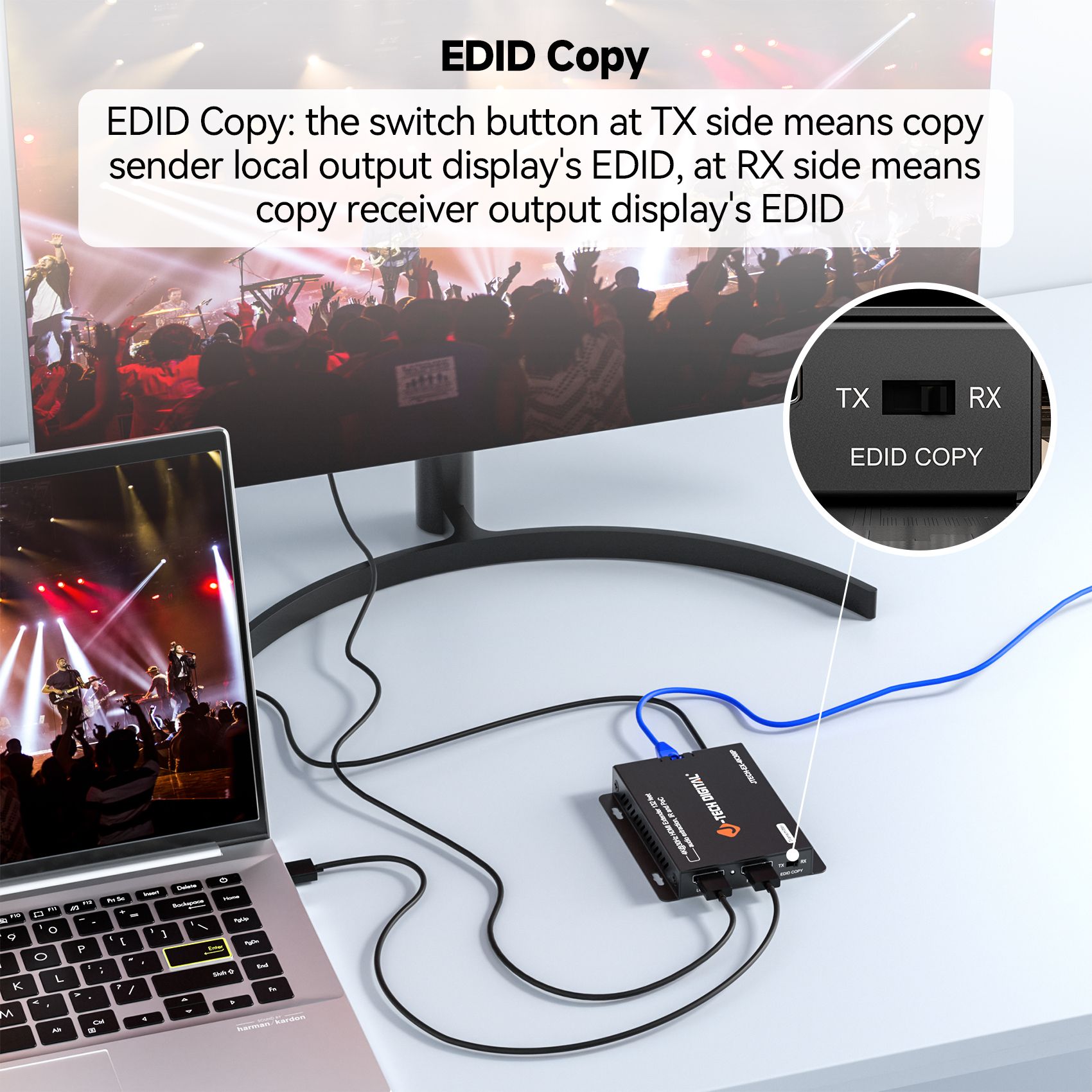

EDID toggle switch to help with compatibility issues between the connected input HDMI source device and the display

4k hdmi extender over ethernet
4K 30Hz HDMI Extender Over Ethernet w/ Audio Extraction, IR, PoC

Specifications

General

Name Values

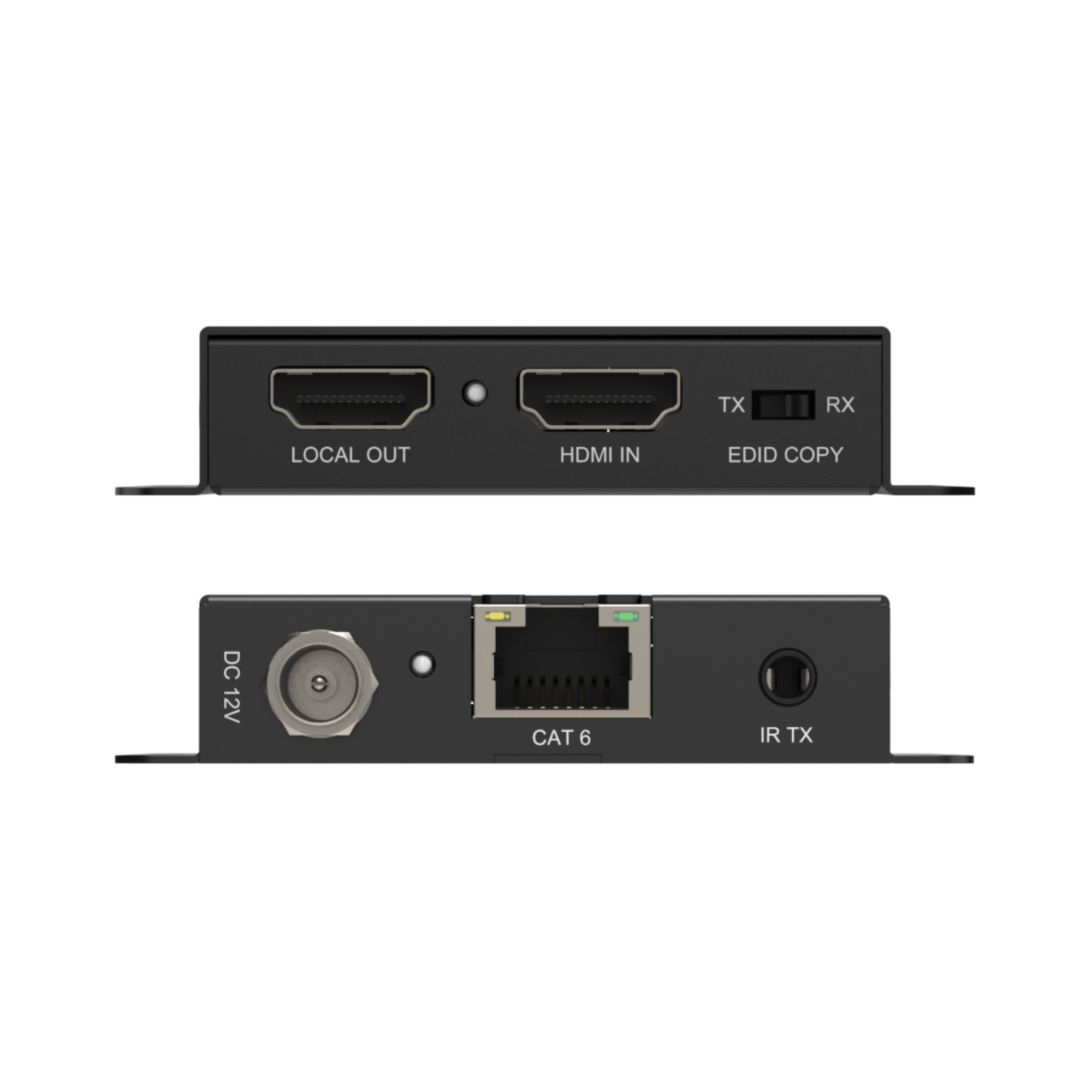

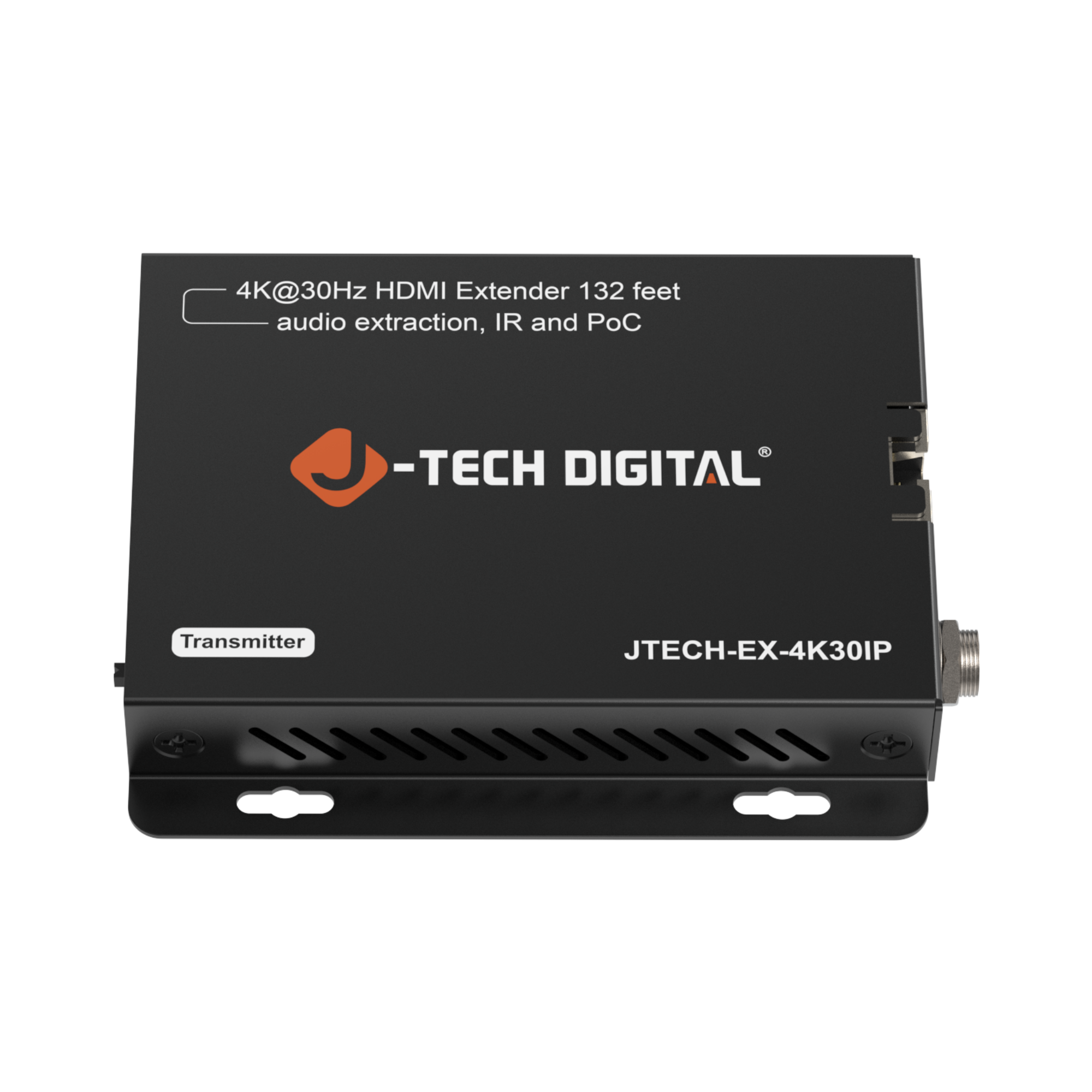

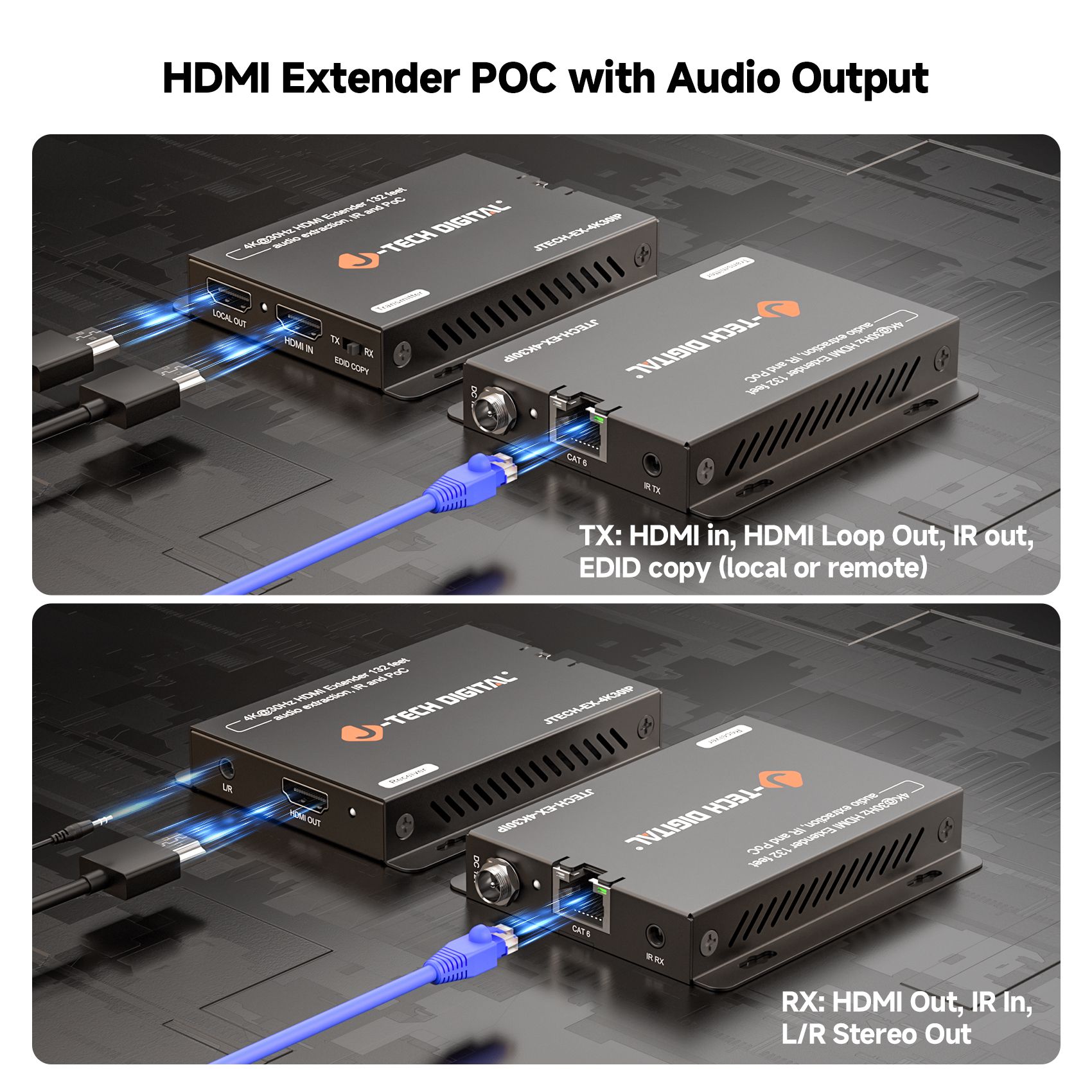

Transmitter Ports
  • 1 x HDMI In
  • 1 x RJ45 Out
  • 1 x 3.5mm (Audio Extraction)
  • 1 x IR Tx

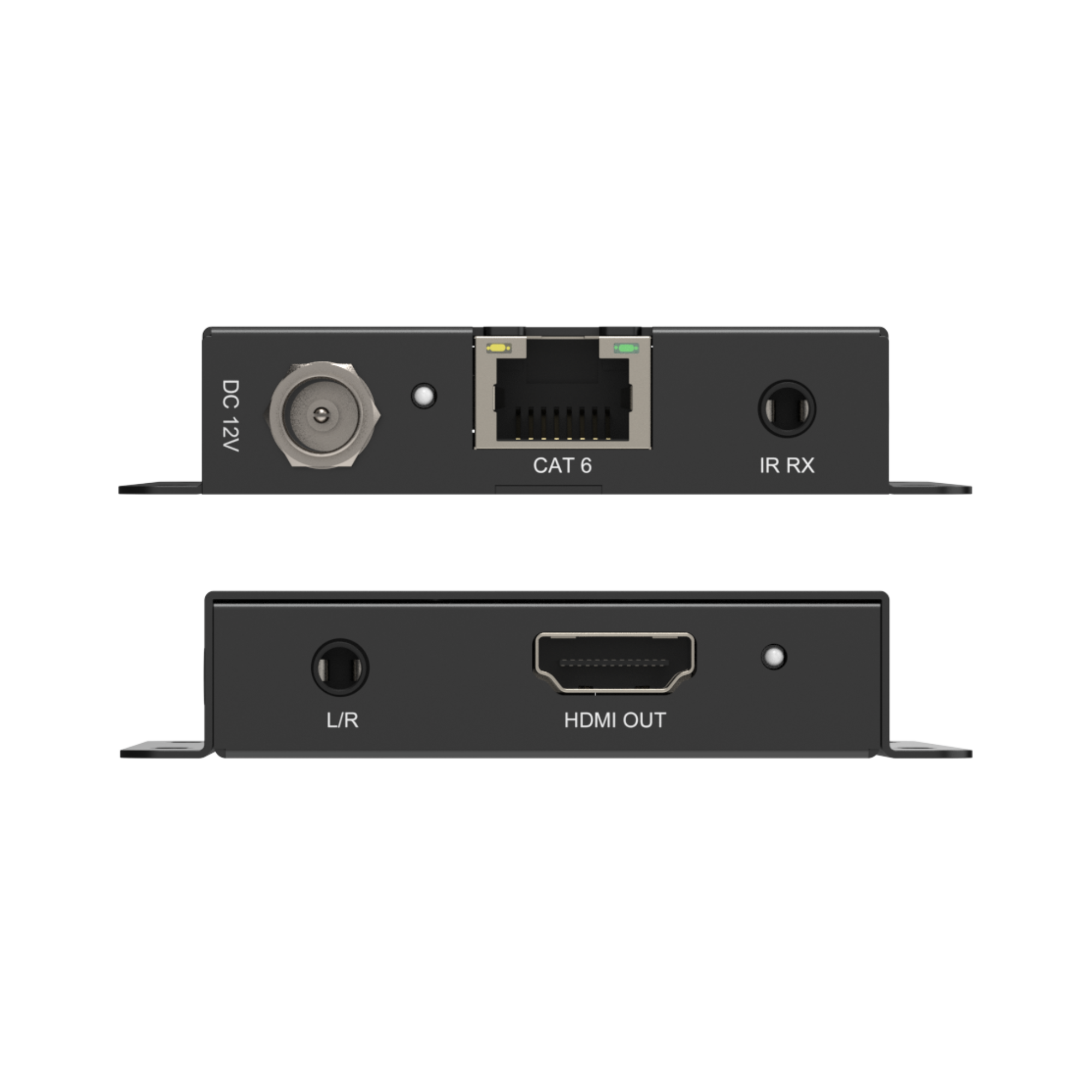

Receiver Ports
  • 1 x HDMI Out
  • 1 x RJ45 In
  • 1 x IR Rx
Transmission Distance
  • 4K@30Hz up to 132ft.
  • 1080P up to 230ft.
Vertical Frequency Range 50/60Hz
IR Frequency Range 20-60kHz
Interlaced Resolutions (50 & 60Hz)
  • 480i
  • 576i
  • 1080i
Progressive Resolutions (50 & 60Hz)
  • 480p
  • 576p
  • 720p
  • 1080p
  • 4K@30Hz
Operating Temperature 0°~50°C
Storage Humidity 5% ~ 90% RH non-condensation
Power Supply DC 12V
Power Consumption (Max)
  • TX: 1.3W
  • RX: 1.6W
Extender Unit Cert.
  • FCC
  • CE
  • RoHS
Power Supply Cert.
  • FCC
  • CE
  • RoHS
Dimensions 91.4 x 81.6 x 15.8 (mm)
Net Weight
  • TX: 132g
  • RX: 131g
Material Metal

Resources & Downloads

Category Description Version File
MANUAL User Manual 1.0 JTD-3183 - User Manual.pdf

Category: MANUAL

Description: User Manual

Version: 1.0

File: JTD-3183 - User Manual.pdf
