8-Port HDMI H.264 H.265 IPTV Encoder for Livestream

8-channel HDMI livestream encoder with 1080p 60Hz input support

Stream up to 32 channels with H.264/H.265 encoding and RTMP/RTSP/SRT

8 Port H.264, H.265, MJPEG HDMI Encoder for Livestream - 8 x 1080P 60Hz for YouTube Facebook Twitch VLC

$846.99

Shipping calculated at checkout

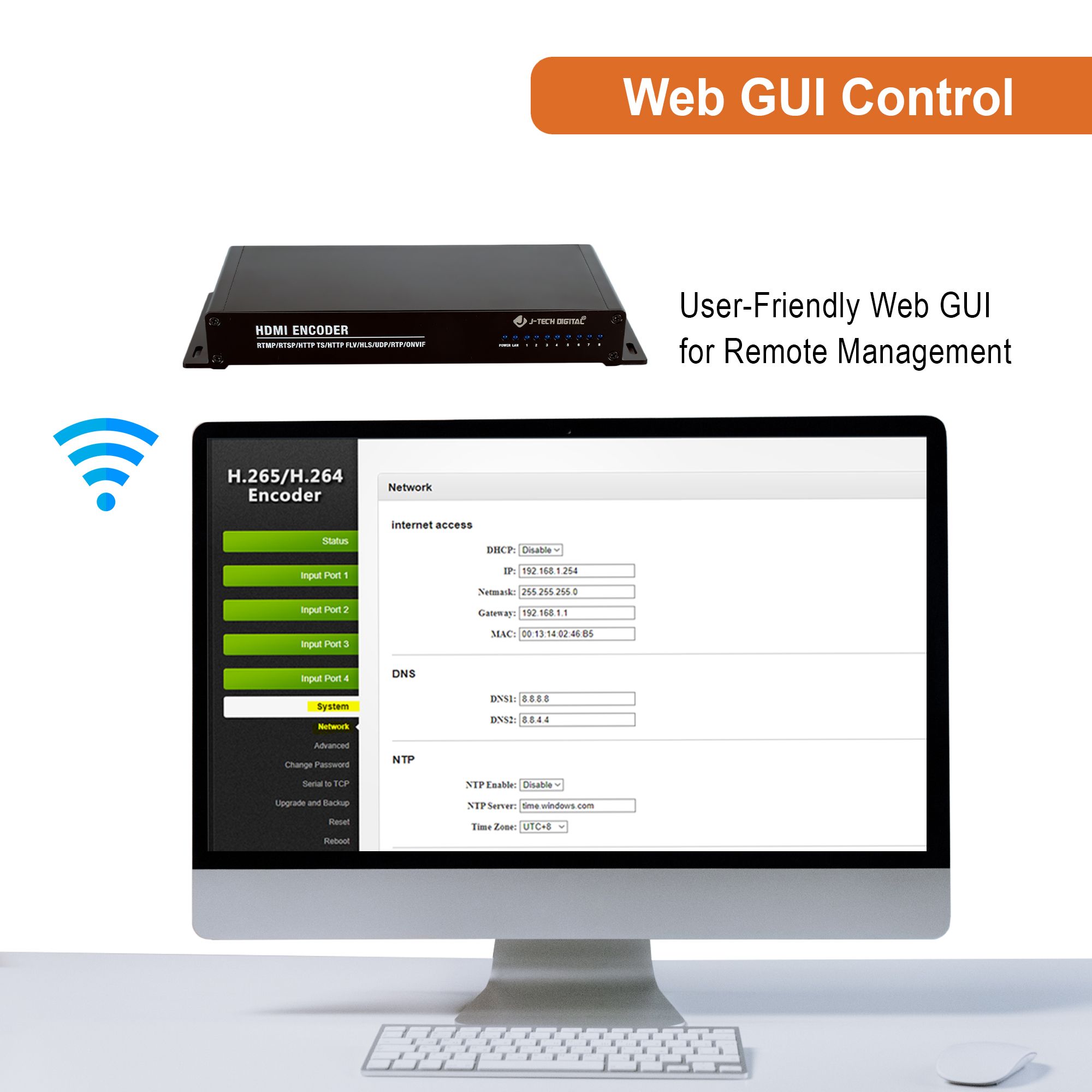

✅ HDMI Encoder For Livestream with OSD Settings, Customized Logo, Remote Control: Add text and logos to the video stream to customize your output display. Remote control web GUI: built-in web server gives you the power to modify settings such as IP address, bit rate, and fps.
✅ H.264 | H.265 | MJPEG Encoding Formats: Choose between H.264, H.265, and MJPEG encoding formats for your application. The HDMI livestream encoder also supports UDP, HTTP, RTSP, RTMP, ONVIF, FLV, HLS, and SRT protocols.

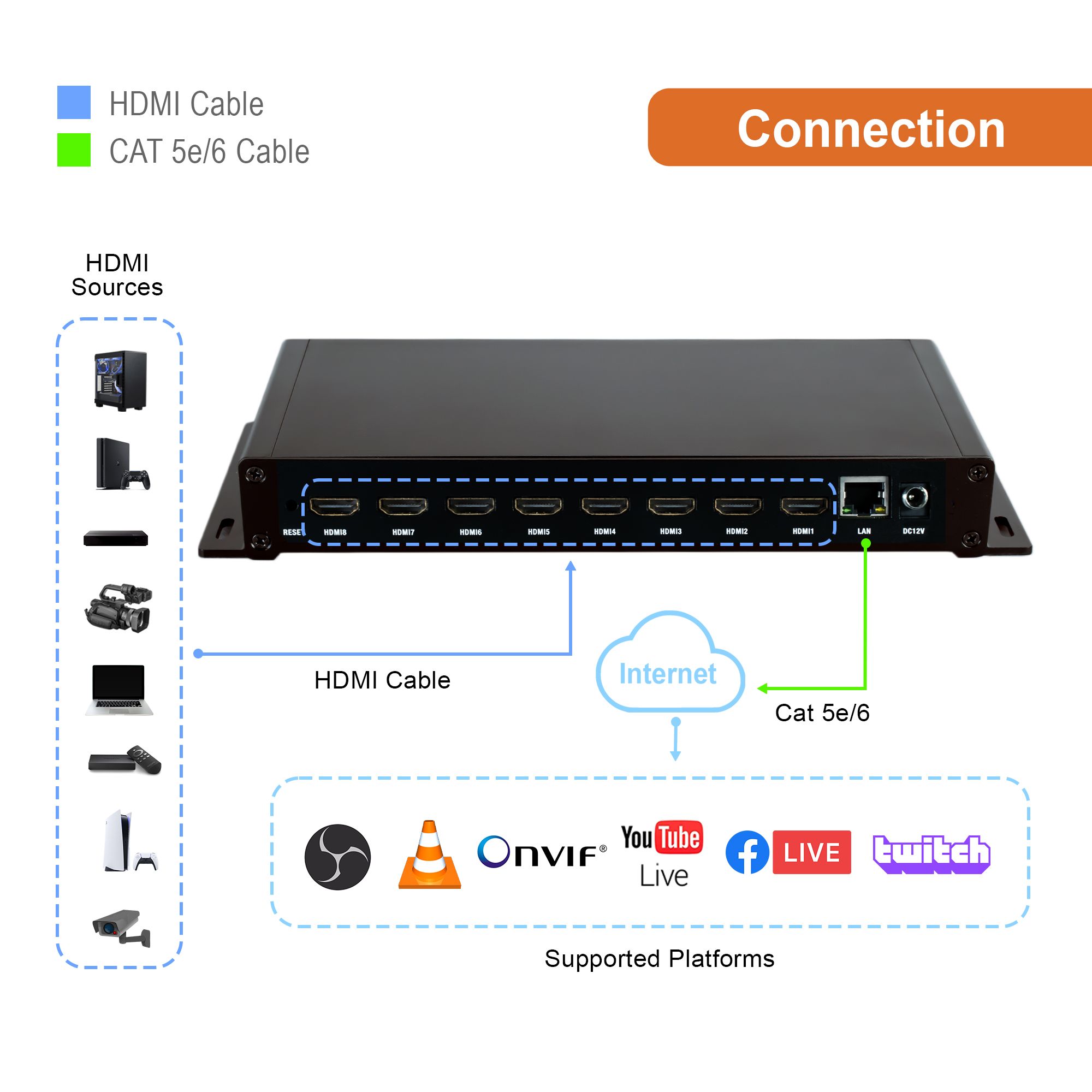

✅ 8 x 1080P 60Hz HDMI Input: The JTECH-ENCH58 livestream encoder accepts 1080P@60Hz HDMI input signals and is HDMI 1.4 and HDCP 1.4 compliant. Connect up to 8 source devices like HDMI cameras, game consoles, and personal computers.
✅ 8 Individual & Simultaneous Livestreams: Connect up to 8 HDMI source devices and have 8 simultaneous livestreams active at once. Each source has one main stream and 3 sub streams for a total of 32 active livestreams! Great for applications like streaming eSports tournaments.

Overnight shipping*:

Two days shipping:

Quantity

Availability:

In stock

SKU:

JTD-673

Model:

JTECH-ENCH58

Description

The J-Tech Digital JTECH-ENCH58 8 input HDMI H.264 H.265 MJPEG Livestream encoder is an IPTV live streaming device offered by J-Tech Digital used to get your event or content online. Broadcast up to eight 1080P 60Hz HDMI input signals to multiple streaming platforms like YouTube Live, Facebook Live and Twitch simultaneously. This J-Tech Digital 1080P H.265 / H.265 / MJPEG IPTV encoder supports multiple protocols (UDP | HTTP | RTSP | RTMP | FLV | ONVIF) so that you can share your message, no matter the needed format. Broadcast your message beyond your walls and establish your online presence today.

✅ Supports H.264 | H.265 | MJPEG Encoding

✅ Supports UDP, HTTP, RTSP, RTMP, FLV, ONVIF Protocols

✅ CBR/VBR Rate: 32 Kbps – 32 Mbps

✅1000M Network Interface uses Full-Duplex Mode

✅ Supports up to 1080P 60Hz HD Video Input and Output Stream Resolution

✅ Supports Image Parameter Settings

✅ Supports Remote Management in WAN (WebGUI)

✅ Supports Customized Resolution Settings

8 Port H.264, H.265, MJPEG HDMI Encoder for Livestream - 8 x 1080P 60Hz for YouTube Facebook Twitch VLC

$846.99

Specifications

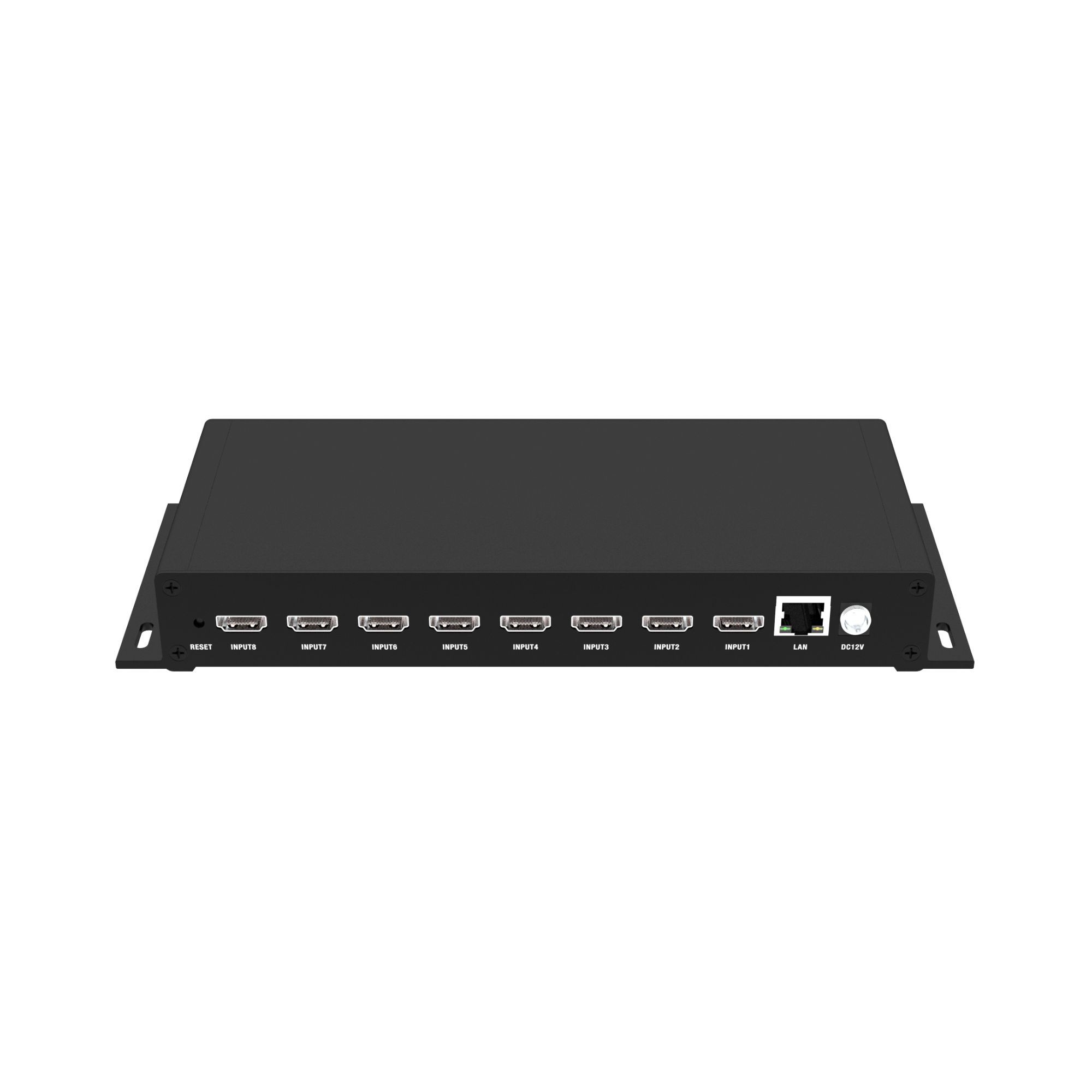

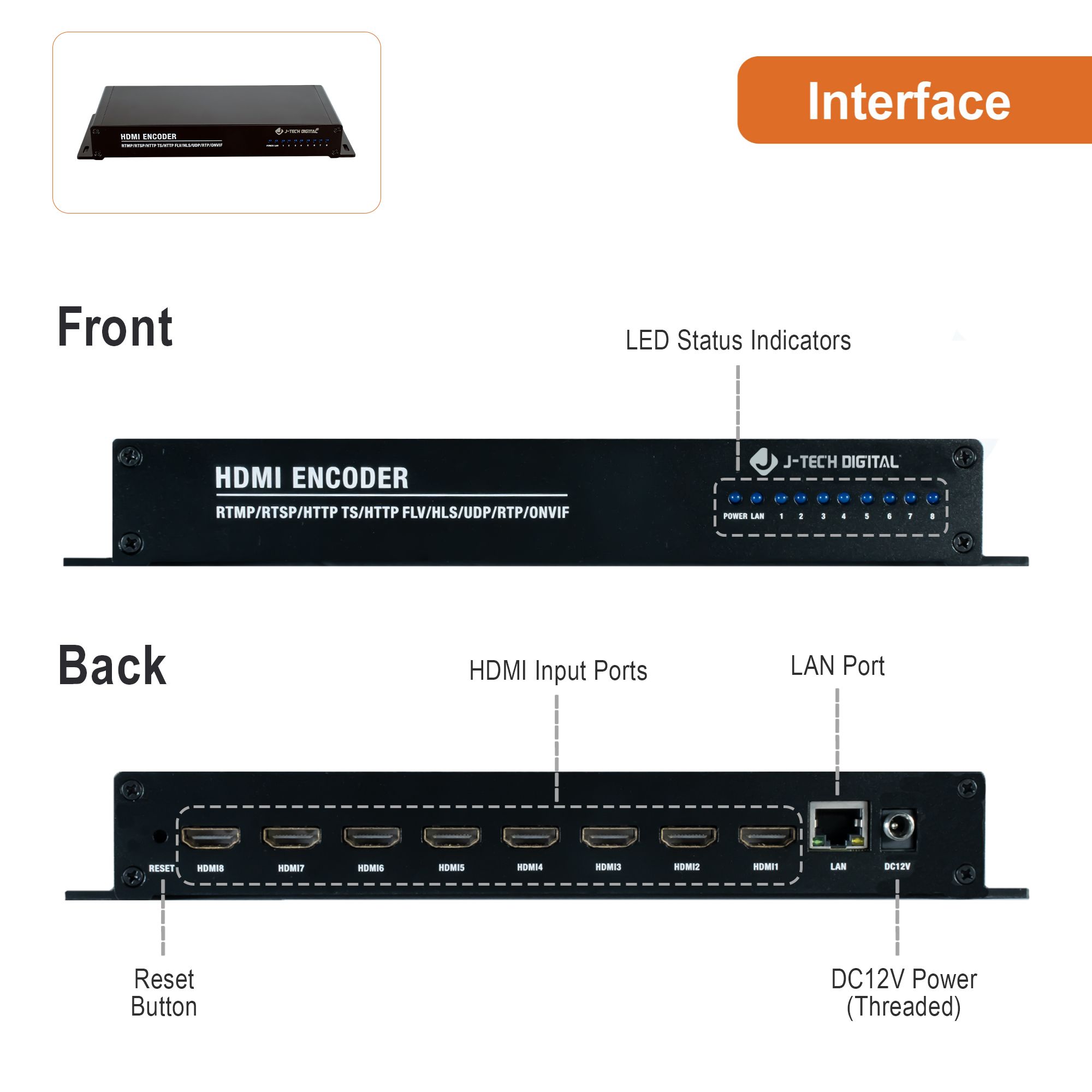

Connections

Name	Values

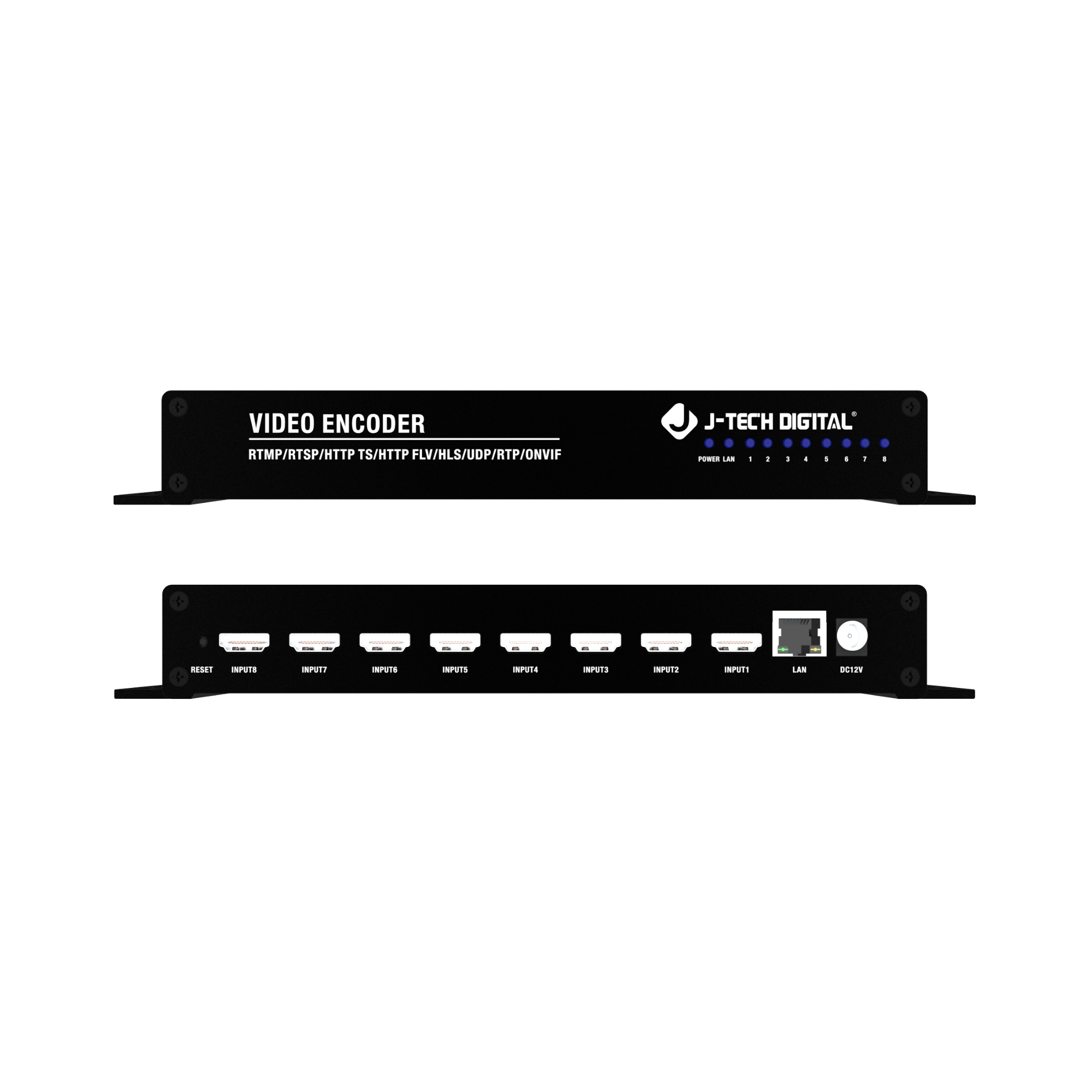

HDMI Inputs	8 x 19-Pin Female HDMI 1.4
Ethernet	1 x RJ-45 (10/100/1000 Full Duplex)

Standards

Name	Values
Supported Input Standards	1080p 60Hz
Video Streaming Resolutions	176 x 144 \| 240 x 180 \| 320 x 180 \| 320 x 240 \| 320 x 256 \| 352 x 228 \| 352 x 480 \| 400 x 224 \| 400 x 320 \| 480 x 270 \| 480 x 272 \| 480 x 320 \| 480 x 360 \| 480 x 384 \| 480 x 480 \| 544 x 480 \| 608 x 448 \| 640 x 360 \| 640 x 480 \| 704 x 576 \| 720 x 404 \| 720 x 480 \| 720 x 540 \| 720 x 576 \| 850 x 480 \| 1024 x 576 \| 1024 x 768 \| 1280 x 720 \| 1680 x 1056 \| 1920 x 1080
Video Streaming FPS	5 – 60
Video Streaming GOP	5 - 300

Streaming

Name	Values
Encoding Method	H.264 \| H.265 \| MJPG
Streaming Standards	SRT \| RTSP \| RTMPS \| RTMP \| ONVIF \| TS \| HLS \| FLV
H.264 Profiles	Baseline \| Main \| High
Bitrate Control	Constant Bit Rate \| Strong Constant Bit Rate \| Variable Bit Rate
Bit Rate	32 – 32000 kbps

Control

Name	Values
Device Control	Ethernet (Web GUI)

General

Name	Values
Power Supply Input	100 – 240VAC 50/60Hz
Power Supply Output	DC 12V 1A
Power Usage	12 Watts (max)

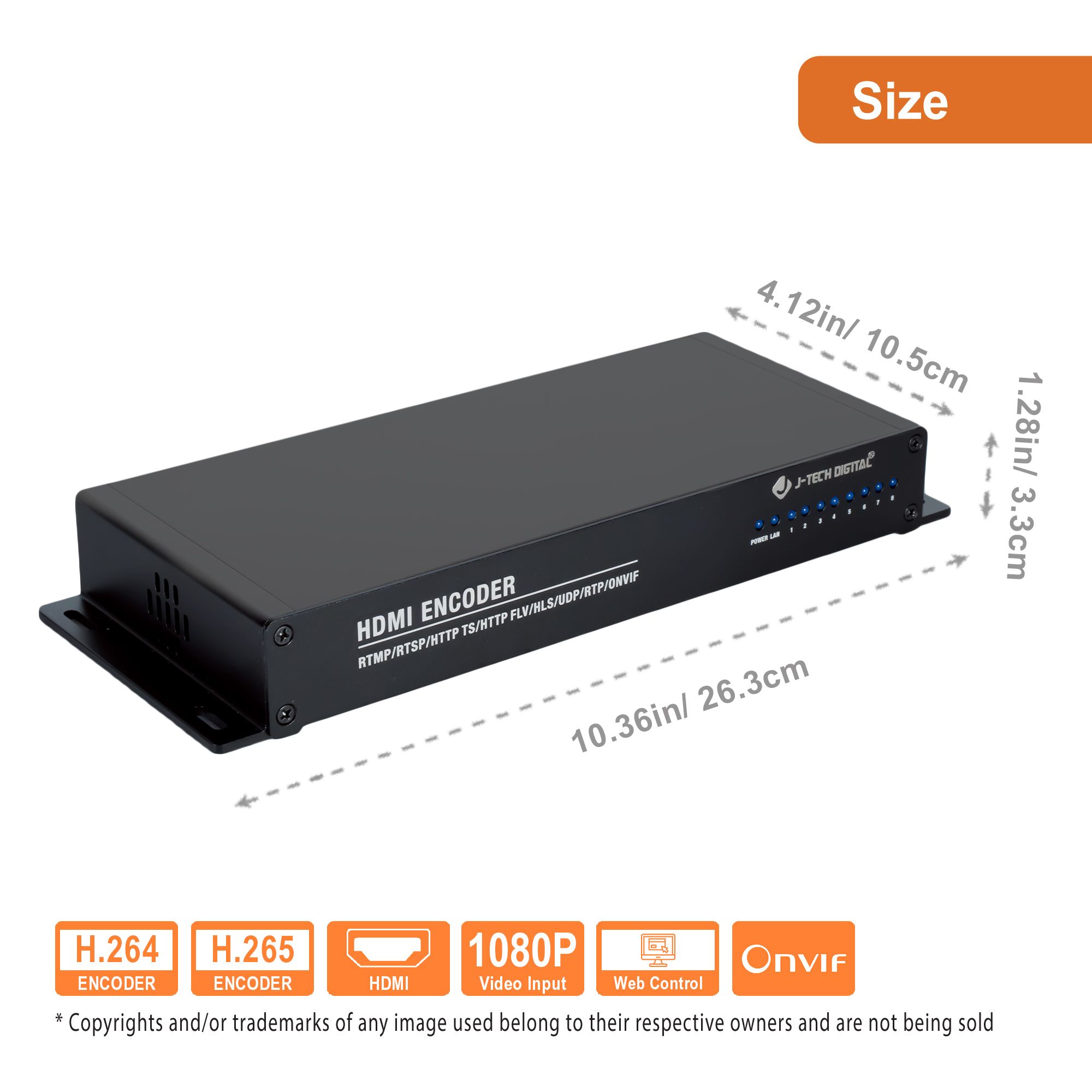

Dimensions (LxWxH)	10.375 in x 4.125 in x 1.25 in
Weight	1.3 lbs.
Operating Temperature	-4° - 140°F
Storage Temperature	-40° - 257°F
Relative Humidity	< 90% (non-condensing)

Resources & Downloads

Category	Description	Version	File
MANUAL	User Manual	1.0	JTD-673- User Manual V1.1 (8-Input).pdf
SPECIFICATION	Spec Sheet	1.1	JTD-673 Spec Sheet V1.1.pdf

Category: MANUAL

Description: User Manual

Version: 1.0

File: JTD-673- User Manual V1.1 (8-Input).pdf

Category: SPECIFICATION

Description: Spec Sheet

Version: 1.1

File: JTD-673 Spec Sheet V1.1.pdf
