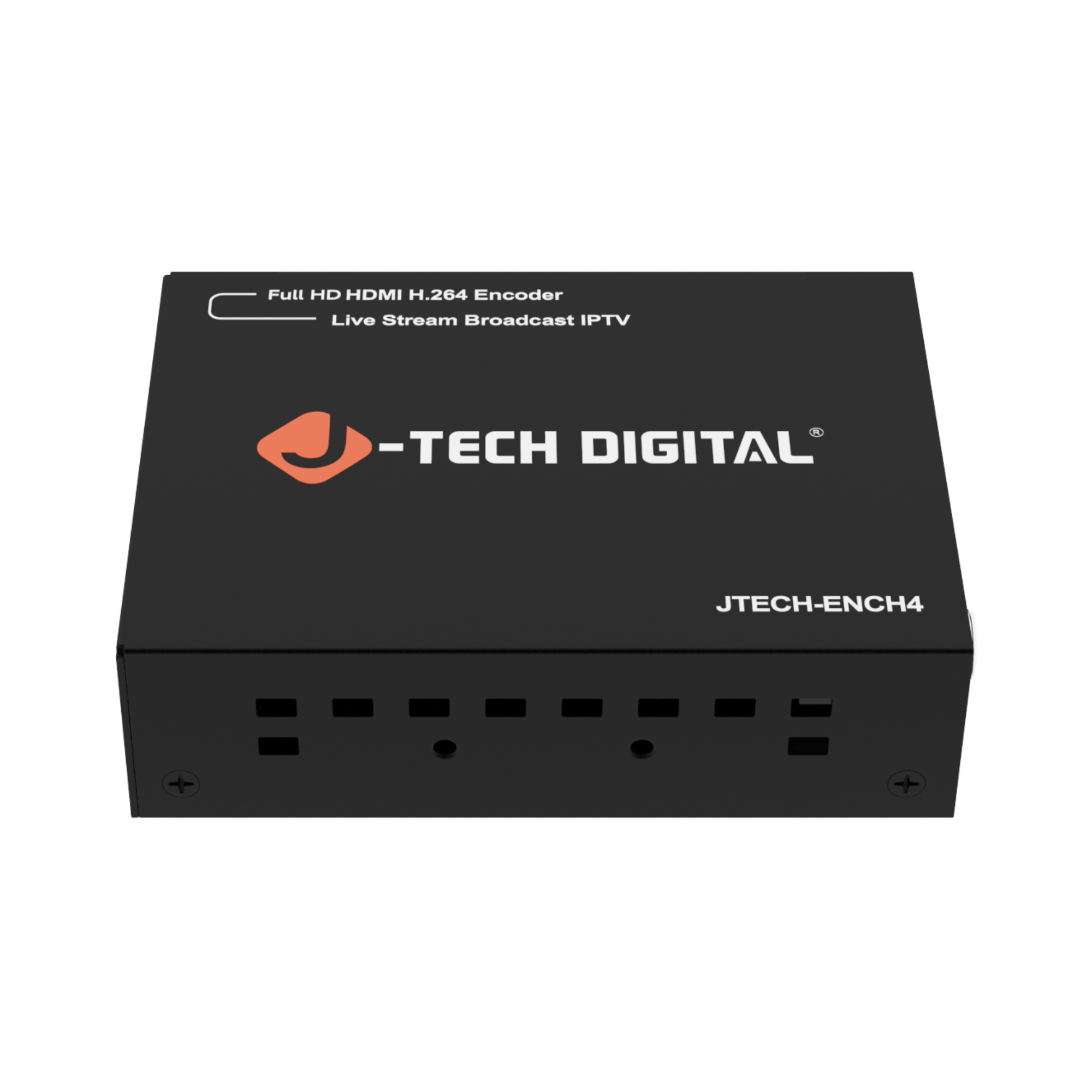

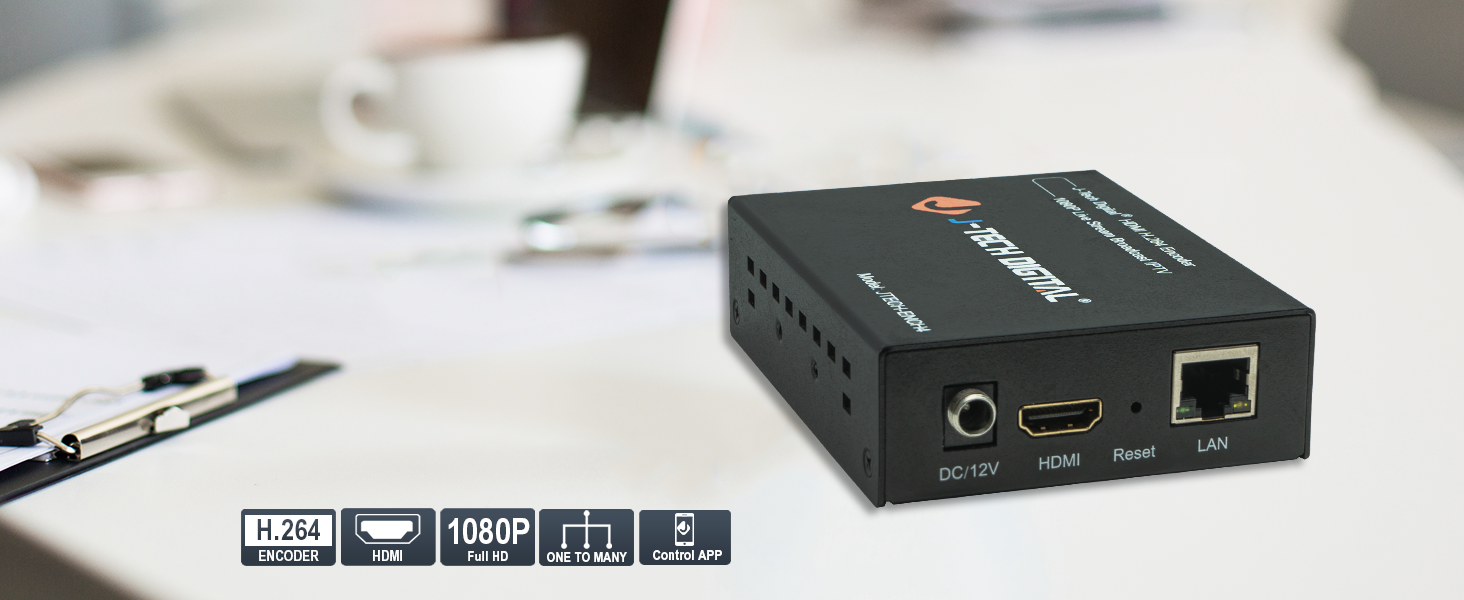

1080P 60Hz HDMI H.264 IPTV Encoder For Livestream Broadcast

Regular price $181.49

Shipping calculated at checkout

  • ✅ Innovating Product, Leading Technology: This HDMI H.264 IPTV encoder is ideal for broadcast of audio/video or live streaming for TV: YouTube Live, Facebook Live (firmware update through J-Tech Digital’s website maintains RTMPS compatibility), Twitch, IBM Cloud Video/Ustream, Vimeo Live/Livestream, Periscope, IRIS/Bambuser, YouNow, Meridix, Streamspot, DaCast, Tikilive.
  • ✅ Better Quality, Lower Bandwidth: HDMI signal is converted to H.264 and transmitted through standard TCP/IP (internet/LAN). This extender can be installed on your home network with minimum bandwidth consumption.
  • ✅ VLC Player Compatible, Full 1080@60Hz Resolution: Just enter “http://[Encoder’s IP address]/0.ts” and play a video stream using VLC player. Supported resolutions: 1080p@60/50Hz, 1080i@60/50Hz, 720p@60/50Hz, 576p@60/50Hz, 576i@50Hz, 480p@60Hz, 480i@60Hz.

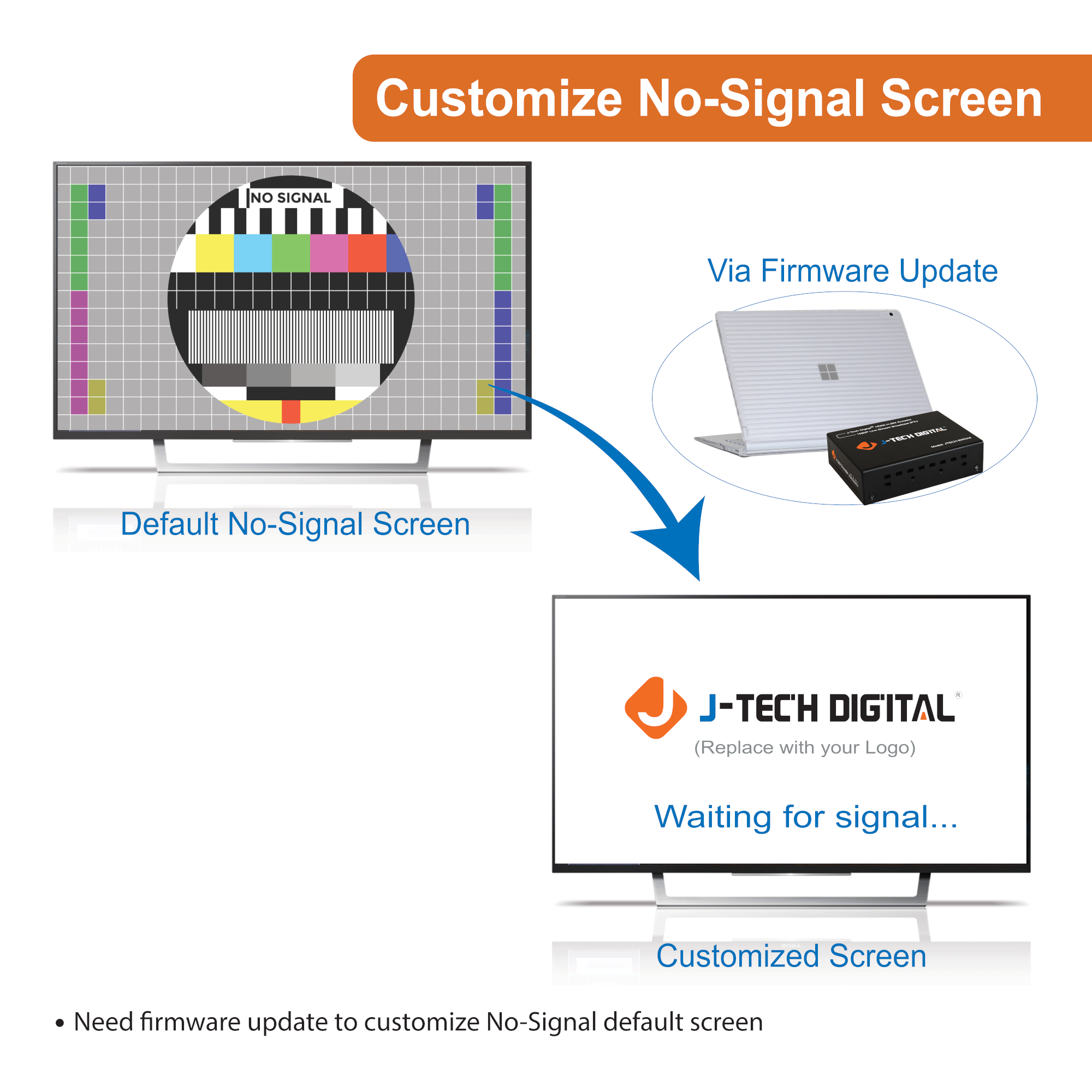

  • ✅ OSD Setting, Customized Logo: Add text and logos to the video stream to customize your output display.
  • ✅ Remote Control: Built-in web server gives you the power to modify settings such as IP address, bit rate, and fps.

Overnight shipping*:

Two days shipping:

Availability:
In stock
SKU:
JTD-220
Model:
JTECH-ENCH4

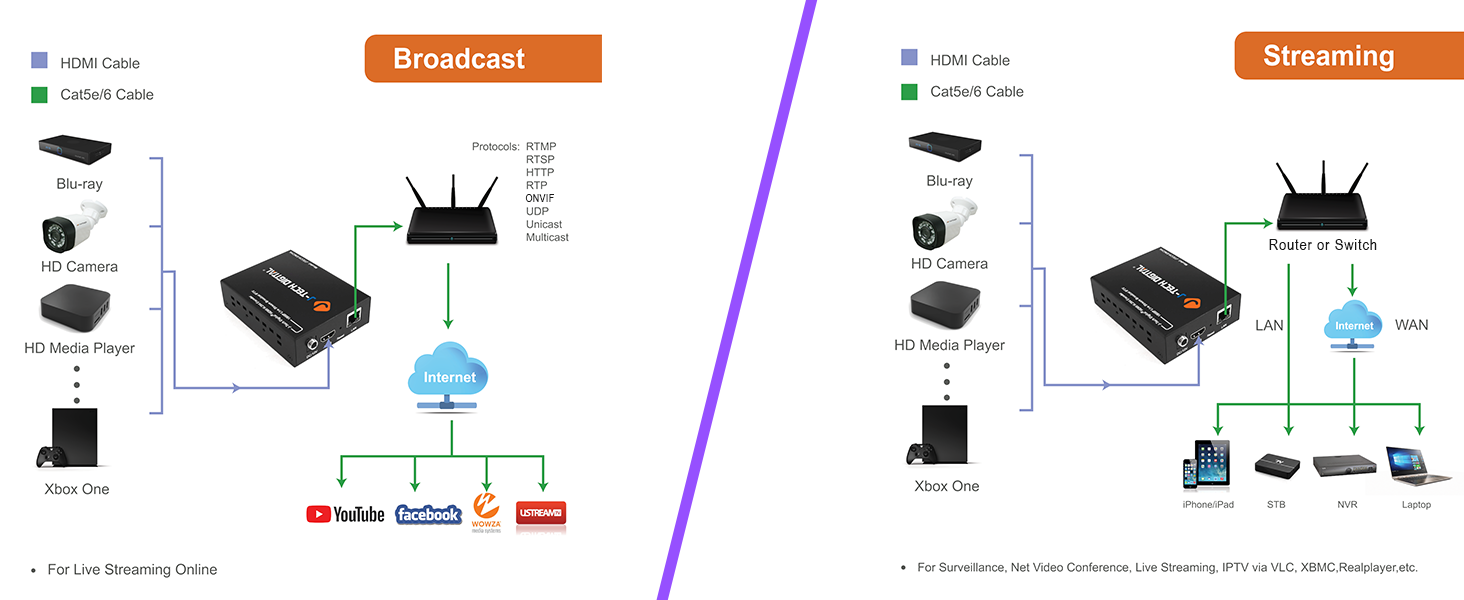

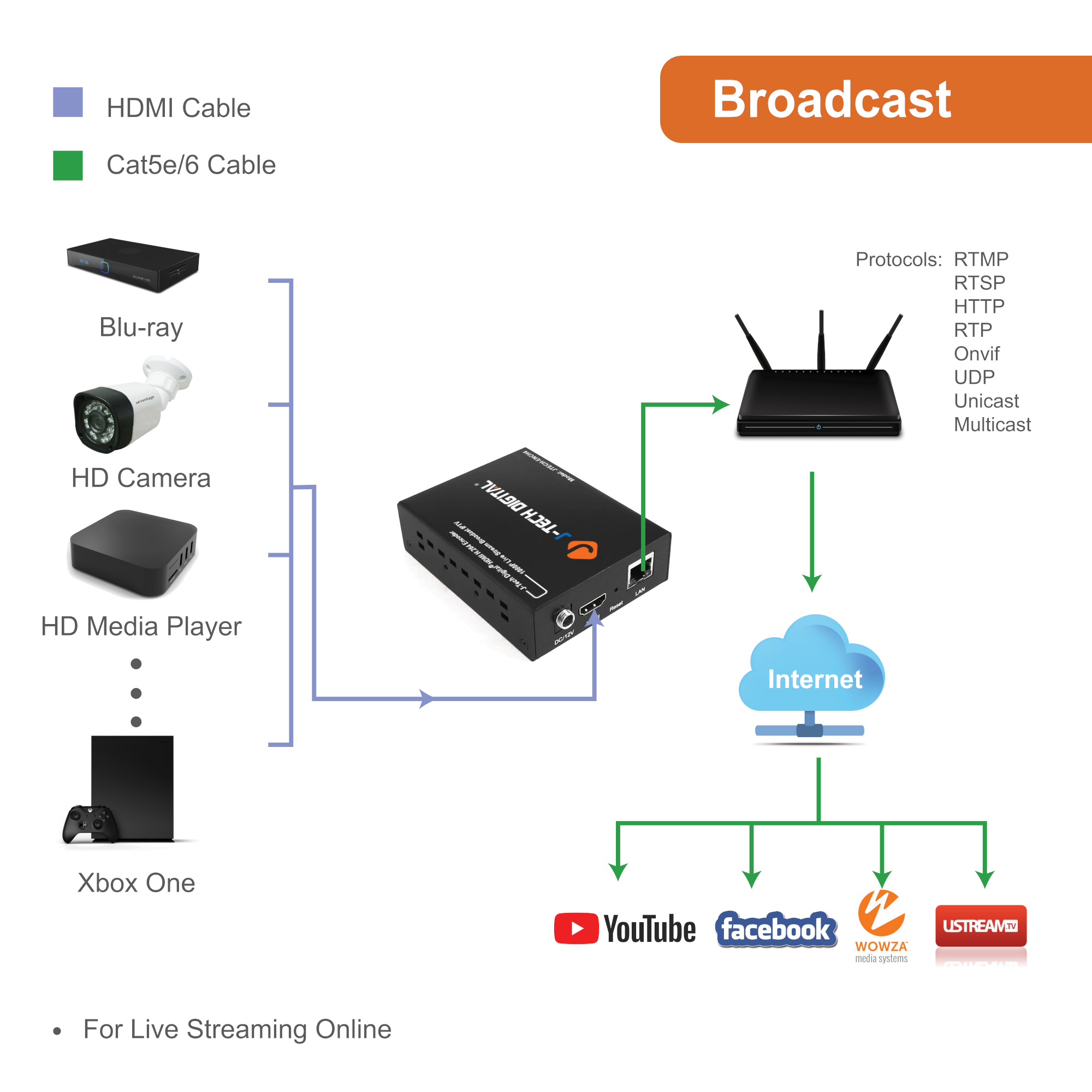

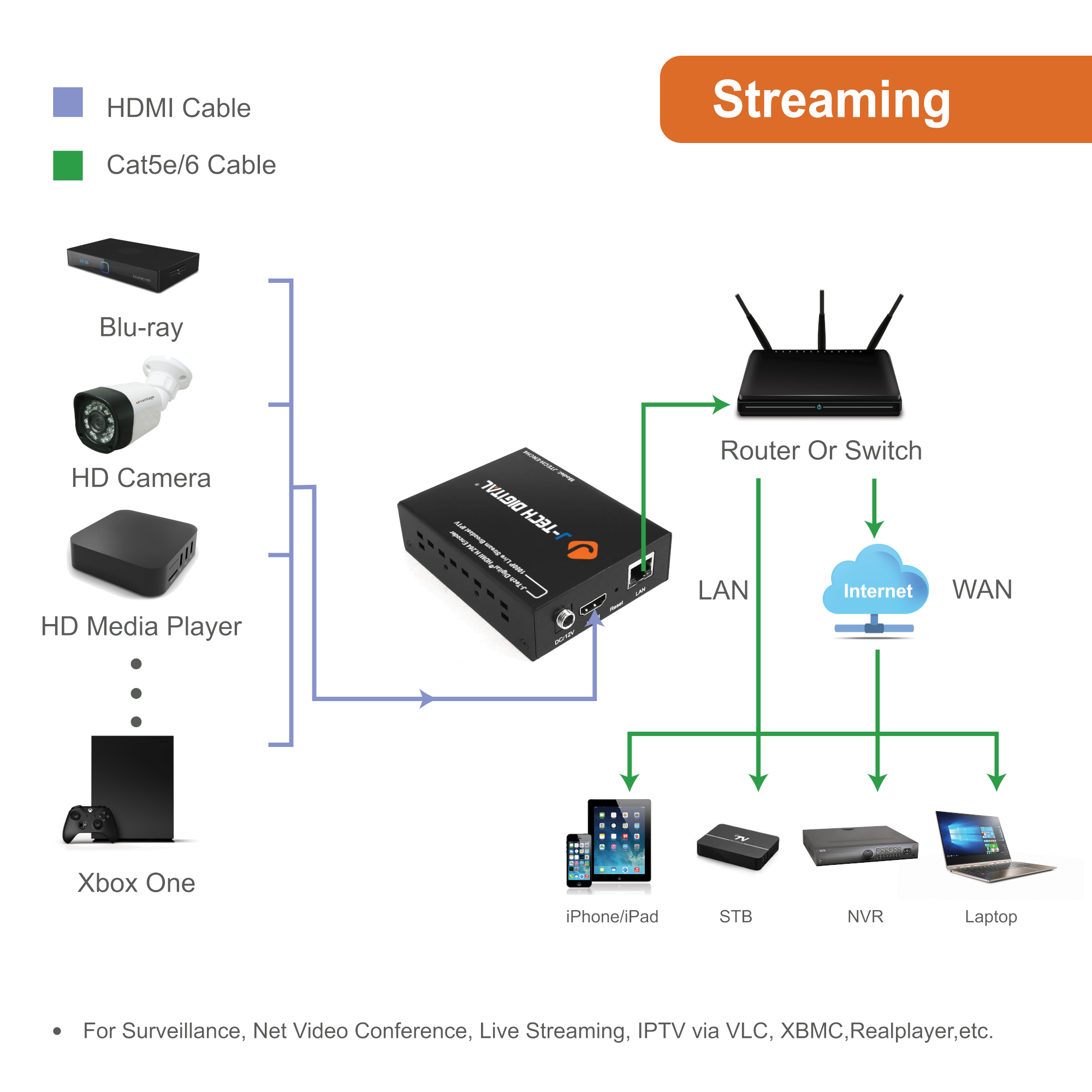

This encoder will take an HDMI audio/video signal, encode it using H.264, and give you the power to choose where to stream it to. Choose from any popular video upload site/service, one or more LAN computers using VLC/multicast, or a local surveillance system using ONVIF.

✅ Supports H.264 encoding / UDP, HTTP, RTSP, RTMPS, RTMP, ONVIF, MPEG1 Audio Layer 2 / CBR/VBR rate: 16Kbps ~ 16Mbps

✅ 100 M network interface uses full duplex mode / Supports up to 720p, 1080p@60Hz HD video input / Support image parameter settings

✅ WEB interface management authority / Support remote management in WAN (WEB)/ Customized resolution settings

✅ One button factory reset

HDMI H.264 IPTV encoder for YouTube, Facebook, and Twitch streaming
1080P 60Hz HDMI H.264 IPTV Encoder For Livestream Broadcast
Regular price $181.49

Specifications

Video

Name Values
HDMI Input 1
Resolution 1920 x 1080 @60/50Hz
Video Standard H.264 encoding / UDP, HTTP, RTSP, RTMPS, RTMP, ONVIF, MPEG1 Audio Layer 2 / CBR/VBR rate: 16Kbps ~ 16Mbps

Communications

Name Values
RJ45 Output 1
Network 100 M network interface uses full duplex mode / Supports up to 720p, 1080p@60Hz HD video input / Support image parameter settings

General

Name Values
CBR/VBR rate CBR/VBR rate: 32Kbps ~ 32Mbps
Web interface WEB interface management authority / Support remote management in WAN (WEB)/ Customized resolution settings
Power Supply DC 12V
Connector Gender Male-to-Male

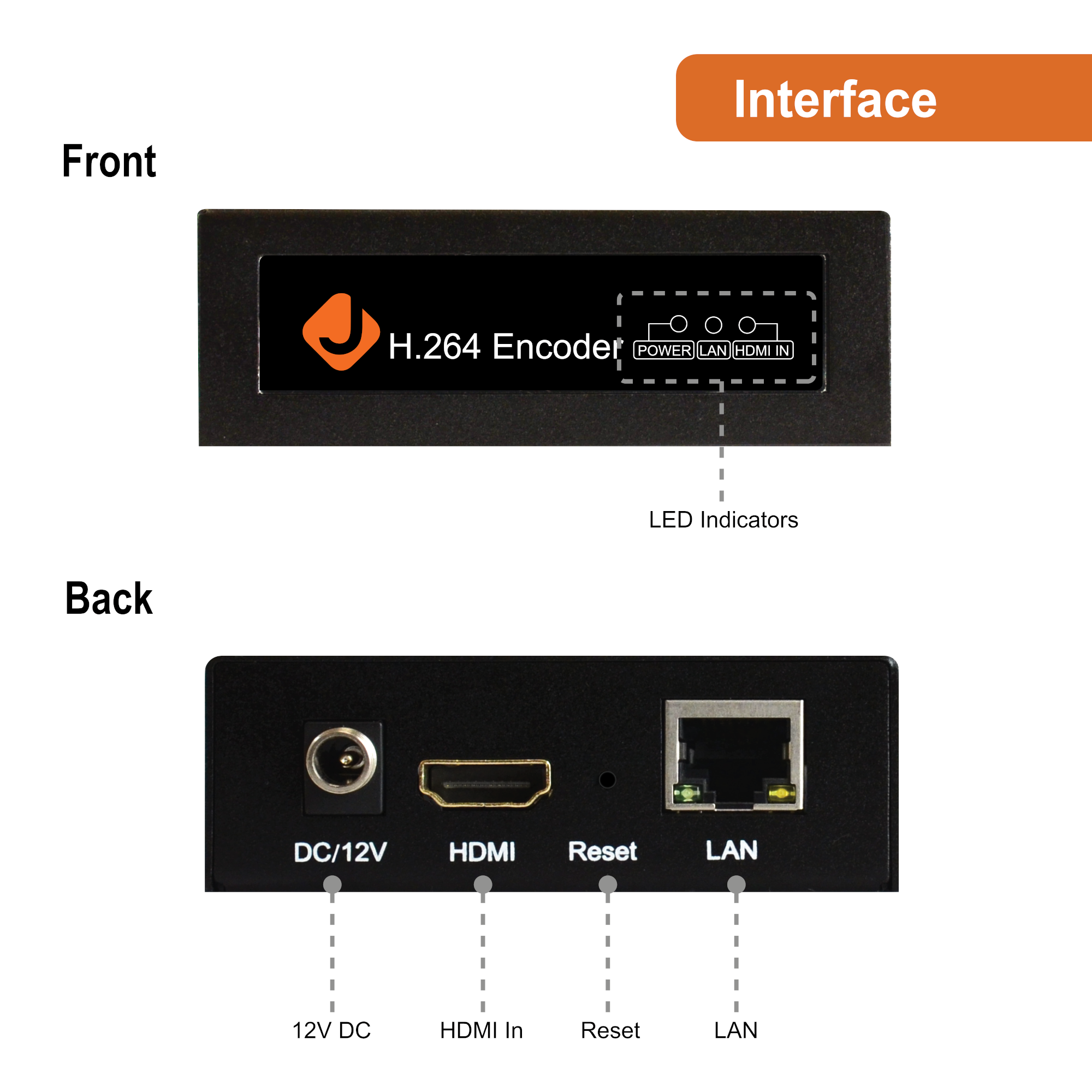

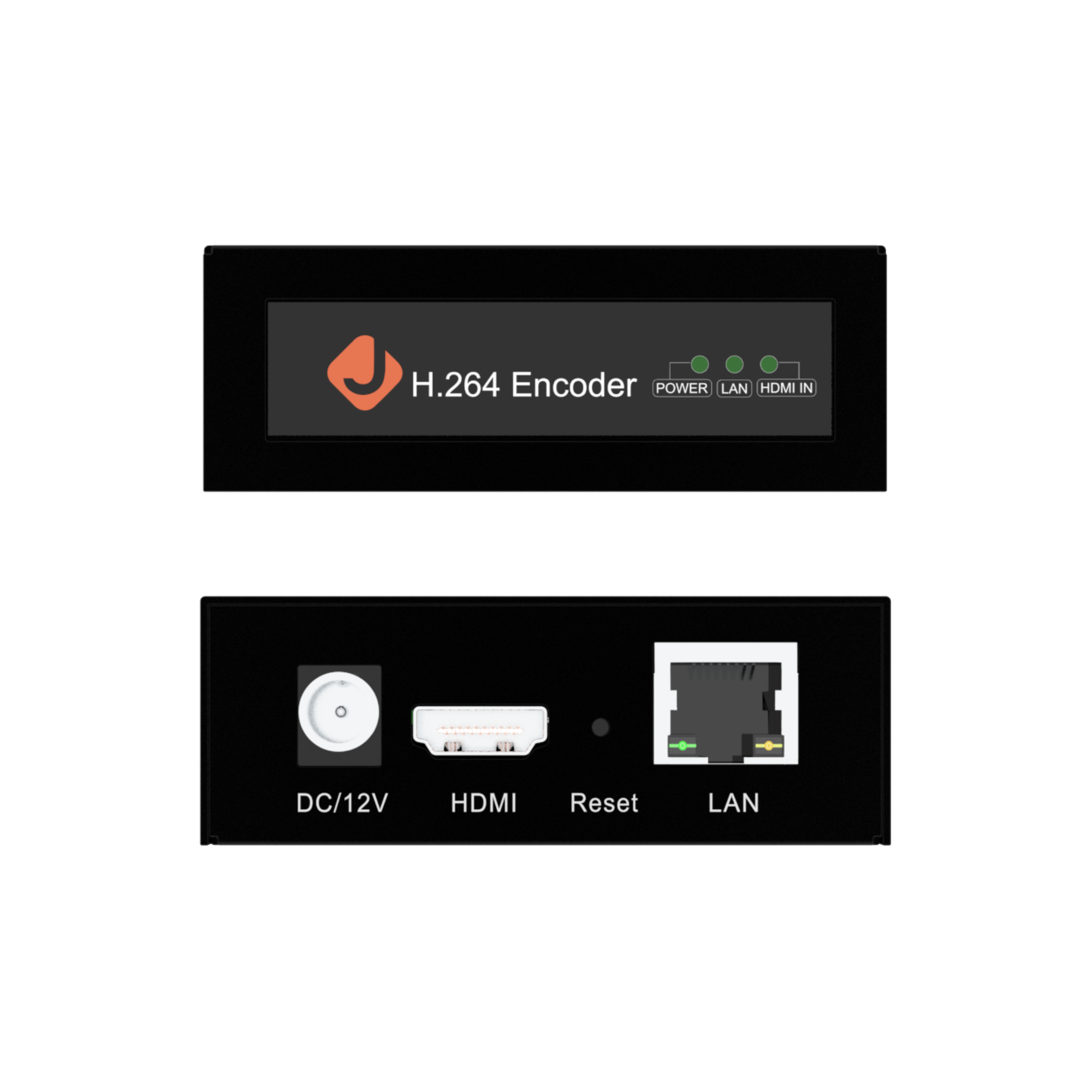

Connector Type HDMI, RJ45
Net Weight 1.31 lbs

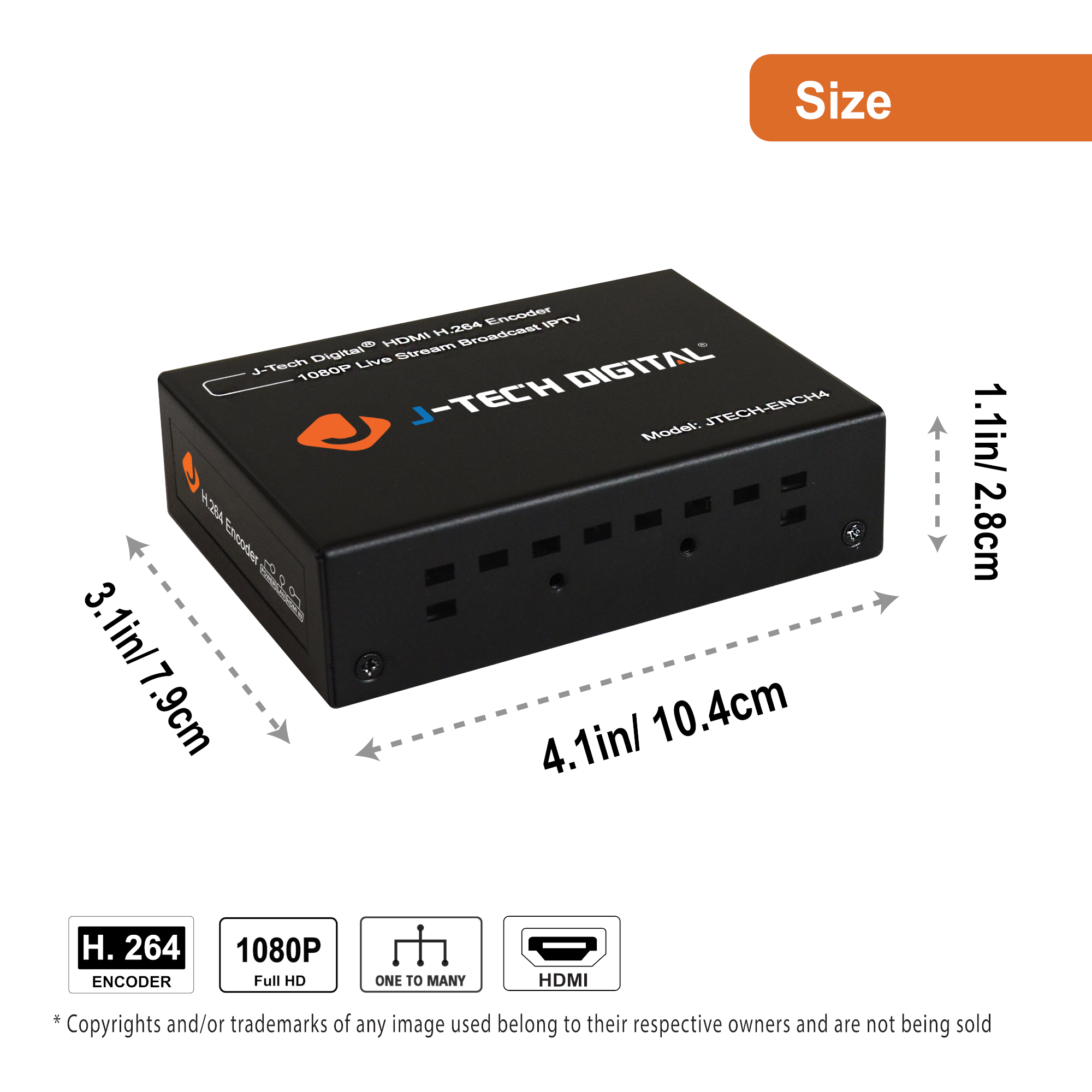

Dimensions(W x H x D) 8.00 × 6.00 × 2.50 in

Resources & Downloads

Category Description Version File
MANUAL User Manual 1.0 jtd-220-user-manual-v1.0.pdf
BROCHURE Installation Guide 1.0 jtd-220-installation-guide-v1.0.pdf
SPECIFICATION Application Guide 1.0 jtd-220-application-guide-v1.0.pdf
FIRMWARE Firmware 3.1 jtd-220-firmware-v3.1.rar
FIRMWARE Firmware & Configuration 3.12 JTD-220 Firmware and Configuration v3.12.zip

Category: MANUAL

Description: User Manual

Version: 1.0

File: jtd-220-user-manual-v1.0.pdf

Category: BROCHURE

Description: Installation Guide

Version: 1.0

File: jtd-220-installation-guide-v1.0.pdf

Category: SPECIFICATION

Description: Application Guide

Version: 1.0

File: jtd-220-application-guide-v1.0.pdf

Category: FIRMWARE

Description: Firmware

Version: 3.1

File: jtd-220-firmware-v3.1.rar

Category: FIRMWARE

Description: Firmware & Configuration

Version: 3.12

File: JTD-220 Firmware and Configuration v3.12.zip
