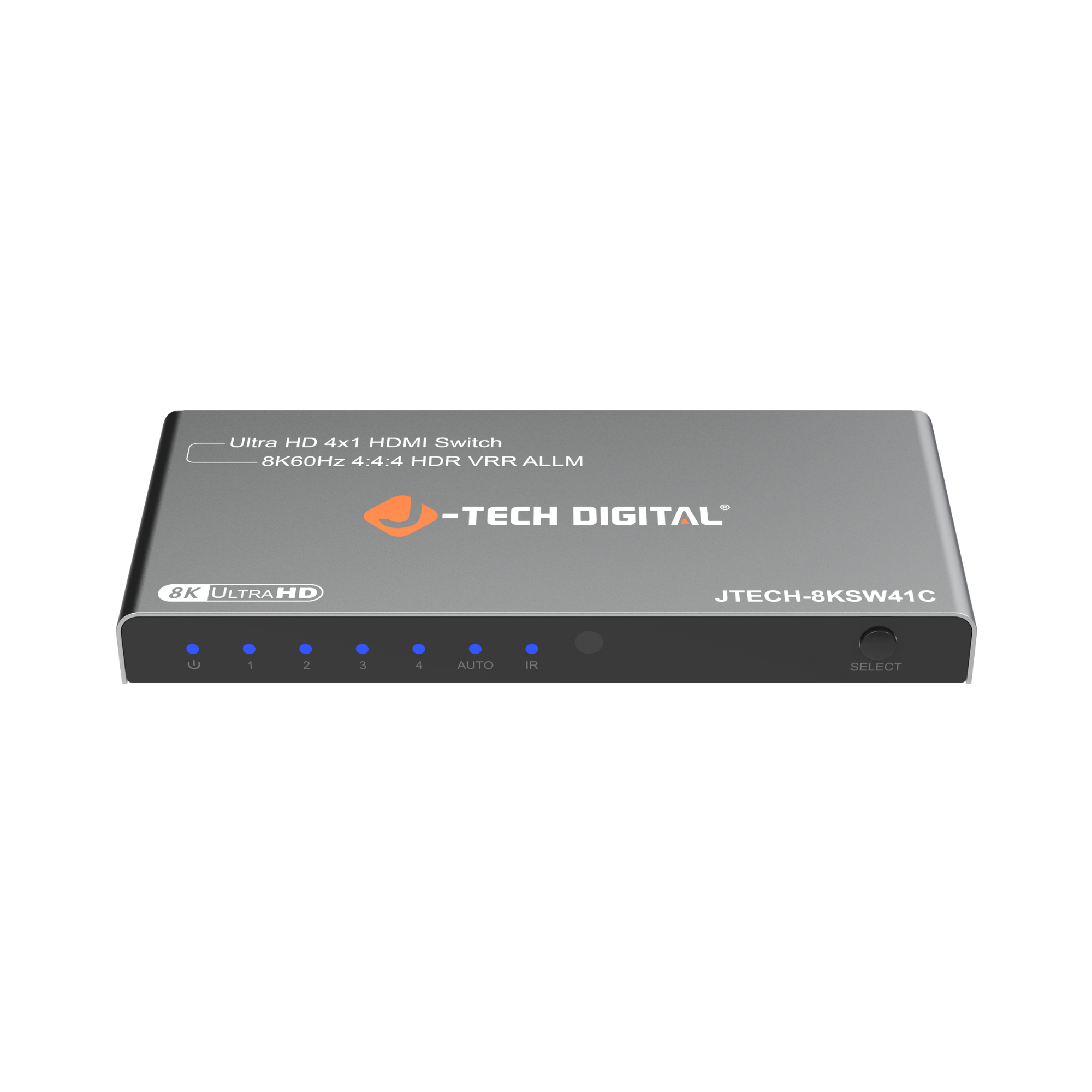

8K 60Hz 4x1 HDMI Switch with IR Remote

Regular price $40.69

Shipping calculated at checkout

  • ✅ 4x1 HDMI Switch w/ Auto & Manual Switching: Connect and switch between 4 input source devices with ease. Perfect for new displays with one HDMI 2.1 input port. Manually switch between your source devices or take advantage of the auto-switching feature.
  • ✅ 8K @ 60Hz | 4K @ 120Hz Supported: Watch full 8K UHD media content the way it was intended! Supports 8K 60Hz, 4K 120Hz, and 1080P 240Hz.
  • ✅ HDR | HDR10 | HDR10+ | Dolby Vision Supported: With support for High Dynamic Range (HDR) and Dolby Vision, experience ultra-high-definition content in its full glory.
  • ✅ HDMI 2.1 | HDCP 2.3 Compliant: Take advantage of the latest HDMI 2.1 features such as Variable Refresh Rate (VRR), Auto Low-Latency Mode (ALLM), and Quick Frame Transport (QFT). Also supports CEC and digital audio formats such as Dolby Digital, DTS-HD Master Audio, etc.

Overnight shipping*:

Two days shipping:

Availability:
In stock
SKU:
JTD-3004
Model:
JTECH-8KSW41C

The JTECH-8KSW41C 4x1 HDMI switch allows you to connect 4 UHD sources devices to 1 display, while giving you the ability to easily switch between one of the other. Use either manual or auto switching mode to easily toggle between your input devices. The switch supports 8K @ 60Hz, 4K @120Hz, and 1080P @ 240Hz resolutions, along with support for HDR and Dolby Vision, allowing you to get immersed within your content. Latest HDMI 2.1 features such as VRR, ALLM, and QFT ensure that you get the full gaming experience.

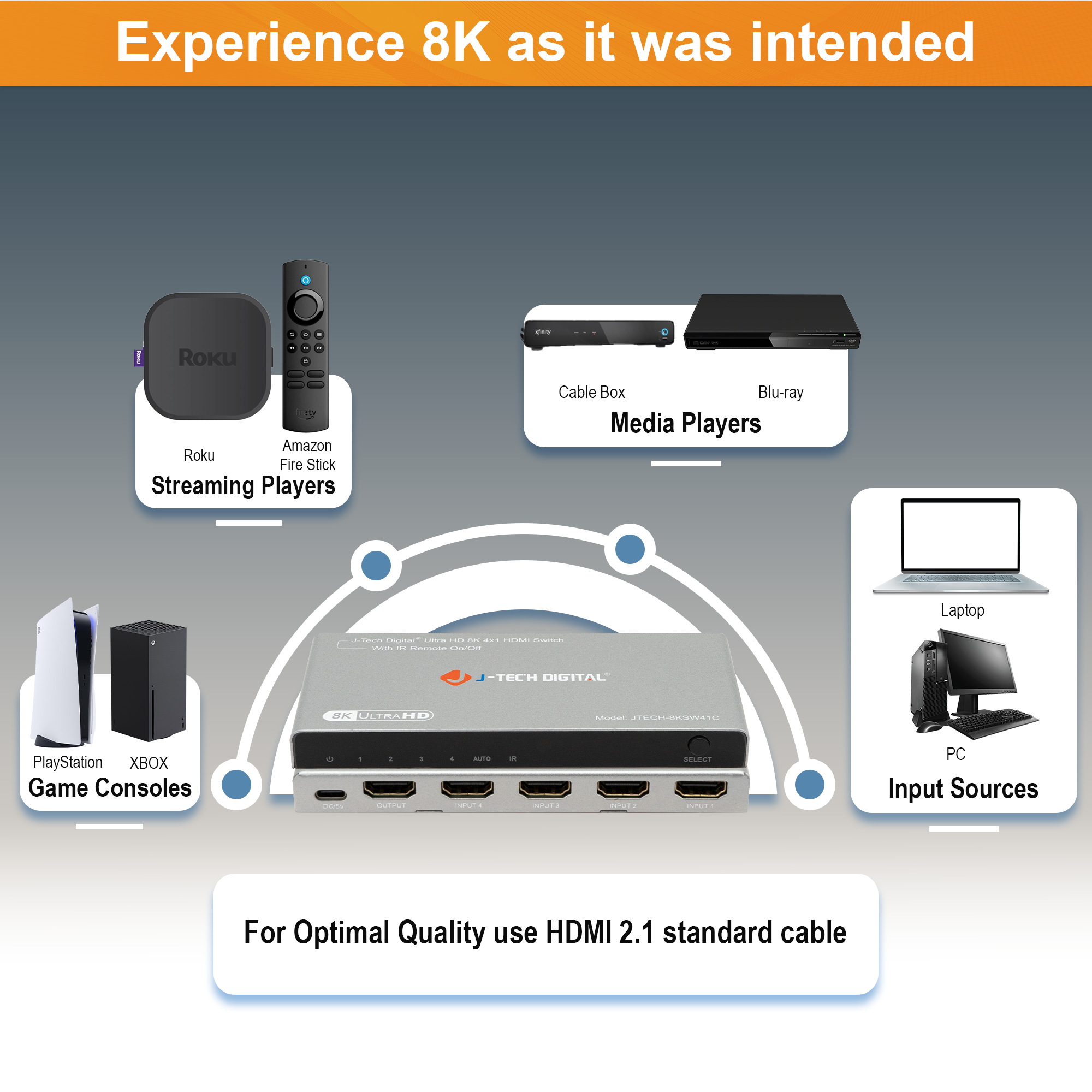

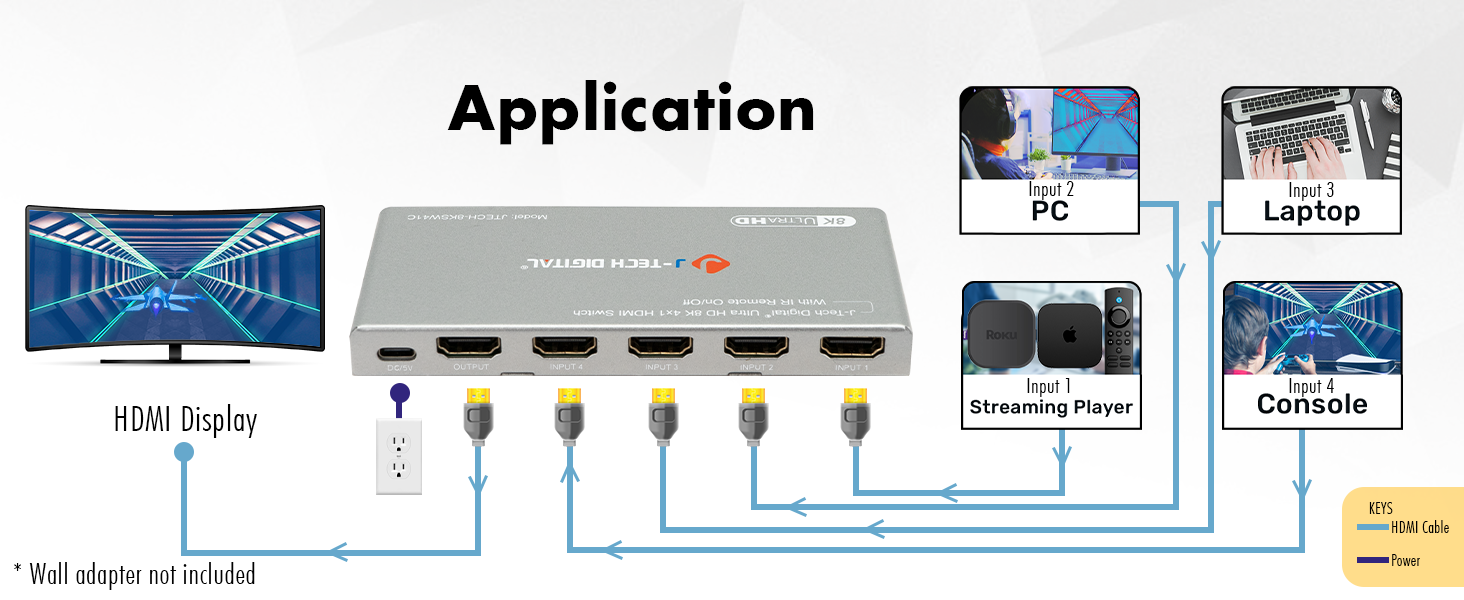

4 x HDMI Inputs | 1 x HDMI Output

HDMI 2.1 | HDCP 2.3 with backwards compatibility

Supports 8K @ 60Hz | 4K @ 120Hz | 1080P @ 240Hz

HDR | HDR10 | HDR10+ | Dolby Vision supported

Dual Switching Modes – Select either manual or automatic switching

Press the “Select” button on the unit for 3-5 seconds to toggle between the two modes or press the “Auto” button on the remote to change modes

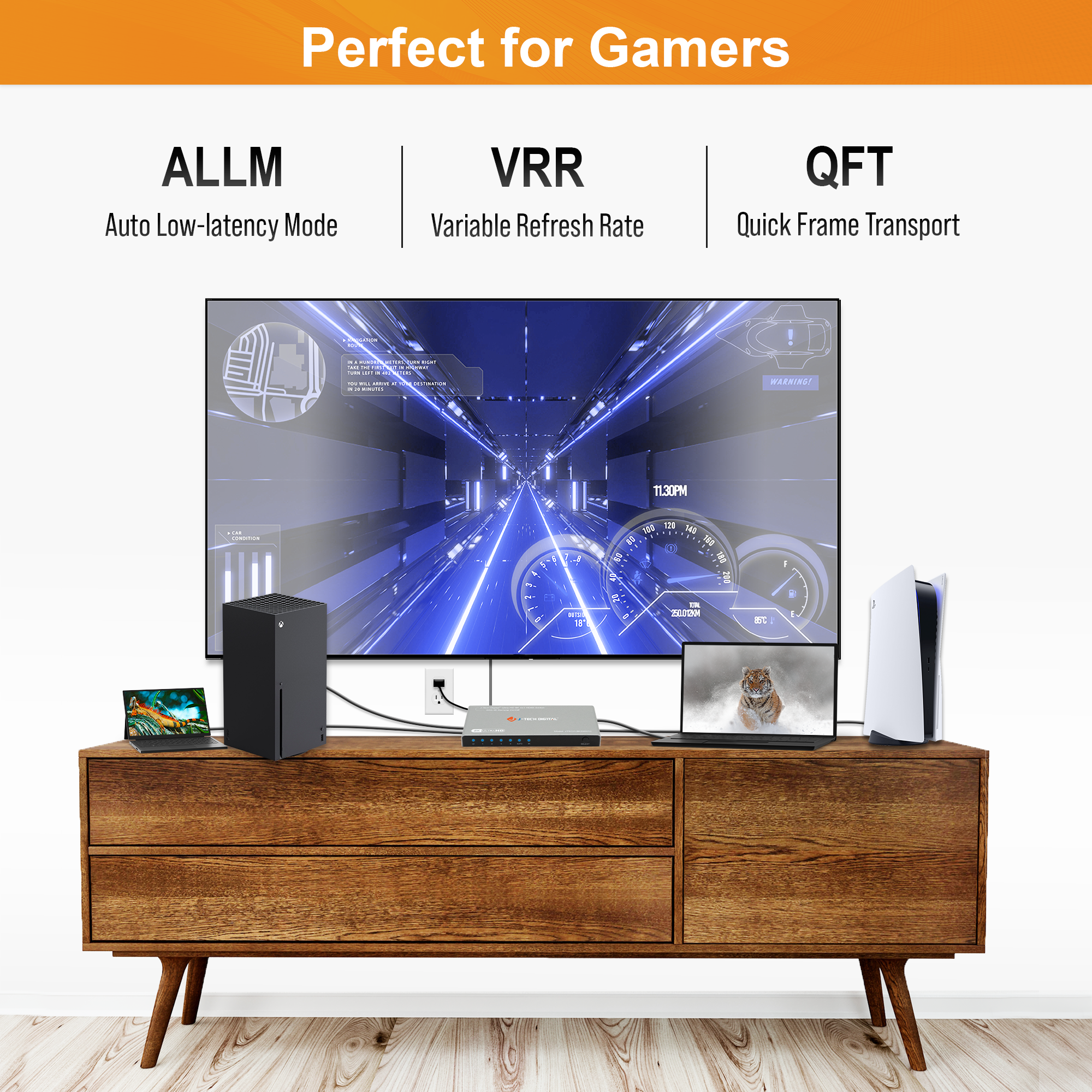

Supports Variable Refresh Rate (VRR), Auto Low-Latency Mode (ALLM), and Quick Frame Transport (QFT)

Supports CEC and digital audio formats such as Dolby Digital, DTS-HD Master Audio etc.

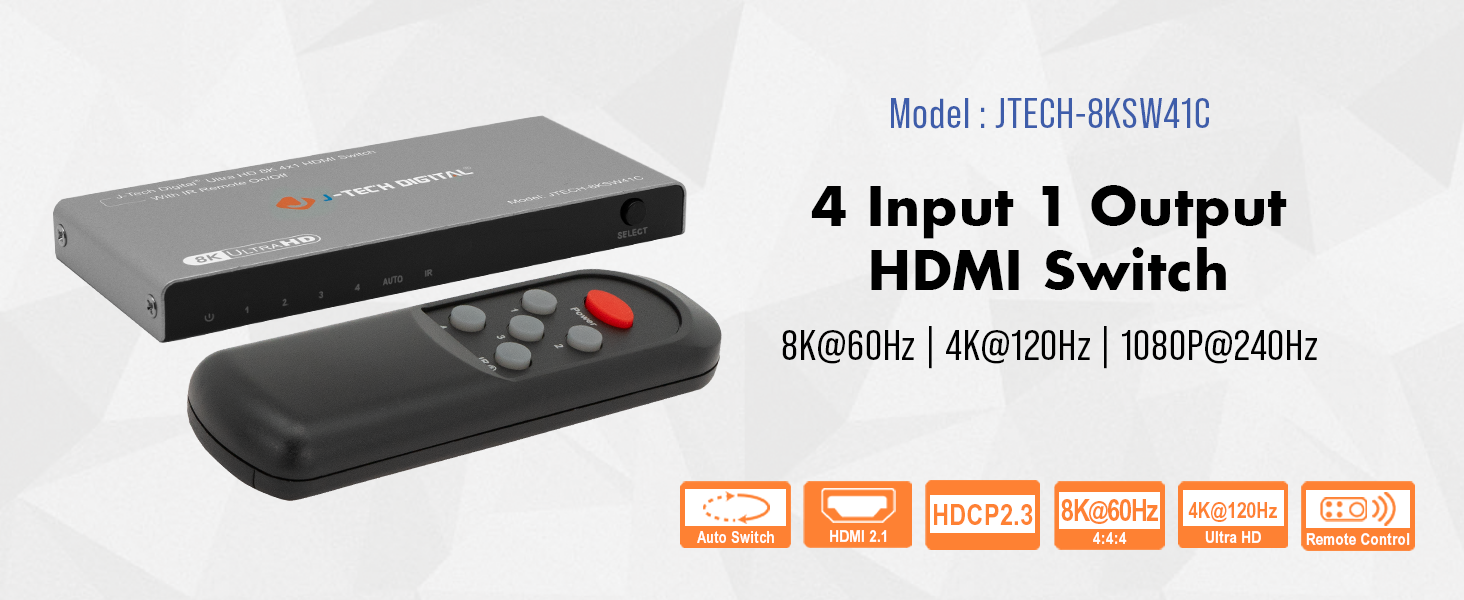

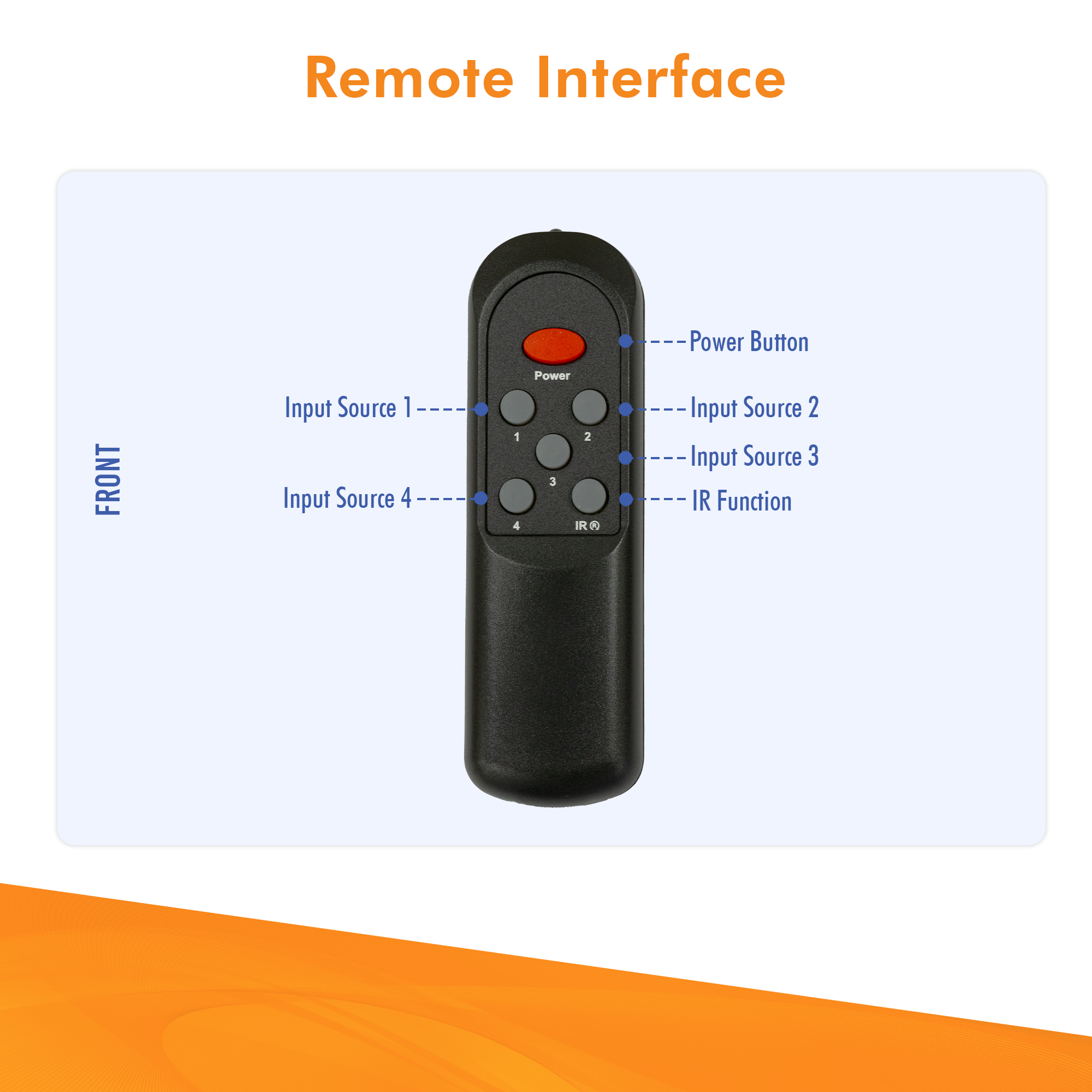

Control via front panel buttons or included IR remote control

8K 4x1 HDMI Switch – Switch between 4 HDMI devices with ease, supports 8K 60Hz, 4K 120Hz, HDR, Dolby Vision, and features both auto and manual switching modes.
8K 60Hz 4x1 HDMI Switch with IR Remote

Specifications

Video

Name Values
Ports
  • 2 x HDMI Inputs
  • 1 x HDMI Output
  • 1 x USB-C Power Port
Vertical Frequency Range
  • 50Hz
  • 60Hz
  • 100Hz
  • 120Hz
  • 240Hz
Resolution Support
  • 8K @ 60Hz
  • 4K @ 120Hz
  • 1080P @ 240Hz

General

Name Values
Operating Temperature 0° ~ 70°C
Storage Humidity 5% - 90% RH non-condensation
Power Supply USB Power Cable
Power Consumption (Max) 5W
Switch Unit Cert FCC, CE, RoHS
Power Supply Cert FCC, CE, RoHS
Dimensions (LxWxH) 136.3 x 61.5 x 14.5mm
Net Weight 173g

Resources & Downloads

Category Description Version File
MANUAL User Manual 1.0 jtd-3004-user-manual-v1.0.pdf

Category: MANUAL

Description: User Manual

Version: 1.0

File: jtd-3004-user-manual-v1.0.pdf
