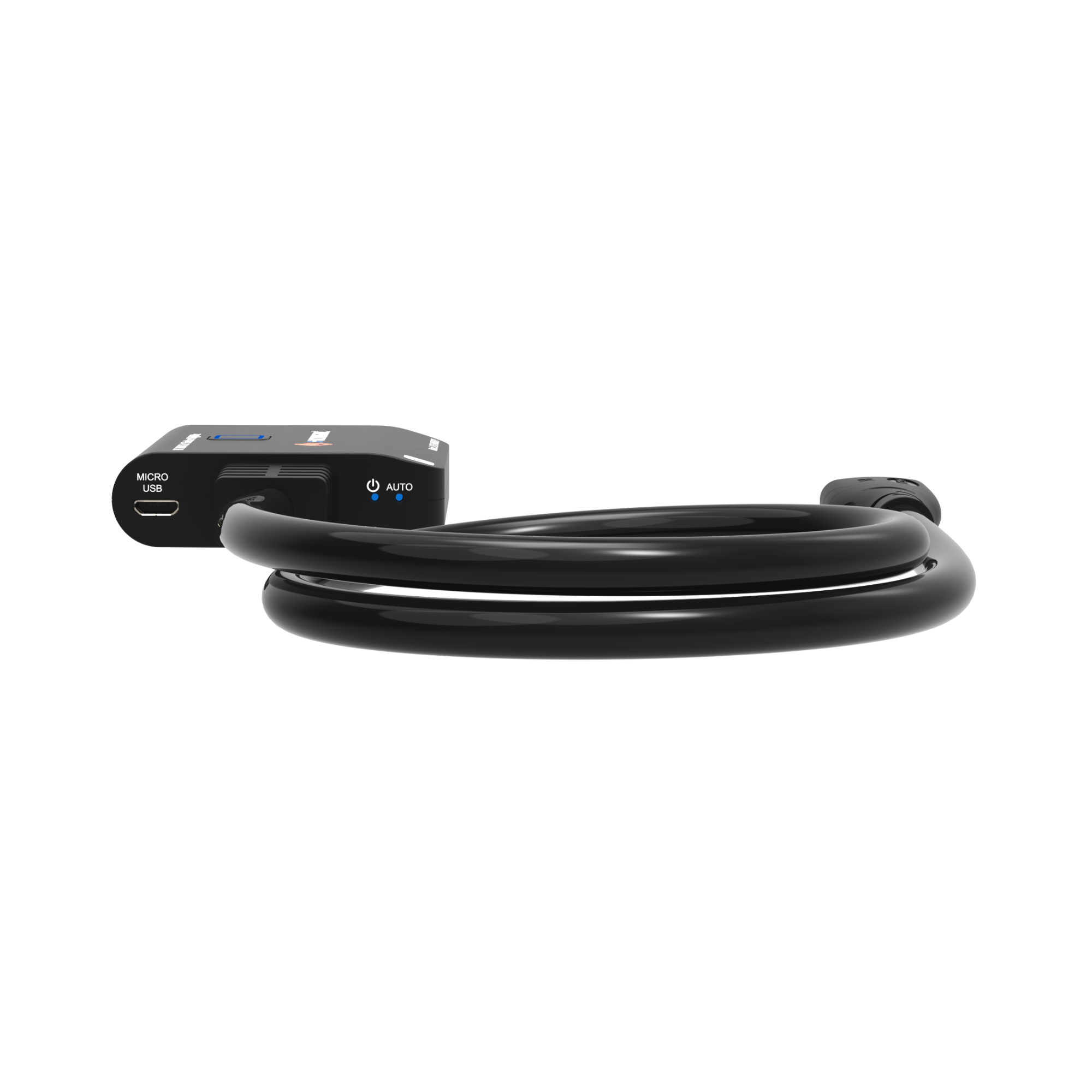

8K 60Hz 2x1 HDMI Switch with Pigtail Plug and Auto-Switching

Regular price $34.99

Shipping calculated at checkout

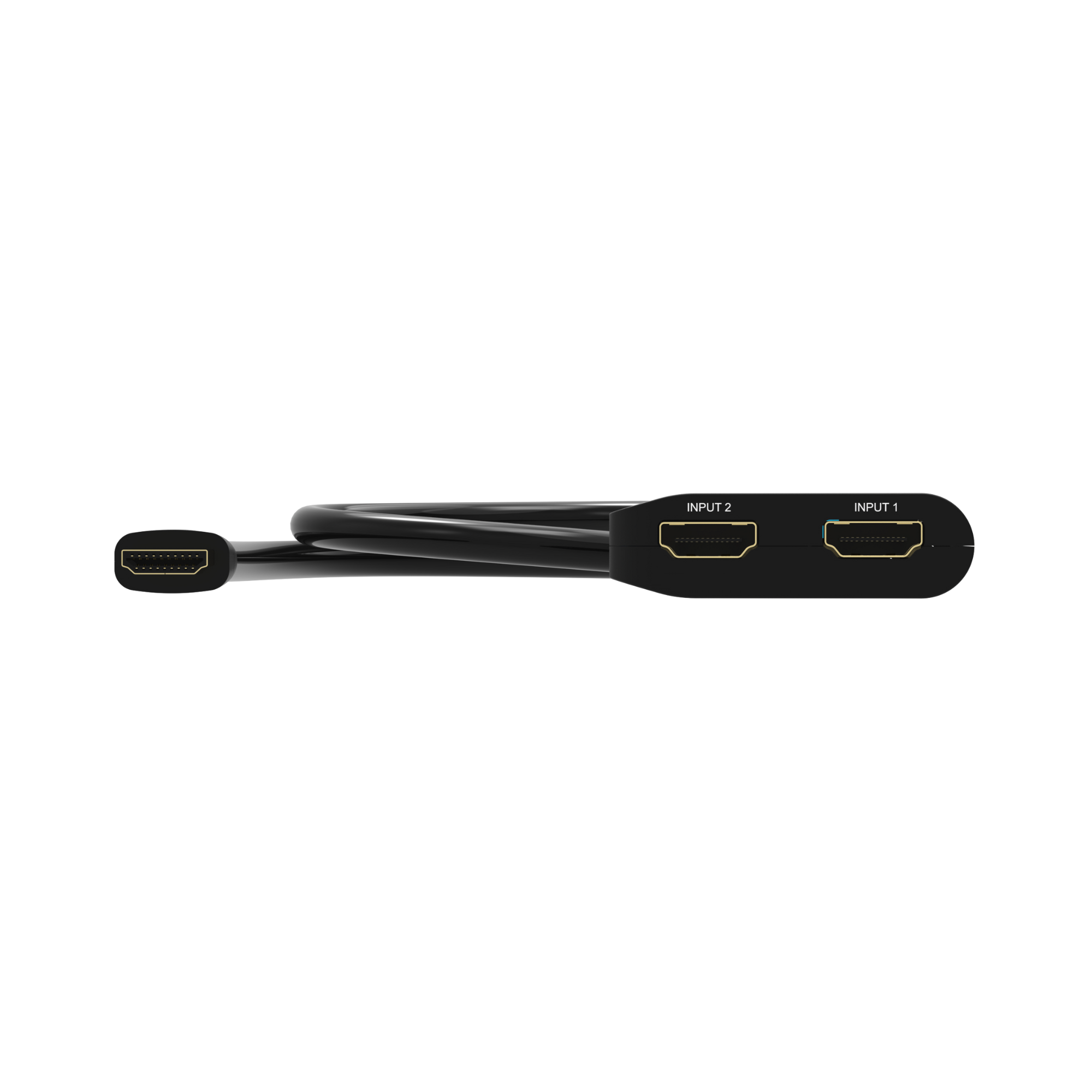

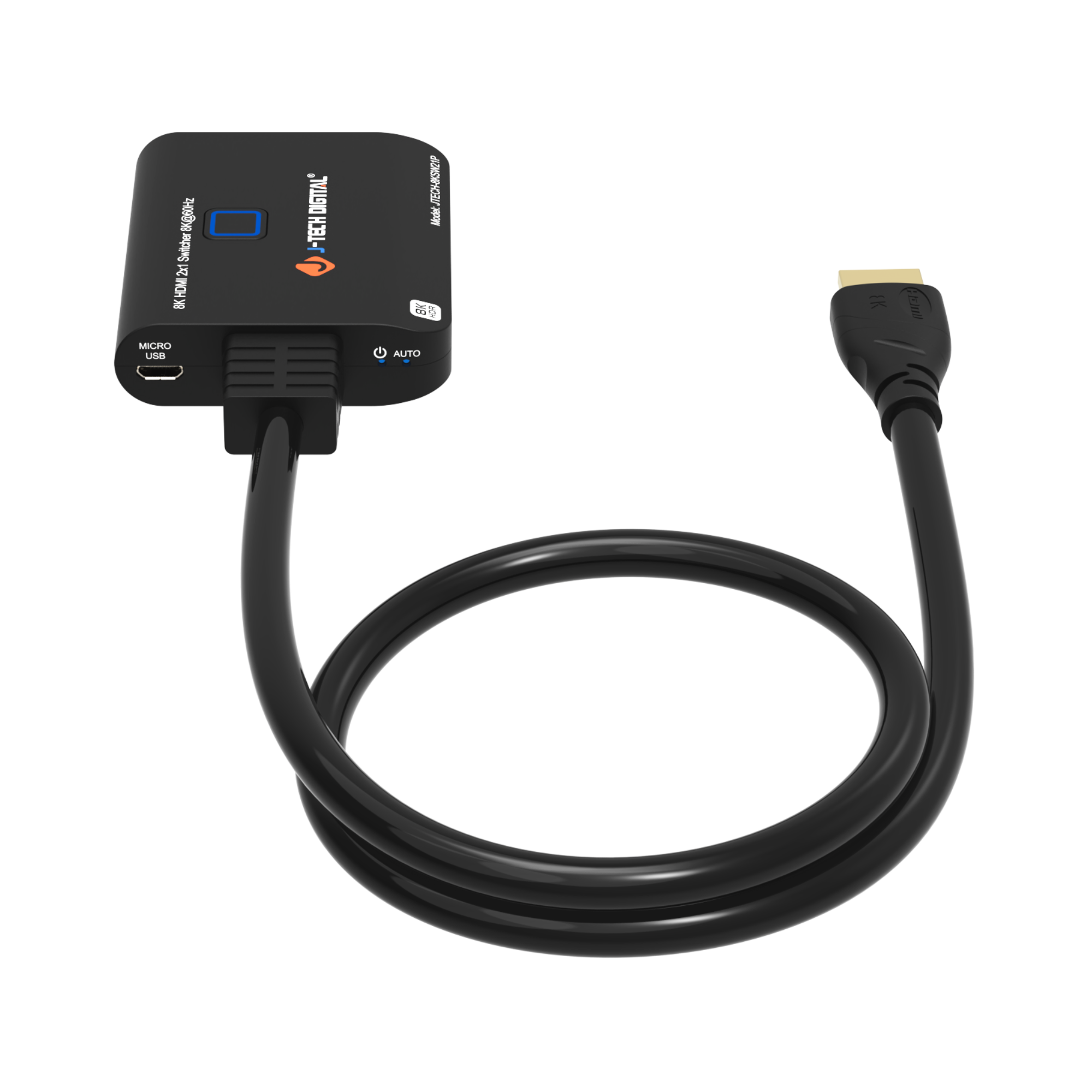

  • ✅ 2x1 HDMI Switch: Featuring dual HDMI 2.1 input ports and 1 x HDMI output port, the JTECH-8KSW21P 8K switcher is perfect for connecting two source devices, such as an XBOX and PS5, to 1 display. Auto Switching feature makes it easy to toggle between the source devices.
  • ✅ Up to 8K@60Hz Resolution Support: Enjoy content in full detail as it was intended to be! With support for 8K resolution at 60Hz, and 4K up to 120Hz, the image will look clear and smooth ensuring perfect details.
  • ✅ HDMI 2.1 & HDCP 2.2 Compliant: Supports latest HDMI features such as Variable Refresh Rate, Auto Low-Latency Mode, Quick Frame Transport, and CEC. Backwards compatible with HDCP 2.2 & 1.4.
  • ✅ HDR & Dolby Vision Pass-Through: Enjoy full HDR | HDR10 | HDR10+ | Dolby Vision pass-through with the JTECH-8KSW21P switcher.

Overnight shipping*:

Two days shipping:

Availability:
In stock
SKU:
JTD-2936
Model:
JTECH-8KSW21P

Enjoy your content in full detail with the JTECH-8KSW21P 2 Input – 1 Output 8K HDMI Switch. Limited by the number of HDMI ports on your display? The JTECH-8KSW21P helps solves that problem by allowing you to connect 2 source devices utilizing a single HDMI port on the display! With support up to 8K resolution at 60Hz, and 4K resolution up to 120Hz, this 8K switch is perfect for PC’s and next-gen gaming consoles like the PS5 and Xbox Series X. Enjoy the HDMI 2.1 features such as Variable Refresh Rate, Auto Low-Latency Mode, Quick Frame Transport etc. Support for HDR, HDR10, HDR10+, Dolby Vision allows you to get immersed in the content!

Supported resolutions up to 8K 60Hz | 4K 120Hz

HDMI 2.1 | HDCP 2.3 Compliant (HDCP 2.2 & 1.4 backwards compatible)

Supports HDR | HDR10 | HDR10+ | Dolby Vision pass-through

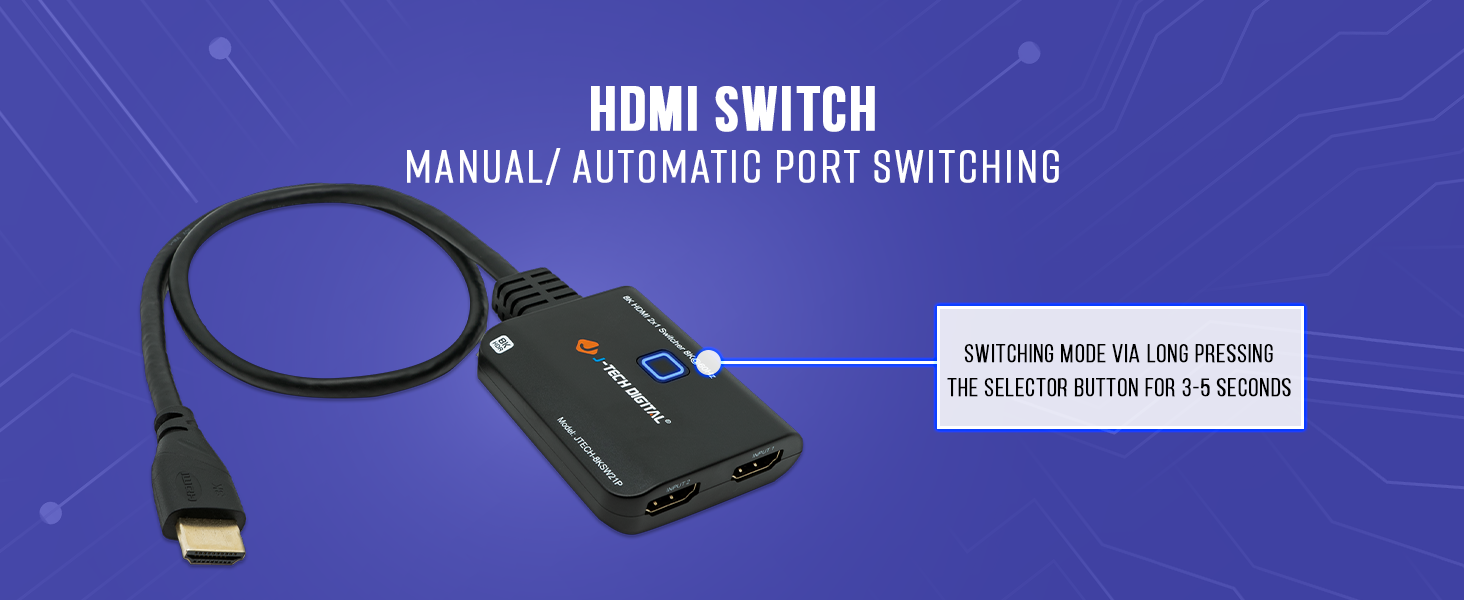

Manual & Automatic port switching (Press the selector button for 3-5 seconds to switch between the two functions)

Variable Refresh Rate (VRR) | Auto Low-Latency Mode (ALLM) | Quick Frame Transport (QFT) | Consumer Electronics Control (CEC)

Audio format support such as LPCM, DTS, Dolby Digital, DTS-HD, Dolby TrueHD

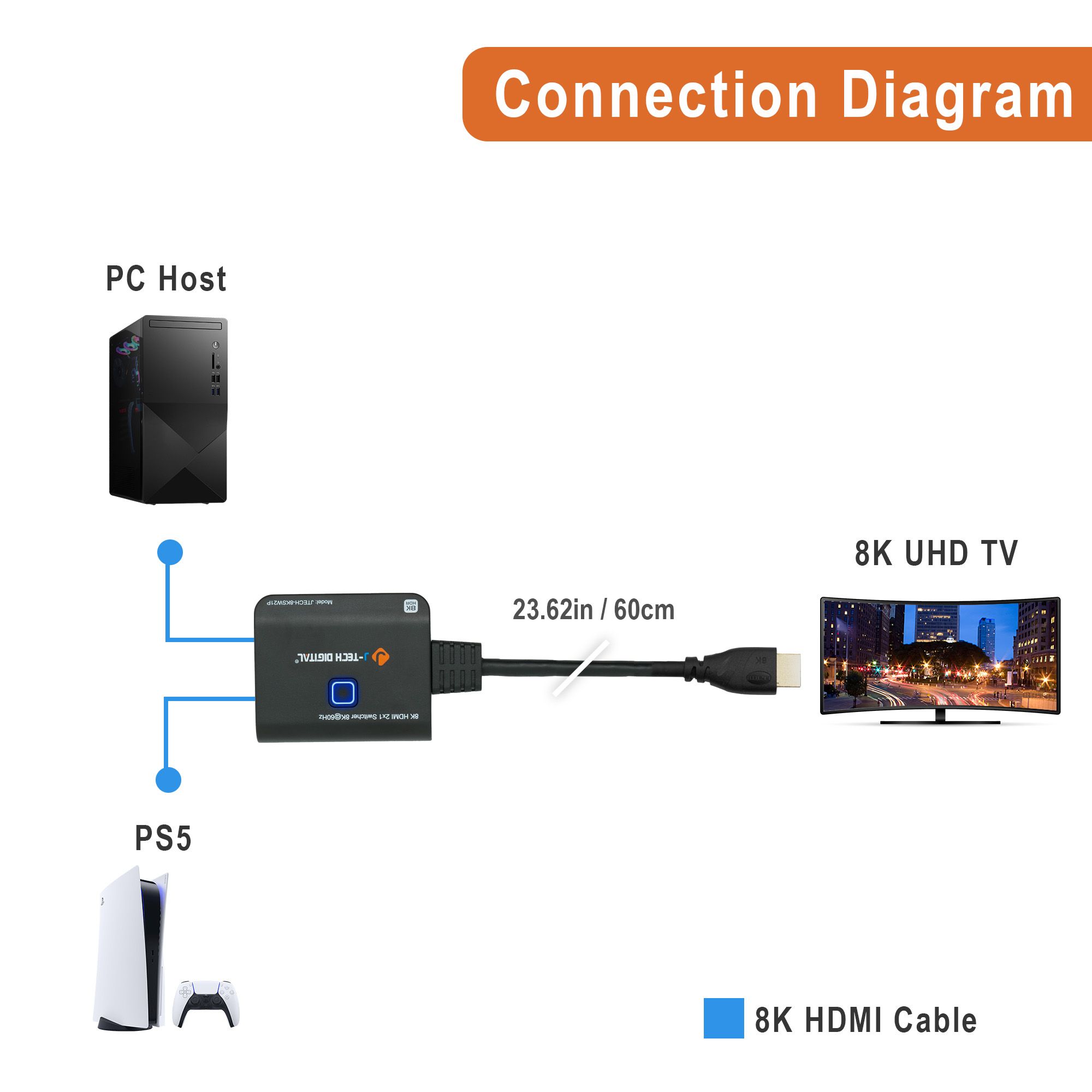

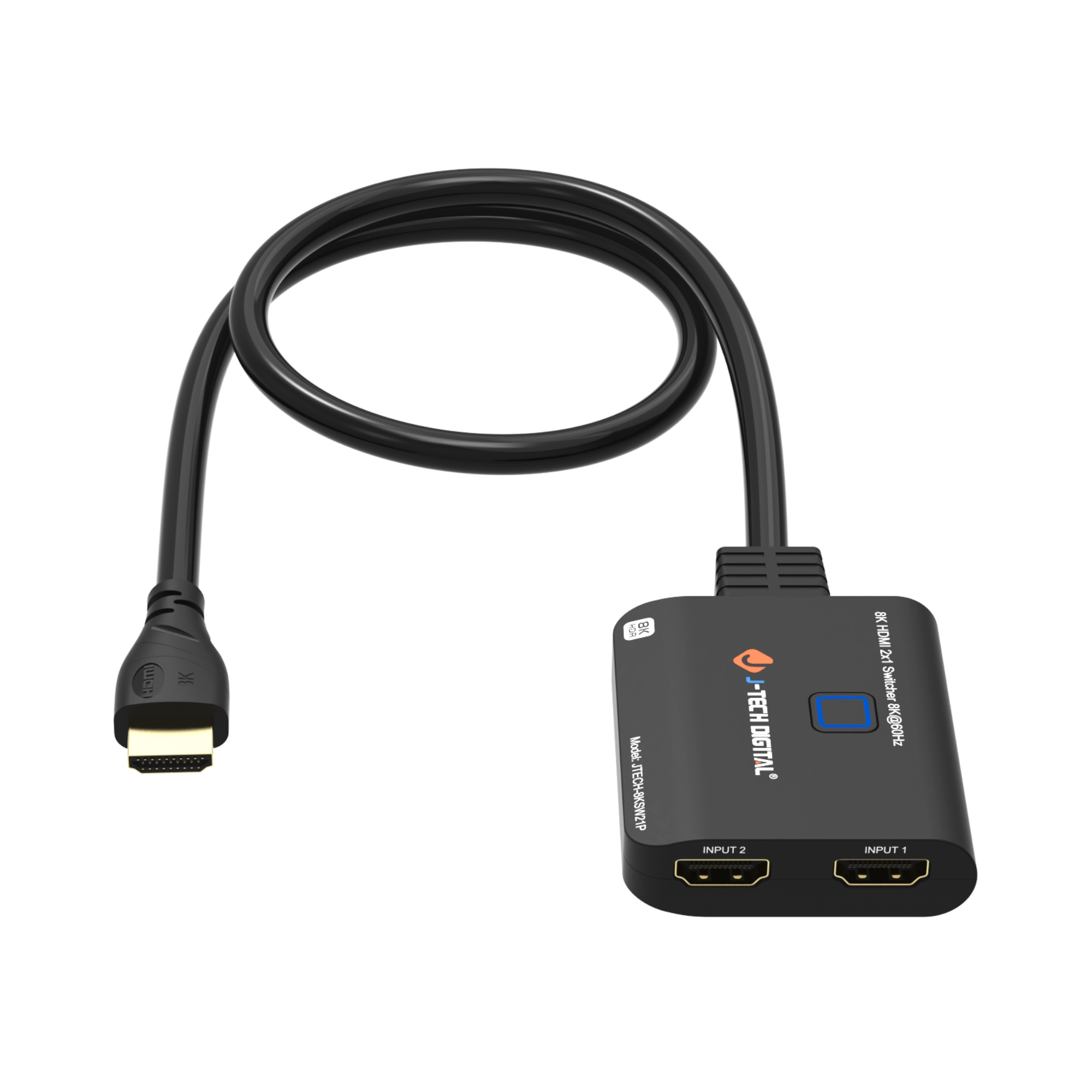

2x1 HDMI Switch – Connect Xbox and PS5 to a single display, supports 8K@60Hz, 4K@120Hz, HDR, Dolby Vision, and auto-switching for seamless gaming
8K 60Hz 2x1 HDMI Switch with Pigtail Plug and Auto-Switching

Specifications

Video

Name Values

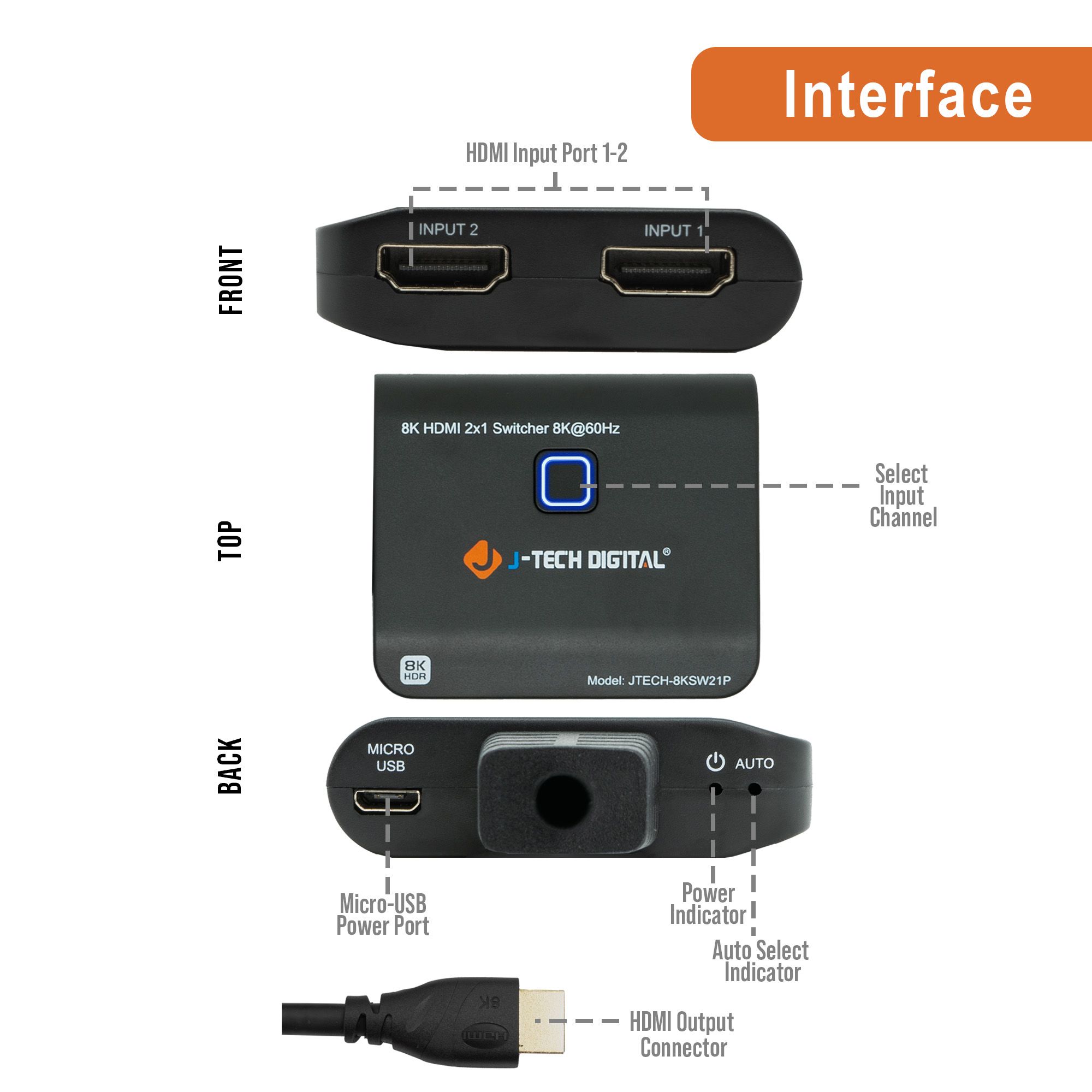

Ports
  • 2 x HDMI Inputs
  • 1 x HDMI Output
Frame Rate Support 50/60/100/120/240Hz
Video Amplifier Bandwidth 12Gbps / 1200MHz per channel (48Gbps all channels)
Resolution Up to 8K 60Hz

General

Name Values
Operating Temperature 0°C ~ 70°C
Storage Humidity 5 - 90% RH (No condensation)
Power Supply USB Power Cable
Power Consumption 5W (Max)
Unit Certifications FCC, CE, RoHS
Power Supply Certifications FCC, CE, RoHS

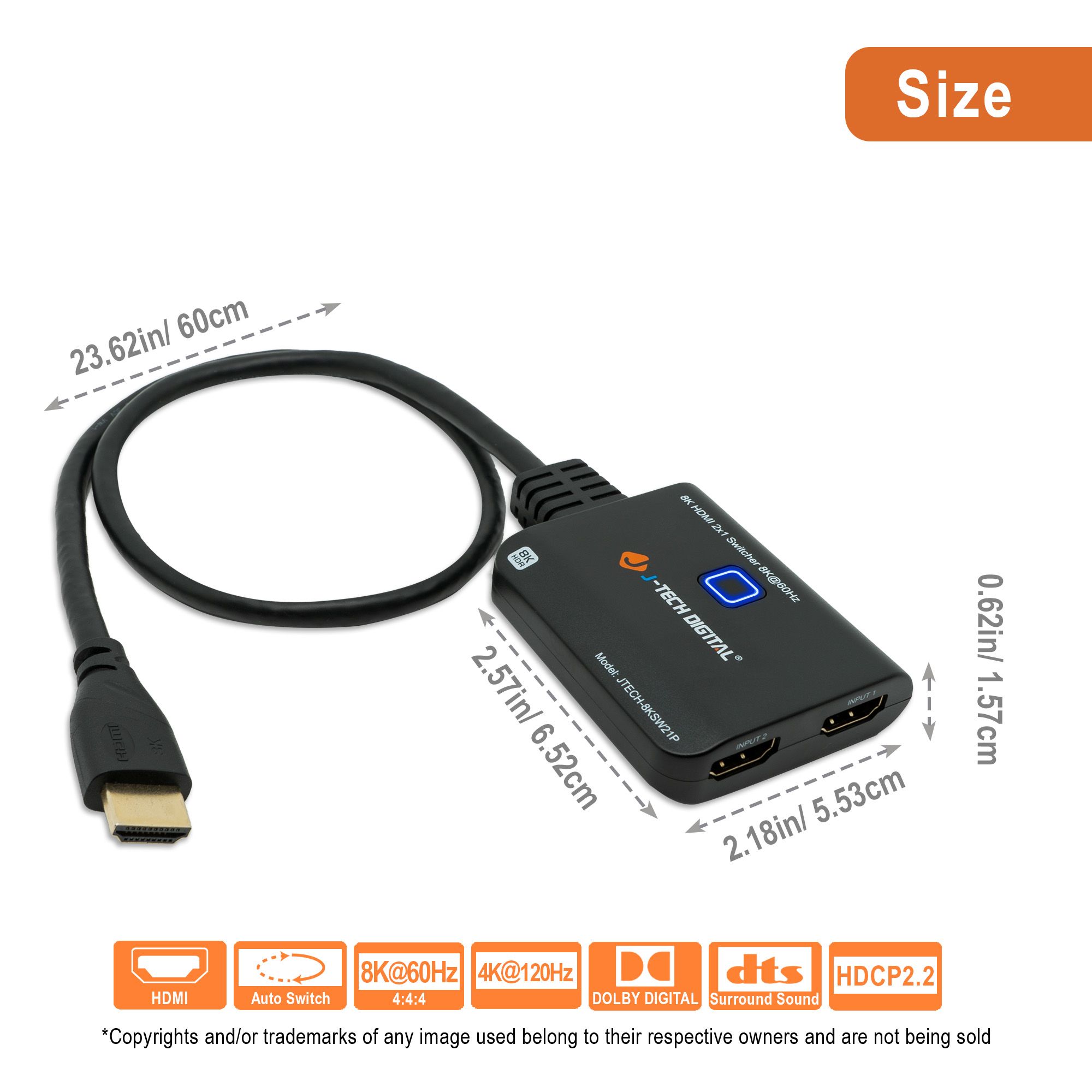

Dimensions (LxWxH) 65.5mm x 55.5mm x 16mm
Net Weight 96g

Resources & Downloads

Category Description Version File
MANUAL User Manual 1.0 jtd-2936-user-manual-v1.0.pdf

Category: MANUAL

Description: User Manual

Version: 1.0

File: jtd-2936-user-manual-v1.0.pdf
