8K 60Hz 2x1 HDMI Switch - HDR and 4K 120Hz Support

Regular price $32.99

Shipping calculated at checkout

  • ✅ 2x1 HDMI Switch: JTECH-8KSW01 HDMI 2.1 switch features dual HDMI 2.1 input ports and one HDMI 2.1 output port. Perfect for new 8K displays with only one HDMI 2.1 input port.
  • ✅ 8K @ 60Hz | 4K @ 120Hz Supported: Enjoy full 8K UHD content the way it was meant to! The JTECH-8KSW01 supports 7680 x 4320 resolutions at 60Hz as well as a full 4K (3840 x 2160) resolution @ 120Hz. Ideal for PS5 and XBOX Series X.
  • ✅ HDR | HDR10 | HDR10+ | Dolby Vision Supported: JTECH-8KSW01 8K HDMI 2.1 switch supports High Dynamic Range (HDR) video pass-through! Enjoy full content immersion from your favorite HDR10, HDR10+, and Dolby Vision content.
  • ✅ HDMI 2.1 | HDCP 2.3 Compliant: Take advantage of HDMI 2.1 technology features including variable refresh rates, auto low-latency mode, and quick frame transport! Ideal for connecting multiple next-gen consoles or gaming PCs to your 8K TV or monitor.

Overnight shipping*:

Two days shipping:

Availability:
In stock
SKU:
JTD-2874
Model:
JTECH-8KSW01

The J-Tech Digital JTECH-8KSW01 8K HDMI 2.1 dual input switch is the perfect addition to any new 8K TV or display! Connect two 8K source devices, like a PC or next gen gaming console (Playstation 5 / Xbox Series X) to the JTECH-8KSW01 and have instant access to either source device! Make sure you’re getting the full gaming experience with supported HDMI 2.1 features like ALLM (auto low-latency mode), VRR (variable refresh rate) and QFT (quick frame transport). Stay ahead of the competition with full 4K @ 120Hz resolution and refresh rate support. Enjoy 8K 60Hz content with full High Dynamic Range (HDR) supported – HDR | HDR10+ | Dolby Vision.

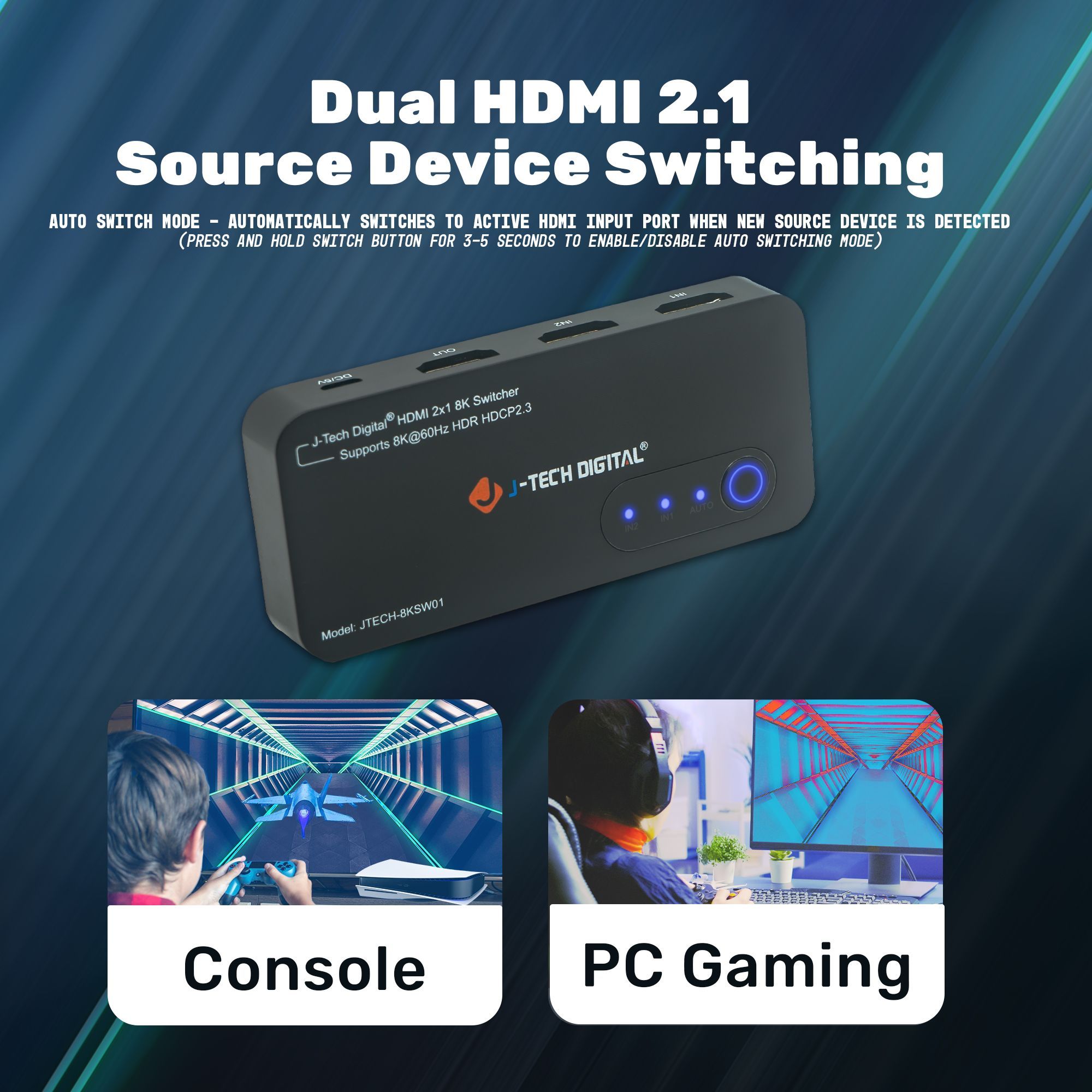

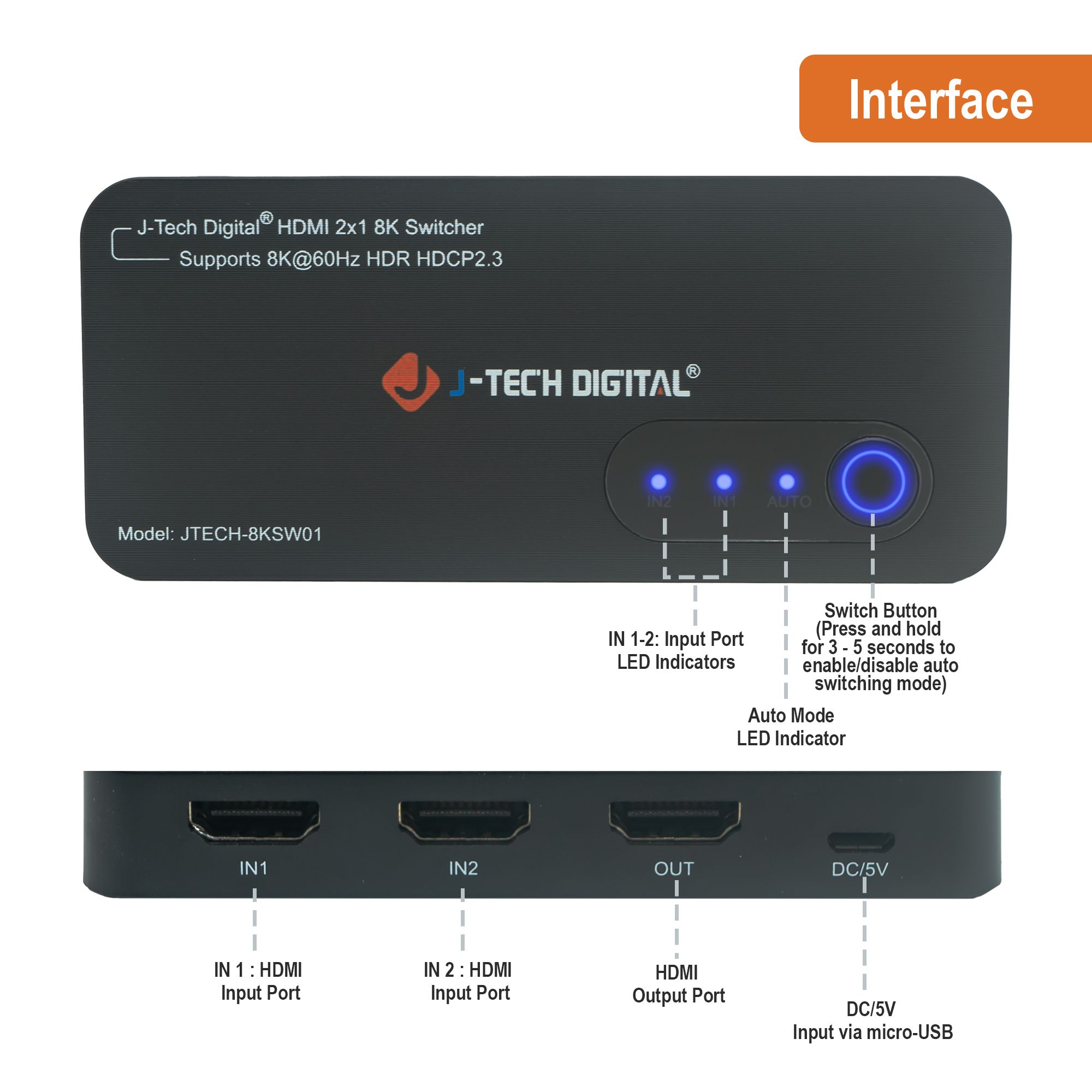

Supports manual port switching & automatic port switching | Manual switching and automatic switching mode can be toggled via long press of the selector button for 3-5 seconds

Supports high-definition resolutions 8K@60Hz 4:4:4 | 4K@120Hz | 1080P@240Hz

Supports 12-bit per channel (36bit all channels) deep color

HDCP 2.3 Compliant | HDCP 2.0 / 1.4 Backwards Compliant

Supports High Dynamic Range (HDR) video pass-through| HDR10 | HDR10+ | Dolby Vision

Supports VRR (Variable Refresh Rate) | ALLM (Auto Low-latency Mode) | QFT (Quick Frame Transport)

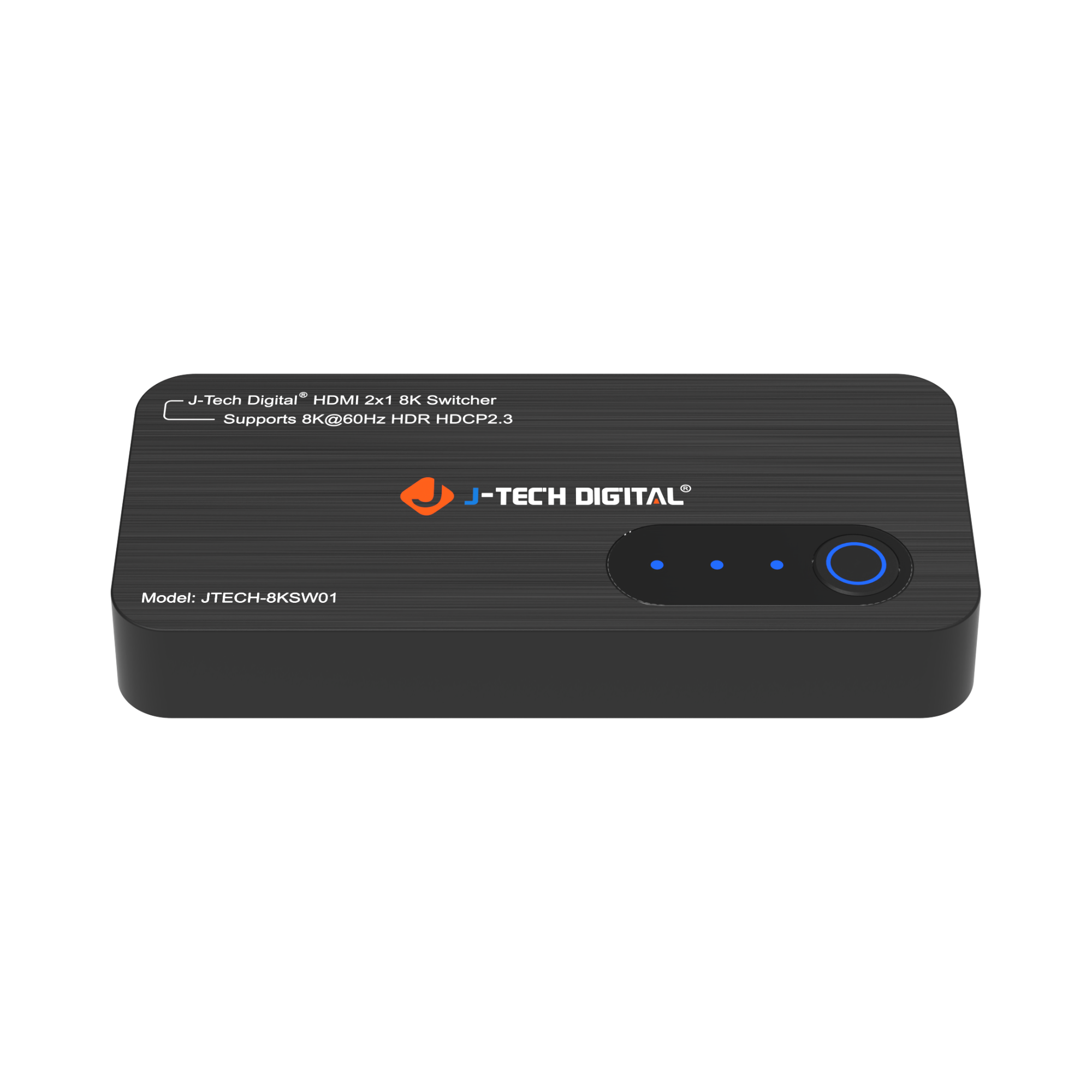

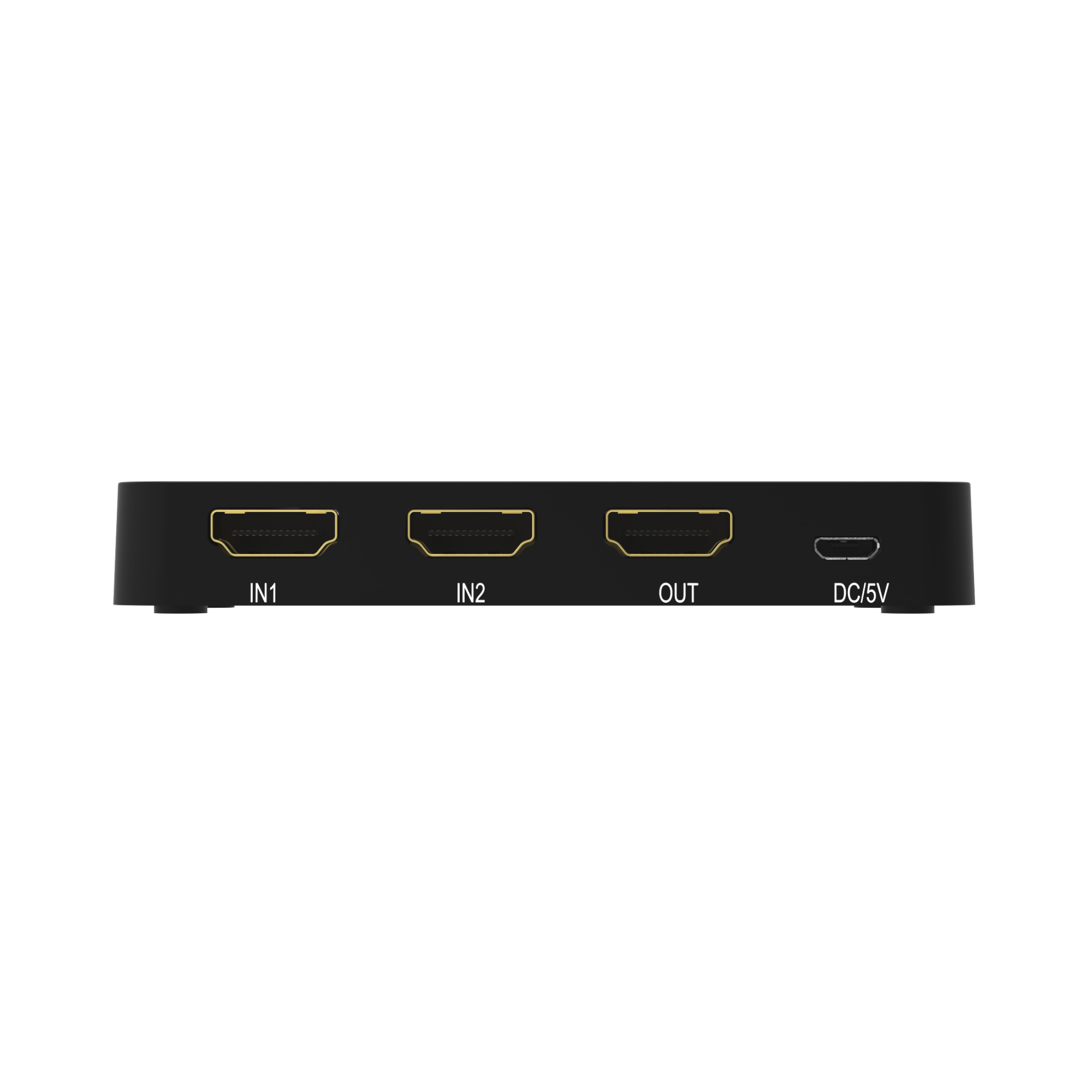

8K 2x1 HDMI Switch – Seamlessly switch between two devices with HDMI 2.1 support, 8K 60Hz, 4K 120Hz, HDR, Dolby Vision, and auto/manual switching modes.
8K 60Hz 2x1 HDMI Switch - HDR and 4K 120Hz Support

Specifications

Video

Name Values

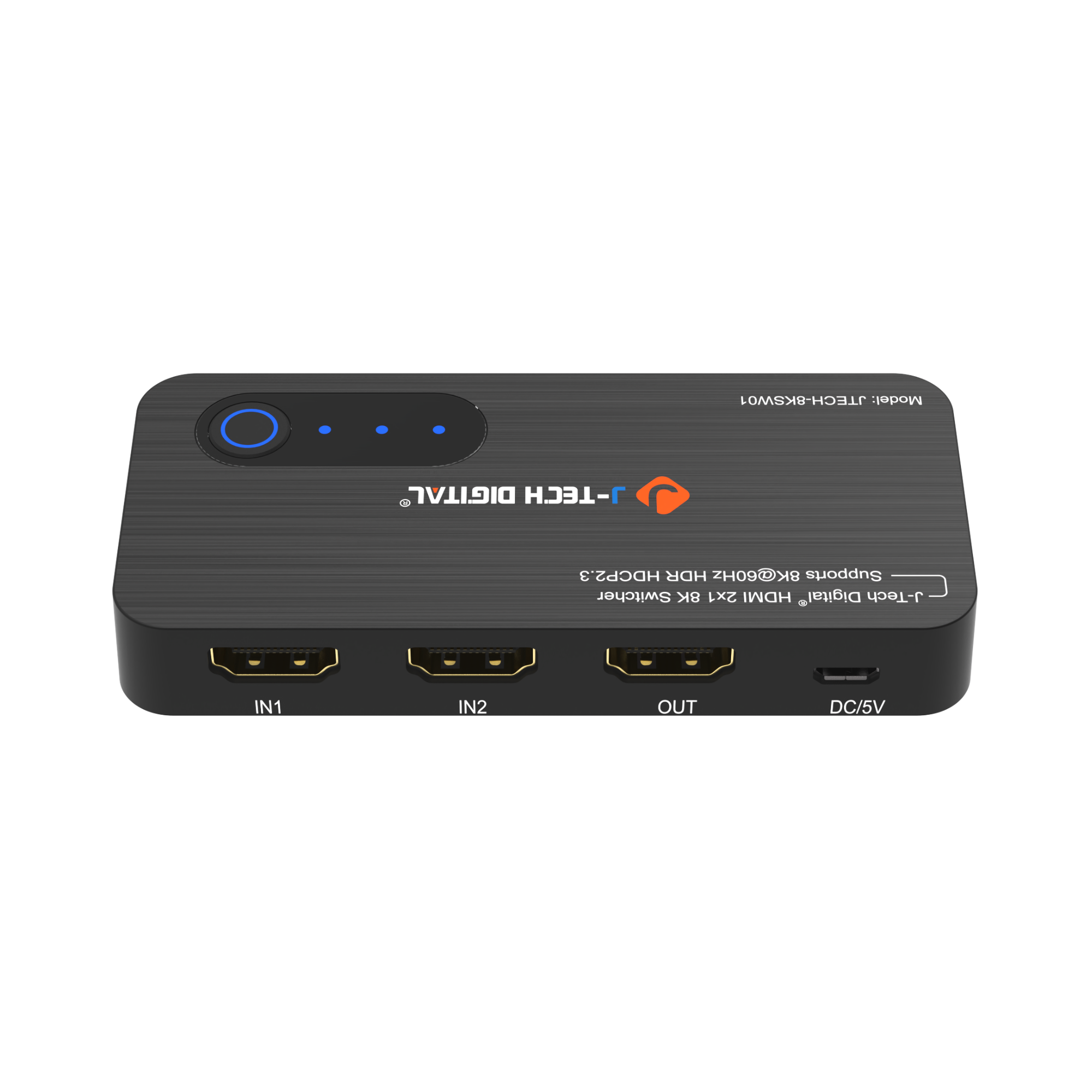

Input Ports 2 x HDMI
Output Ports 1 x HDMI
Vertical Frequency Range 50/60/100/120/240Hz
Video Amplifier Bandwidth 12Gbps/1200MHz per channel (48Gbps all channels)
Resolution Up to 8K 60Hz

General

Name Values
Operating Temperature 32°F to 158°F| 0℃ to 70℃
Storage Humidity 5% to 90% RH non-condensation
Power Supply USB Power Cable
Power Consumption (Max) 5W
Splitter Certifications FCC, CE, RoHS
Power Supply Certifications FCC, CE, RoHS

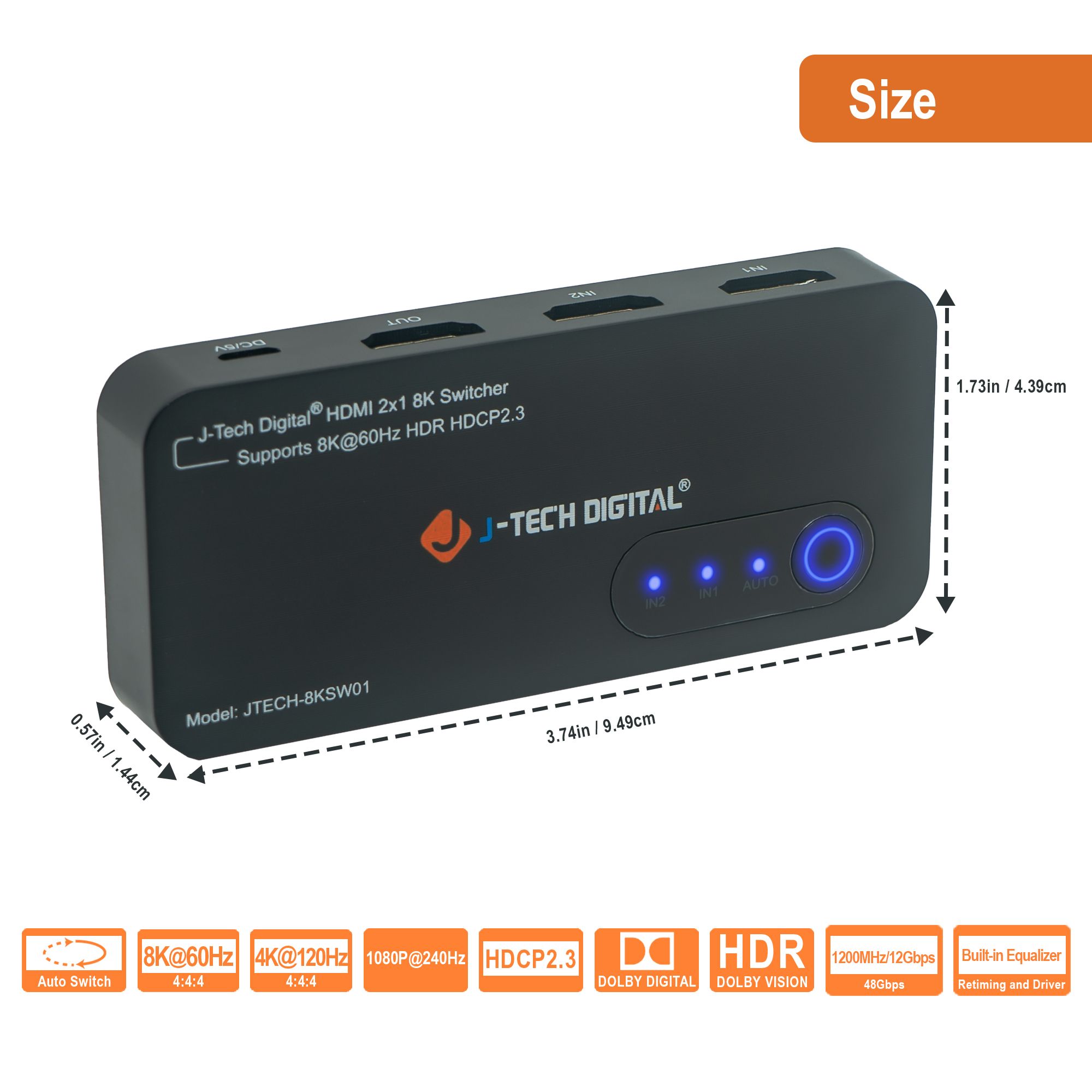

Dimensions (LxWxH) 3.82 x 1.76 x 0.57 in
Net Weight 85g | 0.187 Lbs
Material ABS

Resources & Downloads

Category Description Version File
MANUAL User Manual 1.0 jtd-2874-user-manual-v1.0.pdf

Category: MANUAL

Description: User Manual

Version: 1.0

File: jtd-2874-user-manual-v1.0.pdf
