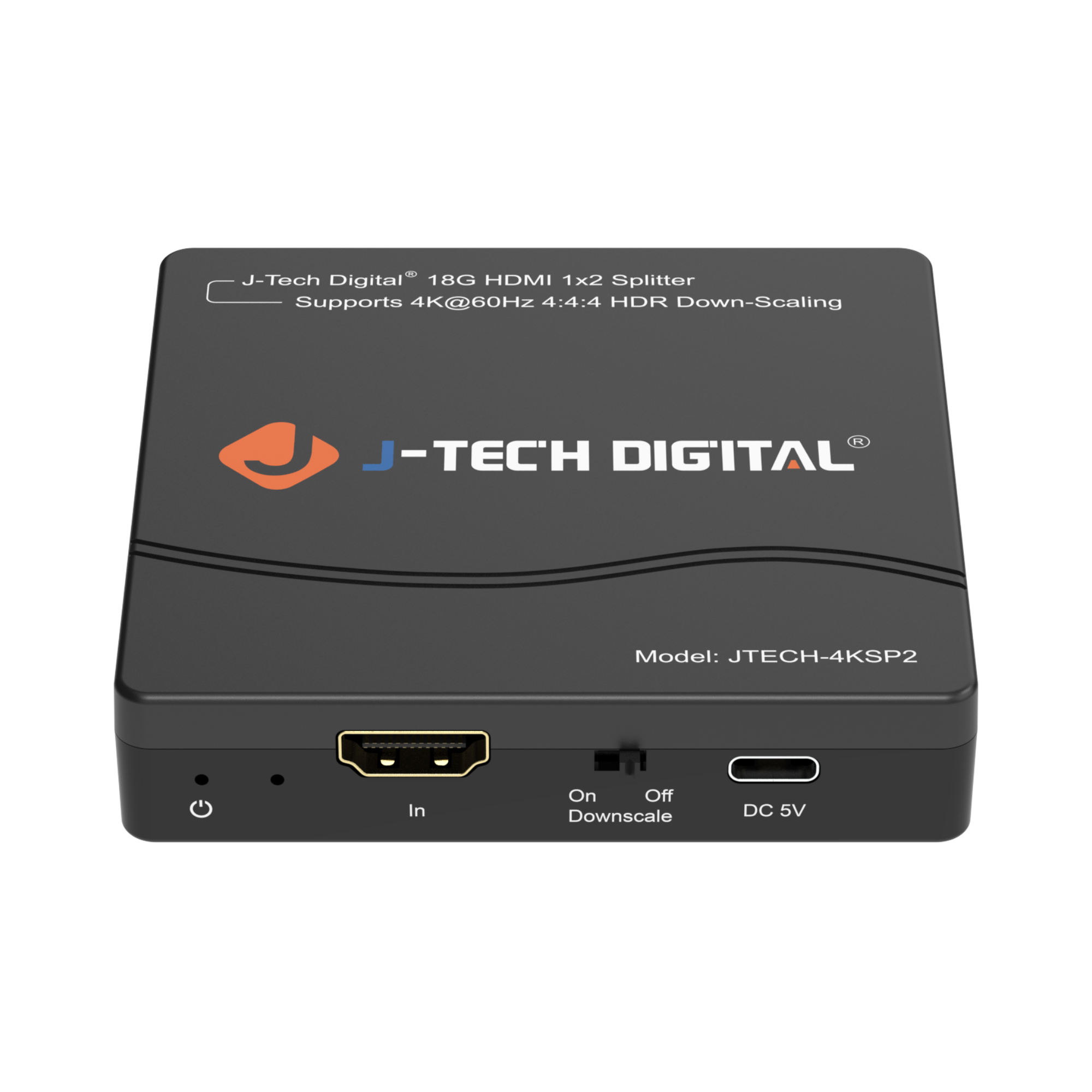

4K 60Hz 1x2 HDMI Splitter with Multi-Resolution Output (MRO) Function

Regular price $27.49

Shipping calculated at checkout

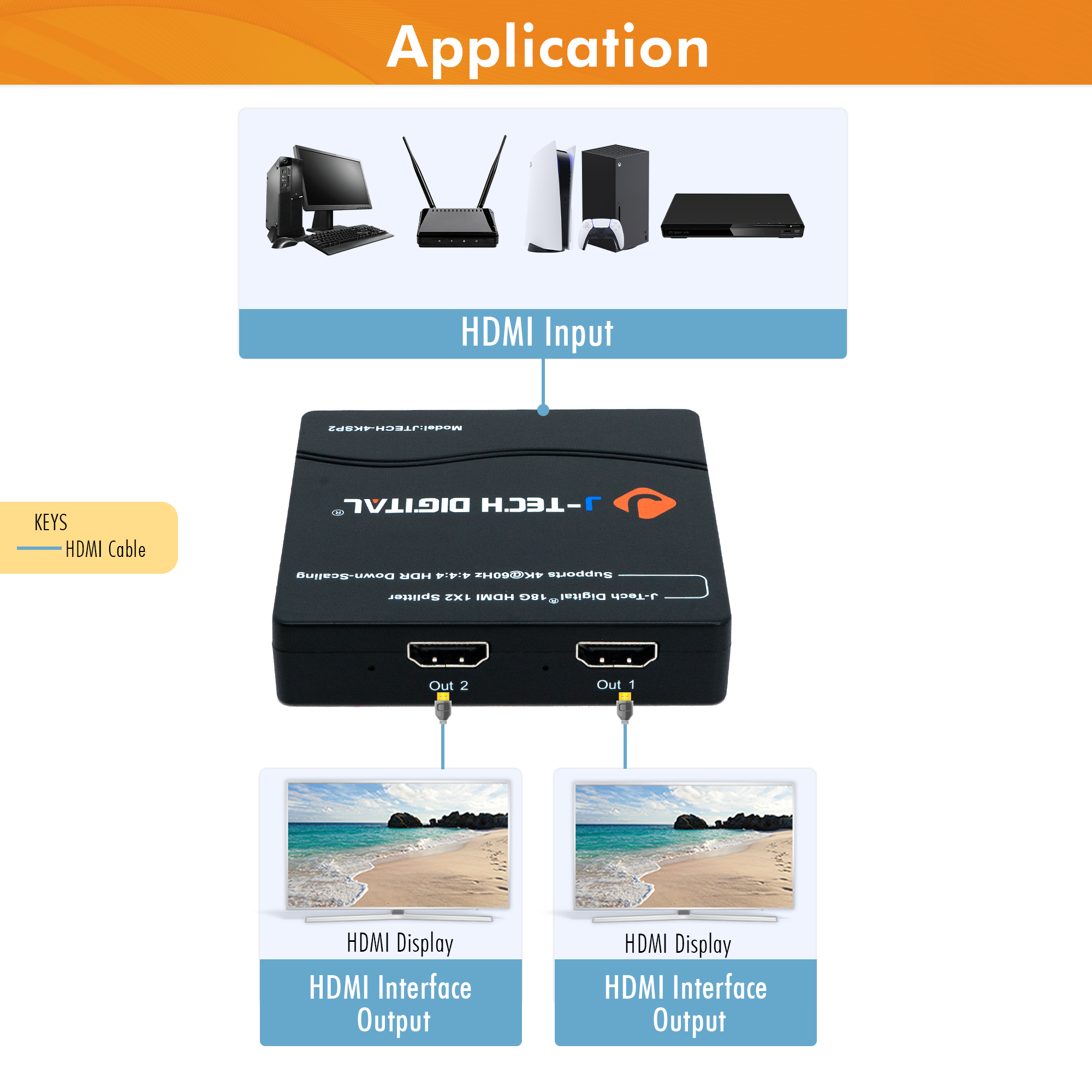

  • ✅ 1 HDMI Input to 2 HDMI Outputs: This affordable 1 x 2 HDMI splitter allows users to split one HDMI input signal (from cable/satellite box, DVD/Blu-ray player, PC, Apple TV, Roku, Xbox, Fire TV, and others) so they can send it to two HDMI output displays simultaneously.

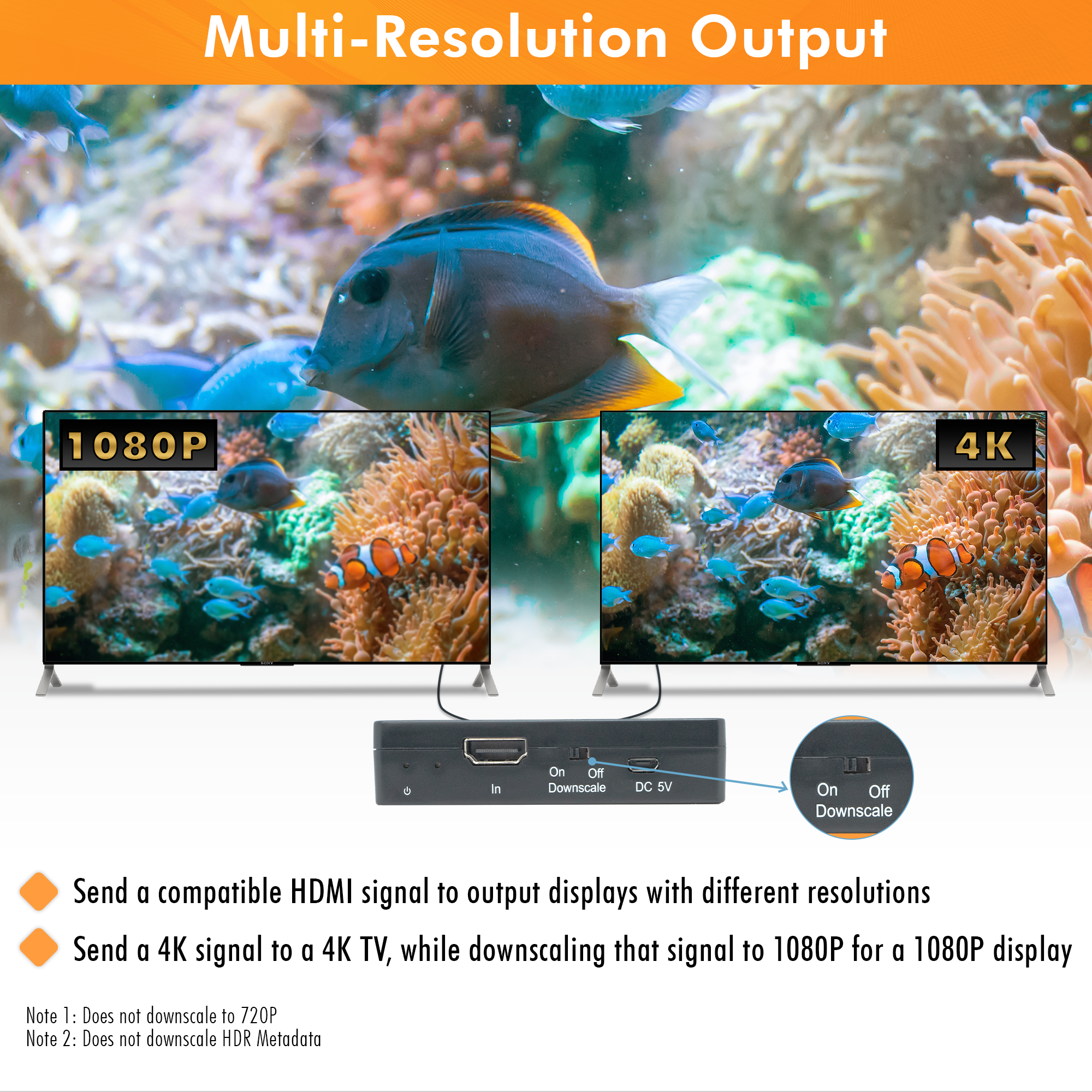

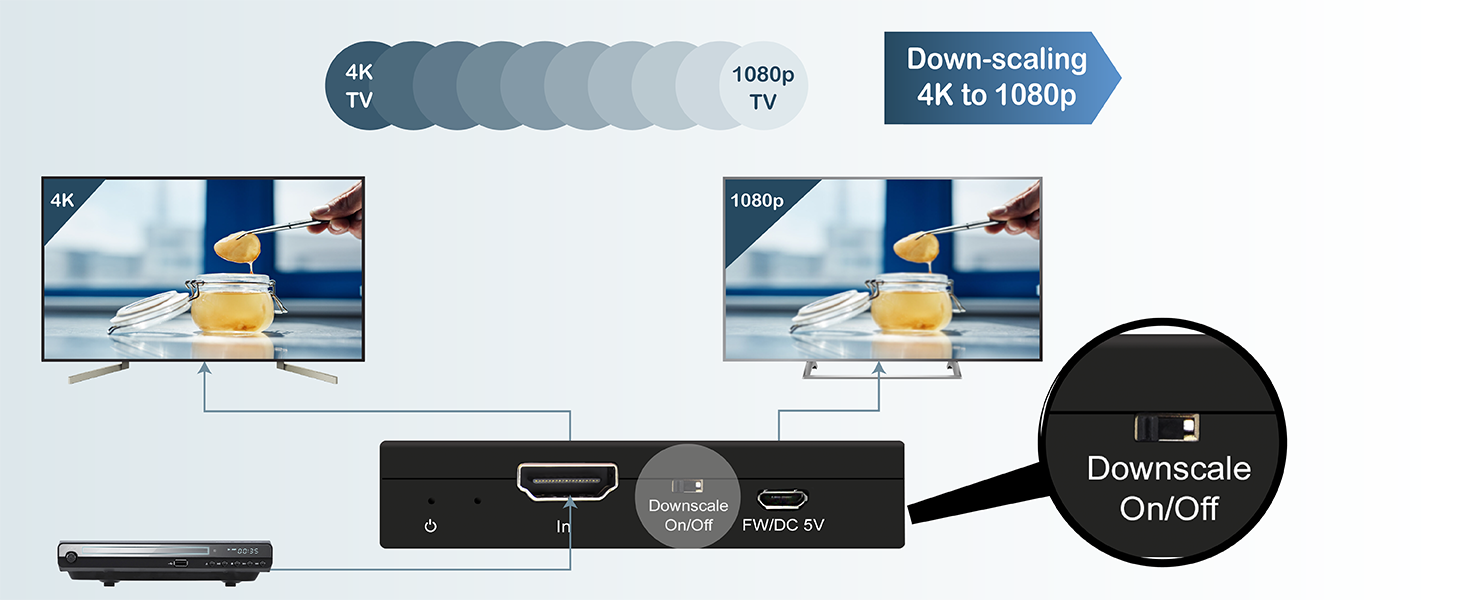

  • ✅ Mix Different Display Resolutions: A Multi-Resolution Output (MRO) feature lets users send a compatible HDMI signal to output displays with different resolutions.
  • ✅ Note: If you’re sending a 4K signal to a 4K TV and a 1080p TV, the MRO will automatically downgrade and send a compatible HDMI signal to the 1080p TV.
  • ✅ Supports HD Audio Formats: Supports all HD audio formats, including PCM, Dolby Digital, Dolby TrueHD, Dolby Atmos, DTS, DTS-HD, DTS:X, and Dolby Digital+.
  • ✅ HDMI 2.0 Standard | HDR-10 & Dolby Vision: Supports 18Gbps bandwidth, resolutions up to 4K@60Hz 4:4:4, HDR10, and Dolby Vision. HDCP 2.3 compliant. EDID Copy priority is Output 1 > Output 2.

Overnight shipping*:

Two days shipping:

Availability:
In stock
SKU:
JTD-3009
Model:
JTECH-4KSP2

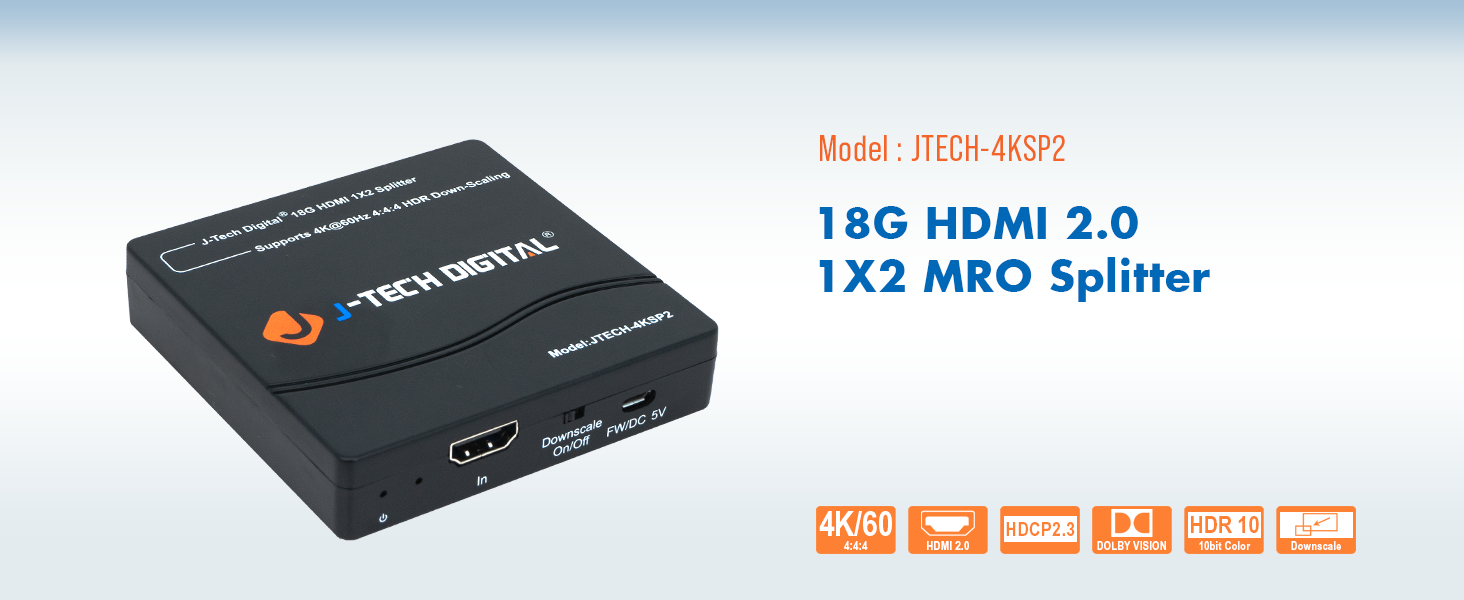

The JTECH-4KSP2 1 x 2 HDMI splitter is a Multi-Resolution Output HDMI scaler switcher that can support various UHD resolutions. This 1 x 2 HDMI splitter is perfect for users that are in the process of upgrading their entertainment centers and need a device that supports 4K and 1080p resolutions, allowing them to integrate newer, more advanced displays without having to replace their older model displays.

NOTE: the MRO series splitters do not downscale to 720P. They do not change the scan type (Progressive vs Interlaced) and they do not downscale HDR Metadata (HDR/HDR10/Dolby Vision)

Supports up to 4K/60 Hz 4:4:4 HDR 10 and Dolby Vision

HDCP 2.3 Compliant

Built in signal equalizer (allows for the use of longer-range HDMI cables)

EDID copy priority follows Output 1 > Output 2

Supports 4K to 1080p, downscaling up to all output resolutions

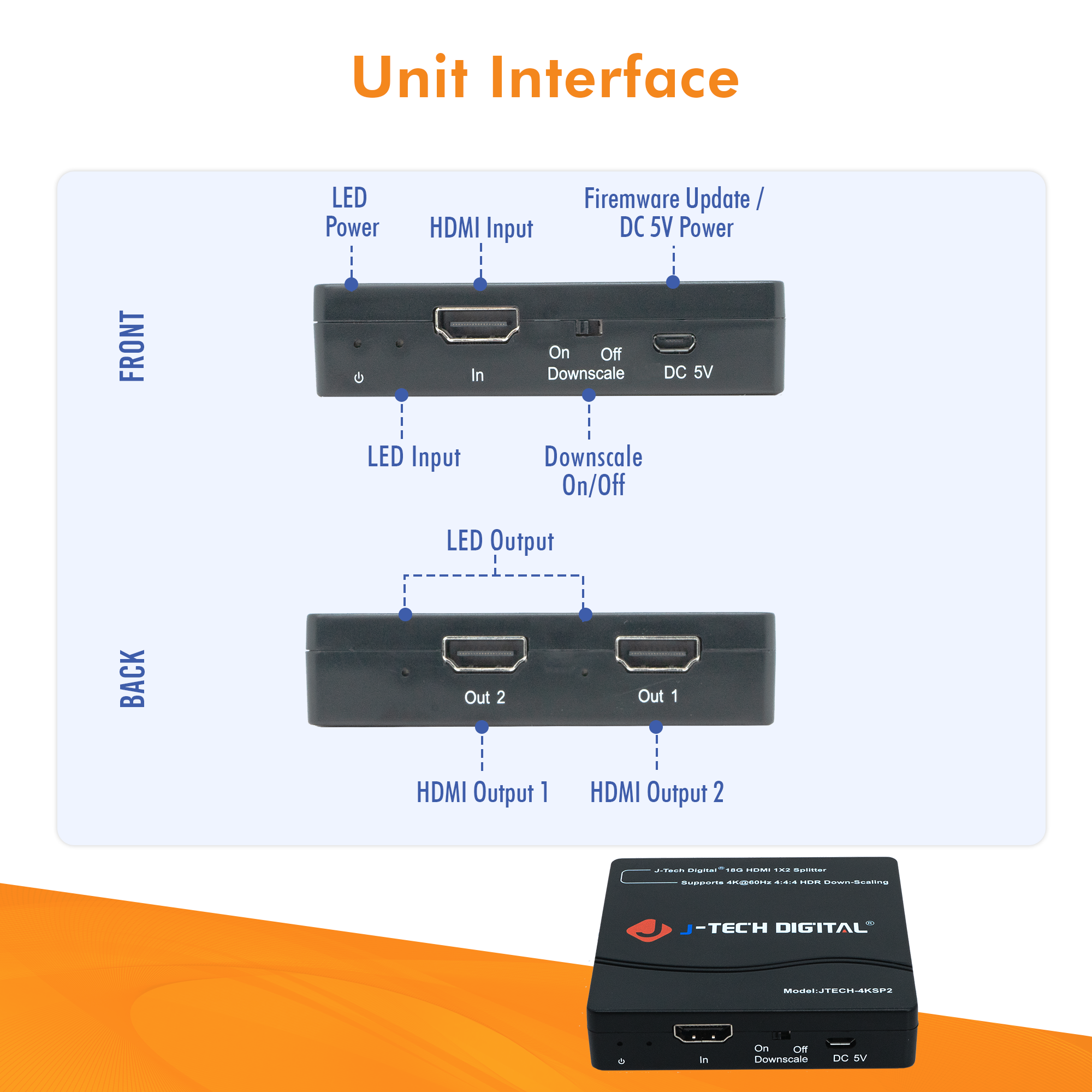

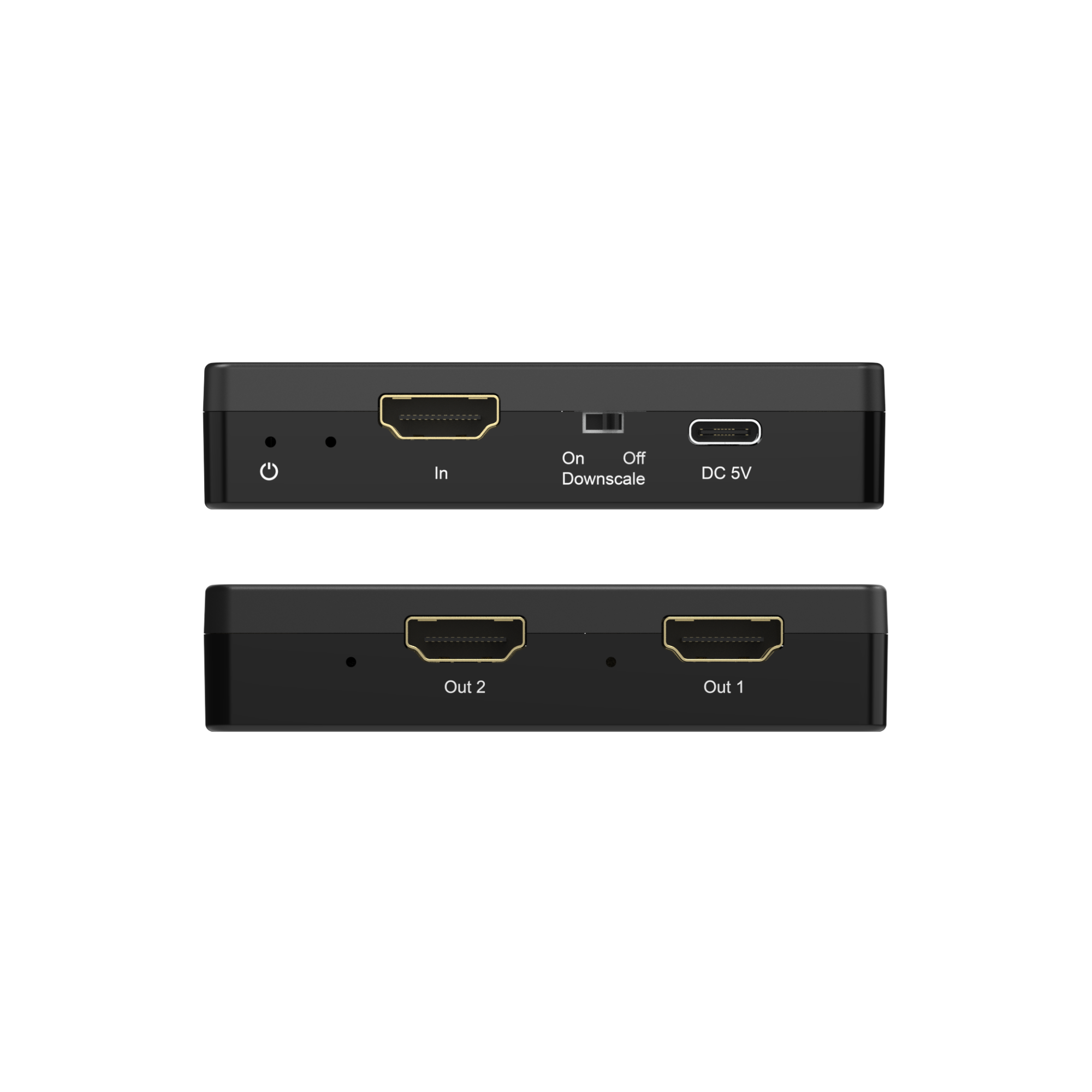

Front panel HDMI downscale function on/off switch | Convenient firmware upgrades

Power Supply: DC 5V/1A

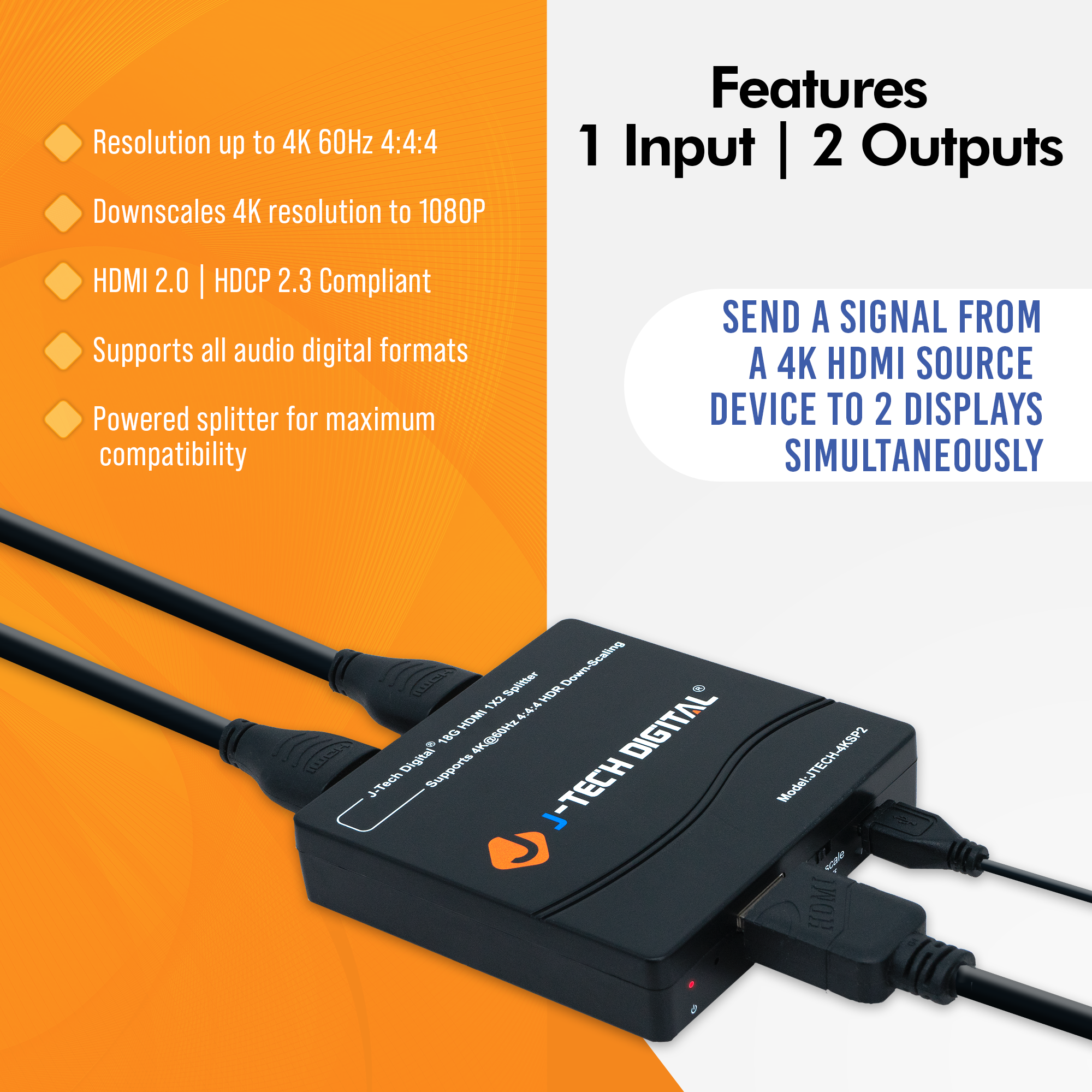

1x2 HDMI splitter for 4K and 1080p displays
4K 60Hz 1x2 HDMI Splitter with Multi-Resolution Output (MRO) Function

Specifications

Video

Name Values
Input 1 x HDMI
Resolution Up to 4K@60Hz 4:4:4 8bit
HDMI Standard 2.0
HDCP Version Up to 2.3

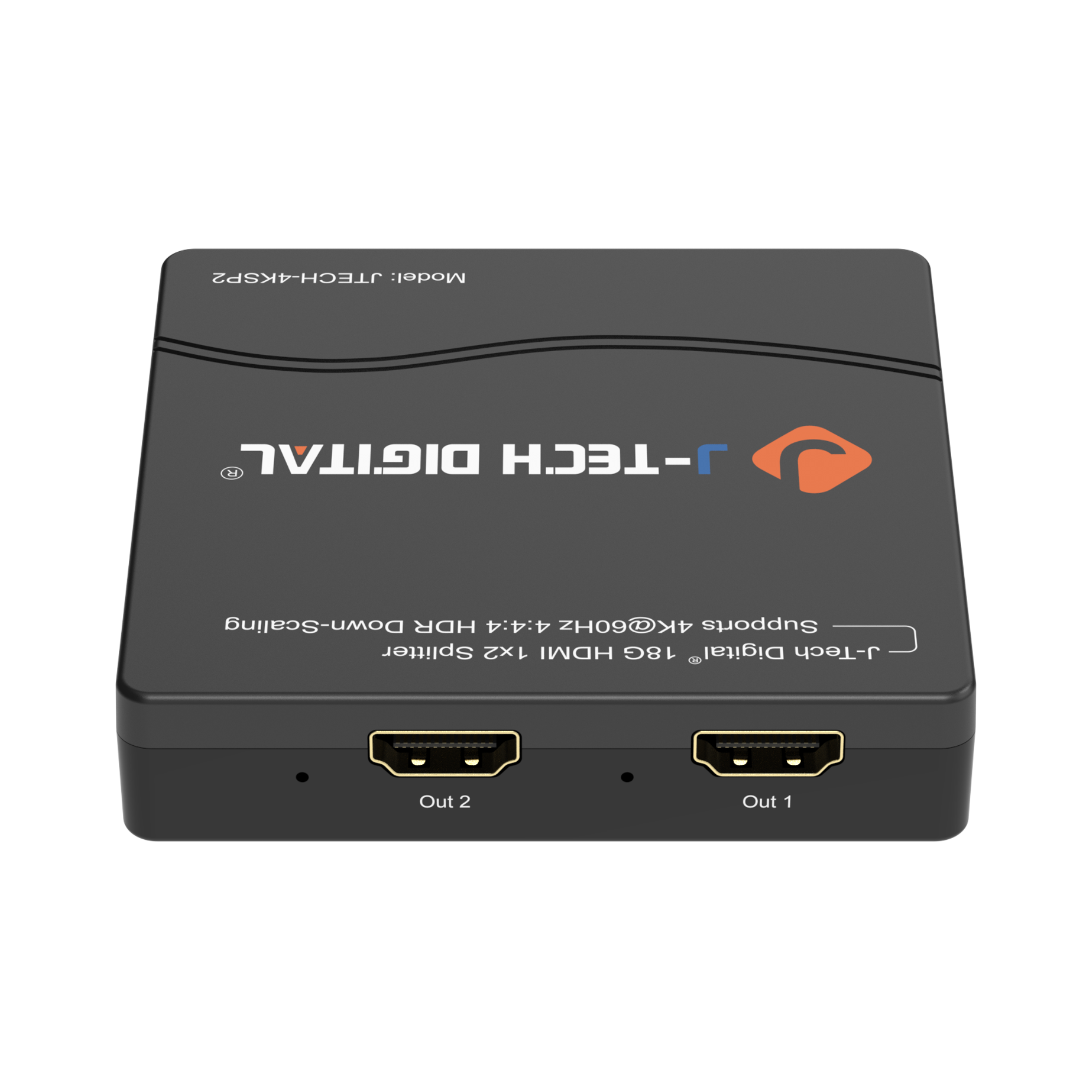

Output 2 x HDMI
HDMI Output Resolution Up to 4K@60Hz 4:4:4

Communications

Name Values
Control 1 x Micro-USB port
HDMI 2.0 Cable Length
  • 4K@60Hz 4:4:4 ≤ 5m
  • 4K@60Hz 4:2:0 ≤ 10m
  • 1080p ≤ 15m

General

Name Values
Operation Temperature -10℃ ~ +55℃
Storage Temperature -25℃ ~ +70℃
Relative Humidity 10%-90%
Power Supply
  • Input:100V~240V AC
  • Output: 5V DC 1A
Power Consumption 1.8W

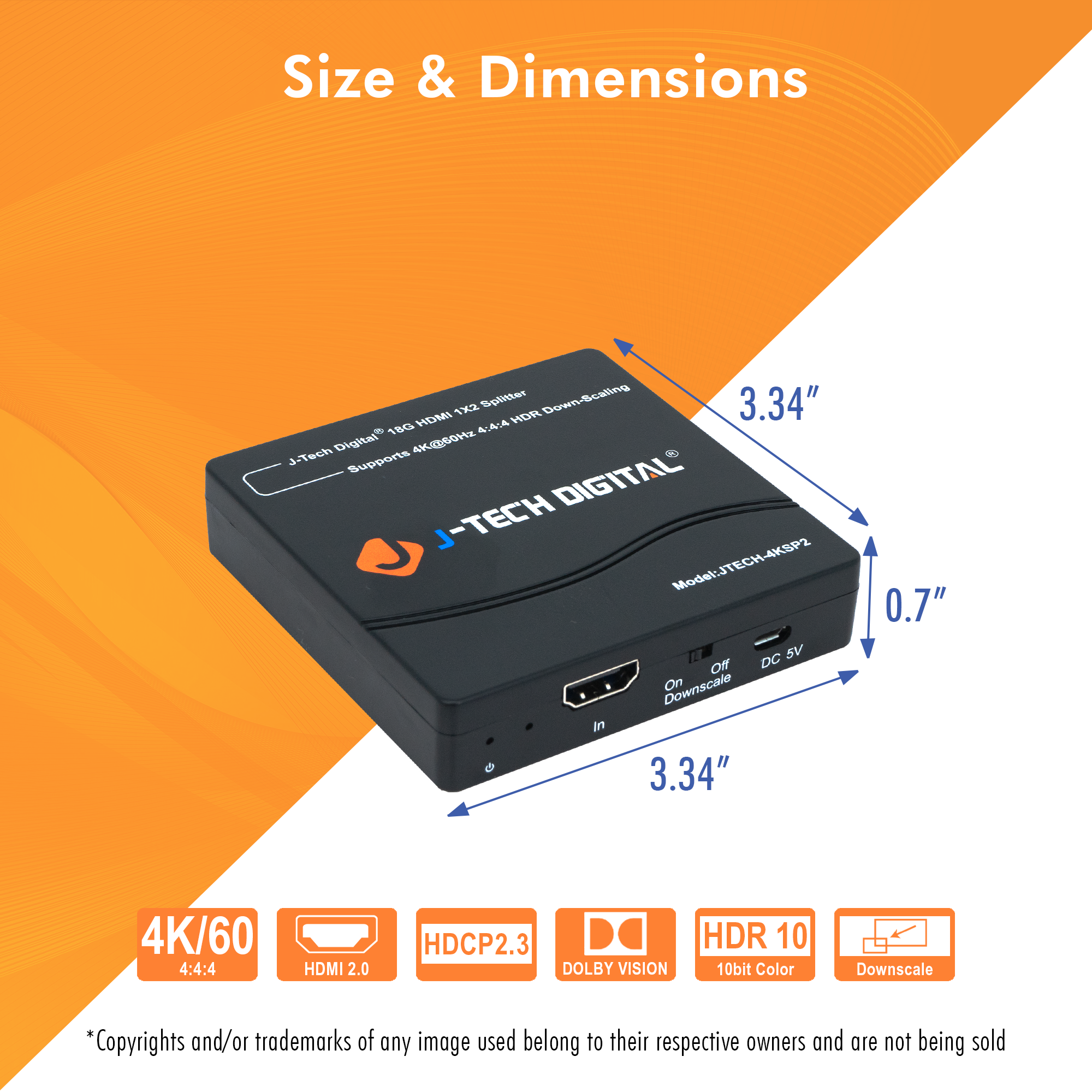

Dimension (W*H*D) 85mm x 85mm x 18mm
Net Weight 70g

Resources & Downloads

Category Description Version File
MANUAL User Manual 1.0 jtd-3009-user-manual-v1.0.pdf

Category: MANUAL

Description: User Manual

Version: 1.0

File: jtd-3009-user-manual-v1.0.pdf
