SDI Splitter 1×2, SD-SDI, HD-SDI, 3G-SDI up to 1320ft

SDI Splitter 1×2 supports SD-SDI, HD-SDI, 3G-SDI up to 1320Ft.

$49.49

Shipping calculated at checkout

✅ Supports SD-SDI (270Mbps): HD-SDI (1.485Gbps) and 3G-SDI (2.97Gbps) and distribute to 2 simultaneous SDI outputs.
✅ SDI Repeater Function: Providing equalized and re-cloaked transmission, supporting signal input and output distances up to 1320 ft for SD-SDI signal, 660 ft for HD-SDI signal and 330 ft for 3G-SDI signal by Belden 1694A cable.
✅ Wide Voltage Design: Supports DC 5V~30V voltage input (lowest power:5V), more suitable for projects.
✅ Intelligent Design: Plug and play, can detect SDI signal automatically; Durable metal enclosure.

Overnight shipping*:

Two days shipping:

Quantity

Availability:

In stock

SKU:

JTD-178

Model:

JTD-SDI0102

Description

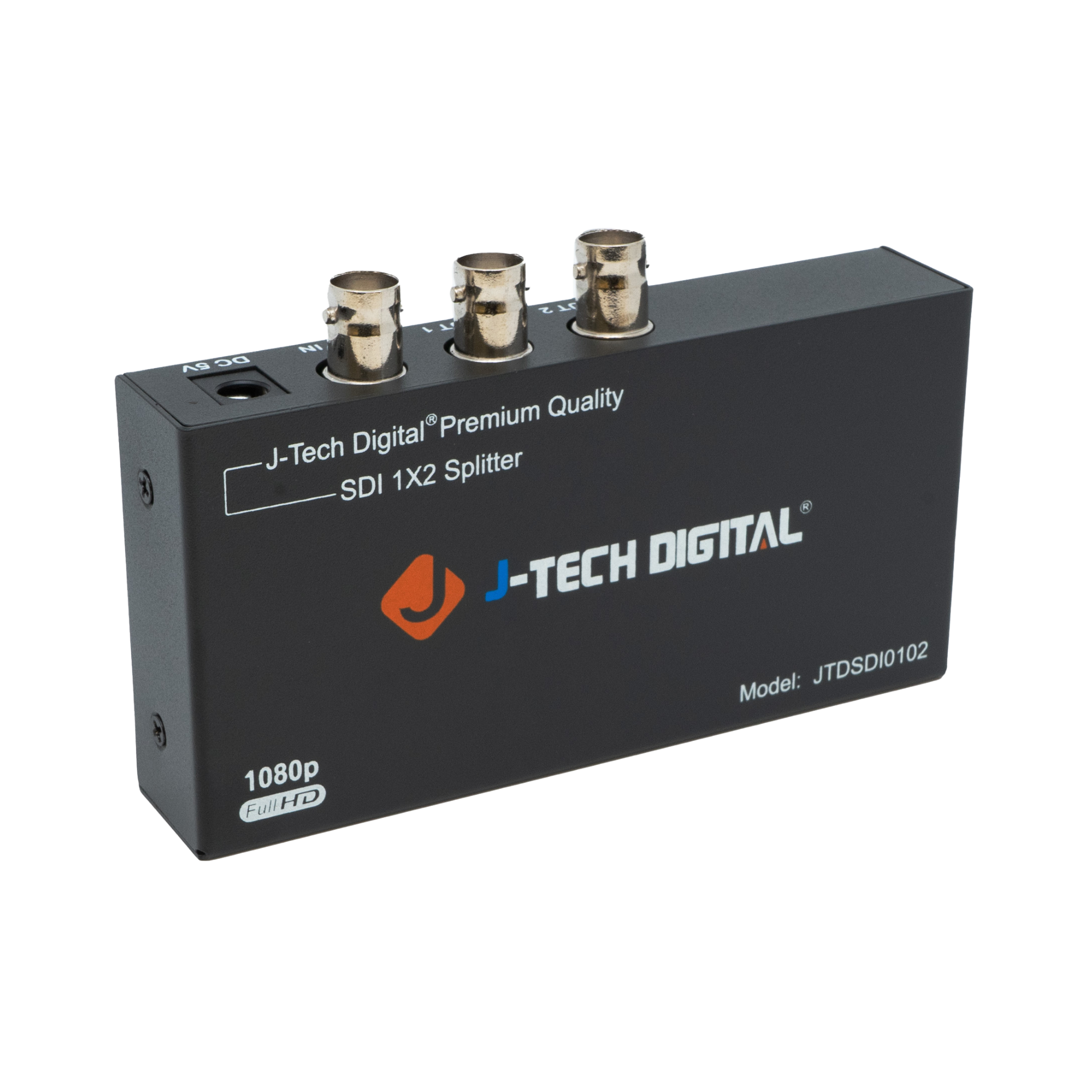

J-Tech Digital 1x2 SDI splitter distributes one SDI signal to 2 simultaneous SDI outputs. It supports full range of SDI signal formats including 3G-SDI, HD-SDI, SD-SDI with easy operation and high reliability. Using broadcast quality processing technology, it delivers high definition, lossless and lag-free distribution. This splitter can be widely used in SDI broadcast room, no-linear editing field, CCTV security system and training showroom etc.

✅ 1 Input and 2 Outputs featuring SDI BNC connections

✅ Features equalizer circuit on the input and outputs, allowing it to support long cable runs

✅ Support multiple video resolution: SD 525i and 625i; HD 720p at 24, 25, 30, 50 and 60 Hz; HD 1080i at 50, 60 Hz; HD 1080p at 24, 25, 30, 50 and 60 Hz

✅ Support multiple color space: RGB or YCbCr 4:4:4 sampled; YCbCr 4:2:2 or 4:2:0 sampled

✅ Support wide range of data rates: 270Mbps ~ 2.97Gbps

✅ Support multiple deep color: 8bit, 10bit, 12bit

✅ 3G mode: up to 330 ft.; HD mode: up to 660 ft.; SD mode: up to 1320 ft. (Supported cable length(BELDEN 1694A)
