1080P 60Hz HDMI Extender Balun Over Ethernet with PoC (165ft.)

Regular price $67.75

Shipping calculated at checkout

  • ✅ 1080P@60Hz Up To 165Ft: Extend your full HD 1080P HDMI signal up to 165ft. over a single Cat5e/6 cable with this HDMI extender balun. Zero video latency. Note: For full 165ft., make sure to use Cat6/7 LAN cable.
  • ✅ 6.75Gbps Data Transfer Speed: Supports HDMI 1.4, HDCP 1.4 compliance, deep color 36-bit, and digital audio signals such as Dolby TrueHD, Dolby Digital etc. (if EDID is copied from the right devices).
  • ✅ Power over Cable (PoC) Feature: Reduce the clutter of cables and using multiple wall outlets with the PoC function. Only 1 power is needed, and can be connected to the transmitter. Receiver is powered by the connected ethernet cable.
  • ✅ Optimize Your Performance: For best picture quality, stability, and long-distance transfer, we recommend using CAT 6 or 7 cable. For optimal performance, use the J-Tech Digital Customized Cat6 Ethernet cable. Different cable lengths are available.

Overnight shipping*:

Two days shipping:

Availability:
In stock
SKU:
JTD-3192
Model:
JTD-HDEX-1PV2

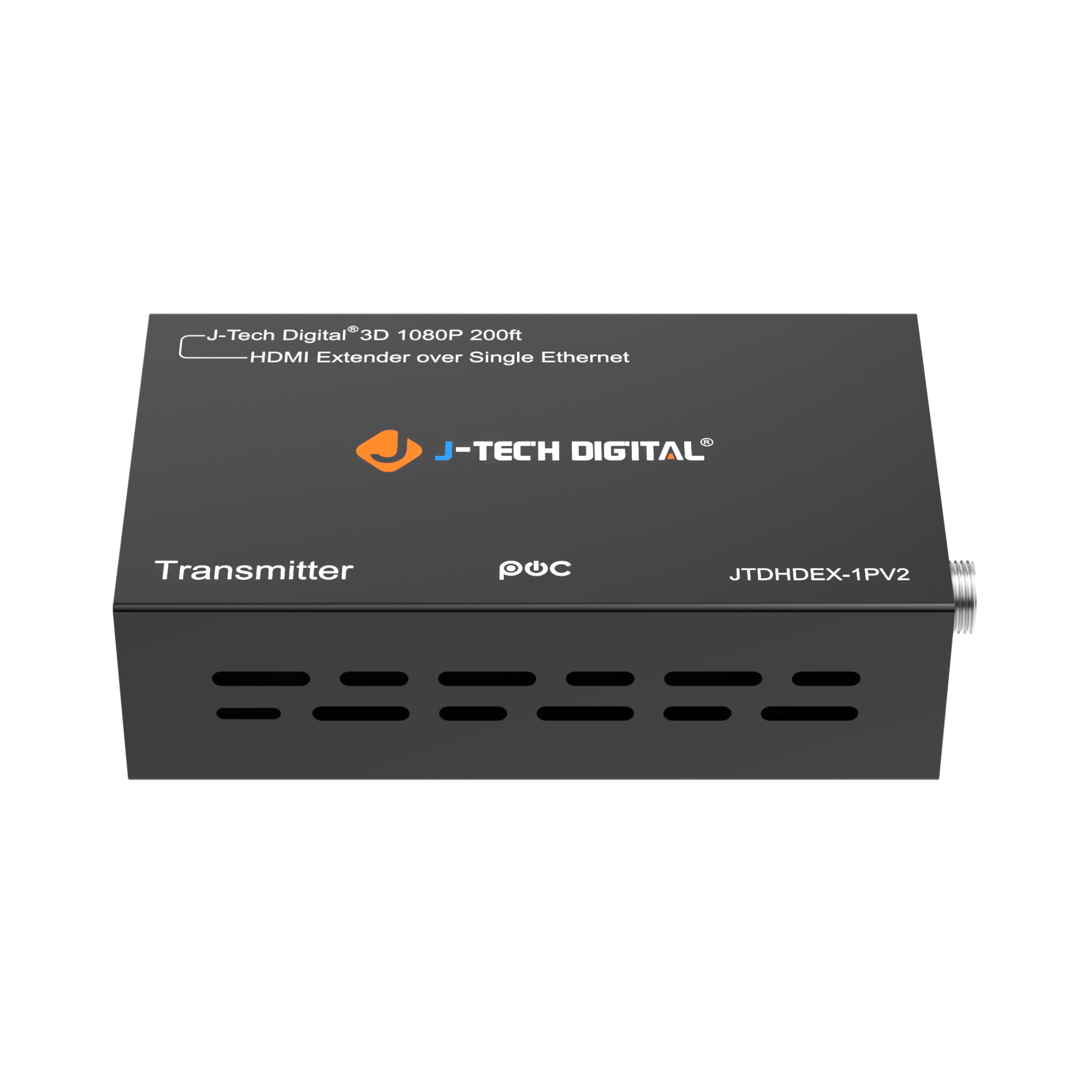

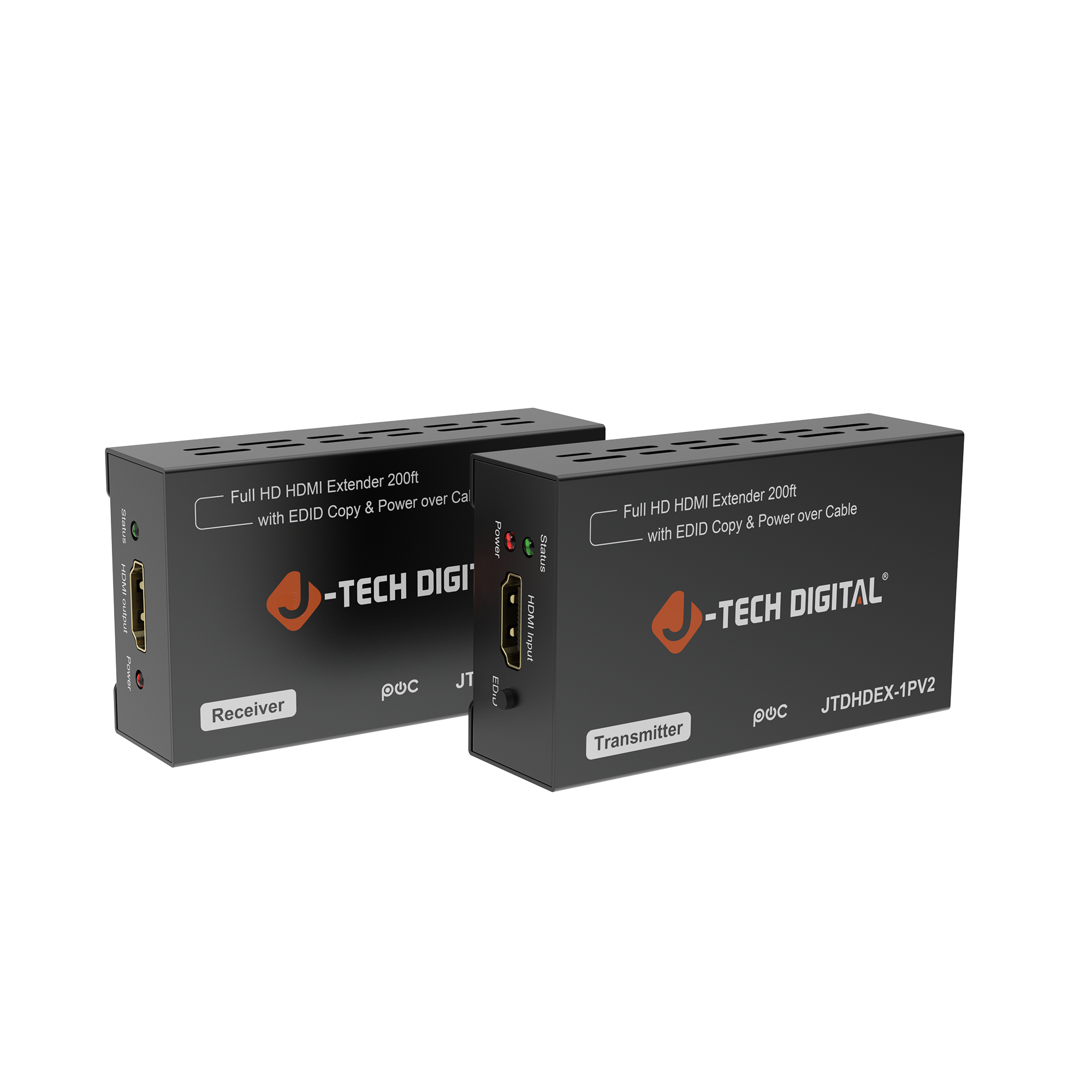

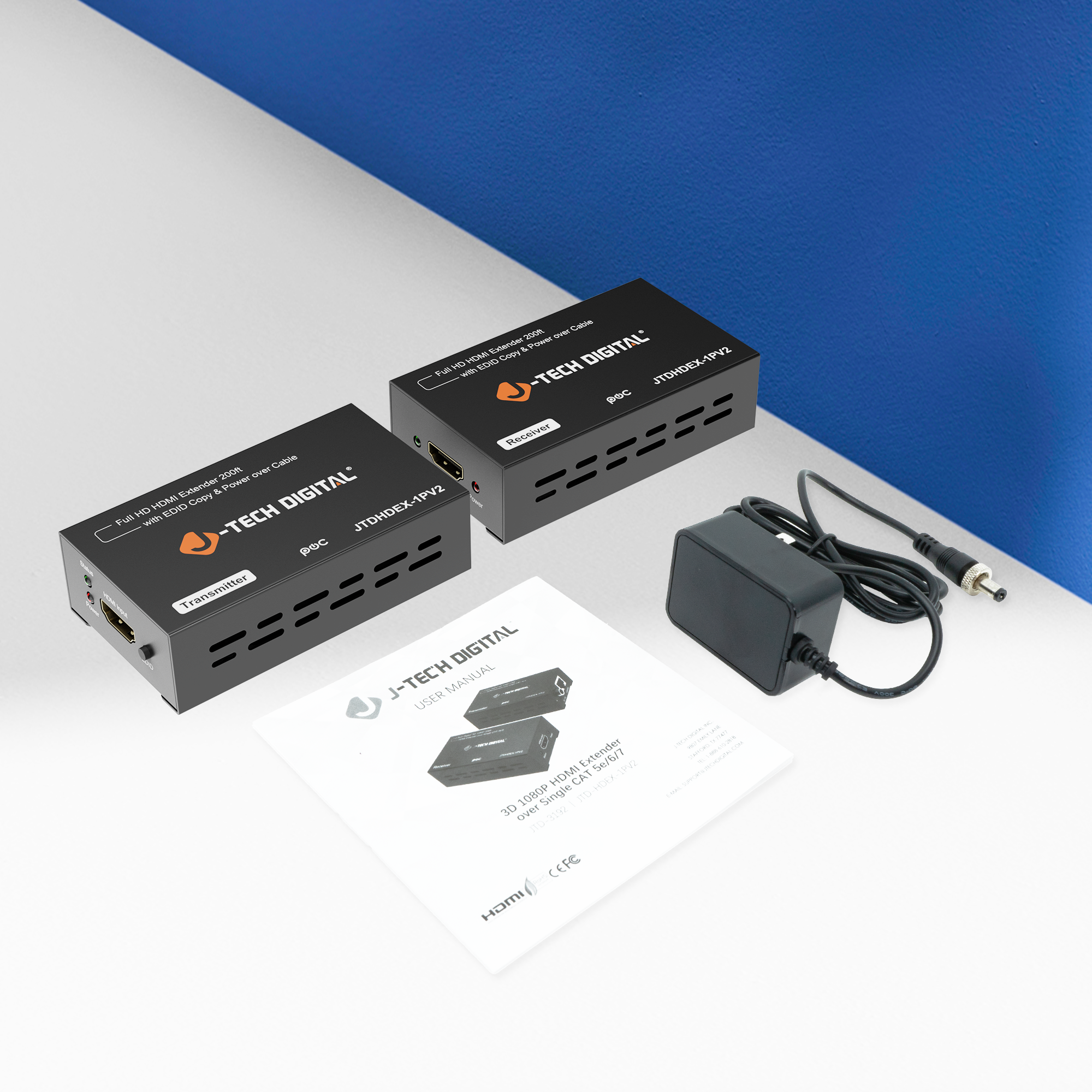

The JTD-HDEX-1PV2 HDMI over single ethernet extender is able to extend a 1080P audio/video signal up to 165ft. which is four times the transmission distance of a typical HDMI cable. The PoC (power over cable) function allows users to only use one power adapter between the transmitter and the receiver, making for a cleaner, clutter-free setup. This extender is viable in any installation, whether residential or commercial.

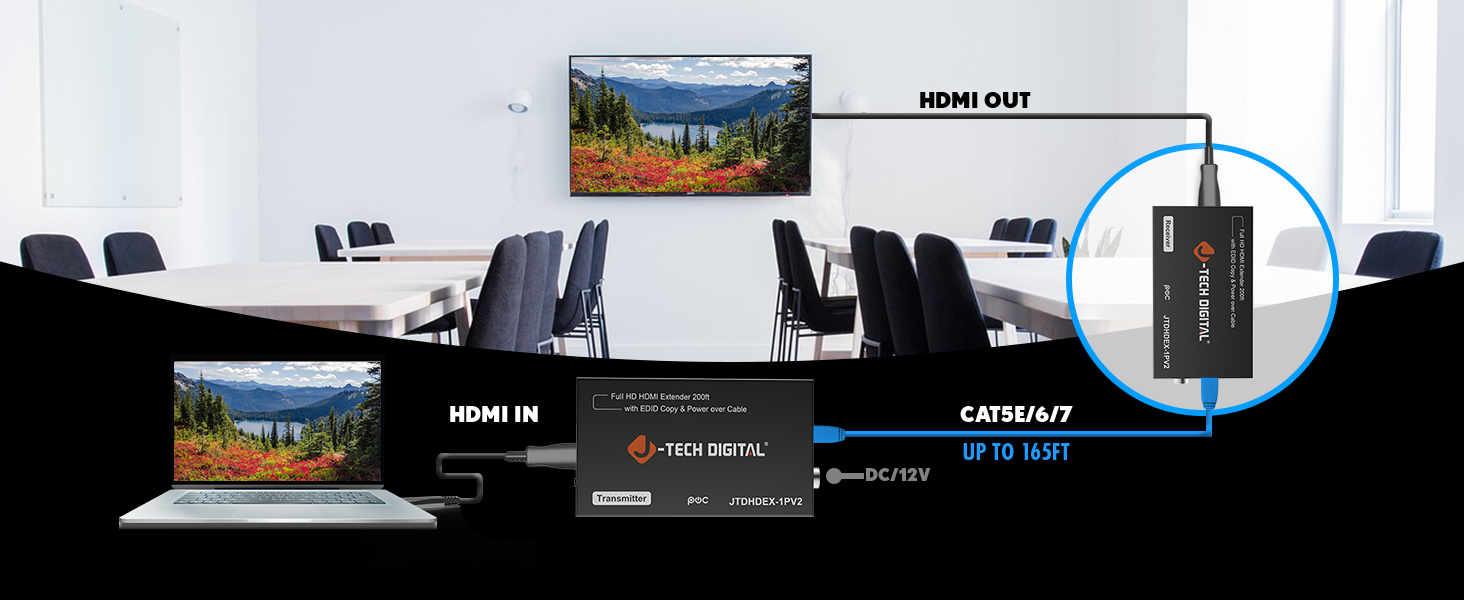

Extends 1080P signal up to 165ft. between the transmitter and receiver over a single IEEE-568B UTP cable (Cat5e/6/7)

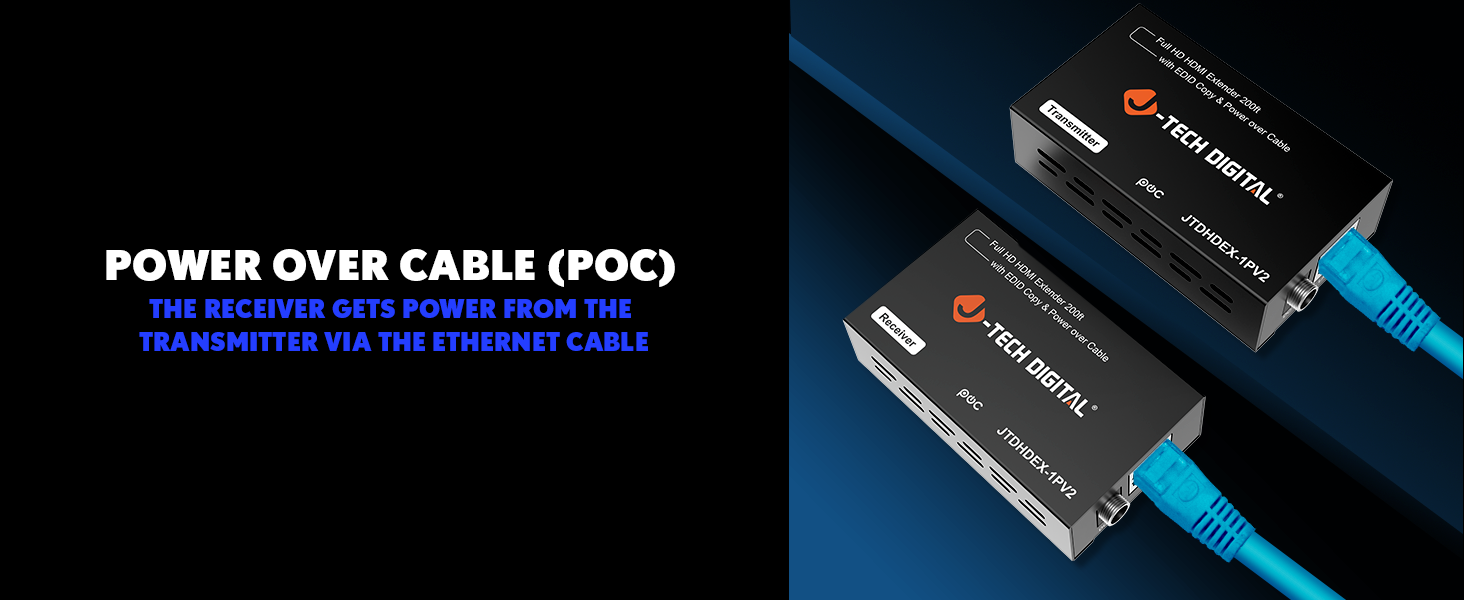

Receiver can be powered by transmitter via PoC (power over cable)

Supports Deep Color up to 36-bit | Lossless compressed digital audio; Dolby TrueHD, DTS-HD, Master Audio

Transmit digital audio and video signals with zero signal loss | Data transfer speed of 6.75Gbps

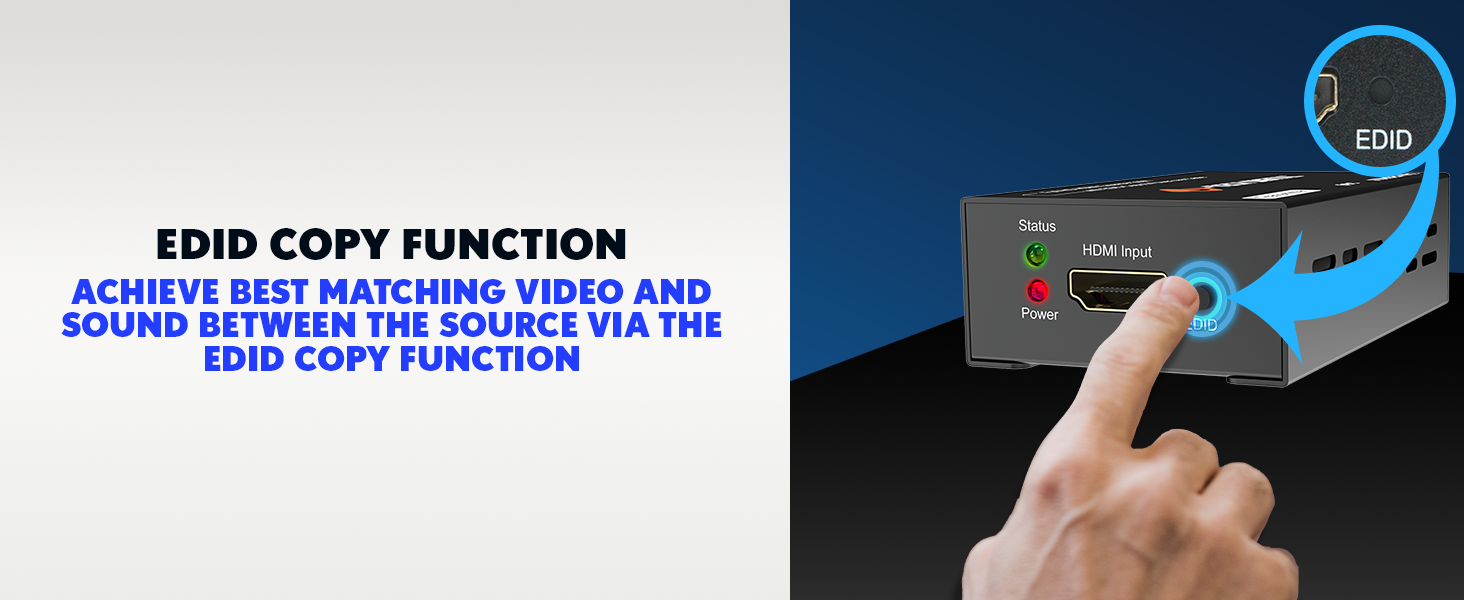

EDID copy function for maximum compatibility

J-Tech Digital HDMI Extender Balun for 1080p60Hz signal up to 165ft
1080P 60Hz HDMI Extender Balun Over Ethernet with PoC (165ft.)

Specifications

Video

Name Values
Ports

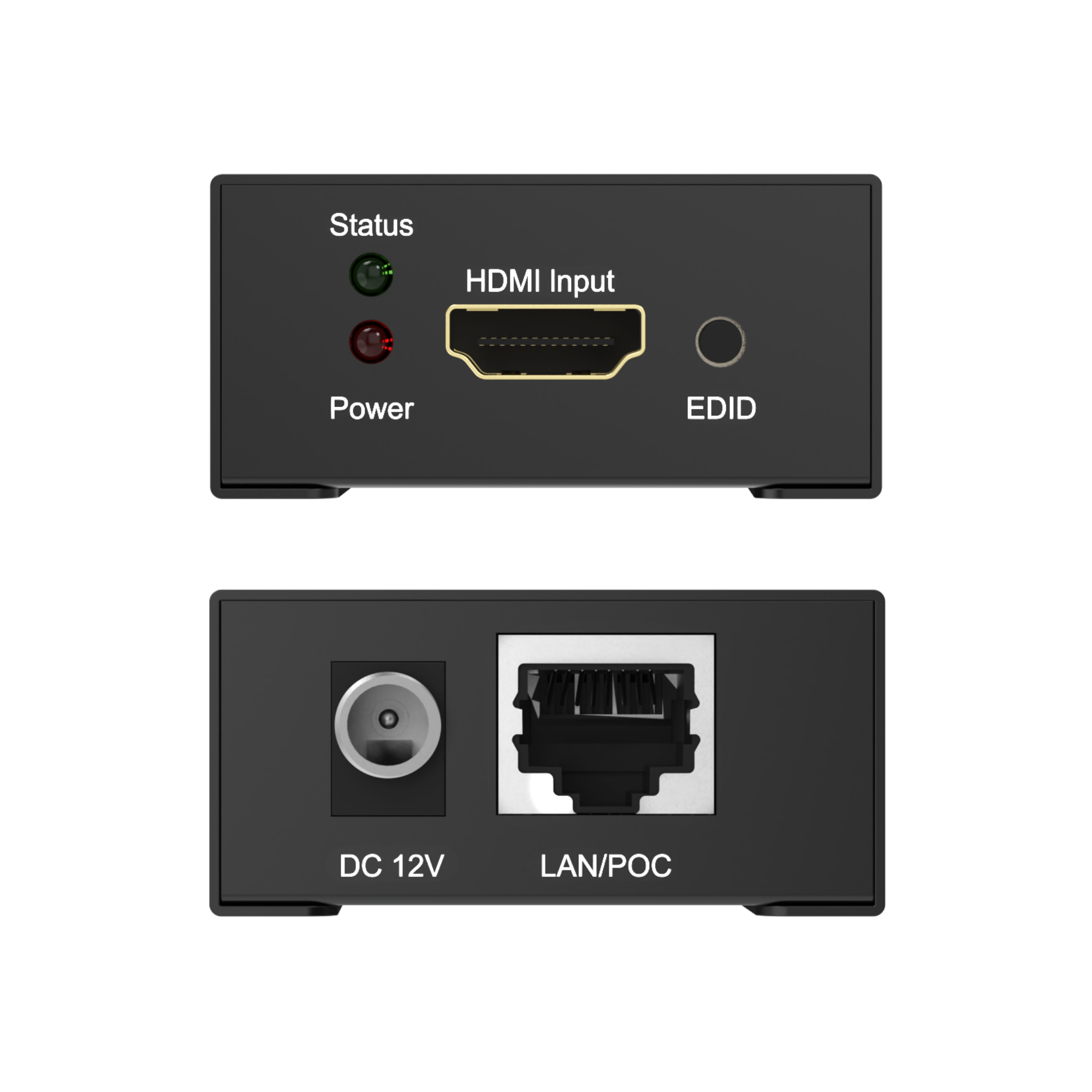

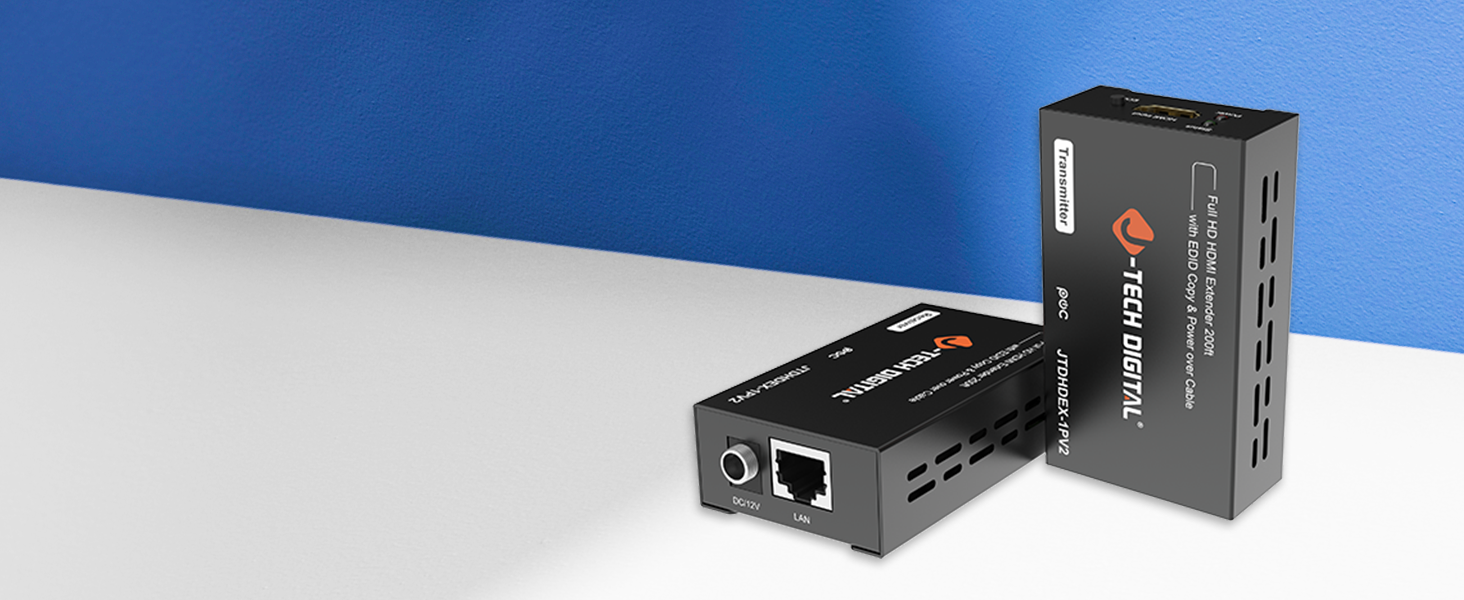

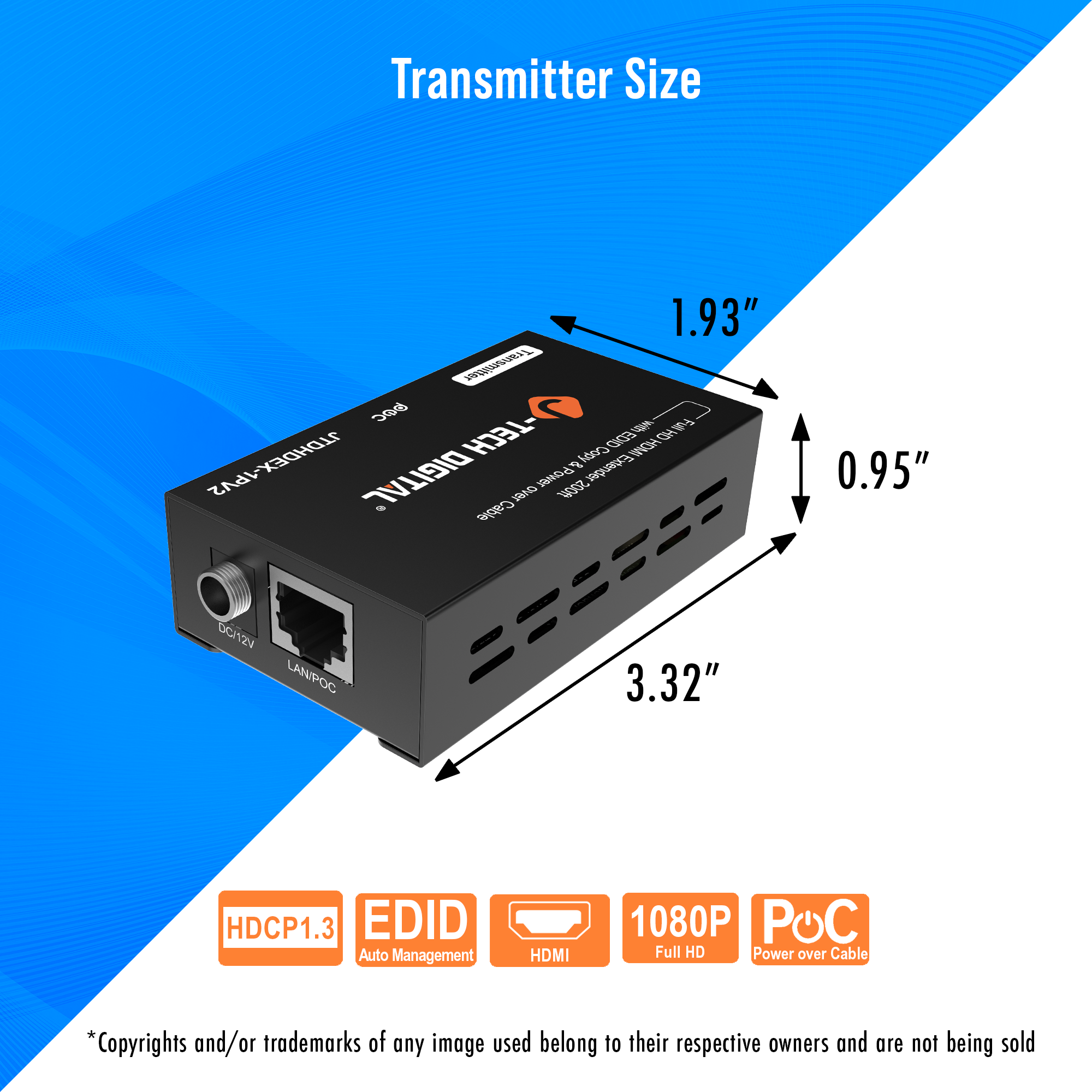

  • 1 x HDMI Input (Transmitter)
  • 1 x LAN / PoC (Transmitter)
  • 1 x Power Port (Transmitter)

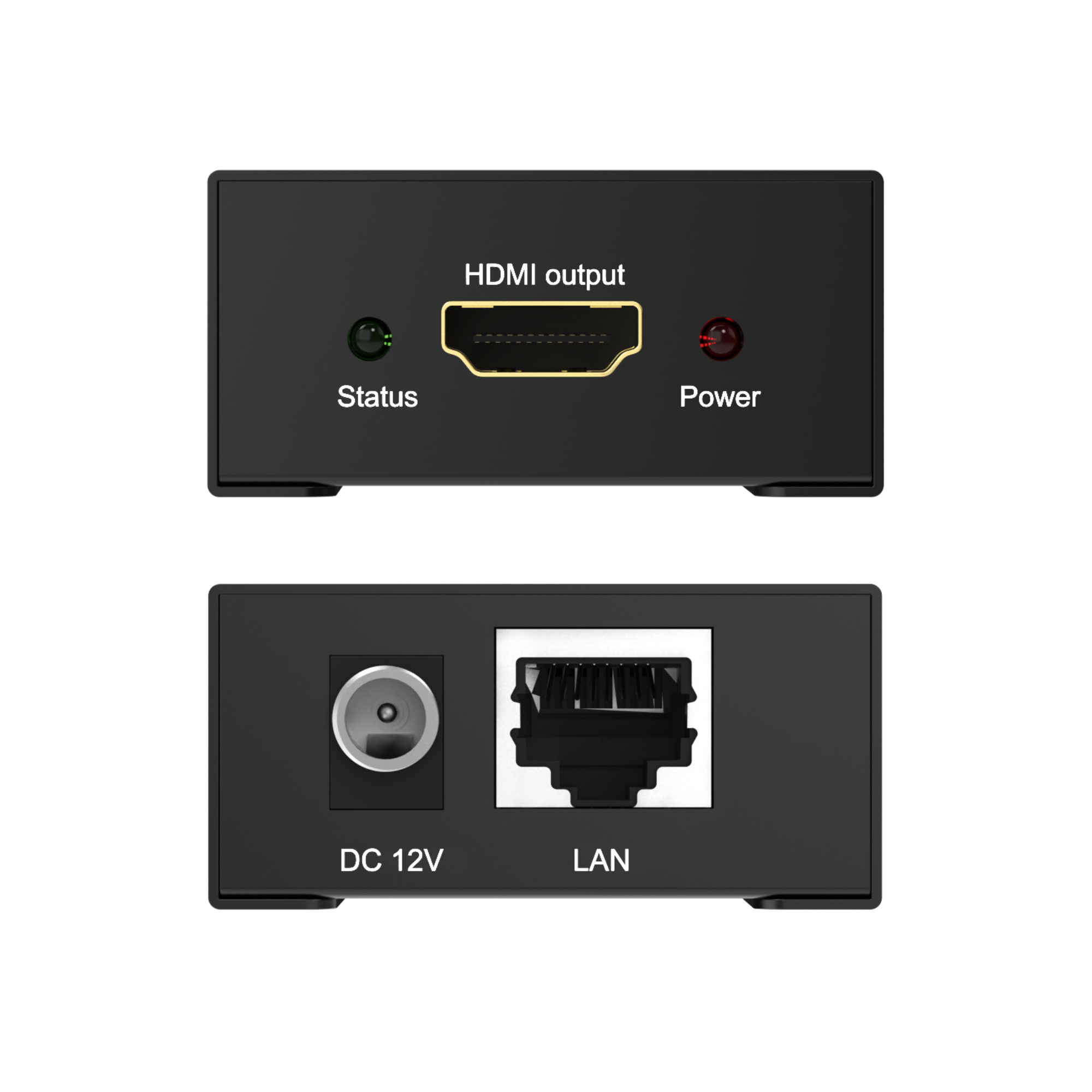

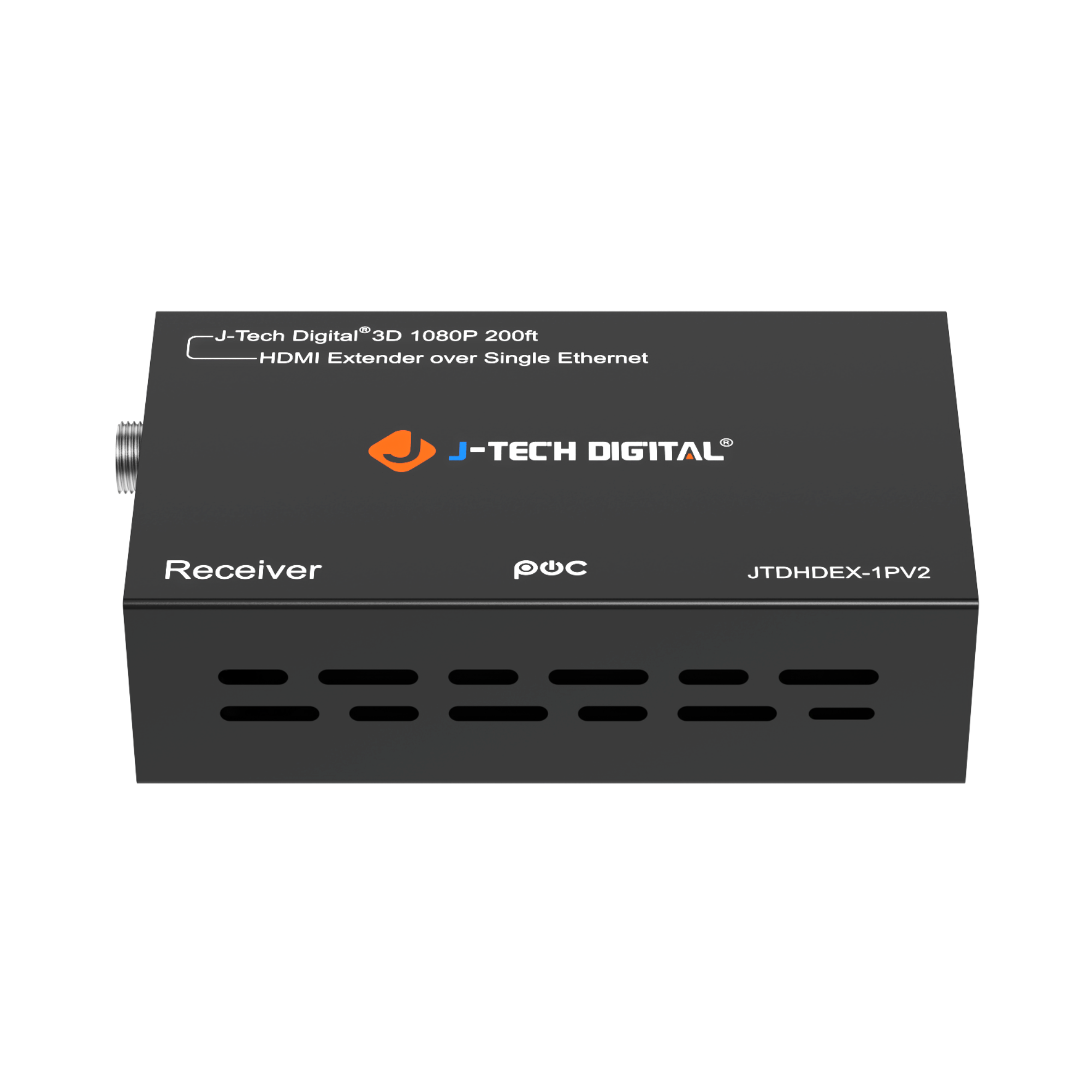

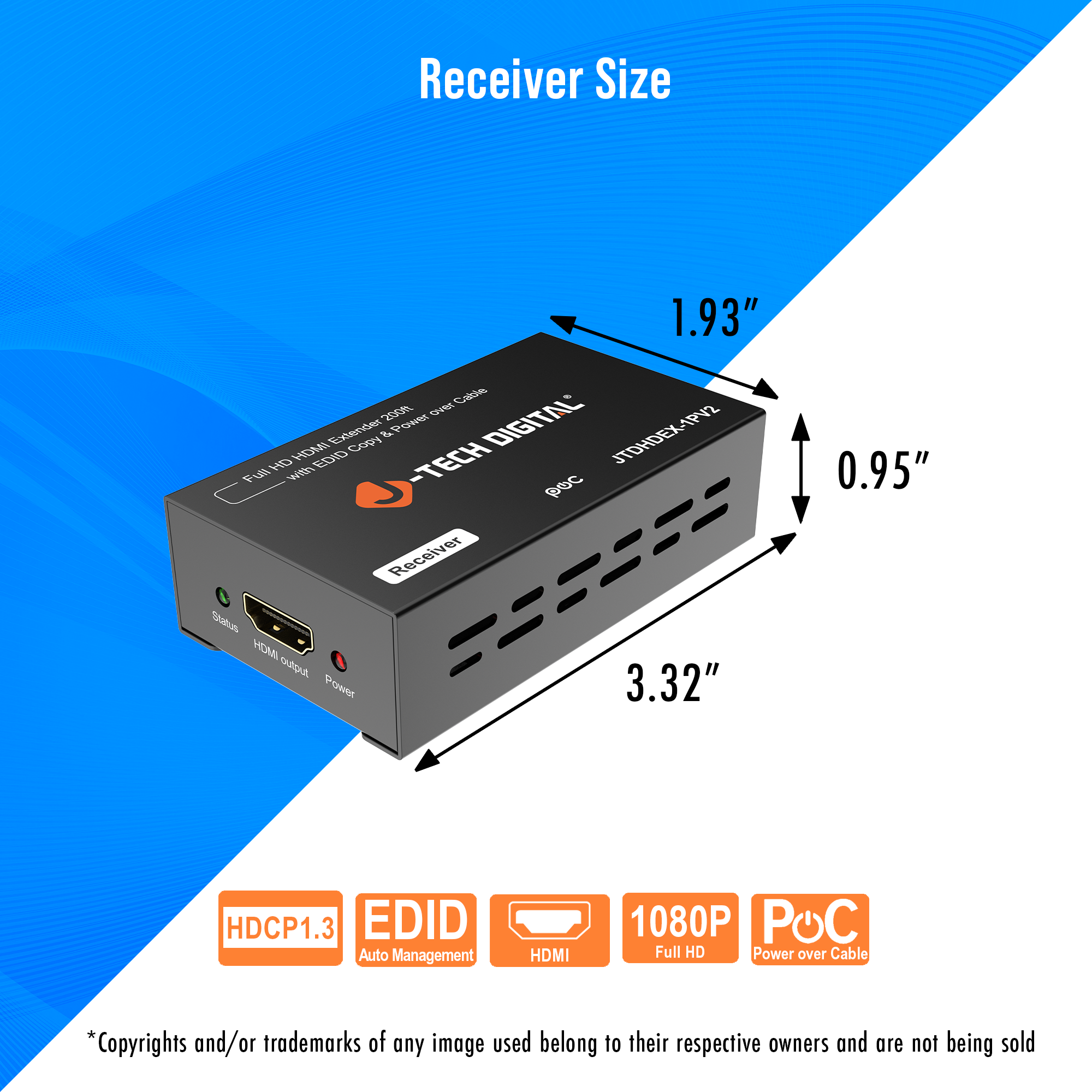

  • 1 x HDMI Output (Receiver)
  • 1 x LAN (Receiver)
  • 1 x Power Port (Receiver)
Video Format Support Up to 1080P 60Hz
Video Standards
  • HDMI 1.4
  • HDCP 1.4
Input Video Signal 0.5 - 1.0V p-p
Input DDC Signal 5V p-p (TTL)
Transmission Distance 1080P 8-bit: 165ft. over single CAT5e/6 24 AWG/Solid

Resources & Downloads

Category Description Version File
MANUAL User Manual 1.0 JTD-3192 manual (J-TECH)_A1_20240819.1.pdf

Category: MANUAL

Description: User Manual

Version: 1.0

File: JTD-3192 manual (J-TECH)_A1_20240819.1.pdf
