1080P 60Hz 4x1 Quad HDMI Multiviewer and Switch – Display 4 HDMI Sources on One Screen

Sale price $72.59
Regular price $139.99

Shipping calculated at checkout

  • ✅ 4 Inputs for HDMI Devices: Reduce cable clutter and switch between 4 HDMI source devices to your display for seamless transitions between cable boxes, game consoles, Blu-ray players, and more with this HDMI multiviewer.
  • ✅ 5 Different Display Modes: This switch offers multiple viewing options, allowing you to display 1 device, 2 devices, or all 4 devices at the same time.
  • ✅ Multiple Resolutions Supported: A wide range of resolutions provides convenience and compatibility with various HDMI sources. Supported resolutions include 1080P@60Hz, 720P@60Hz, and 480P@60Hz.

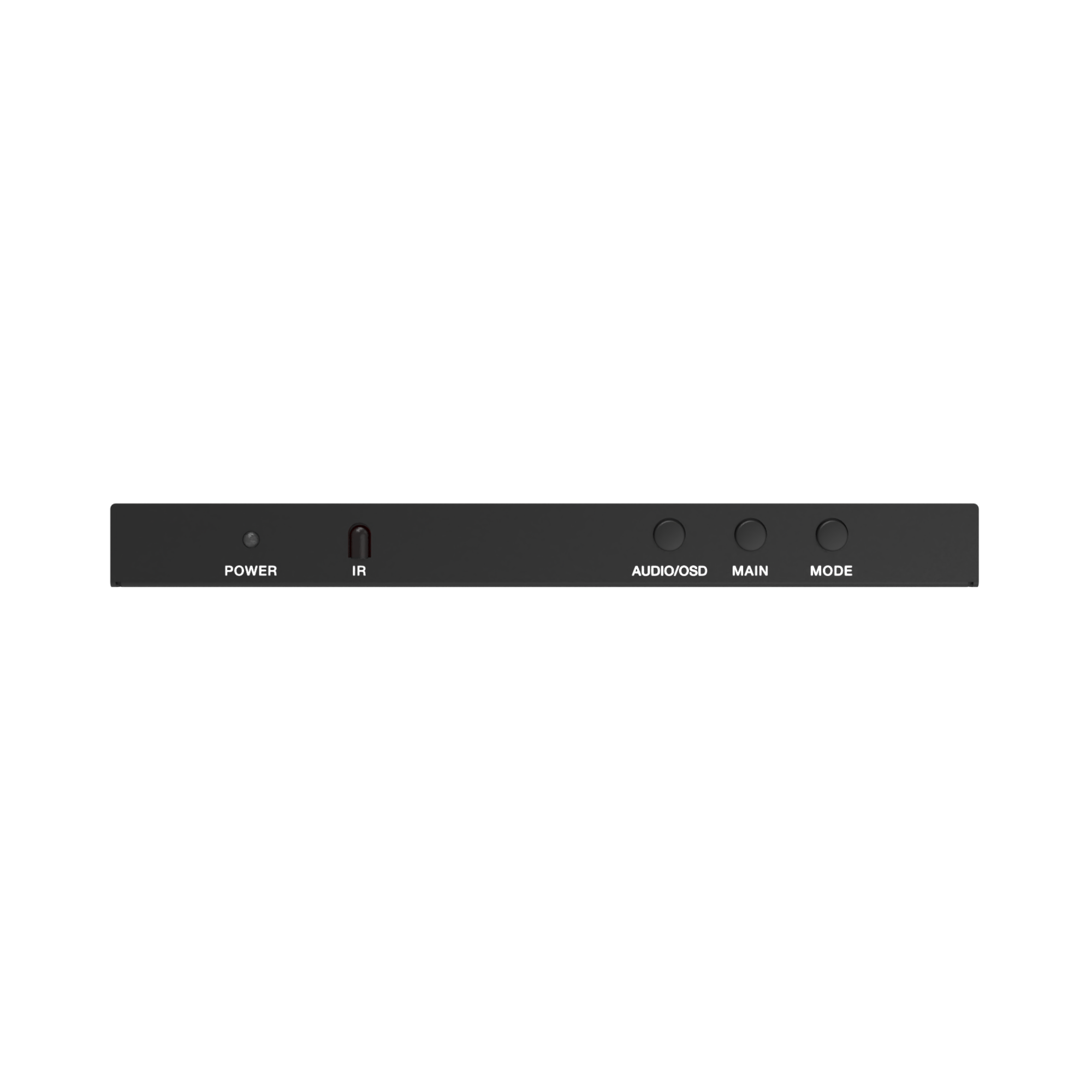

  • ✅ HD Audio Formats: Supports LPCM 2CH, 5.1, 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, and DTS:X. Use the Audio button on the front of the unit to select which source device’s audio will be heard.

Overnight shipping*:

Two days shipping:

Availability:
In stock
SKU:
JTD-1579
Model:
JTECH-MV41

Simplify your setup with this 4-port HDMI multiviewer switch, designed to connect and control up to four HDMI devices through a single display. Effortlessly switch between your game consoles, streaming devices, Blu-ray players, and cable boxes for a clutter-free entertainment experience.

Choose from five display modes to view one, two, or all four sources simultaneously. Enjoy crystal-clear video with support for 1080P, 720P, and 480P resolutions, plus immersive sound with Dolby Atmos, DTS:X, Dolby TrueHD, and more. Easily select which device’s audio plays using the front-panel Audio button.

Streamline your connections and upgrade your entertainment with one powerful, easy-to-use HDMI switch.

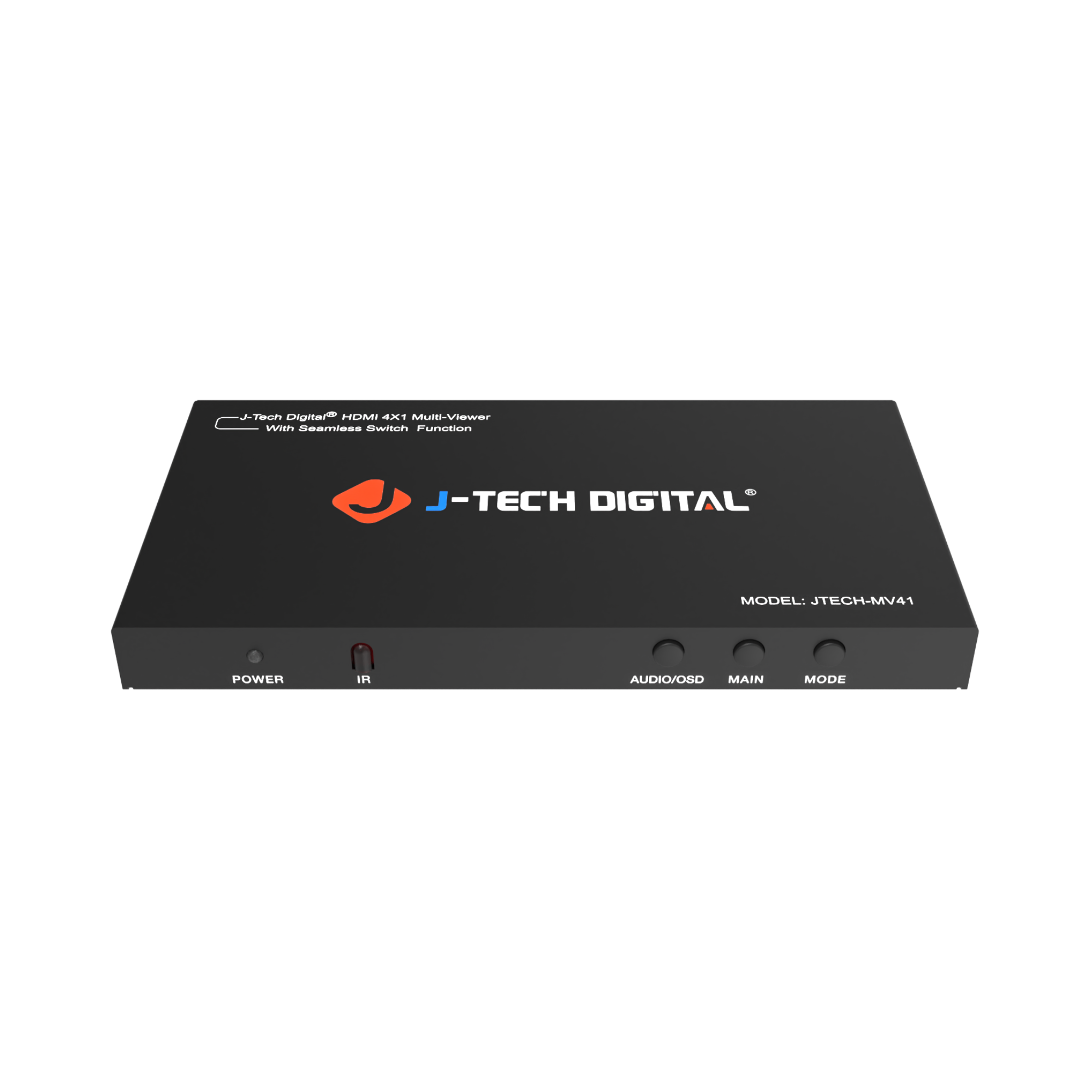

4x1 Quad HDMI Multiviewer Switch – View 4 HDMI sources on one display
1080P 60Hz 4x1 Quad HDMI Multiviewer and Switch – Display 4 HDMI Sources on One Screen

Specifications

Technical

Name Values
HDMI Compliance
  • 1.4b
  • DVI 1.0
HDCP Compliance 1.4
Video Bandwidth 6.75Gbps
Video Resolutions
  • 1080P @ 60Hz
  • 720P @ 60Hz
  • 480P @ 60Hz
Color Space
  • RGB
  • YCbCr 4:4:4
  • YCbCr 4:2:2
Color Depth
  • 10-bit
  • 12-bit
HDMI Audio Formats (Pass-through)
  • LPCM 2 / 5 / 7.1Ch
  • Dolby Digital
  • DTS 5.1
  • Dolby Digital Plus
  • Dolby TrueHD
  • DTS-HD Master Audio
  • Dolby Atmos
  • DTS:X

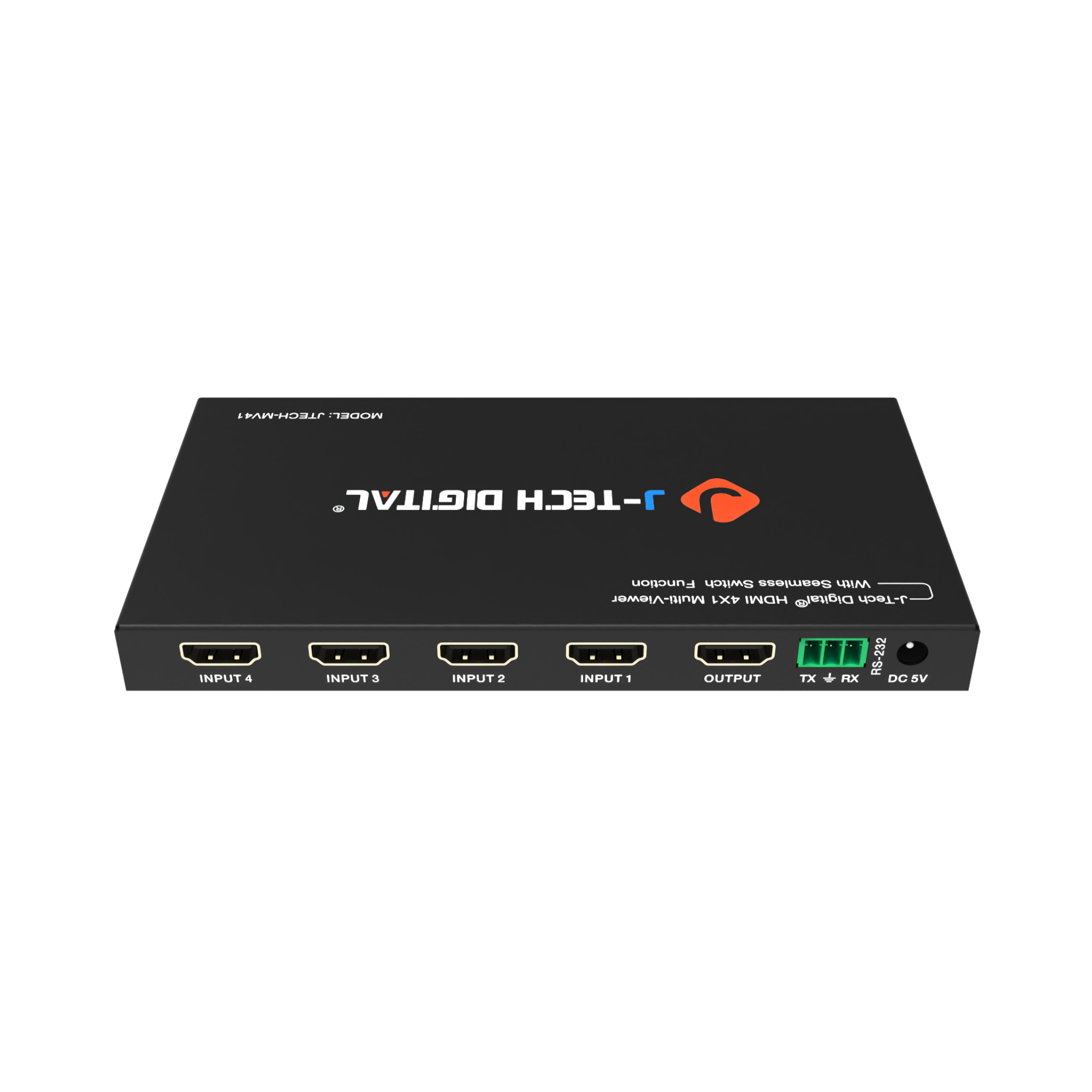

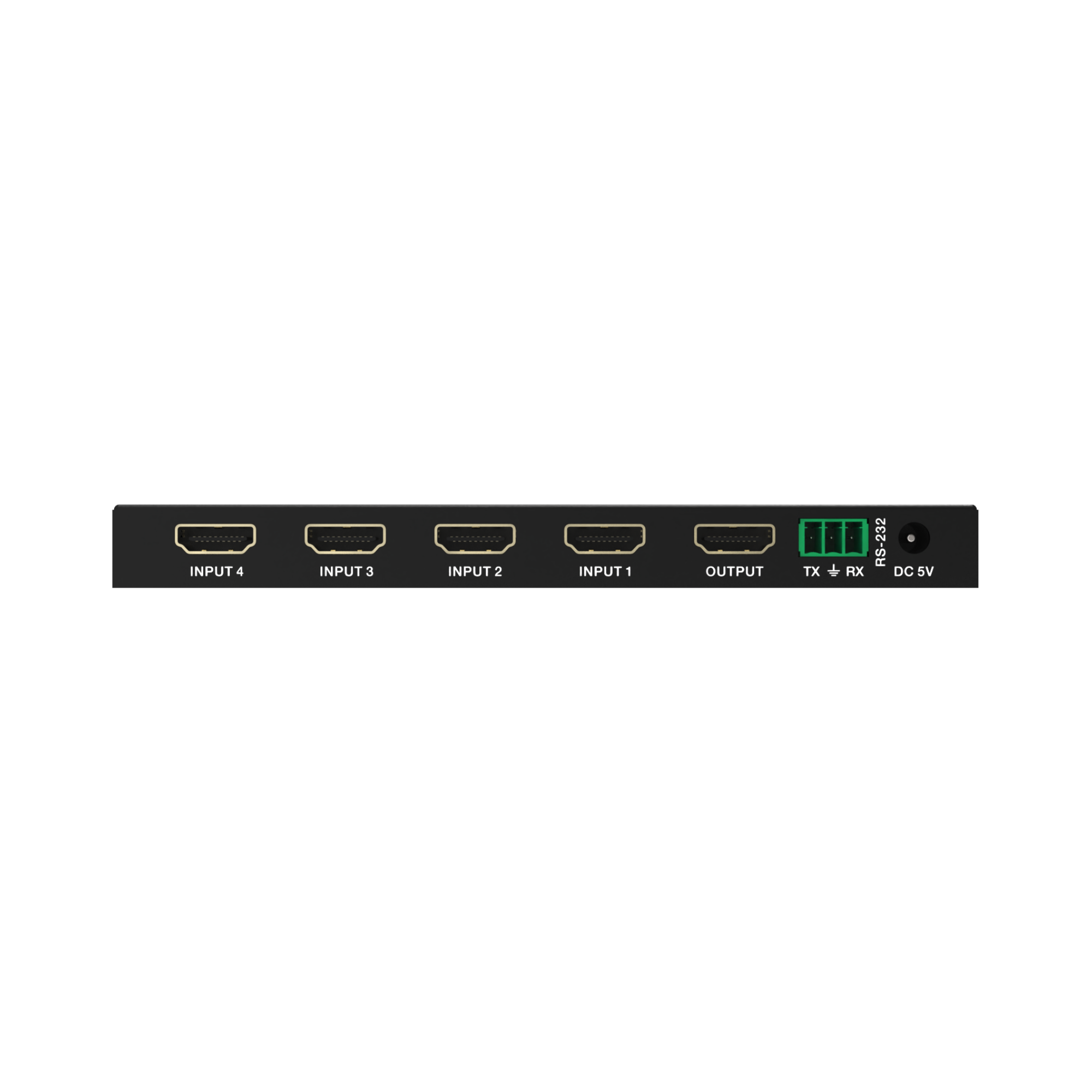

Connections

Name Values
Inputs 4 x HDMI
Outputs
  • 1 x HDMI
  • 1 x RS-232 (3.81mm Phoenix Connector)

Mechanical

Name Values
Housing Metal Enclosure
Color Black
Dimensions (W) 160.2mm x (D) 84mm x (H) 15.5mm
Weight 337g
Power Supply
  • Input: AC100 - 240V 50/60Hz
  • Output: DC 5V/2A (US/EU standards, CE/FCC/UL certified)
Power Consumption 6W (Max)
Operation Temperature 32 - 104F
Storage Temperature -4 - 140F
Relative Humidity 20 - 90% RH (no condensation)

Resources & Downloads

Category Description Version File
MANUAL User Manual 1.0 JTD-1084_User_Manual.pdf

Category: MANUAL

Description: User Manual

Version: 1.0

File: JTD-1084_User_Manual.pdf
