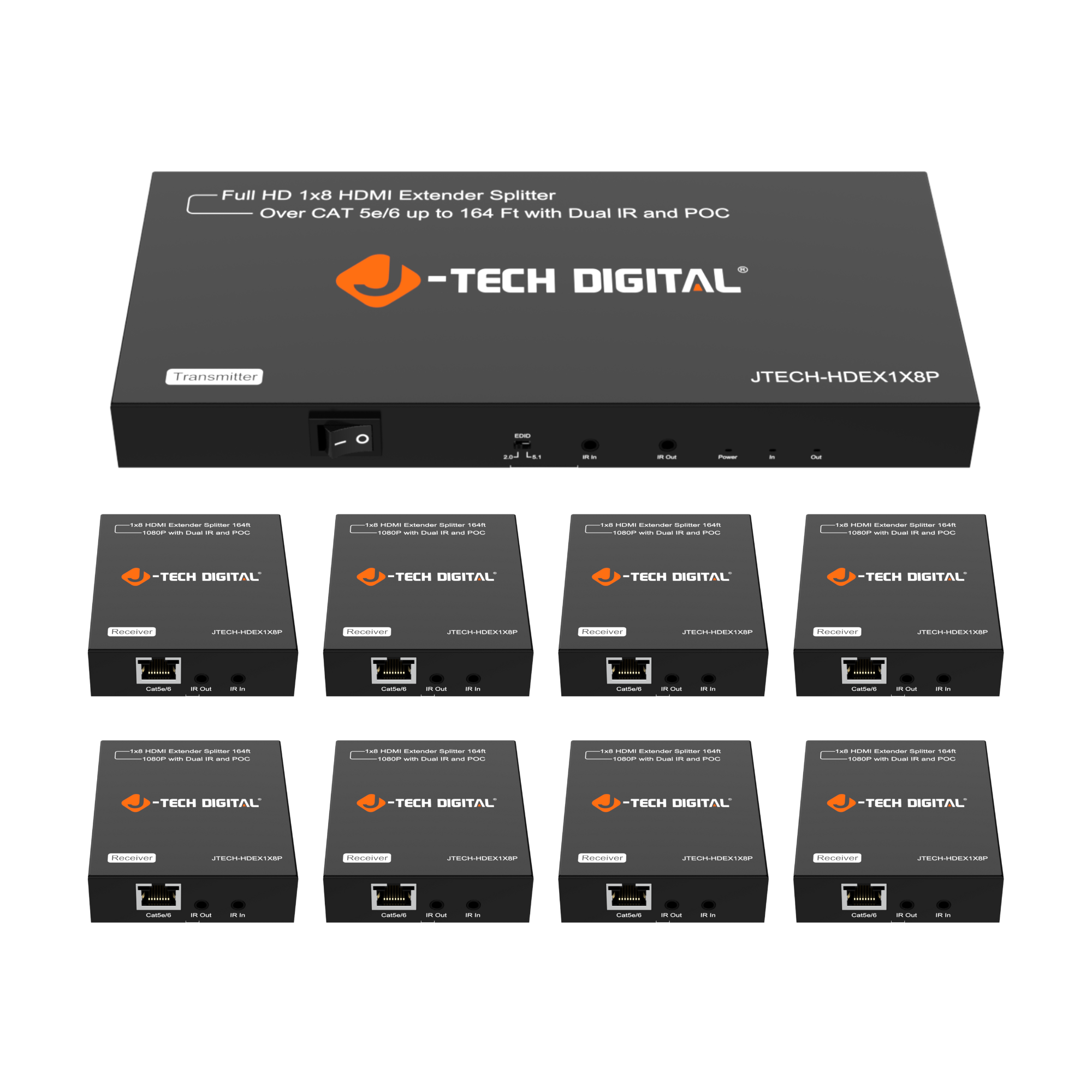

1080P 60Hz 1x8 HDMI Extender Over Ethernet (164ft.)

Regular price $550.00

Shipping calculated at checkout

  • ✅ 1 x HDMI Input | 8 x RJ45 Outputs + 1 x Local HDMI Output: With this 1x8 HDMI extender, distribute an audio/video signal from one source device to up to 8 displays. Includes 8 RJ45-to-HDMI receivers. Also features a local HDMI loop-out port for connecting a nearby display.
  • ✅ Full HD 1080P@60Hz Resolution: HDMI 1.4 and HDCP 1.4 compliant. Supports full high-definition 1080P@60Hz resolution and refresh rate.
  • ✅ Long Distance Signal Transmission: Extend the audio/video signal up to 164 ft over a single Cat5e/6 Ethernet cable (per receiver).
  • ✅ Wide Audio Format Support: Supports digital audio formats such as Dolby TrueHD, Dolby Digital, DTS-HD Master Audio, and more.

Overnight shipping*:

Two days shipping:

Availability:
In stock
SKU:
JTD-3198
Model:
JTECH-HDEX1X8P

Are you running a trade show and need an easy way to setup multiple HD displays showcasing your product? Do you have a sports bar or recreation center with HDTVs set up everywhere for your customers to watch the big game? Or do you just want to have a TV in every room of your house, so you can do your household chores without missing a moment of your favorite TV show? This J-Tech Digital 1x8 HDMI Amplifier Splitter delivers! This is the perfect solution for when you need to distribute a video signal to multiple displays over long distance. It takes a single HDMI input and splits it into one HDMI output and seven Ethernet signals, which are then transmitted over a single Cat5e/6 cable each for to a distance of up to 164 feet. The receiver unit at the end then converts the signal back to HDMI for use by the display.

Distributes 1 input HDMI signal to 8 HDMI outputs | Transmission distance up to 164 ft. under 1080p over single Cat5e or Cat6 cable

Features local HDMI loop-out on transmitter to allow source monitoring via a local display

Bi-directional IR control allows you to control your source device from displays location or vice versa

Supports High Definition Audio: Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio etc.

Supports 30/36 bit deep color display; Support 3D technology

Easy to install - just plug it in and start using it right away!

full hd 1080p 1x8 hdmi splitter overview
1080P 60Hz 1x8 HDMI Extender Over Ethernet (164ft.)

Specifications

General

Name Values
Operating Temperature Range -5 to 40℃(+23 to 104°F)
Operating Humidity Range 5 to 90%RH (No Condensation)
Data transfer speed rate 10.2Gbps
Input ports 1 x HDMI
Output ports
  • 8 x RJ45 output ports
  • 1 x HDMI loop out
Output Video Format Supported DTV/HDTV:720P/1080i/1080P
Transmission Distance 50m at 1080P@60Hz
Power consumption 25W (Maximum)
Dimensions (LxWxH)
  • TX : 114.15 mm x 252.73 mm x 25.13 mm
  • RX: 83.92 mm x 75.2 mm x 23.1 mm
Net Weight
  • TX: 1000g
  • RX: 2400g(8pcs)

Resources & Downloads

Category Description Version File
MANUAL User Manual 1.0 JTD-3198 User Manual.docx

Category: MANUAL

Description: User Manual

Version: 1.0

File: JTD-3198 User Manual.docx
