Digital to Analog DAC Audio Converter with Bass and Volume Control

Regular price $31.85

Shipping calculated at checkout

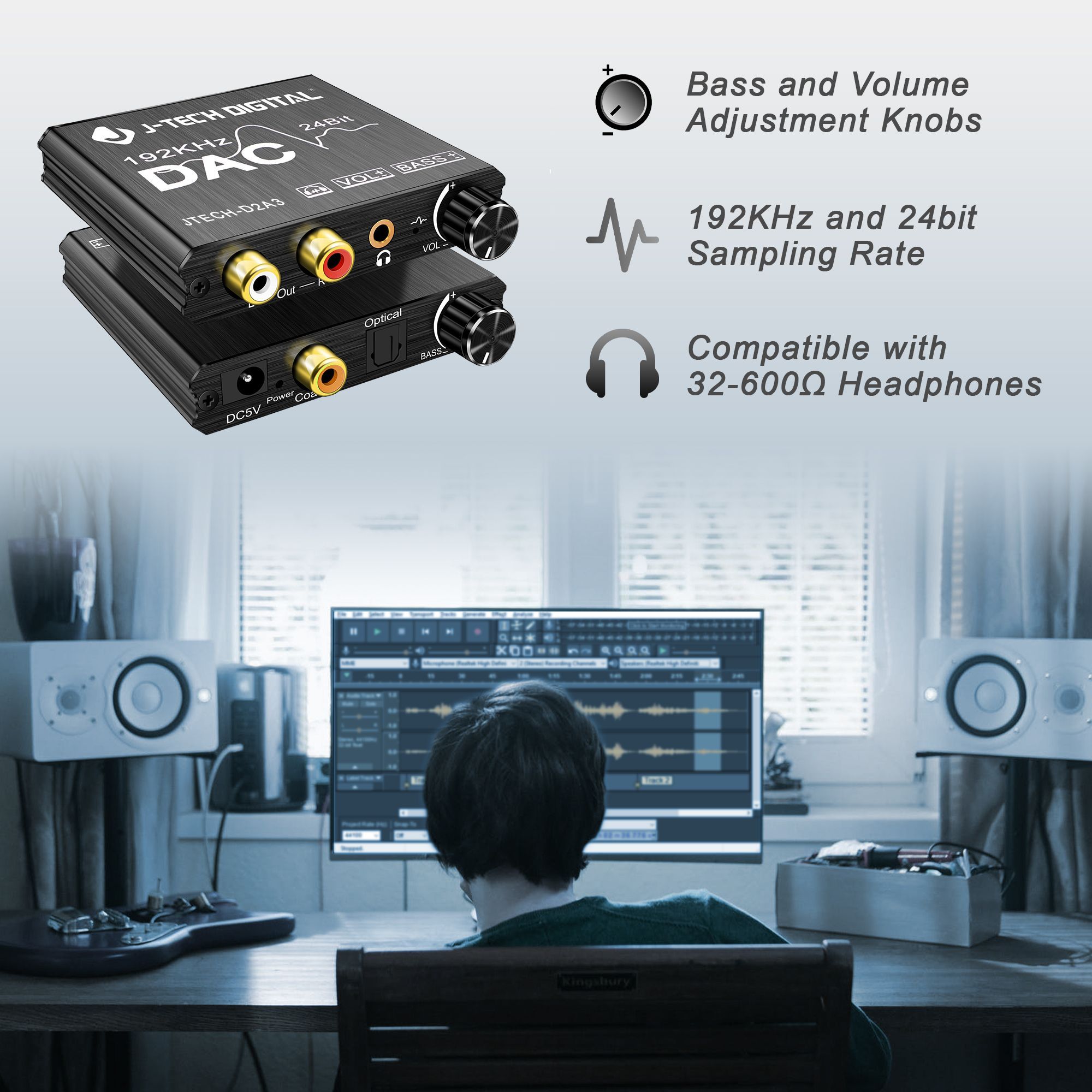

  • ✅ Digital to Analog Converter: This Digital to Analog (DAC) audio converter features both optical and coaxial digital audio input ports as well as RCA and 3.5mm analog audio output ports for ultimate flexibility within your system.

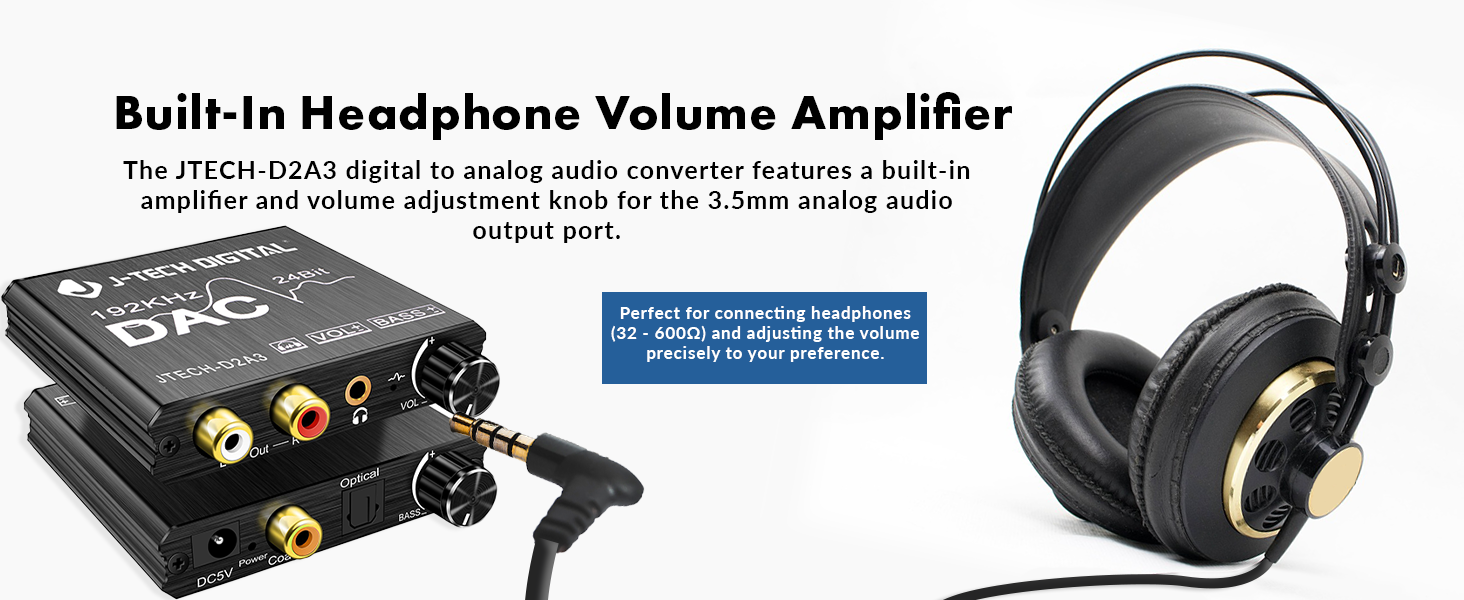

  • ✅ Built-in Volume Amplifier: Features a built-in amplifier and volume adjustment knob for the 3.5mm analog audio output port.
  • ✅ Bass Control Function: Increase or decrease the presence of low frequencies in your converted audio signal with the bass adjustment knob. Fine-tune the low-end presence of your audio signal without the addition of outside audio processors.

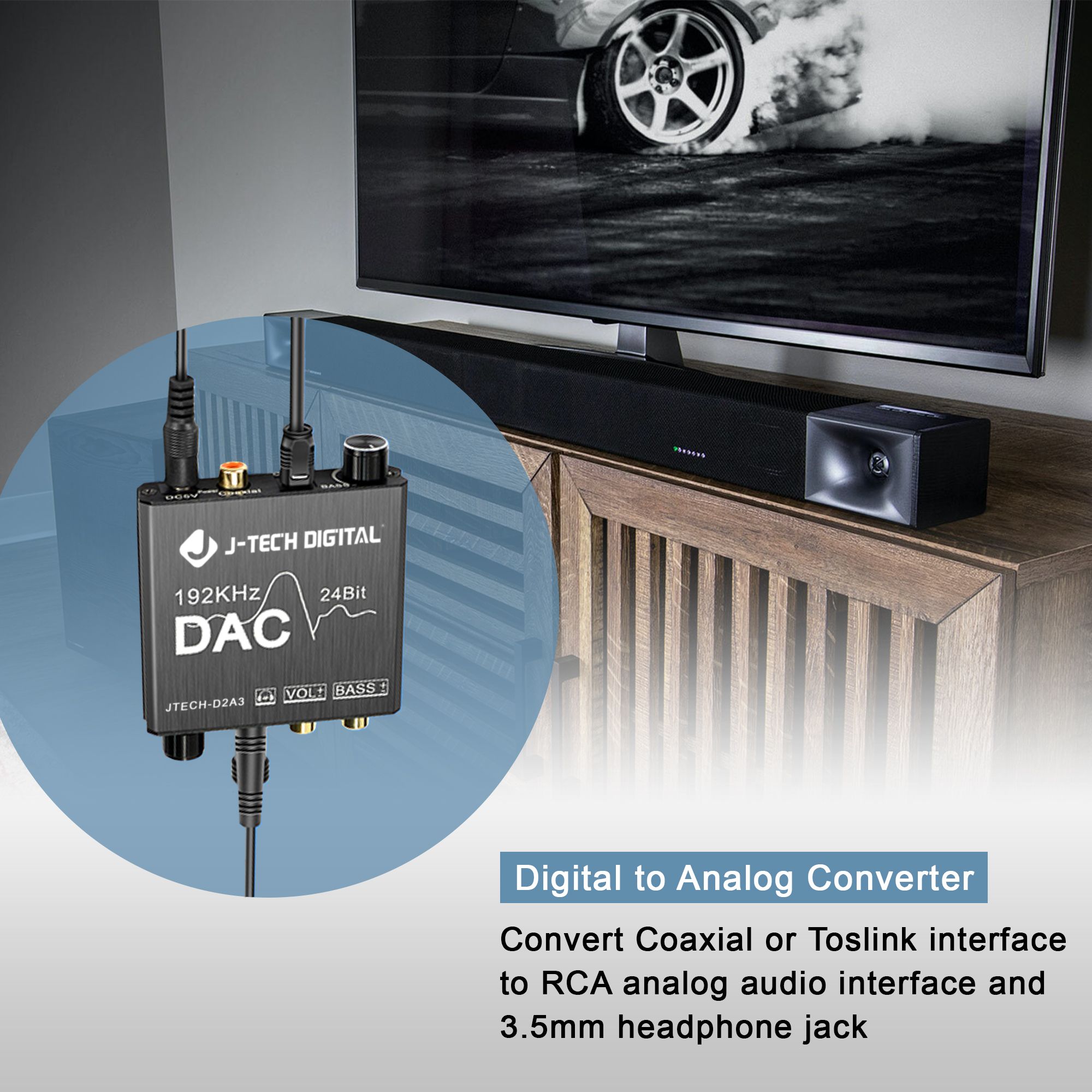

  • ✅ 192kHz 24-bit Sampling Rate: Changes coaxial or optical PCM audio signals to analog L/R RCA and 3.5mm audio. Simple plug & play installation.

Overnight shipping*:

Two days shipping:

Availability:
In stock
SKU:
JTD-482
Model:
JTECH-D2A3

The J-Tech Digital JTECH-D2A3 digital to analog audio converter is the perfect device for integrating legacy AV equipment or headphones to your system. The JTECH-D2A3 supports 192kHz 24bit audio sampling for hi-fidelity audio to your analog audio components. Unlike most digital-to-analog signal converters, the JTECH-D2A3 features a volume amplifier and bass control function for ensuring your converted audio signal is ideal for your application.

Use the headphone amplifier to adjust the volume being sent to headphones via the 3.5mm audio output port. Fine-tune the presence of low-frequencies in your converted audio signal via the Bass adjustment knob.

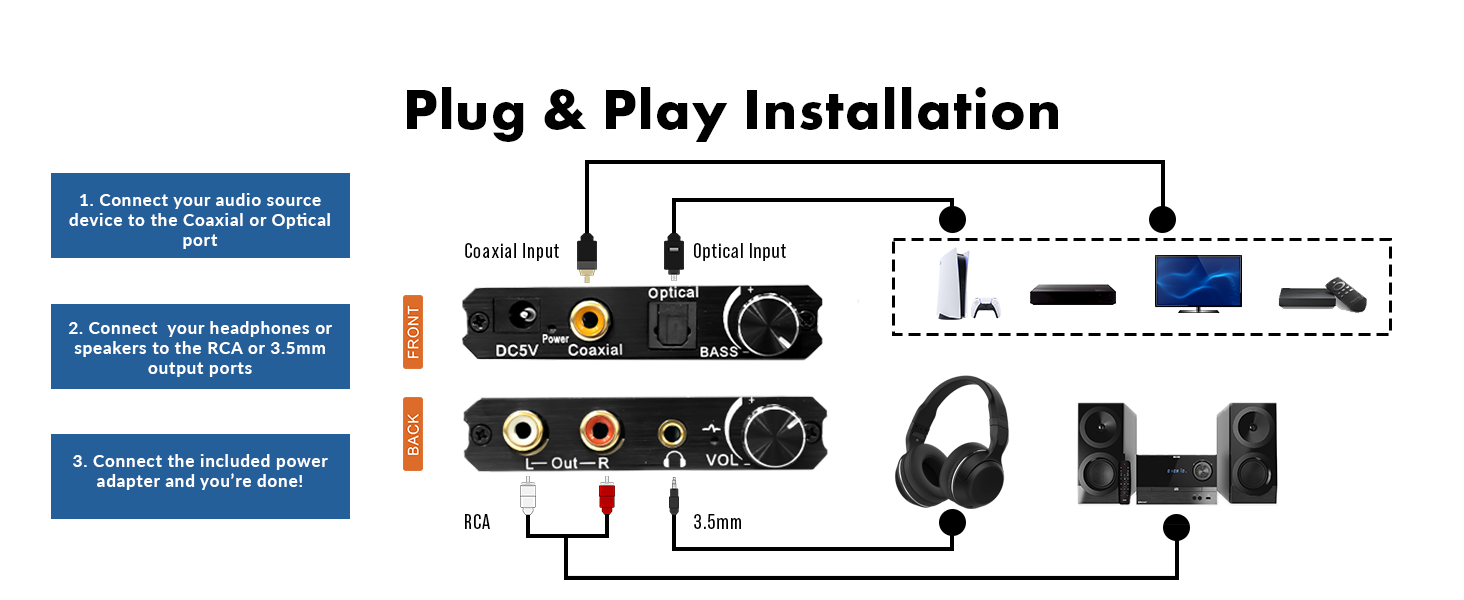

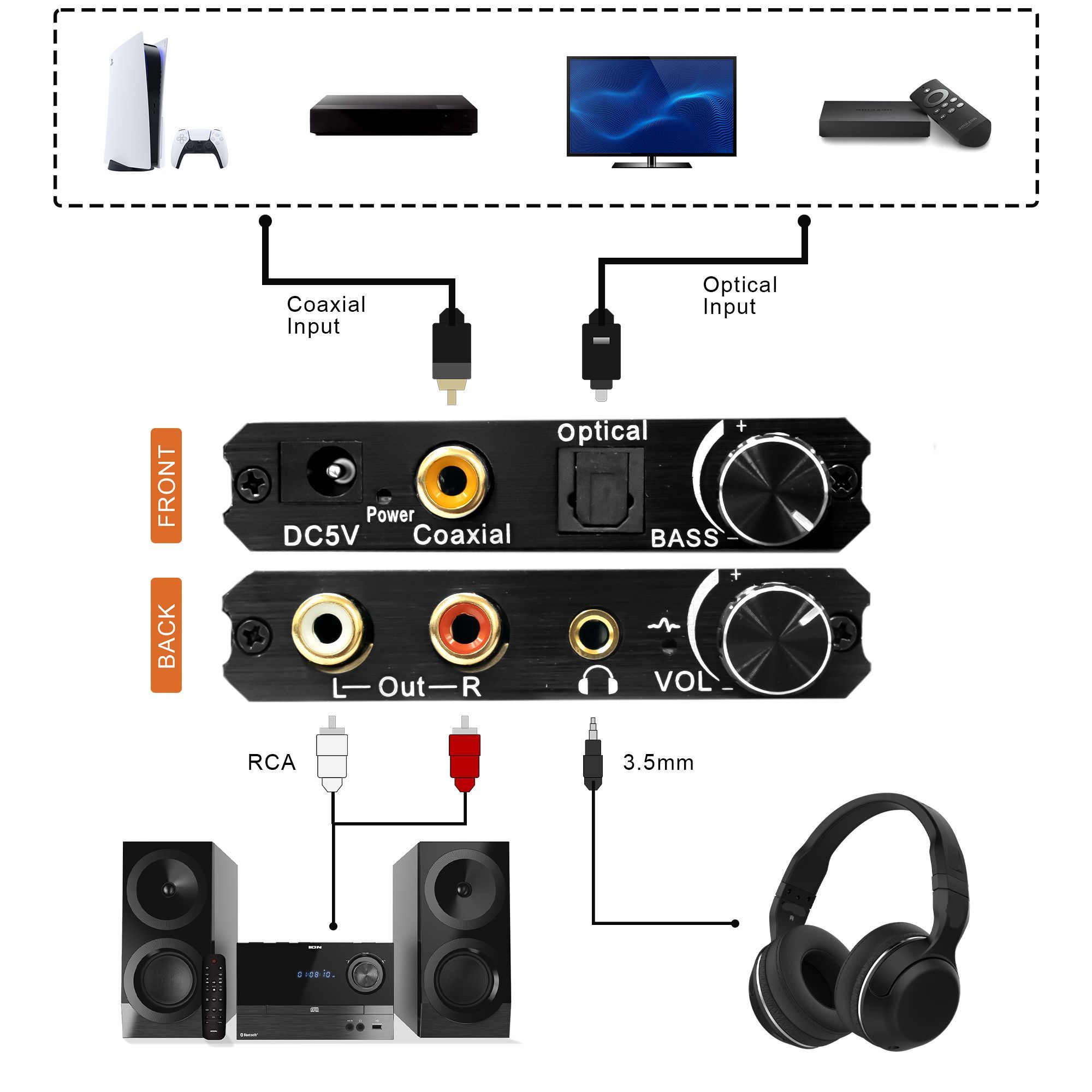

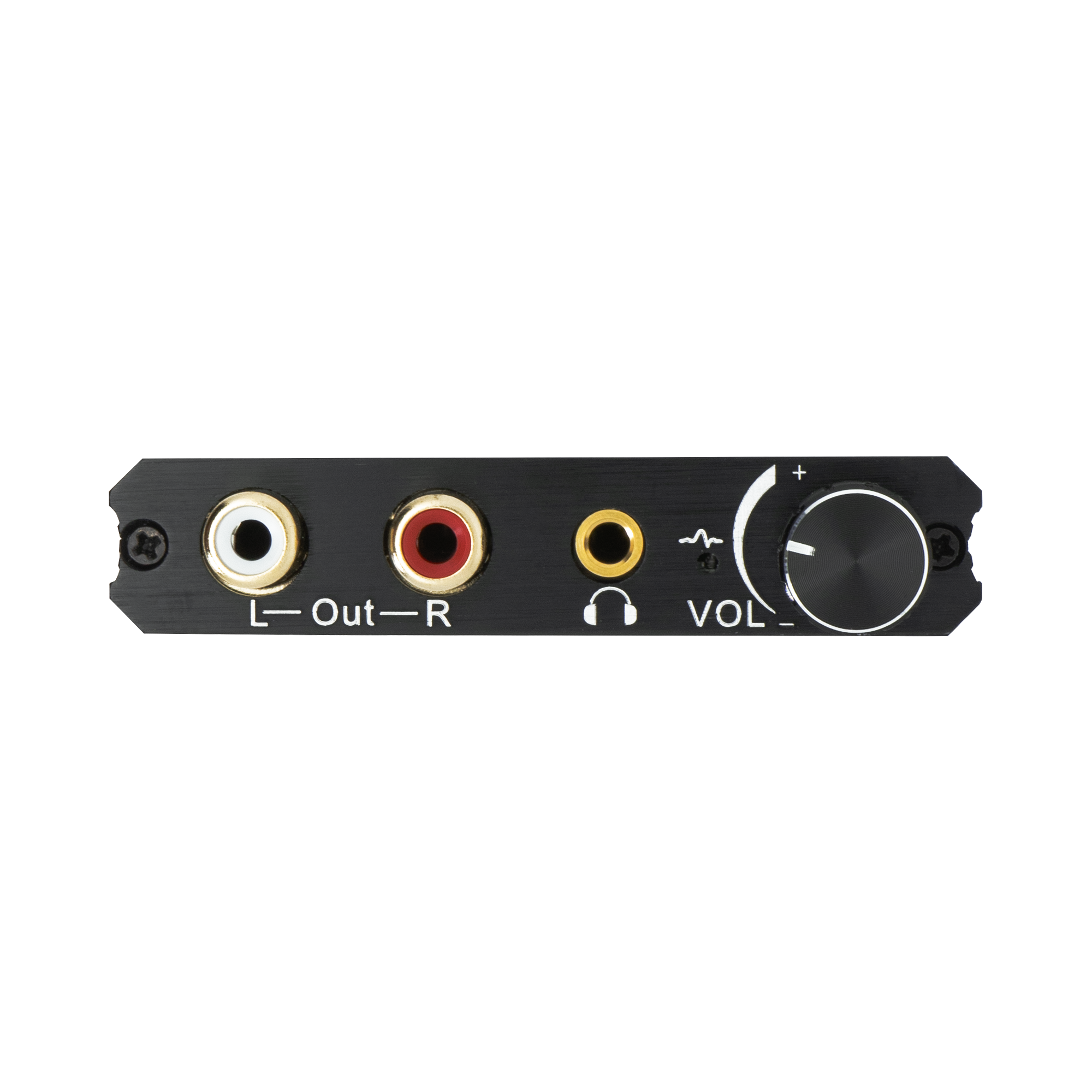

The JTECH-D2A3 digital audio to analog converter features both optical and coaxial digital audio input ports as well as RCA and 3.5mm analog audio output ports for the ultimate in system flexibility.

✅ Optical & Coaxial Digital Audio Input Ports

✅ RCA & 3.5mm Analog Audio Output Ports

✅ Supports 192kHz 24bit Sampling Rate

✅ Supports Volume Adjustment

✅ Supports Bass Adjustment

✅ Eliminates noise when there is not input signal and automatically mutes when a non-audio signal is input

High-fidelity Digital to Analog Converter (DAC) with optical and coaxial inputs. Features RCA and 3.5mm outputs, built-in volume amplifier, bass control, and 192kHz 24-bit sampling rate.
Digital to Analog DAC Audio Converter with Bass and Volume Control

Specifications

Audio

Name Values
Supported Audio Formats
  • PCM
  • LPCM

General

Name Values
Signal-to-Noise Ratio 105dB
Separating Degree(1KHZ) 94dB
Frequency Response 20Hz~20KHz -0.2dB
THD+N -90dB
Total Harmonic Distortion (THD)
  • 10Hz~20KHz
  • 0.25-0.065%
Blocking Time 0.577Fs
Sampling Rate 32~192 KHz
Bit Rate 16~24 Bit
Output Electrical Level 2.2V
Maximum Output Power 0.3W
Earphone Output Power 0-250mW
Output Impedance 10 Ohms
Working Voltage +5V | Maximum Voltage: 6V
Maximum Power Consumption 100mA
Operating Temperature Range 14-158F
Storage Temperature Range -76-302°F
Operating Humidity Range 10% - 80% RH (No Condensation)
Storage Humidity Range 5- 90% RH (No Condensation)
Dimensions 2.99in x 2.75in x 0.62in
Gross Weight 0.33 lbs.
Ports

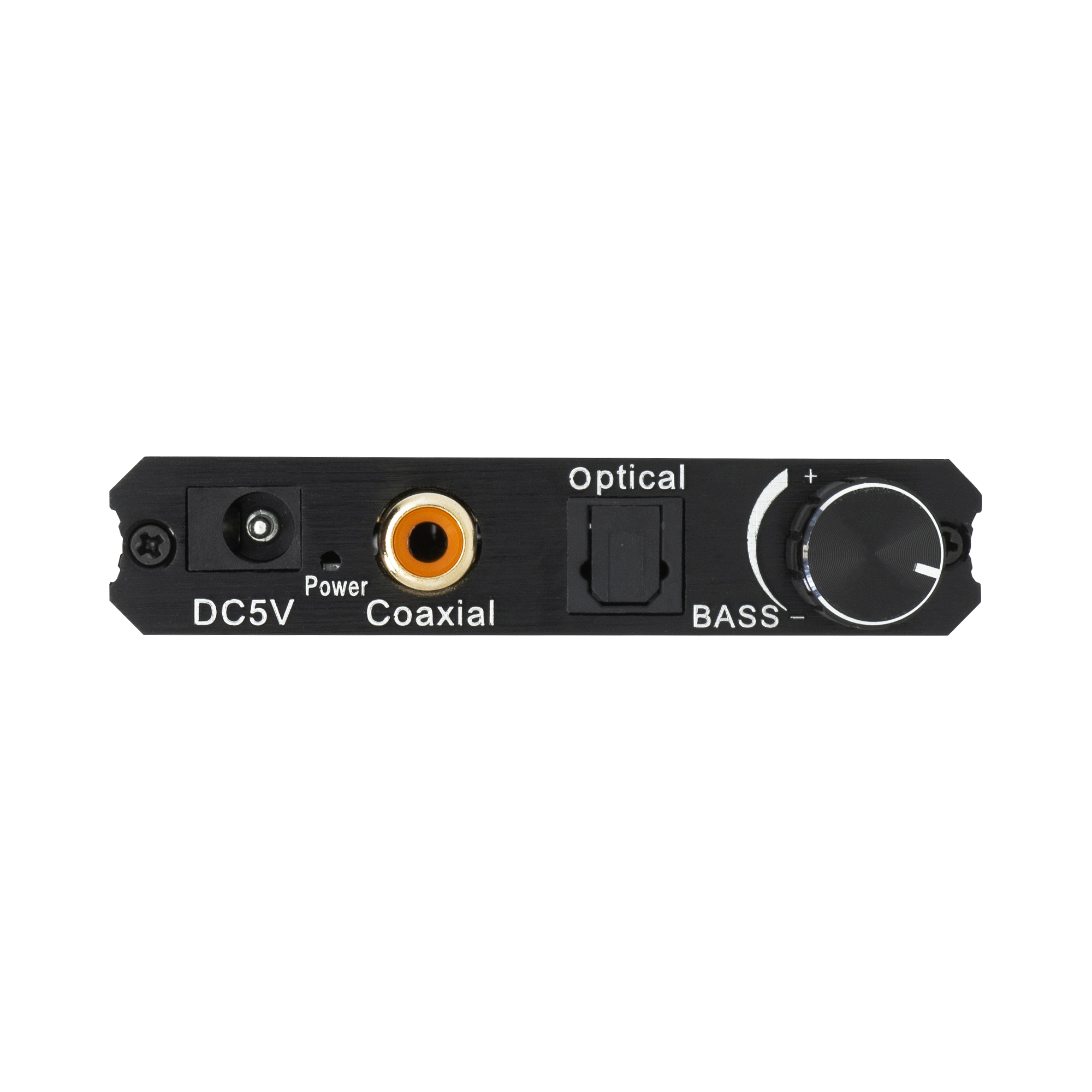

  • 1 x Coaxial Digital Audio Input Port
  • 1 x Optical Digital Audio Input Port

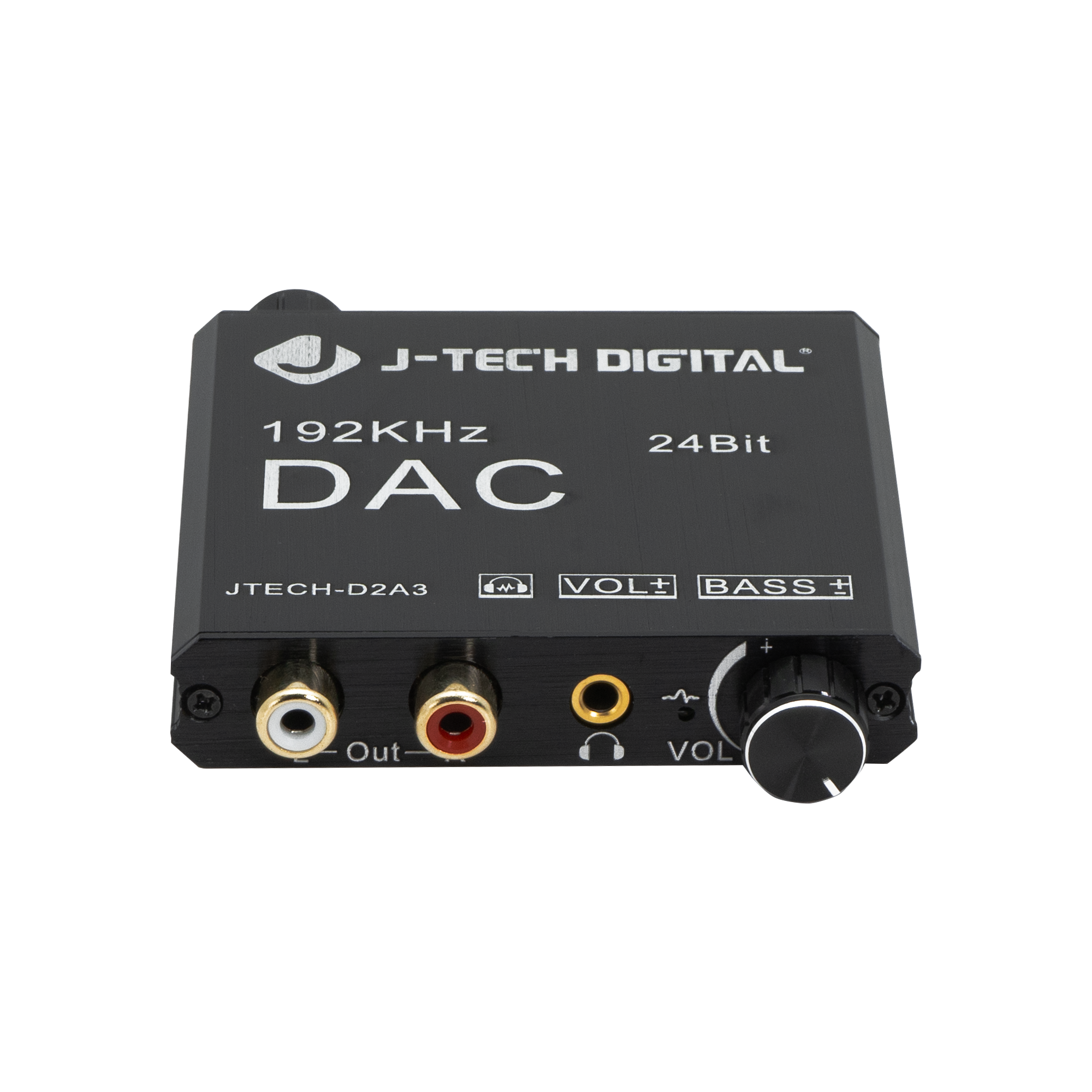

  • 1 x RCA Audio Output Port
  • 1 x 3.5mm Audio Output Port

Resources & Downloads

Category Description Version File
MANUAL User Manual 1.0 jtd-482-user-manual-v1.0.pdf

Category: MANUAL

Description: User Manual

Version: 1.0

File: jtd-482-user-manual-v1.0.pdf
