4x2 SPDIF Optical Matrix Switch with Remote and Digital Audio

Regular price $36.29

Shipping calculated at checkout

  • ✅ 4-In 2-Out Audio Ports: Features 4 x Optical Inputs and 2 x Optical Outputs.
  • ✅ Create Your Own SPDIF Optical Matrix: Route any of the inputs to either or both outputs simultaneously for a true matrix function.
  • ✅ Digital Audio Formats Supported: Supports digital audio formats such as Dolby Digital 5.1.

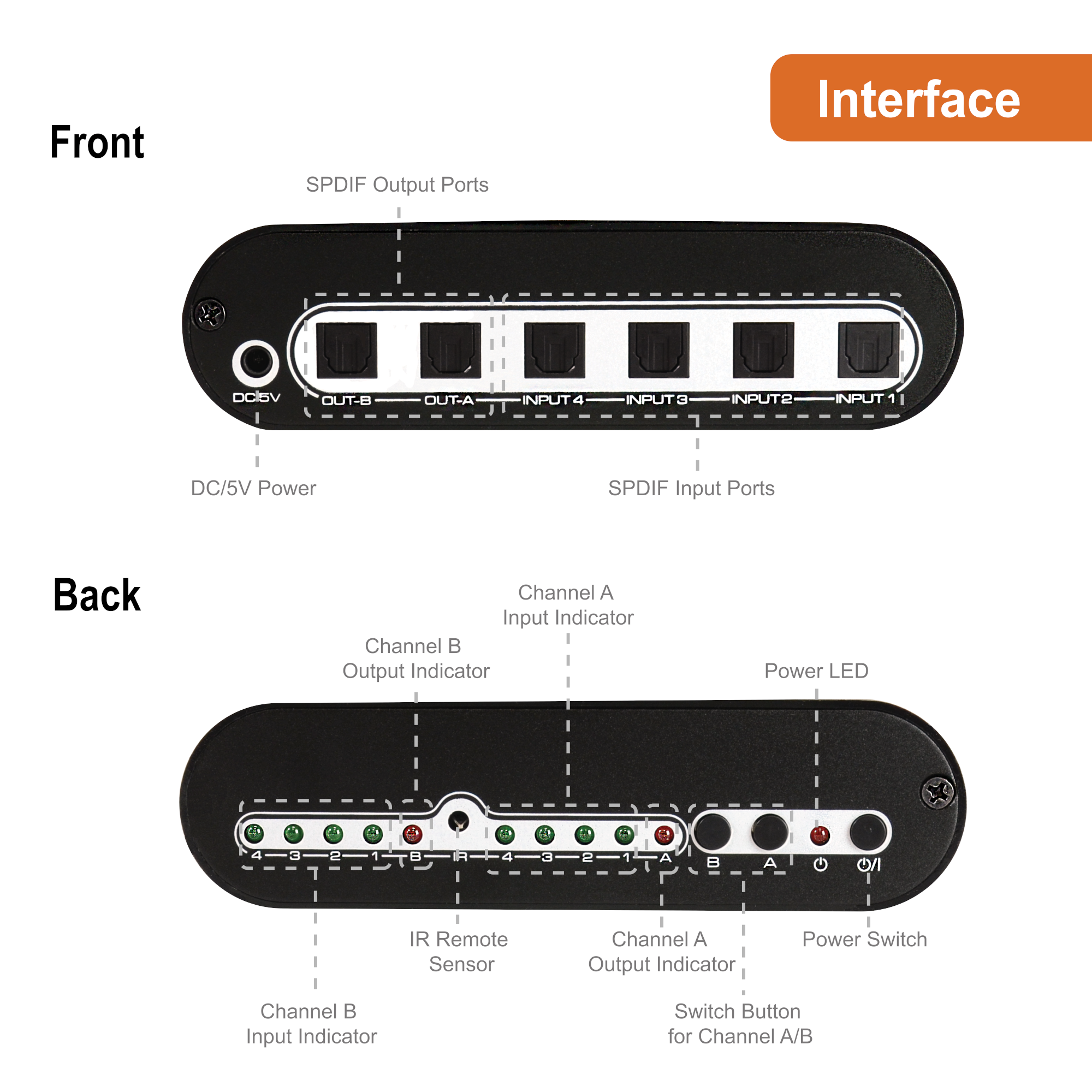

  • ✅ Easy Install & Control: Features control via included remote control or front panel buttons.

Overnight shipping*:

Two days shipping:

Availability:
In stock
SKU:
JTD-32
Model:
JTDSM0402

4x2 SPDIF Optical Audio Matrix Switch – 4-In 2-Out Toslink Audio Splitter with Remote Control

Manage multiple digital audio sources with this 4x2 SPDIF Optical Audio Matrix Switch, featuring 4 optical inputs and 2 optical outputs. Easily route any input to either or both outputs simultaneously for a true matrix function, giving you complete flexibility in your audio setup.

Supports popular digital audio formats such as Dolby Digital 5.1, delivering clear, high-quality sound for home theaters, gaming, and professional audio systems.

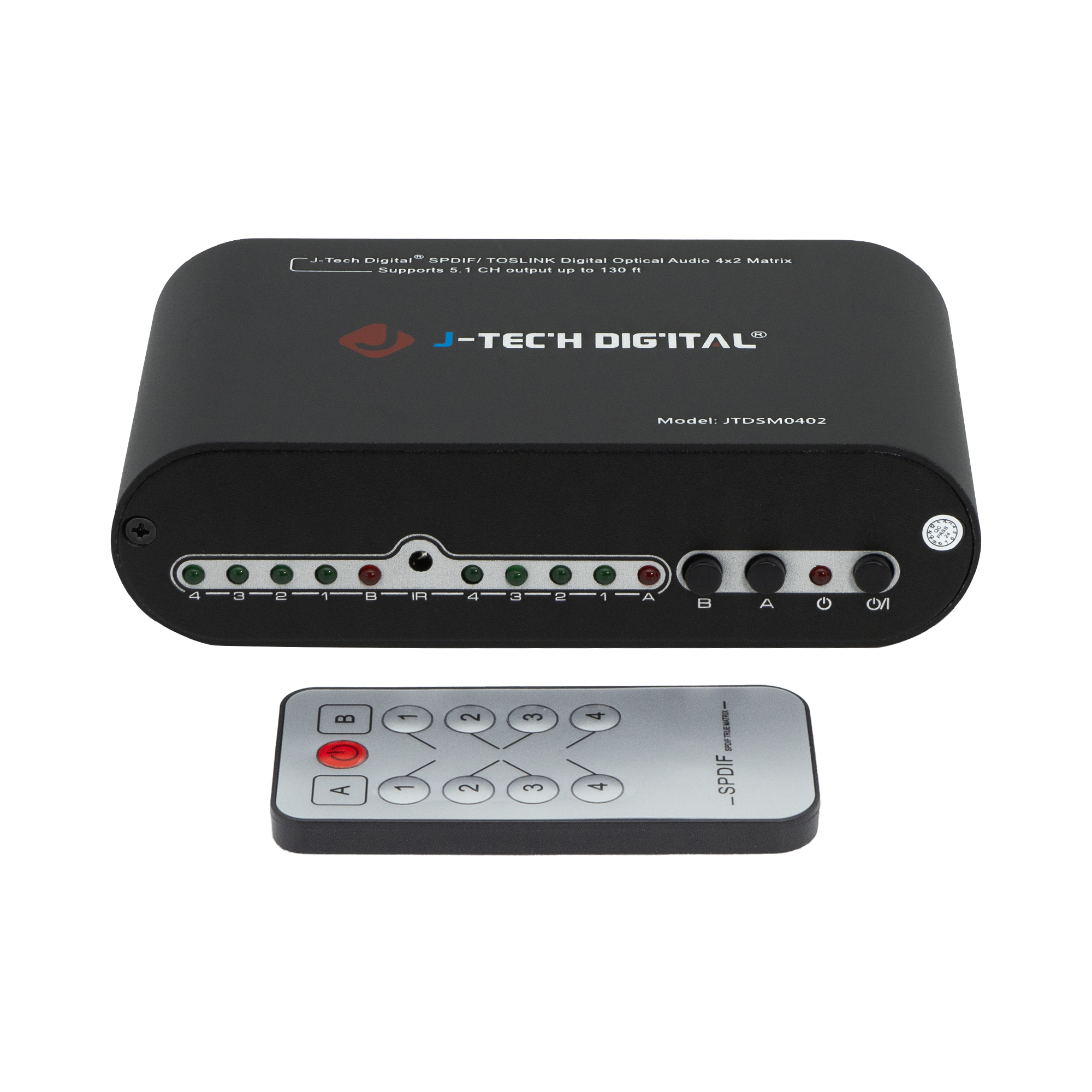

Control your connections effortlessly using the included remote control or the front-panel buttons for quick source switching and configuration.

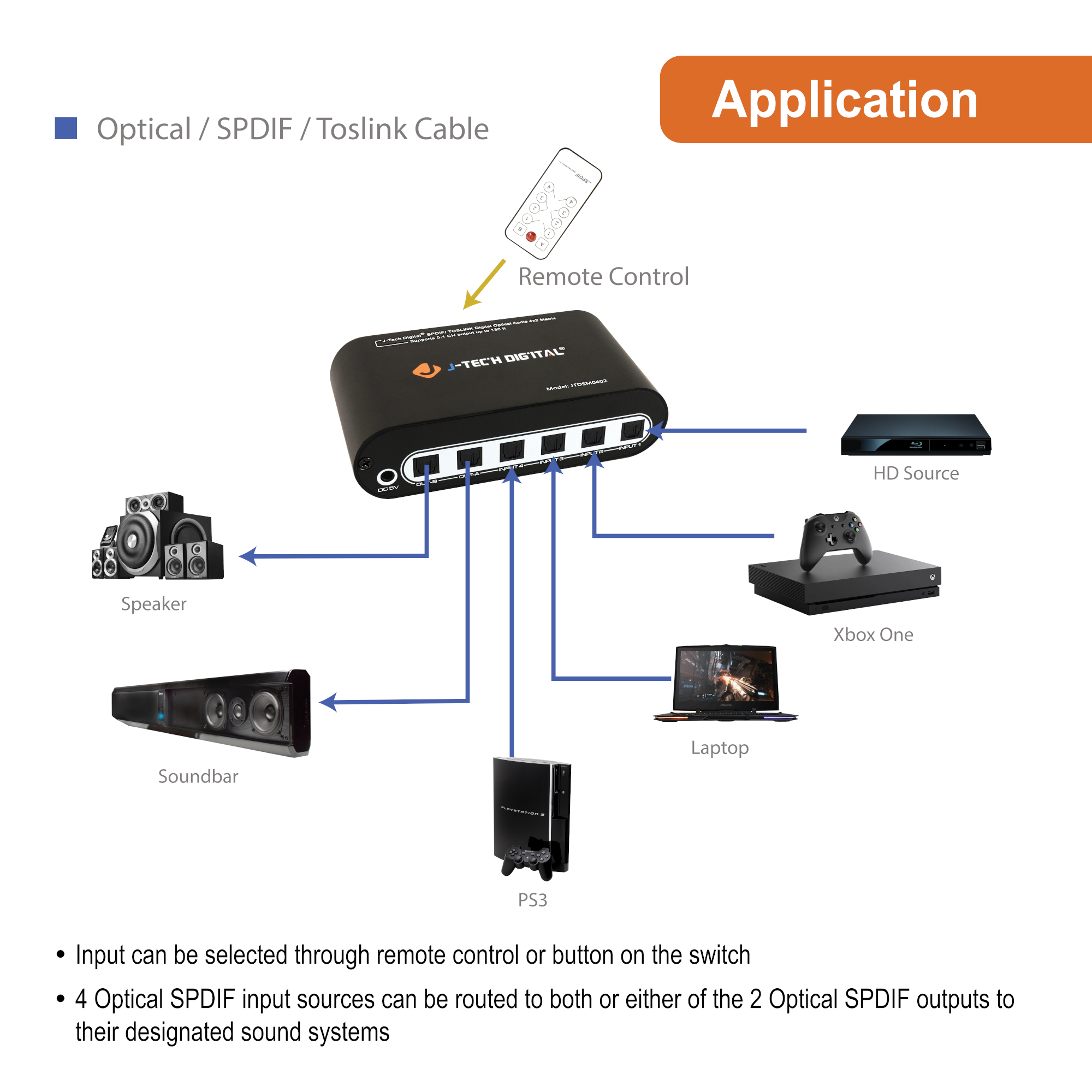

Perfect for home entertainment systems, AV receivers, and soundbars, this optical matrix switch combines versatility, performance, and ease of use.

4-in 2-out SPDIF optical matrix switch with Dolby Digital 5.1 support. Features remote and front panel control for seamless audio routing between multiple devices.
4x2 SPDIF Optical Matrix Switch with Remote and Digital Audio
Regular price $36.29

Specifications

Audio

Name Values
Supported Audio Formats
  • DTS-HD
  • Dolby-trueHD
  • LPCM2.0
  • DTS
  • Dolby-AC3
  • DSD

General

Name Values
Max baud rate 16Mbps
Max working current 100mA
Power adapter format
  • Input: AC (50Hz, 60Hz) 100V-240V
  • Output: DC5V/500mA
Operating temperature
  • 0-40°C
  • 32-104°F
Operating Humidity Range 5 to 90%RH (no condensation)

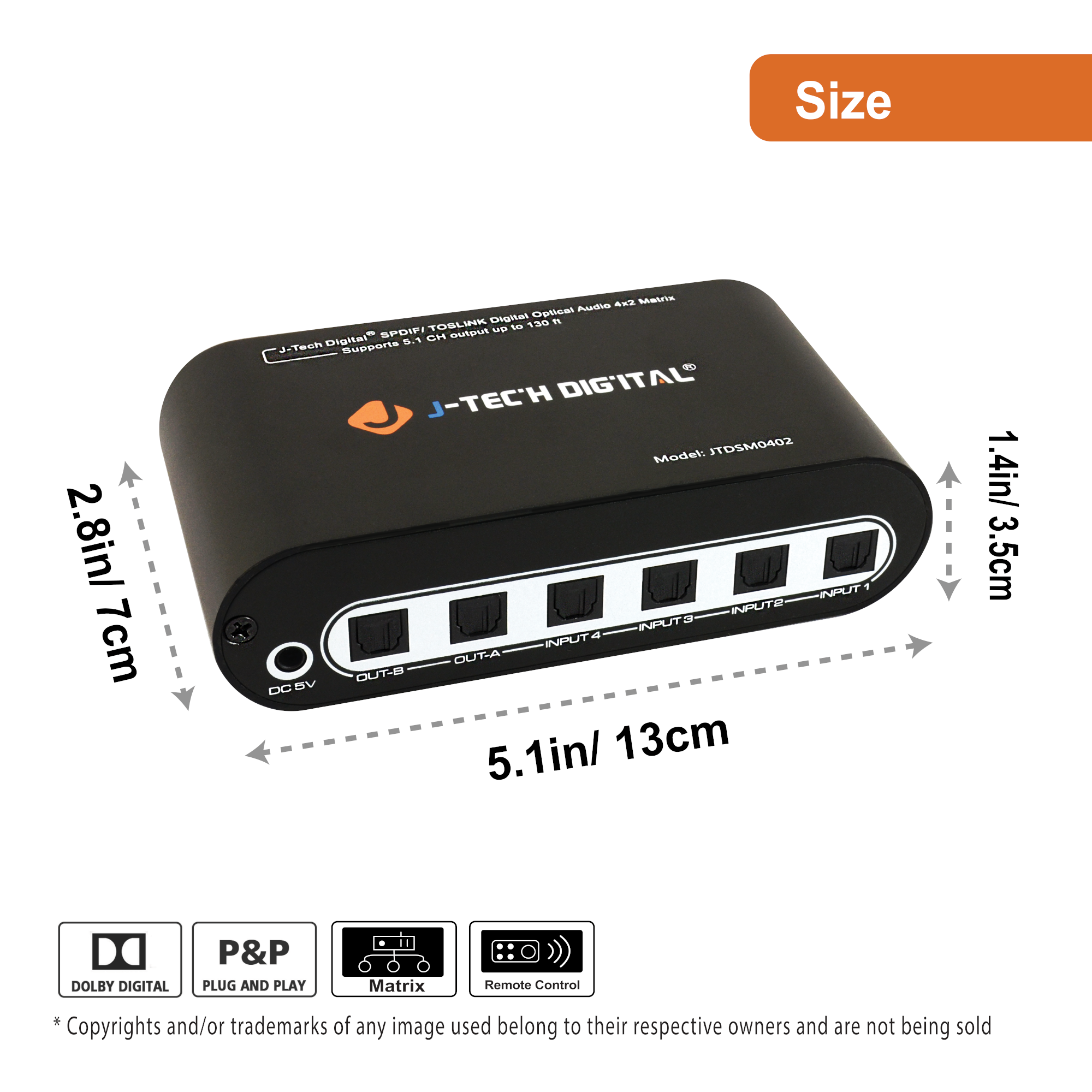

Dimension (L x W x H)
  • 68mm x 128mm x 34mm
  • 2.68in x 5.04in x 1.34in
Weight
  • 185g
  • 0.41 lbs

Resources & Downloads

Category Description Version File
MANUAL User Manual 1.0 jtd-32-user-manual-v1.0.pdf
COMMAND_LIST IR Codes 1.0 jtd-32-ir-codes-v1.0.txt
DRIVER Control 4 Driver 1.0 jtd-32-control-4-driver-v1.0.c4i

Category: MANUAL

Description: User Manual

Version: 1.0

File: jtd-32-user-manual-v1.0.pdf

Category: COMMAND_LIST

Description: IR Codes

Version: 1.0

File: jtd-32-ir-codes-v1.0.txt

Category: DRIVER

Description: Control 4 Driver

Version: 1.0

File: jtd-32-control-4-driver-v1.0.c4i
