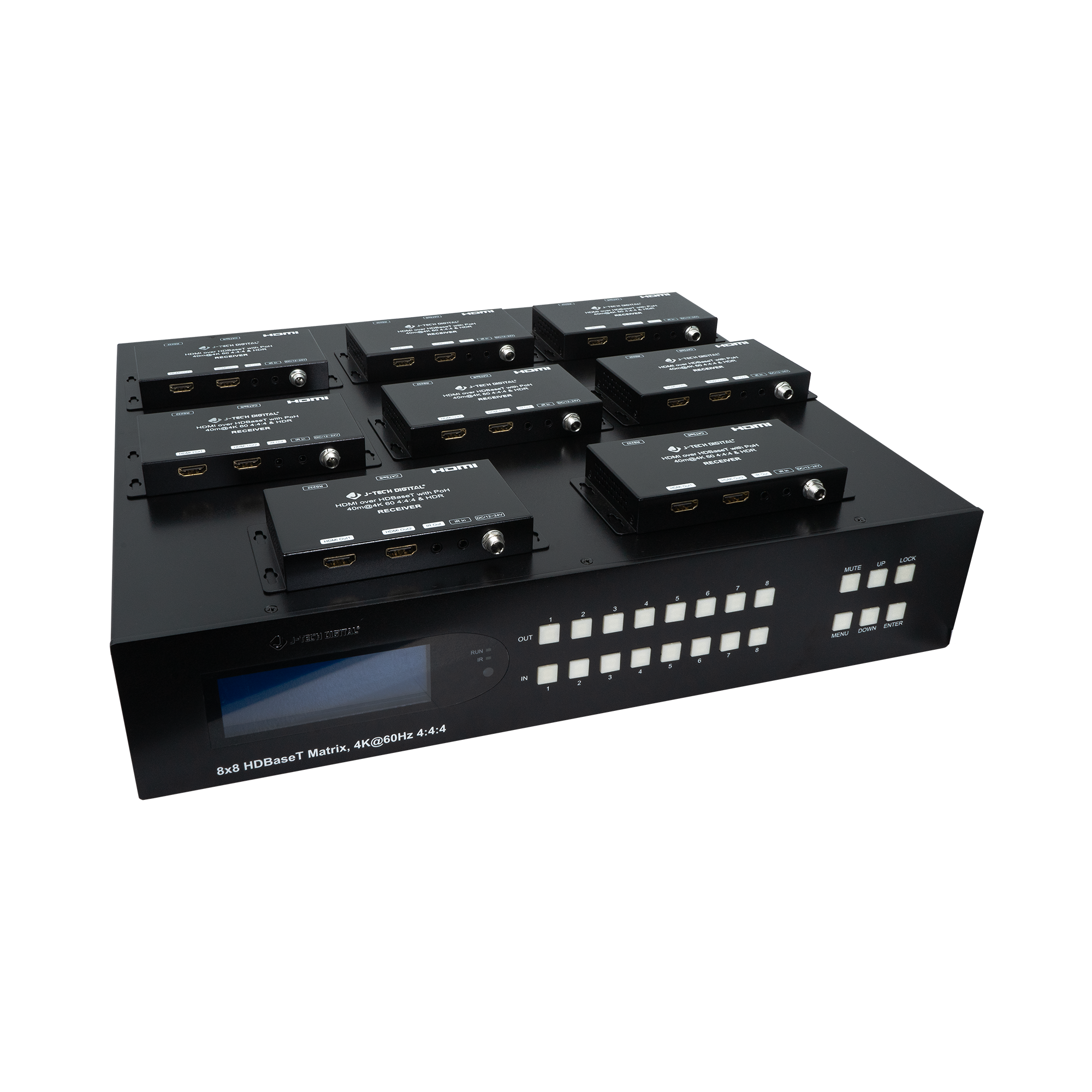

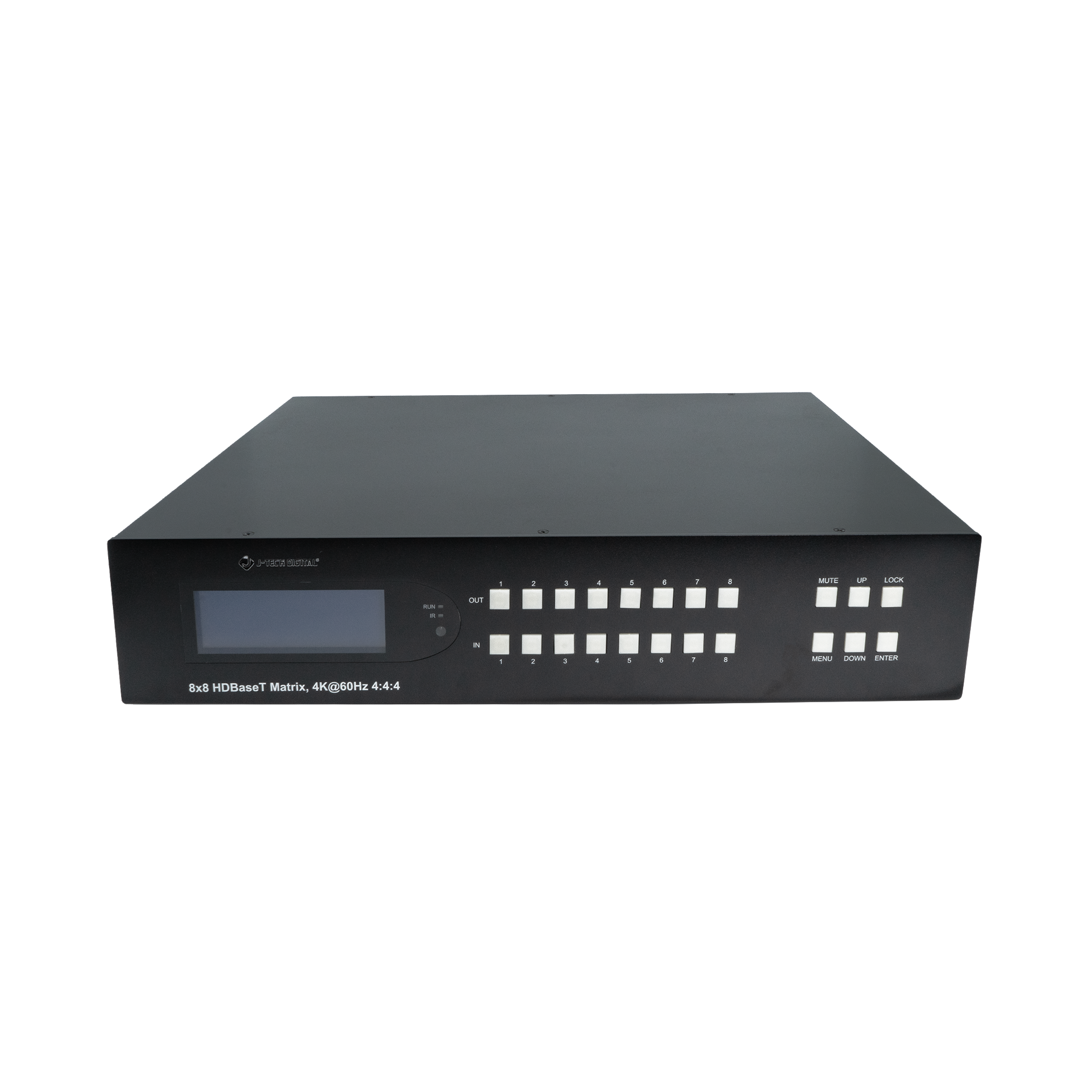

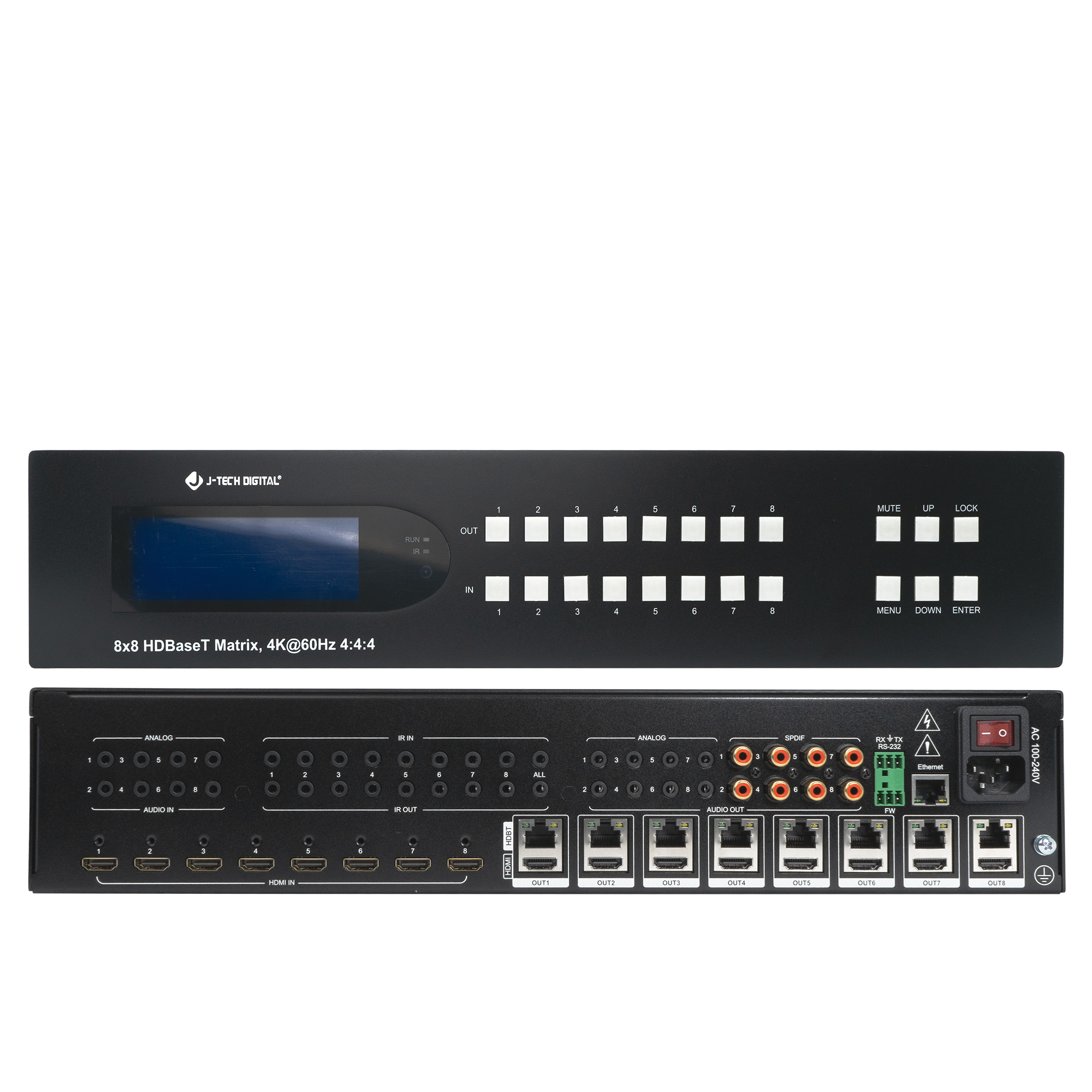

✅ 8 x HDMI In | 8 x HDMI Out + 8 x UTP Ports: Connect up to 8 different HDMI input sources to the matrix and independently route your video feed to any of the HDMI outputs connected. Connect 8 HDMI displays locally via HDMI outputs and extend 8 HDMI displays via Cat5e/6 ethernet cable.

Note: (The ethernet outputs will mirror their corresponding HDMI output)

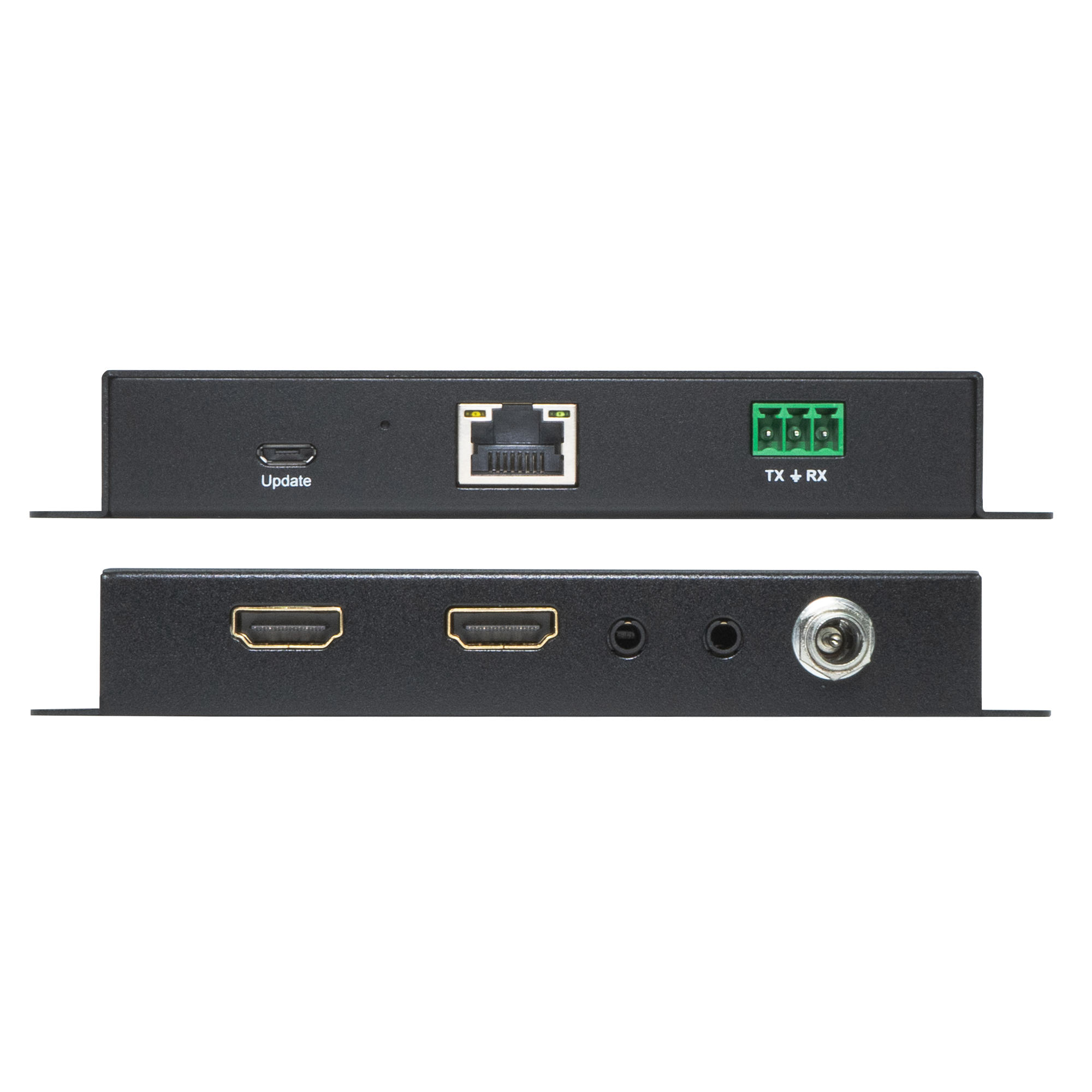

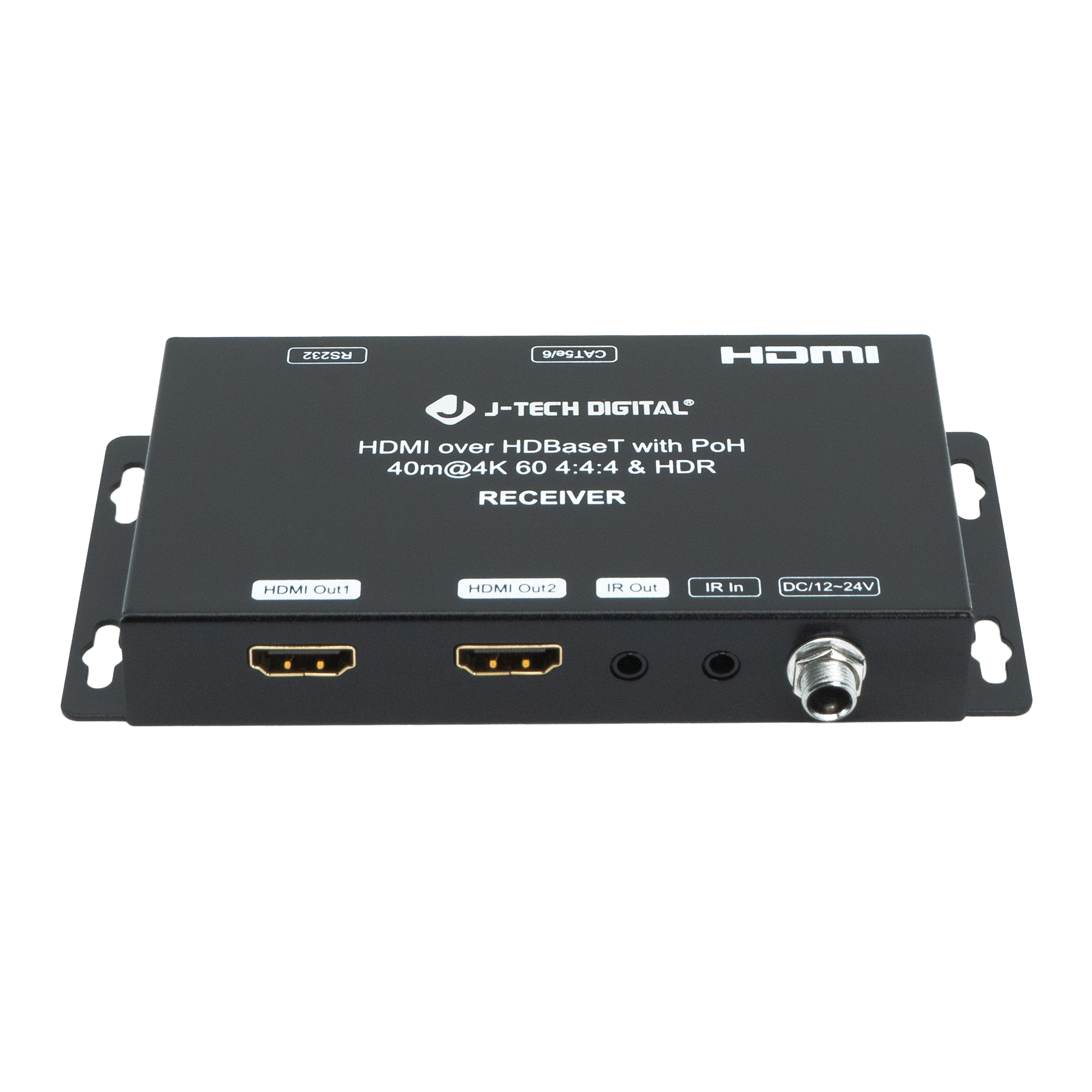

✅ 4K@60Hz Up To 130ft. | 1080P@60Hz Up To 230ft.: Enjoy Ultra High Definition video with this HDMI matrix extender, which supports resolutions of up to 4K@60Hz (4:4:4), 1080p@60Hz and lower. Extend your 4K@60HZ resolution up to 130ft. and 1080p@60HZ resolutions up to 230ft. via the Cat5e/6 cables that mirror their corresponding HDMI output. Supports PoC: No need for power on the receiver side, receivers are powered by the HDMI matrix

✅ 8 x Digital & 8 x Analog Audio For Both Inputs / Outputs: 8 digital SPDIF inputs and 8 analog 3.5mm analog inputs for audio embedding. Also 8 digital SPDIF outputs and 8 analog 3.5mm outputs for extracting audio to a separate destination such as a soundbar, AV receiver, or surround sound system. Set your analog and digital inputs/outputs via the included PC software

✅ Various Control Methods: Control your source and display routing and EDID settings using the front panel buttons on the unit, with the included IR remote, via RS-232 or IP control via Web GUI. Copy the EDID settings of your HDMI displays or use the built-in EDID settings of the matrix for wide compatibility

✅ Bi-Directional IR, EDID Copy: Utilize the dual IR feature to control your source device at the location of your display or control your display from the location of your source device
