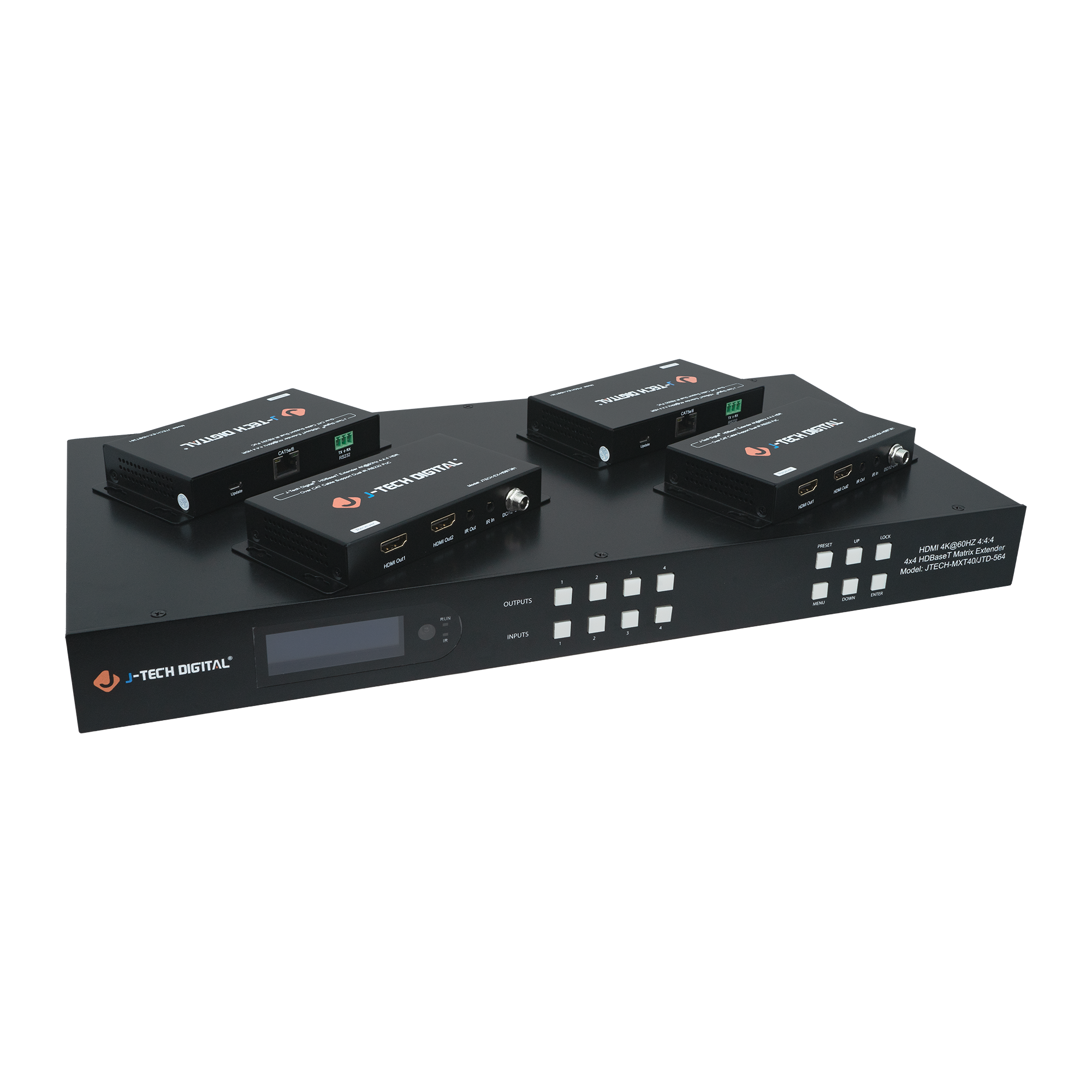

✅ 4 x HDMI Inputs | 4 x HDMI Outputs + 4 x HDBaseT Outputs: Distribute any connected source device signal to any display via single Cat5/6 ethernet cable. All output displays can share the same source or each output can be treated individually & display its own unique source signal. 4 Local HDMI outputs mirror your 4 HDBaseT outputs for a total of 12 displays (2 HDMI outputs per HDBaseT receiver)

✅ Long Distance Signal Transmission: Extend 4K signals up to 130ft and 1080p signals up to 230 ft. with this HDBaseT HDMi extender

✅ Up To 4K@60Hz Resolution Support:Local HDMI Outputs support 4K 60Hz 4:4:4 Dolby Vision signals. HDBaseT Outputs support 4K 60Hz 4:2:0. Wide range of supported digital audio formats including LPCM, DTS-HD and Dolby TrueHD. Follows HDMI 2.0 standard & HDCP 2.2/1.4 compliant

✅ Features Power over Cable (PoC):Included HDBaseT receiver units receive power from the main matrix device via PoC (Power Over Cable). There is no need for additional receiver power supplies and keeps installation at your display neat and tidy

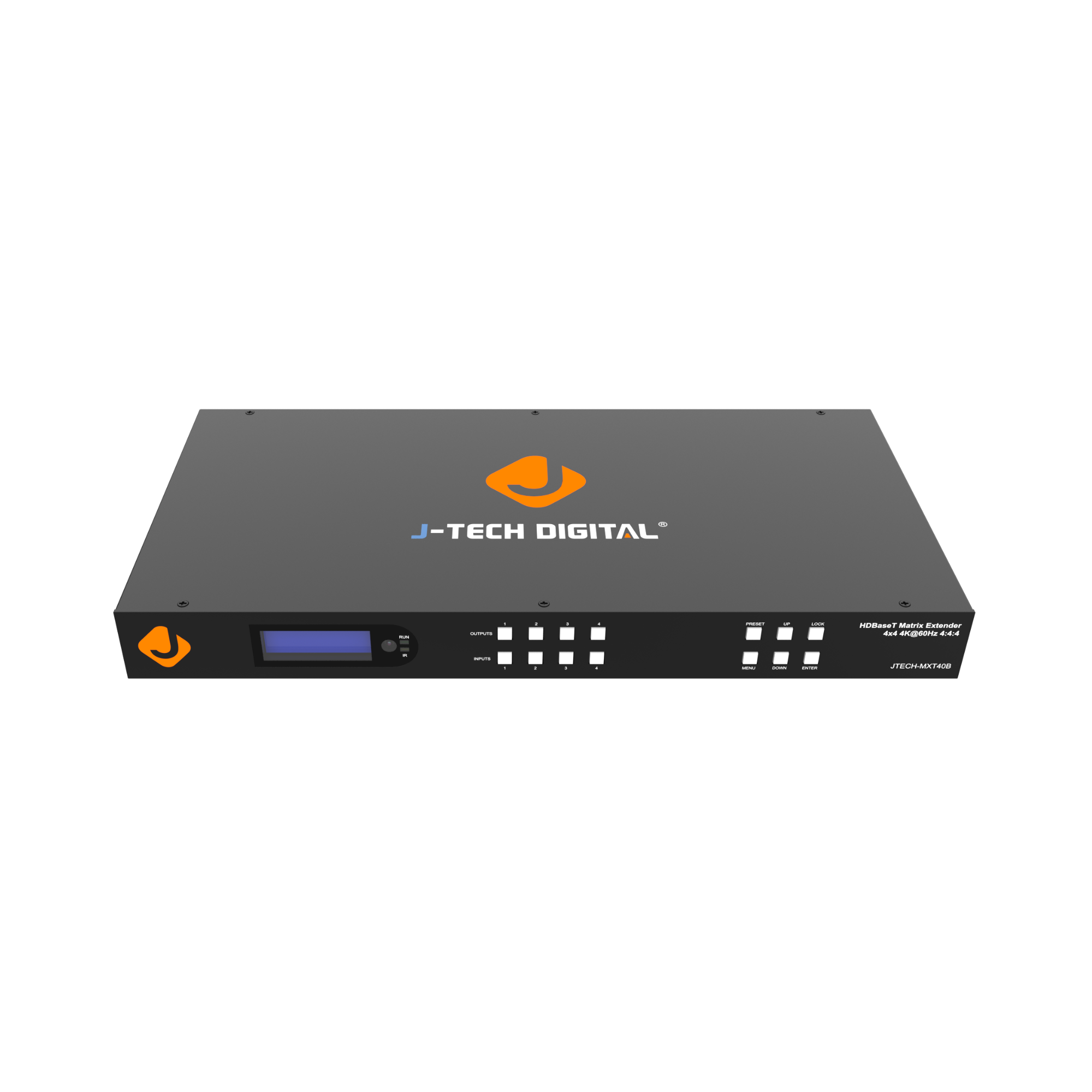

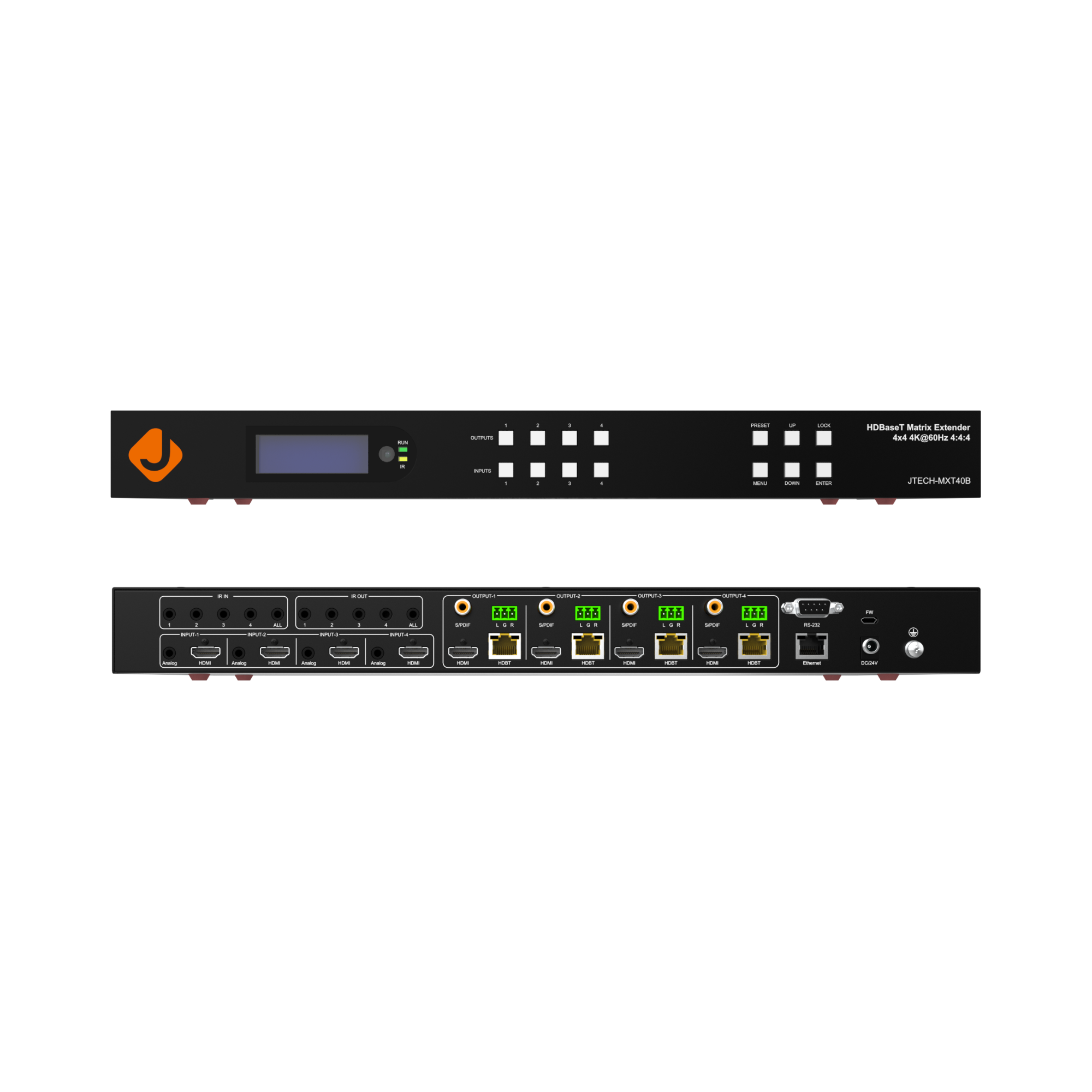

✅ Flexible Control Options: Control the matrix switcher via the front panel buttons, RS-232 serial port, ethernet port (web GUI) or included IR remote control. Easily control your source devices and/or displays via bi-directional IR and RS-232 pass-through ports
