4K 60Hz 4x1 HDMI Switch with USB-C Input

Regular price $42.89

Shipping calculated at checkout

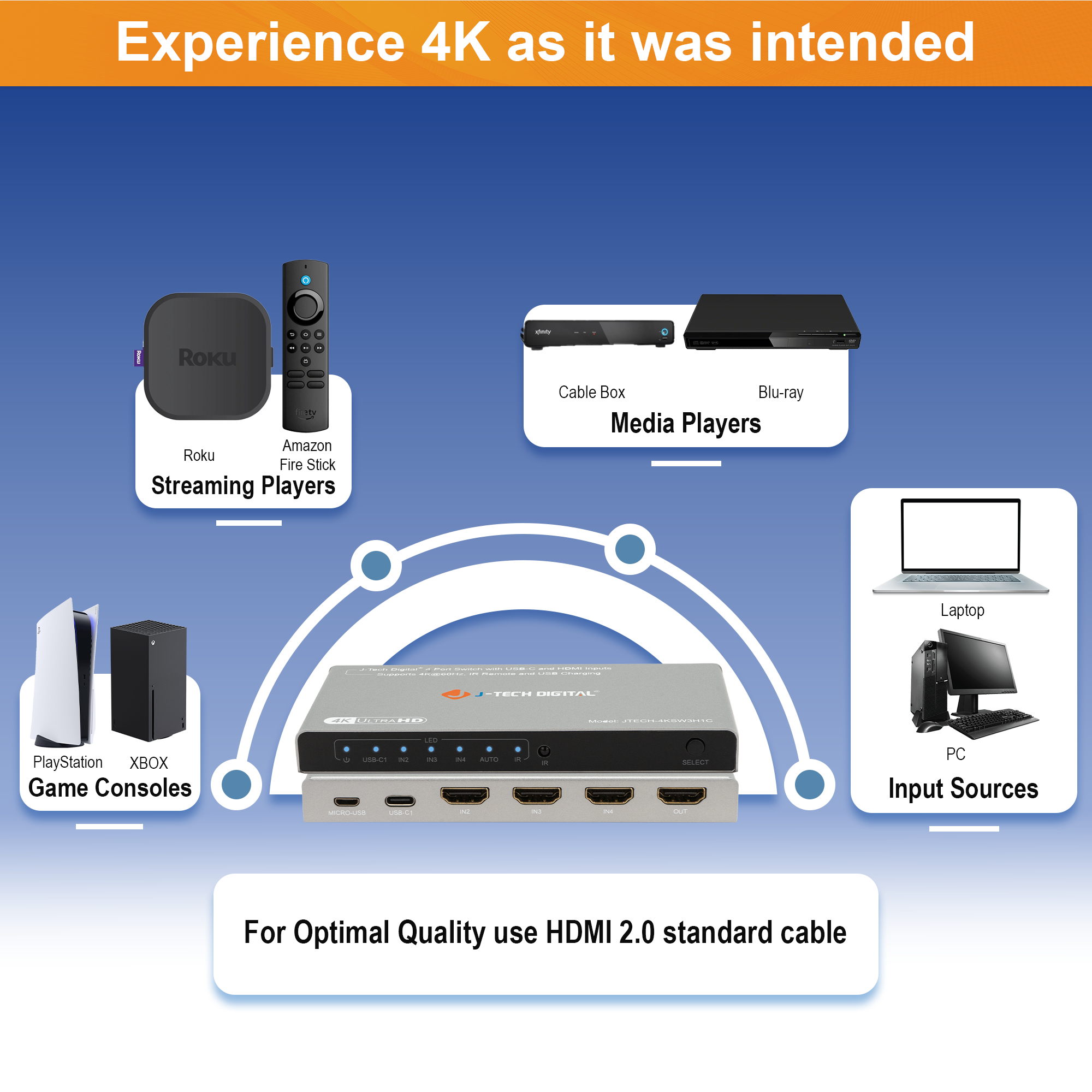

  • ✅ 3 x HDMI Inputs + 1 x USB-C Input: 4x1 HDMI switch. Easily connect and switch between 4 different input source devices connected to a single display. Take advantage of available HDMI and USB-C input ports allowing flexibility for connecting different devices.
  • ✅ Up to 4K@60Hz 4:4:4 Resolution Support: Enjoy stunning ultra-high-definition quality with support available up to 4K 60Hz resolution.
  • ✅ HDR & Dolby Vision Supported: Become immersed in your content, don’t just watch it! With support for HDR and Dolby Vision, you can now experience your media content without any quality compromise.

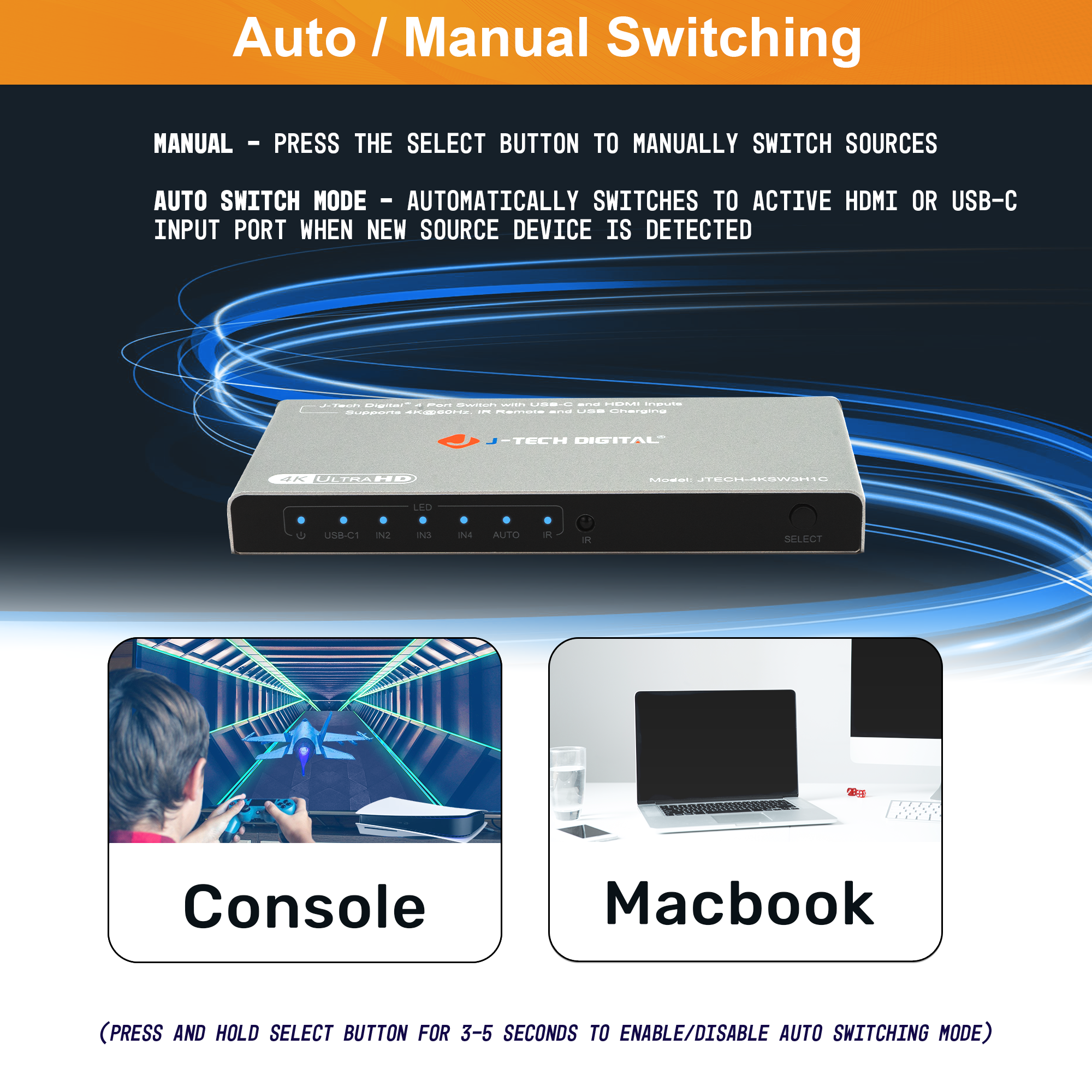

  • ✅ Auto / Manual Switching Modes: Dual switching modes allow you to easily toggle between your source devices. With both automatic and manual switching modes available, conveniently select the mode that applies to your needs without any hassle.

Overnight shipping*:

Two days shipping:

Availability:
In stock
SKU:
JTD-3005
Model:
JTECH-4KSW3H1C

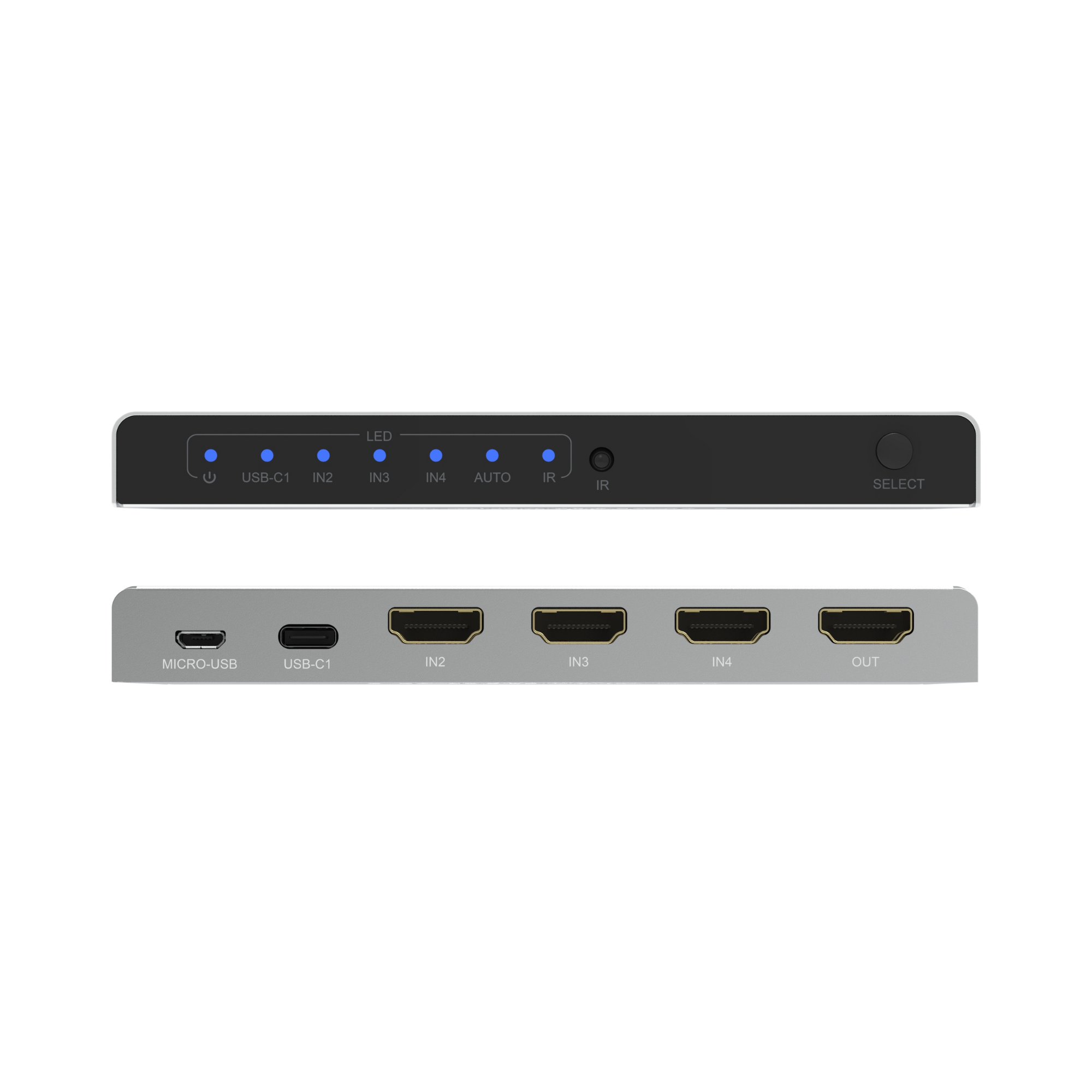

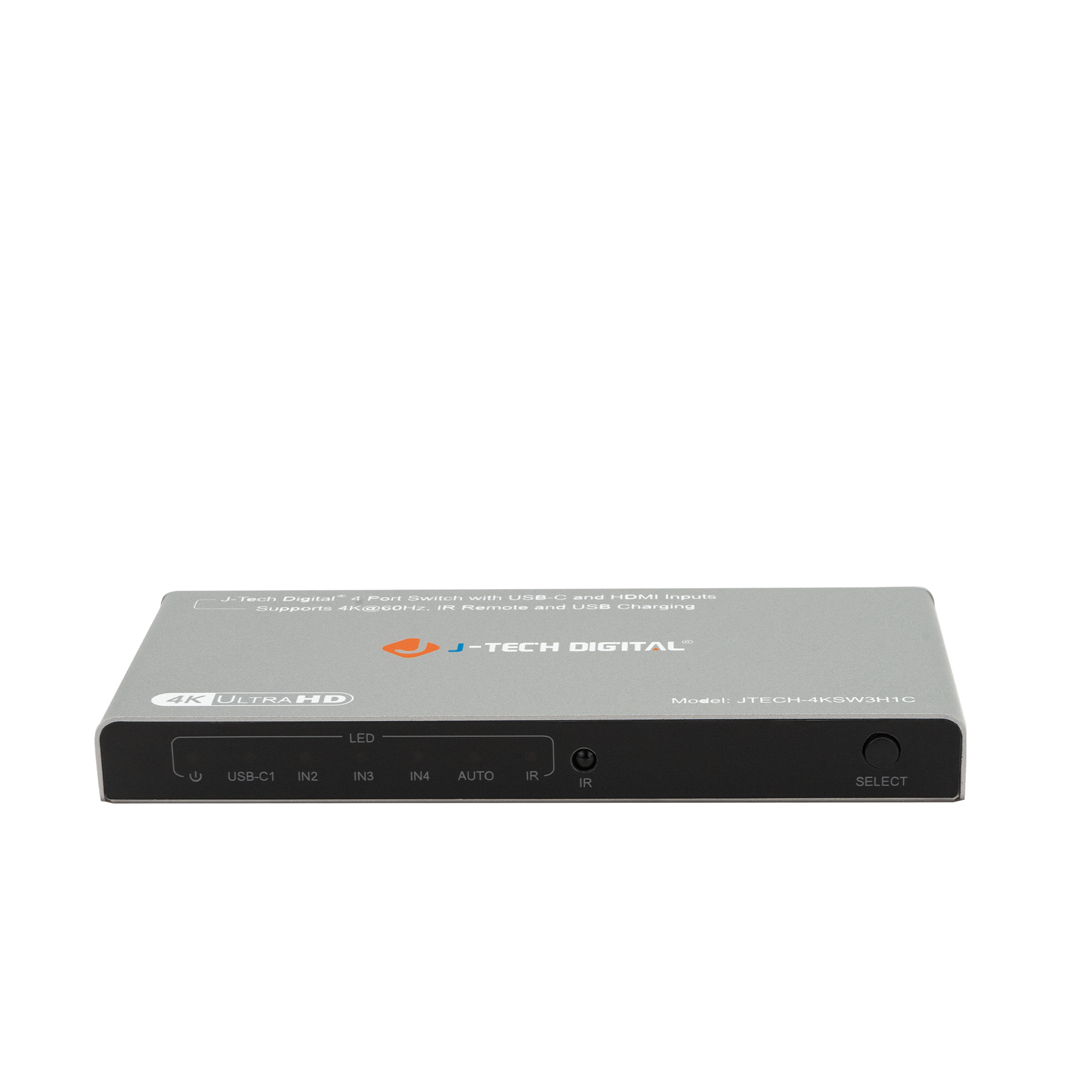

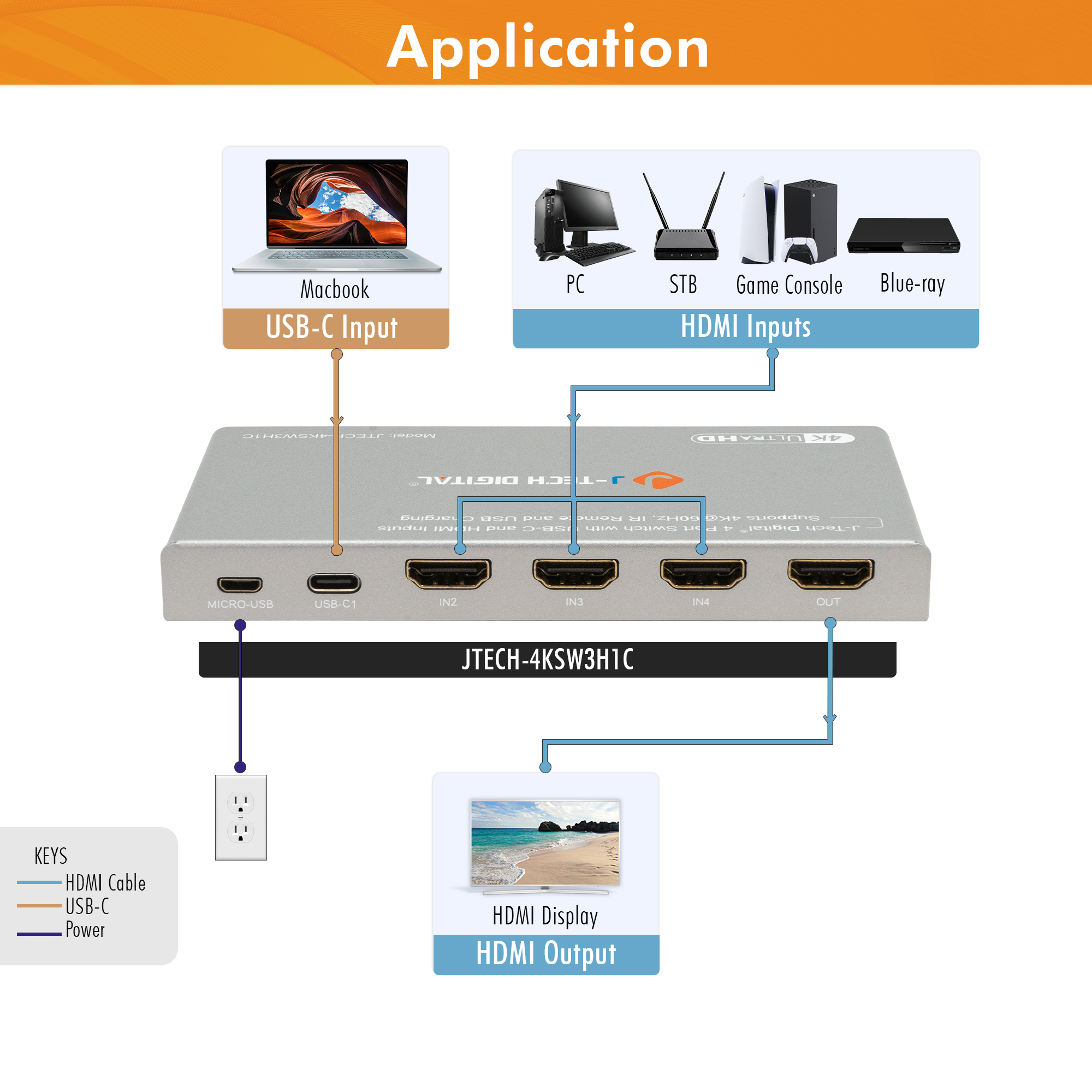

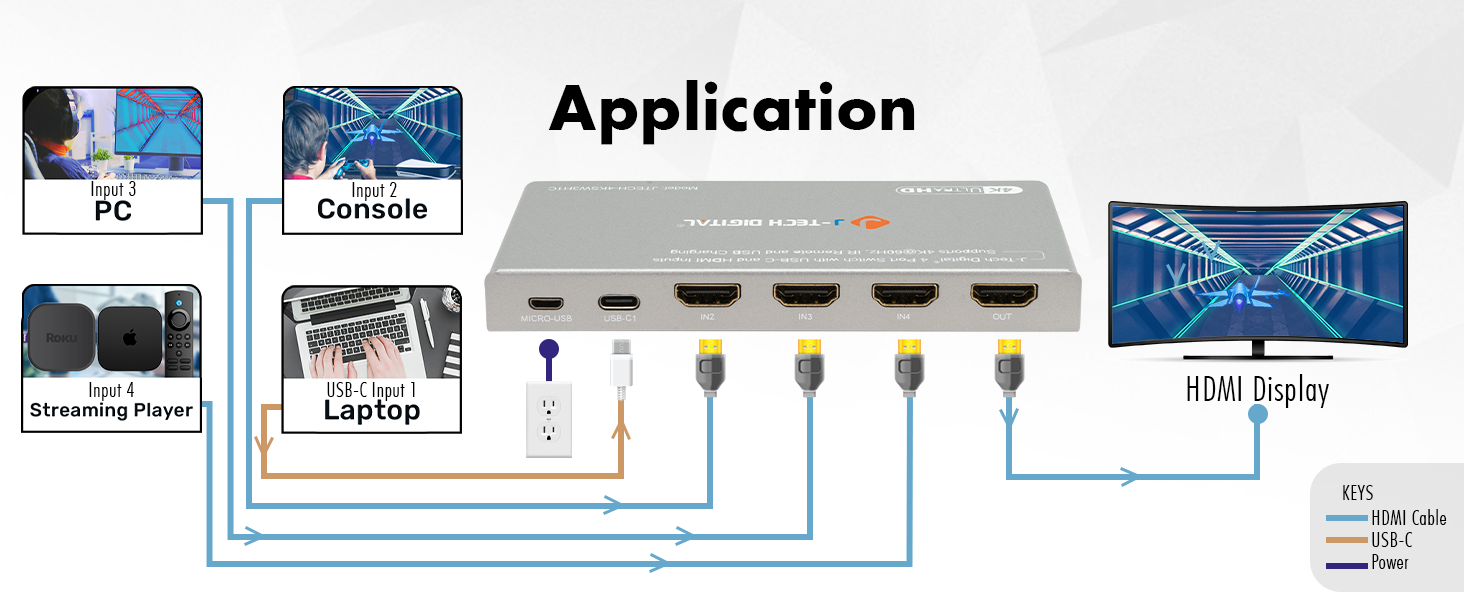

The JTECH-4KSW3H1C is a 4x1 switch that features 3 x HDMI inputs & 1 x USB-C input that can be connected to a single display. It supports resolutions up to 4K 60Hz 4:4:4, so that you can enjoy your content in vivid details. The dual switching modes provides you with the ability to either automatically or manually switch between your connected input source devices. Don’t let your setup become limited because of the available number of HDMI ports on your display. The JTECH-4KSW3H1C provides you with extra ports so that you can connect all of your favorite devices to your existing display and easily toggle through them to use the one you would like! Support for HDR/Dolby Vision and digital audio formats is also available. Install this unit in your setup today and feel the ease of use without any compromise.

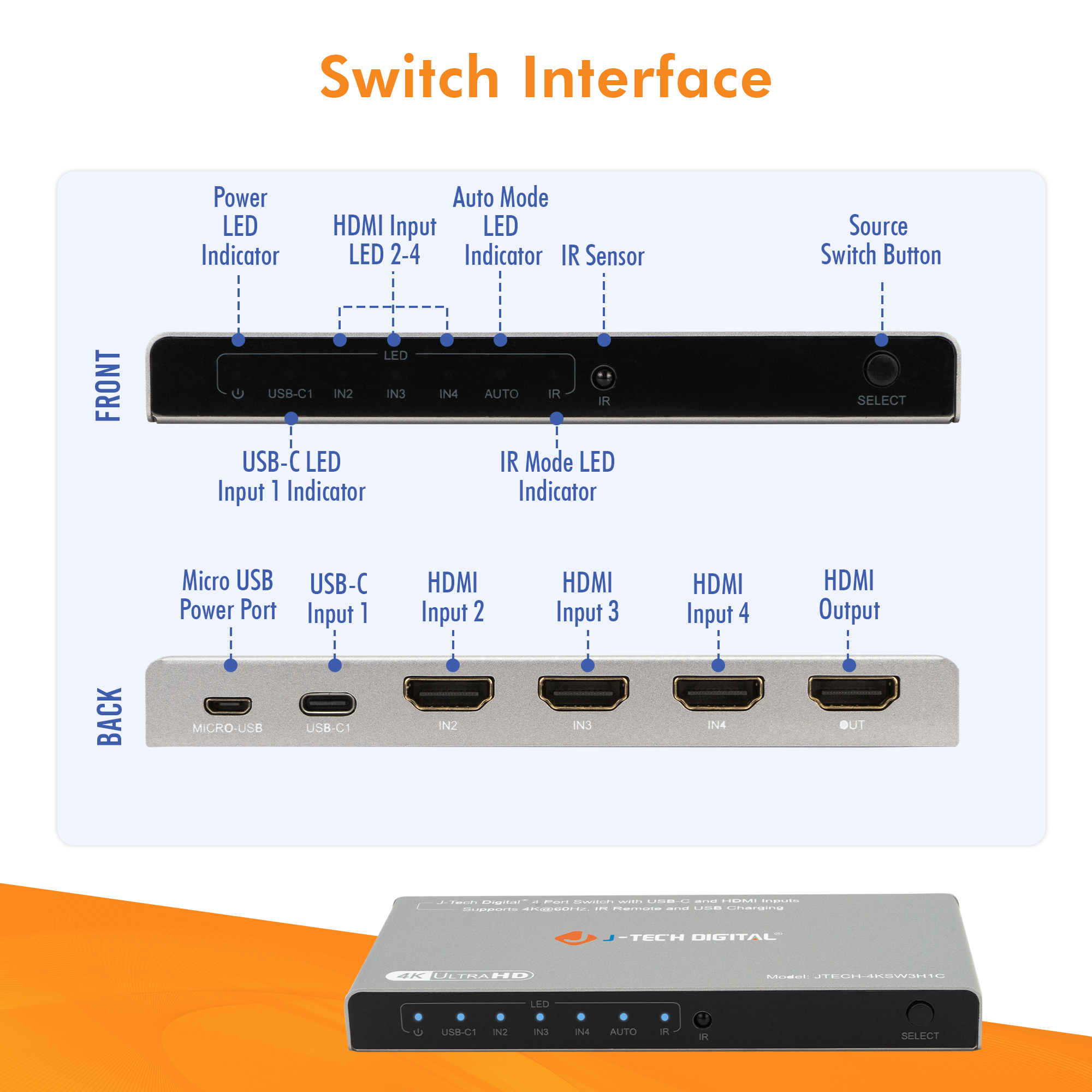

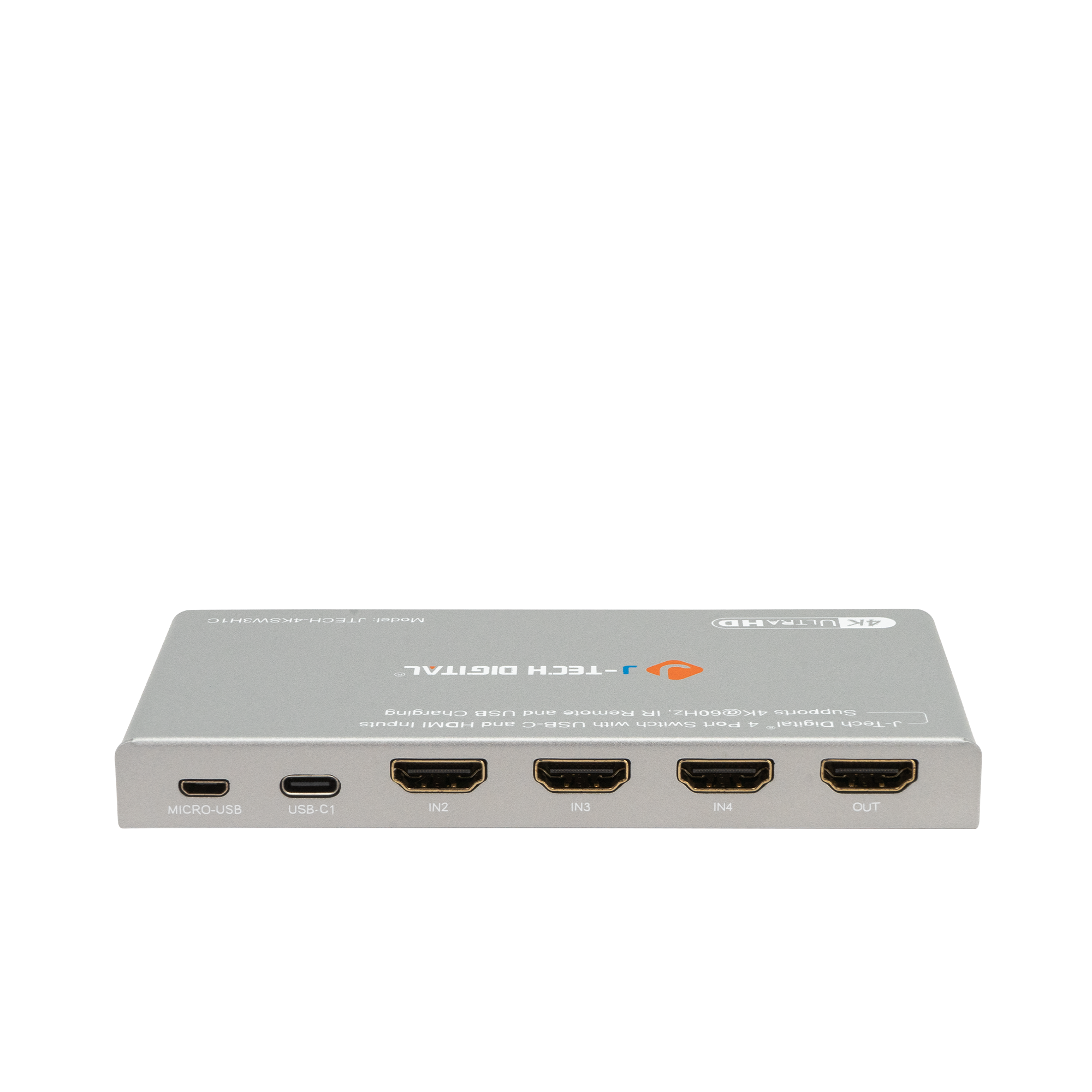

3 x HDMI Inputs + 1 x USB-C Input | 1 x HDMI Output

Supports up to 4K 60Hz 4:4:4 resolution

Dual switching mode | Switching between auto and manual source switching

HDCP 2.2 and 1.4 compliant

Supports full 3D video format

Compatible with Thunderbolt 3 & DP 1.4 alt mode for USB-C Input

Supports HDR, HDR10, and Dolby Vision

Supports digital audio formats such as Dolby Digital, DTS, DTS-HD Master Audio etc.

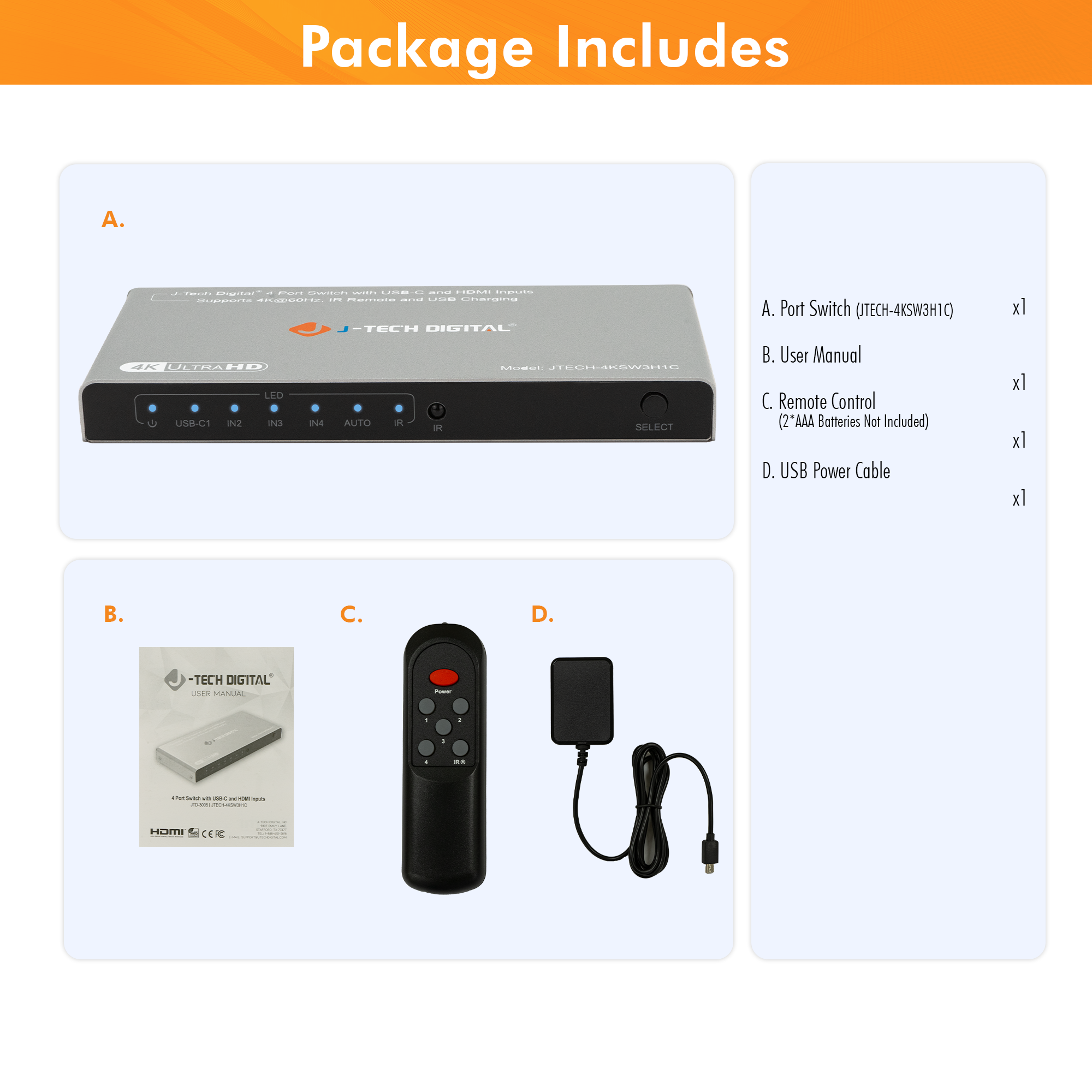

Includes IR remote for easy control

4x1 HDMI Switch – Connect up to 4 HDMI devices to a single display with support for 4K@60Hz resolution, HDR, Dolby Vision, and auto/manual switching.
4K 60Hz 4x1 HDMI Switch with USB-C Input

Specifications

Video

Name Values
Input Ports
  • 3 x HDMI
  • 1 x USB-C
Output Ports
  • 1 x HDMI
  • 1 x USB-A
Vertical Frequency Range 50/60Hz
Video Amplifier Bandwidth 6.0Gbps/600MHz per channel (18Gbps all channels)
Resolution Up to 4K 60Hz 4:4:4

General

Name Values
Operating Temperature 0 ~ 50°C
Storage Humidity 5 – 80% RH non-condensing
Power Supply 5V 2A micro-USB power adapter
Power Consumption 10W Max
Switcher Unit Cert FCC, CE, RoHS
Dimensions (LxWxH) 139 x 64.5 x 15mm
Net Weight 190g
Material Metal

Resources & Downloads

Category Description Version File
MANUAL User Manual 1.0 jtd-3005-user-manual-v1.0.pdf

Category: MANUAL

Description: User Manual

Version: 1.0

File: jtd-3005-user-manual-v1.0.pdf
