4K 120Hz HDMI Extender Balun Over Ethernet (120ft.)

Regular price $142.95

Shipping calculated at checkout

  • ✅ 4K 120Hz 4:4:4 Resolution Up To 120Ft: Go beyond the limitations of a standard HDMI cable, and enjoy 4K UHD content at smooth 120Hz up to 120ft. over a single CAT 6A/7 cable. Not compatible with Acer XV282K monitor for 4K 120Hz.
  • ✅ Supports HDR Video | HDCP 2.3 Compliant: Watch your favorite content in HDR, which provides a broader range of colors and enhanced contrast for a more immersive viewing experience. HDCP 2.3 (backwards compatible with 2.2 and 1.4) ensures compatibility with a wide range of compatible sources and displays.

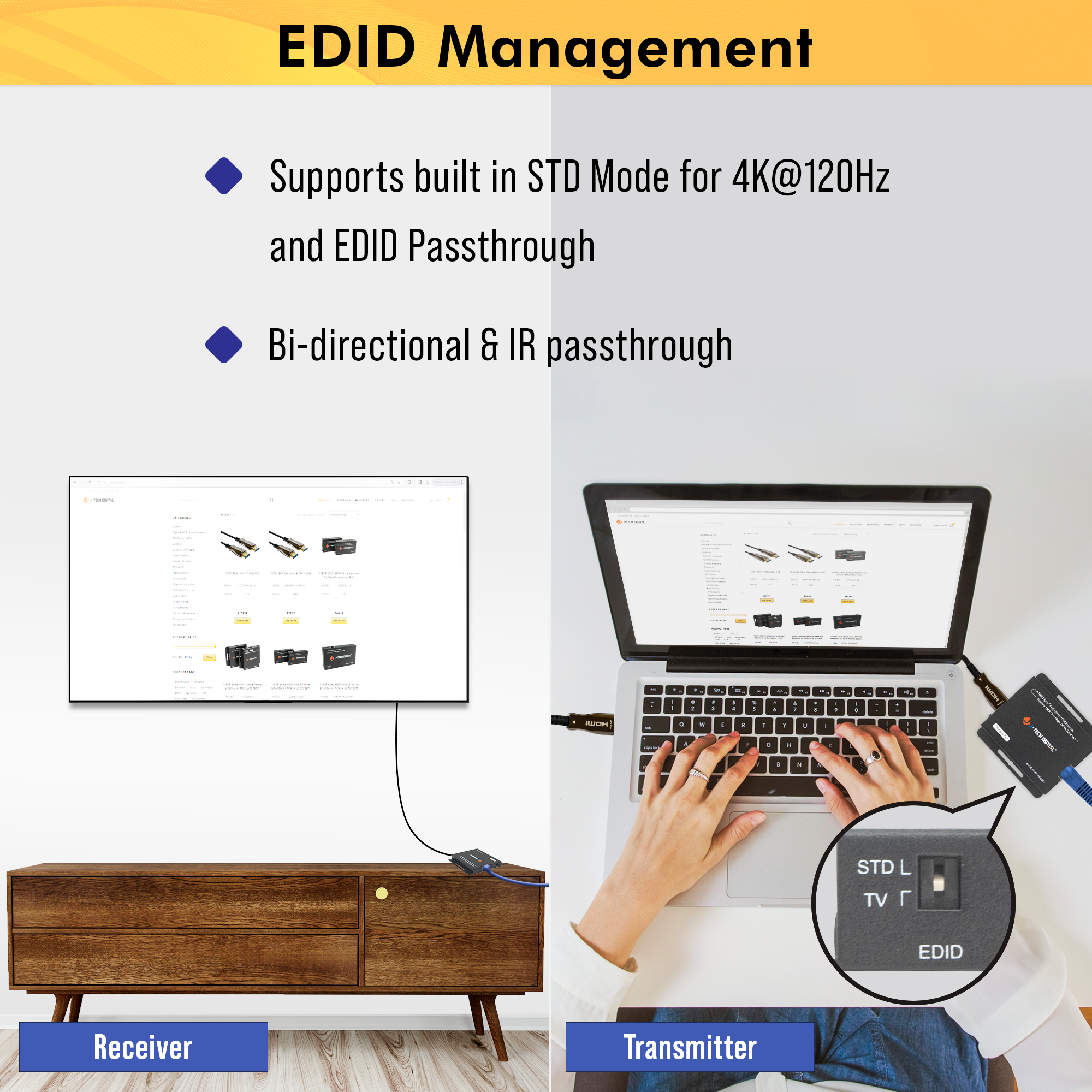

  • ✅ Bi-Directional IR and EDID Toggle: Control your source device from the display’s location or vice versa using the bi-directional IR function. Easily toggle between “STD” mode for 4K 120Hz or the “TV” mode for EDID pass-through to display.
  • ✅ Compatible with Digital Audio Formats: Don’t just stop at crystal clear video! Go beyond and take advantage of the digital audio formats supported by this extender. Supports uncompressed audio such as LPCM, and compressed audio such as Dolby Digital, DTS, DTS-HD Master, and more.

Overnight shipping*:

Two days shipping:

Availability:
In stock
SKU:
JTD-3023
Model:
JTECH-4K120EX

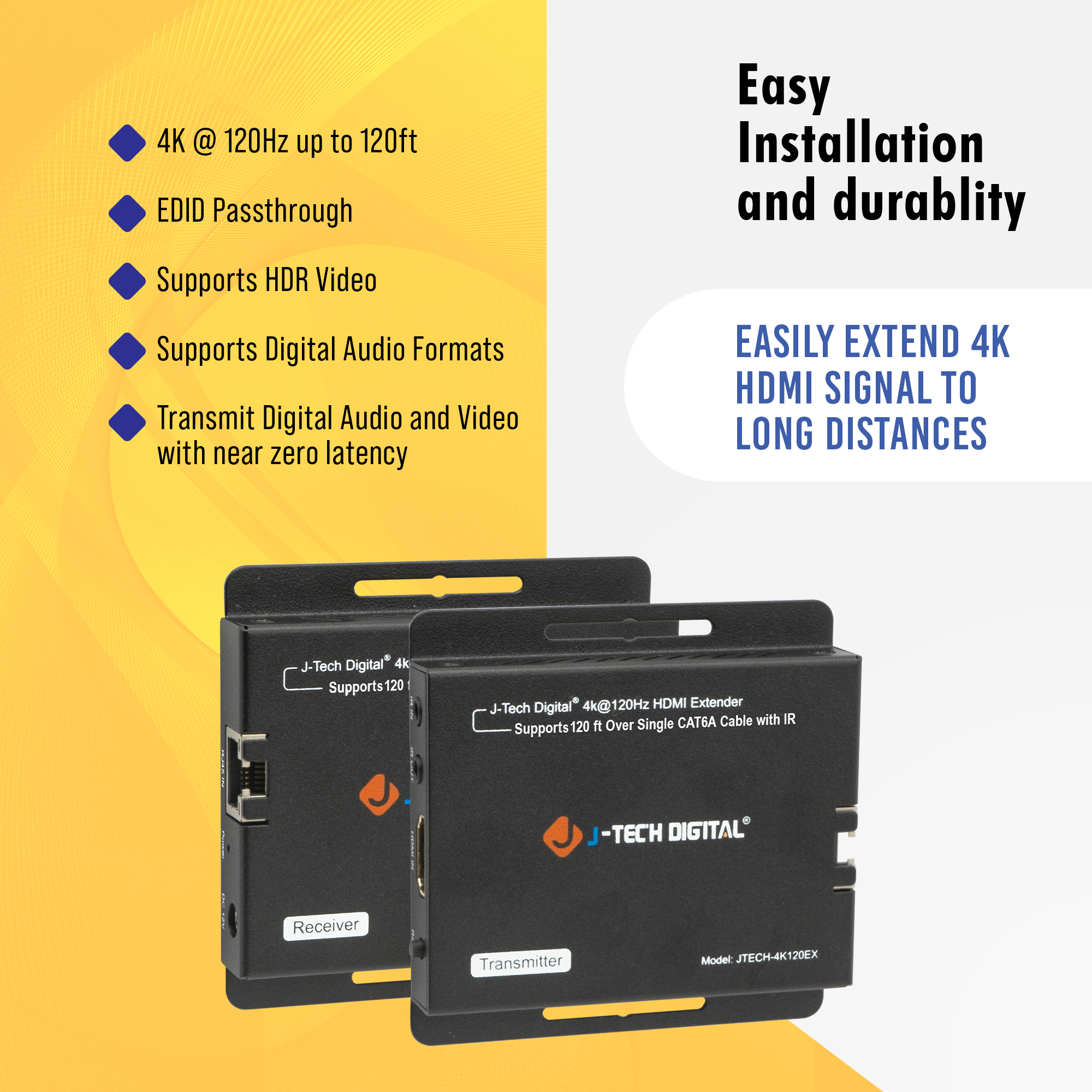

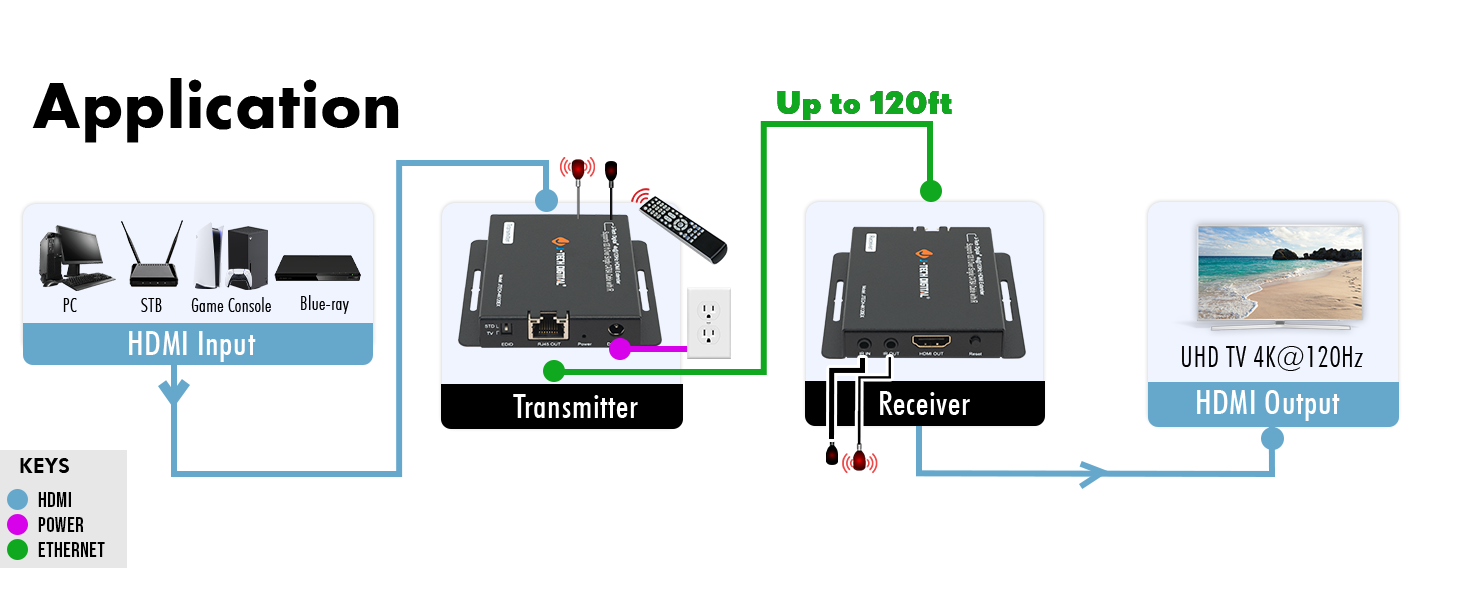

The JTECH-4K120EX HDMI over Ethernet extender helps deliver 4K UHD resolution at 120Hz up to 120ft. over a single CAT 6A/7 cable. With support for HDR, you can now enjoy your favorite content in its full glory at 4 times the distance compared to a standard HDMI Cable. Bi-directional IR feature allows you to control your source device from the display’s location using the source devices remote, or control your display from the source device’s location using the display remote.

Take advantage of the 2 EDID settings provided by the JTECH-4K120EX extender. Choose between “STD” mode for 4K 120Hz, or use the “TV” mode for EDID pass-through to the display. HDCP 2.3 (backwards compatible with 2.2 and 1.4) ensures compatibility with a wide variety of compatible sources and displays. Take advantage of the plug and play function, and integrate JTECH-4K120EX HDMI over Ethernet extender within your setup today!

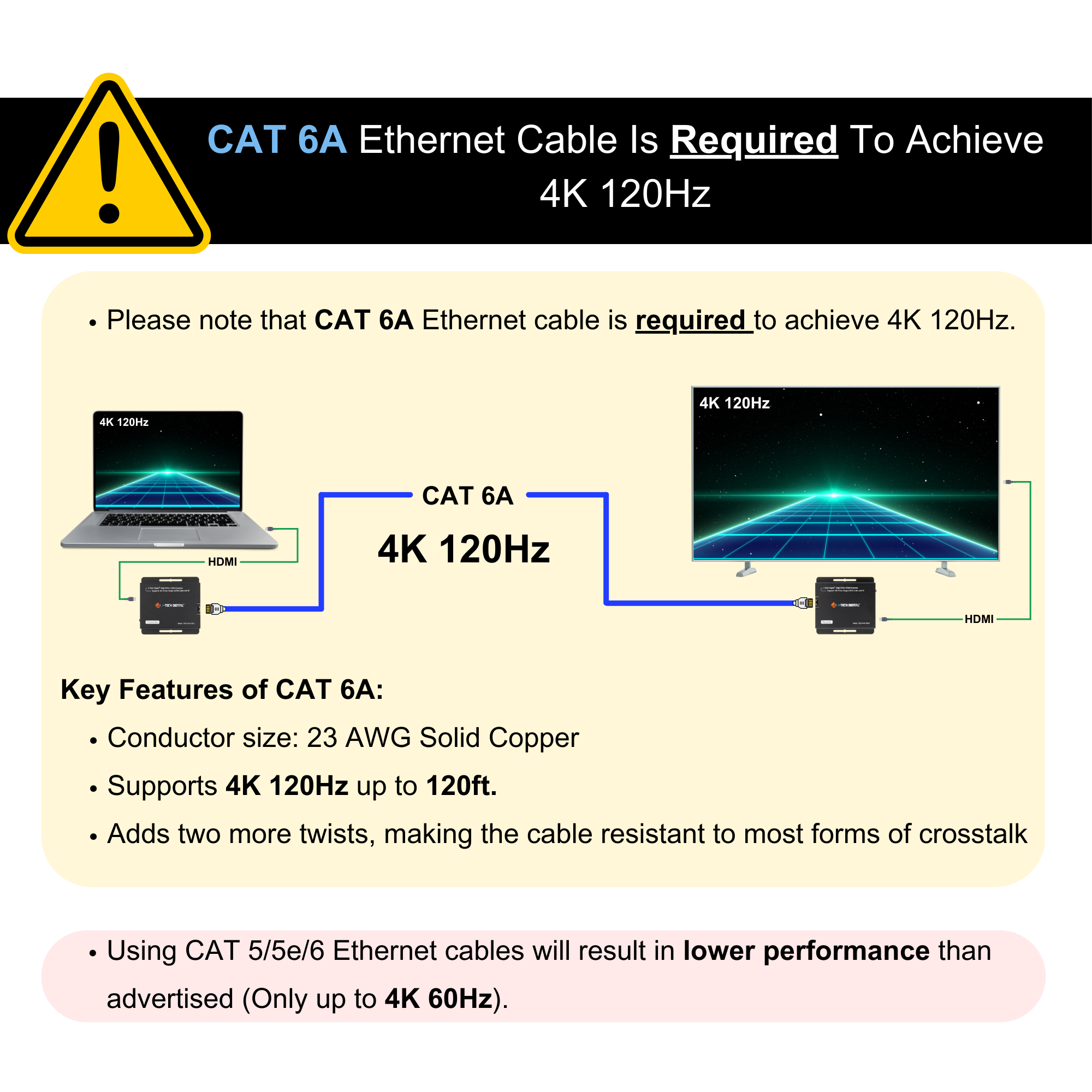

Resolution support up to 4K 120Hz 4:4:4 up to 120ft. over single CAT6A/7 (*Not compatible with Acer XV282K monitor for 4K 120Hz)

Compatible with High Dynamic Range (HDR) video

Supports HDCP 2.3, and backwards compatible with HDCP 2.2 and 1.4

EDID toggle switch setting to ensure compatibility

Supports digital audio formats such as Dolby Digital, DTS, DTS-HD Master etc.

Bi-Directional IR function to allow users to control their source device from displays location or vice versa

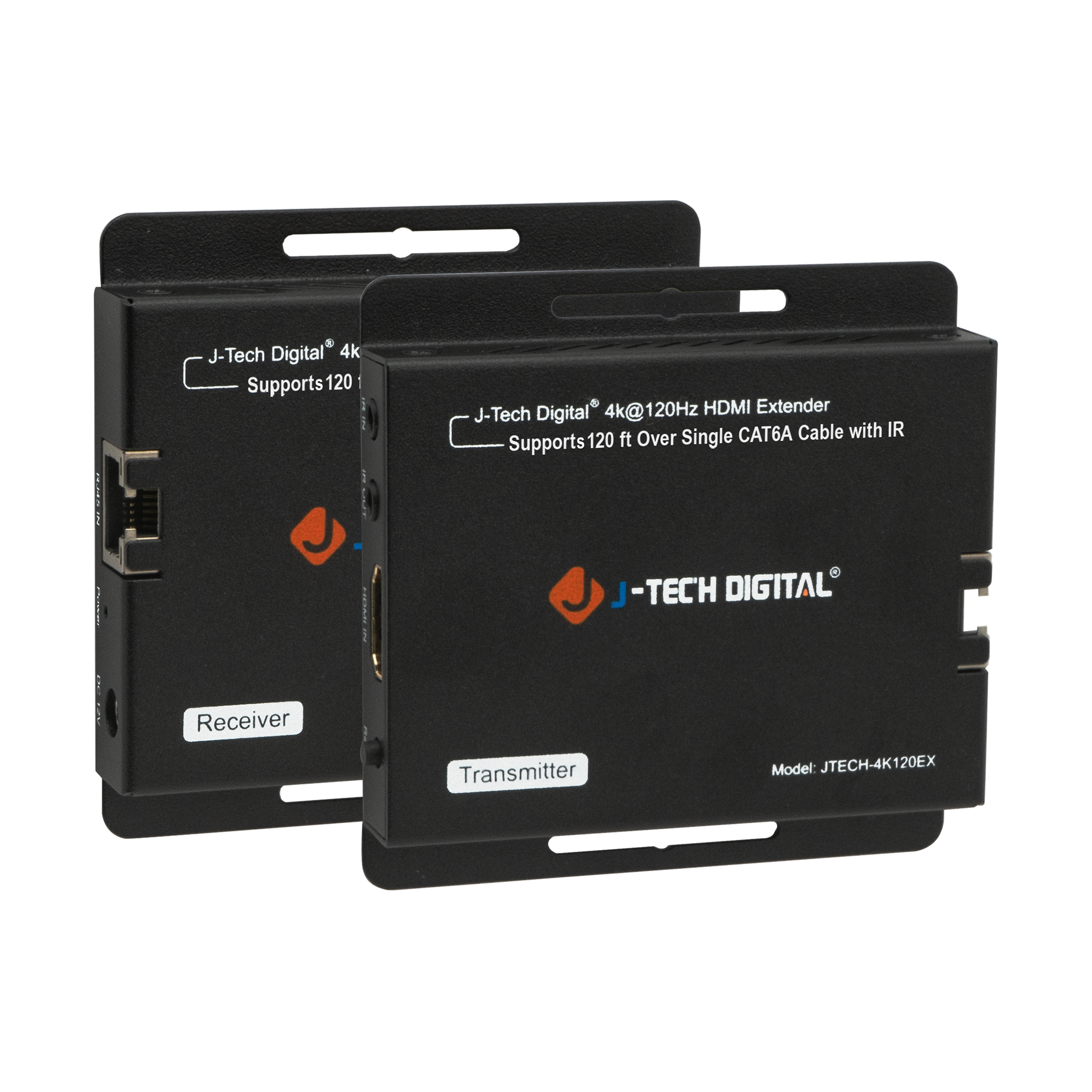

4K 120Hz HDMI extender balun over Ethernet
4K 120Hz HDMI Extender Balun Over Ethernet (120ft.)

Specifications

Video

Name Values

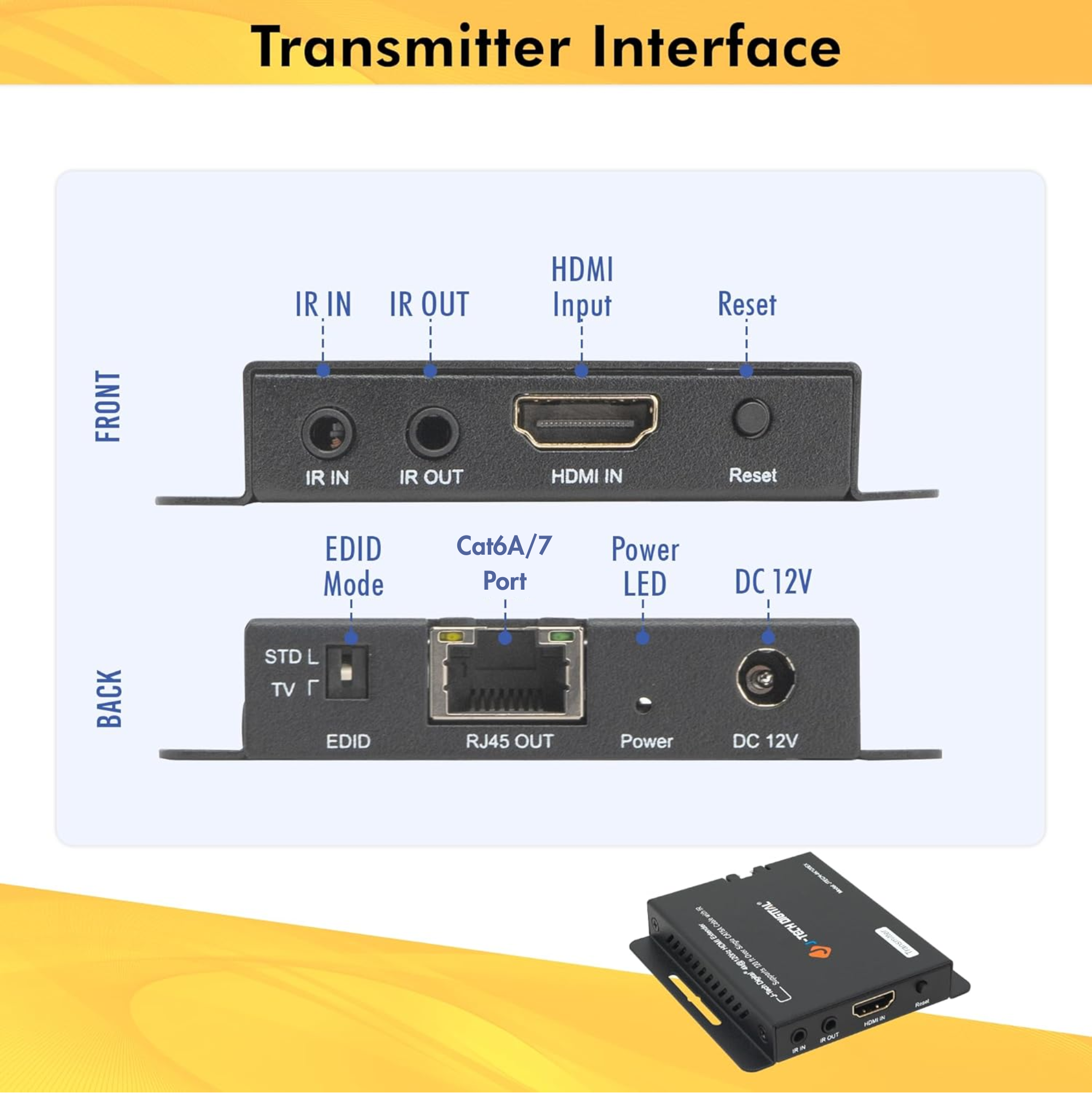

Input Port
  • 1 x HDMI
  • 1 x RJ45
  • 2 x 3.5mm

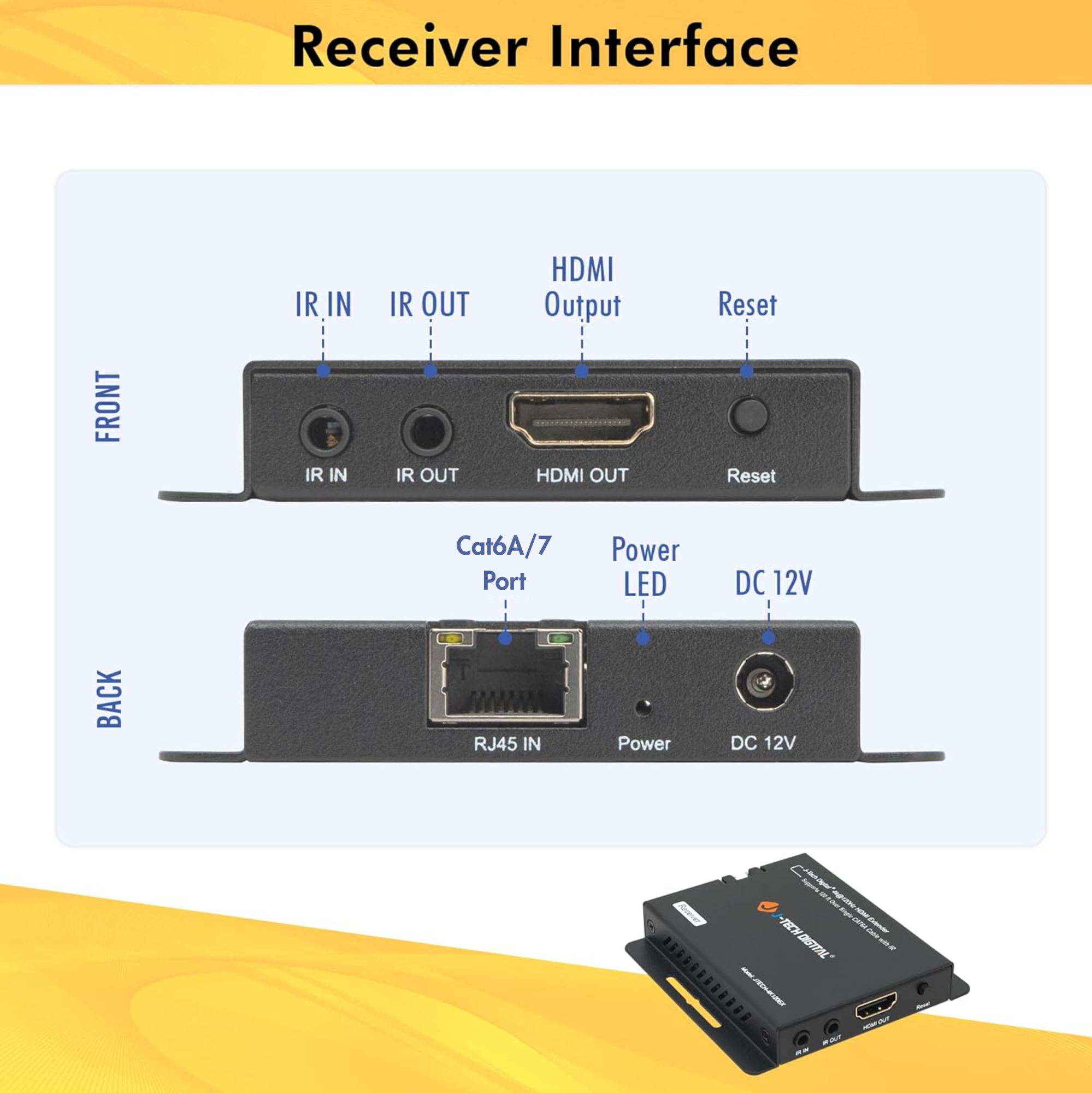

Output Ports
  • 1 x HDMI
  • 1 x RJ45
  • 2 x 3.5mm
Vertical Frequency Range 50 / 60Hz

Communications

Name Values

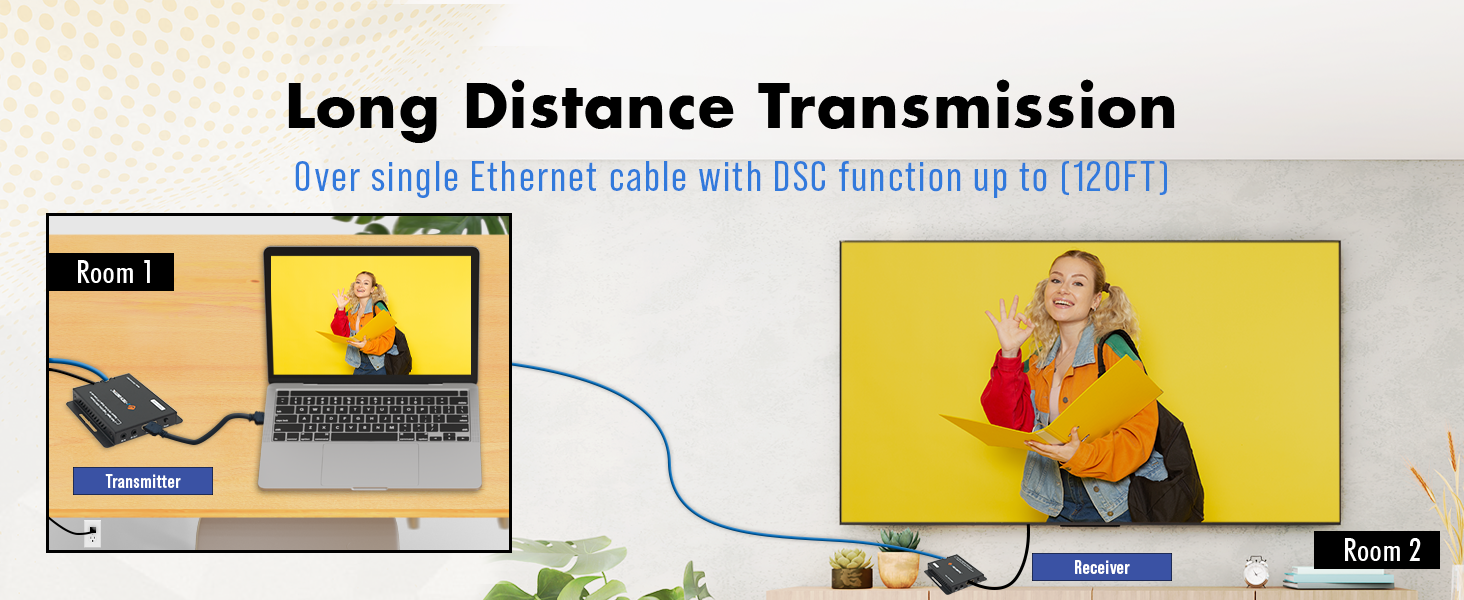

Transmission Distance
  • 120ft. for 4K 120Hz 4:4:4
  • 200ft. for 4K 60Hz
IR Frequency Range 20 - 60KHz

General

Name Values
Operating Temperature 0° ~ 50°C
Storage Humidity 5 - 90% non-condensing
Power Supply DC 12V
Power Consumption (Max)
  • Transmitter: 4W
  • Receiver: 3.5W

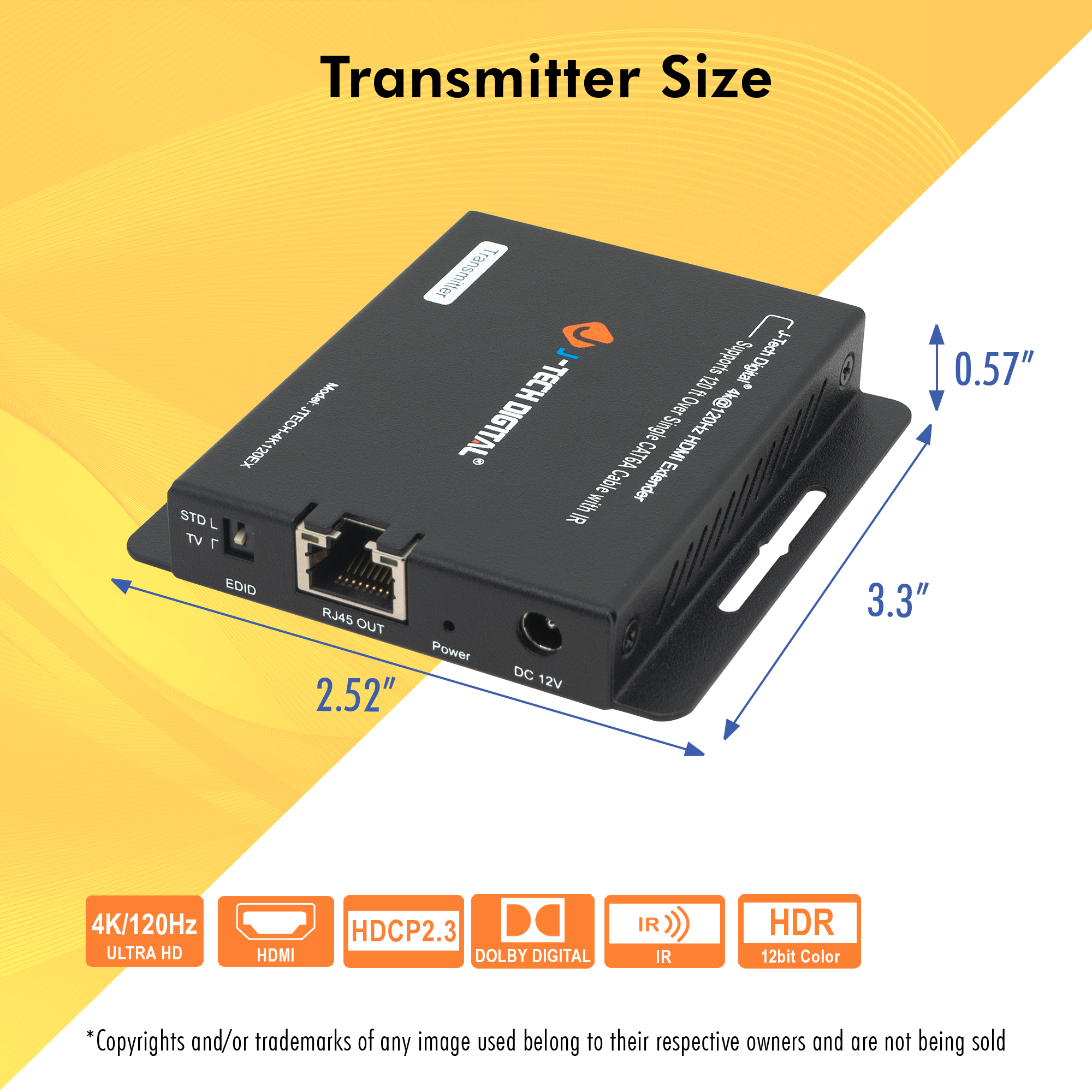

Dimensions (L x W x H) 3.3" x 2.52" x 0.57
Net Weight Transmitter / Receiver: 0.26lbs

Resources & Downloads

Category Description Version File
MANUAL User Manual 1.0 jtd-3023-user-manual-v1.0.pdf

Category: MANUAL

Description: User Manual

Version: 1.0

File: jtd-3023-user-manual-v1.0.pdf
