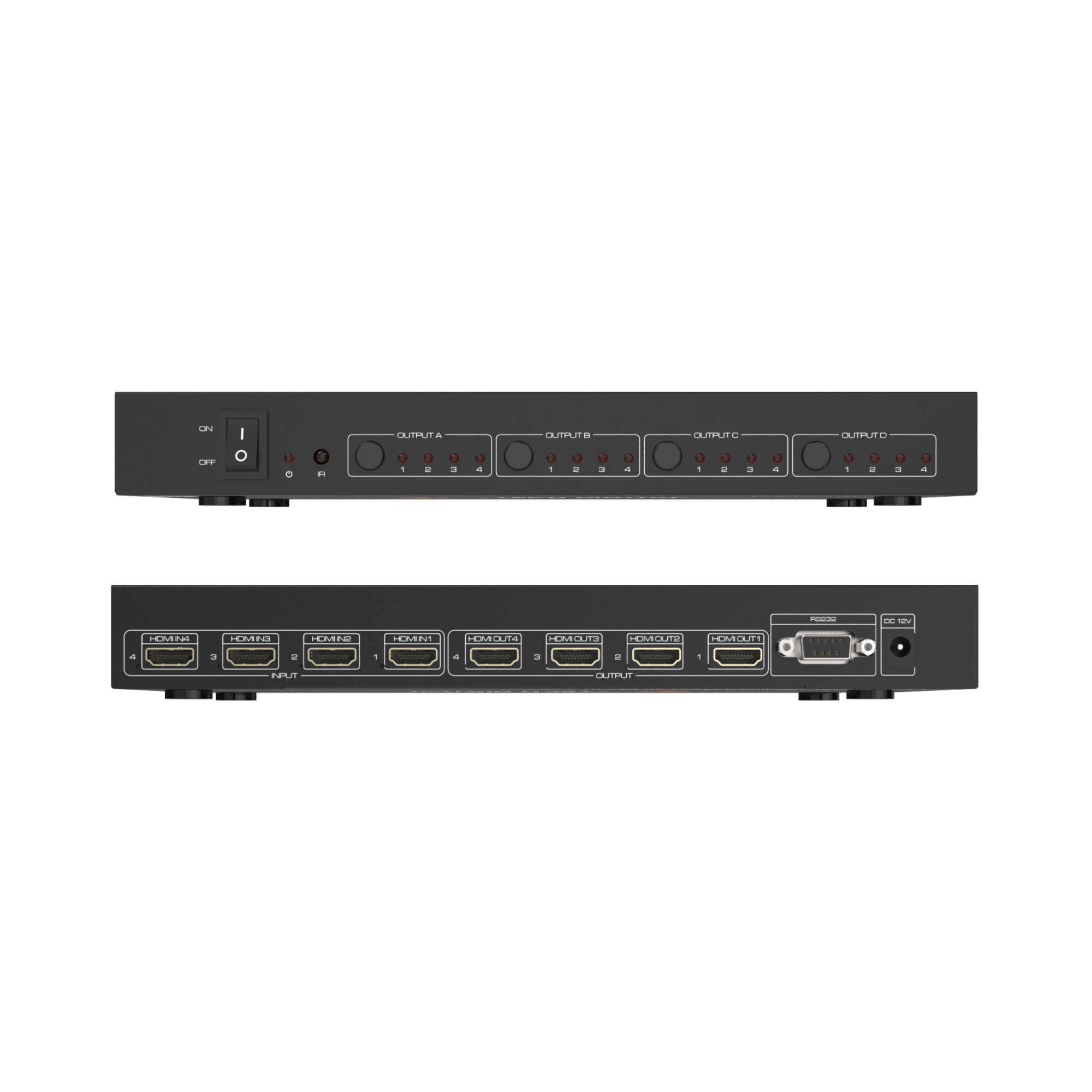

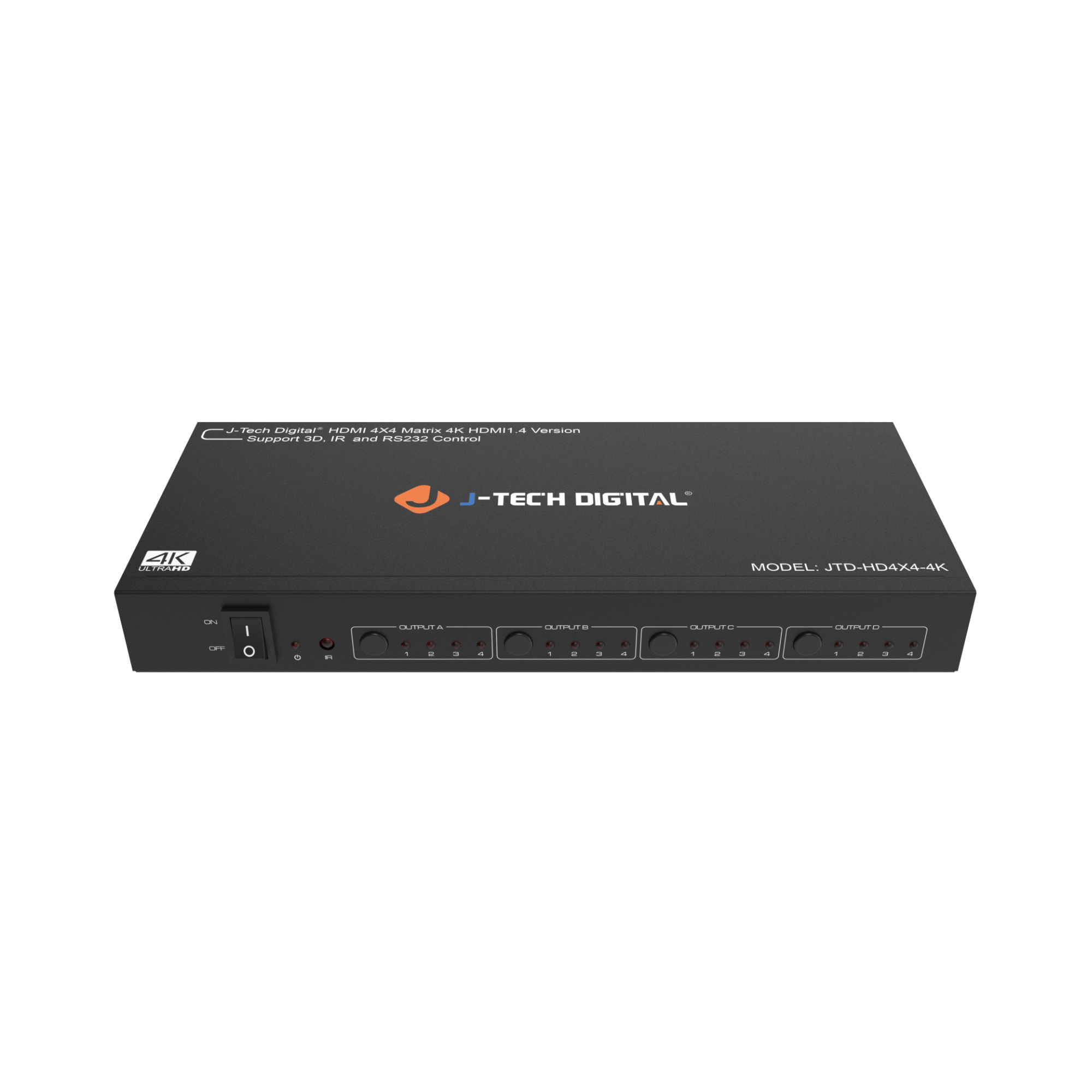

4K 30Hz 4x4 HDMI Matrix Switcher with RS232 and IR Control

Sale price $54.99
Regular price $96.99

Shipping calculated at checkout

  • ✅ 4 x HDMI Inputs | 4 x HDMI Outputs: Distribute any of the input sources to any of the connected outputs and create a 4x4 HDMI matrix.
  • ✅ Up To 4K@30Hz Resolution Support: Supports up to 4K@30Hz resolution, and backwards compatible with 1080P and 720P. HDCP 1.4 compliant.
  • ✅ Wide Digital Audio Compatibility: Supports HD Digital Audio formats, including the following: LPCM, DSD, DST, DTS.
  • ✅ Remote Control Function: Control the matrix switcher through RS232 or IR remote.
  • ✅ Optimal Signal Transmission: The units contain in-built automatic equalization and amplification to ensure optimum signal transmission without loss in video/audio quality.

Overnight shipping*:

Two days shipping:

Availability:
In stock
SKU:
JTD-908
Model:
JTD-HD4X4-4K

4x4 HDMI Matrix Switch – 4K@30Hz HDMI Splitter & Switch with RS232 and IR Control

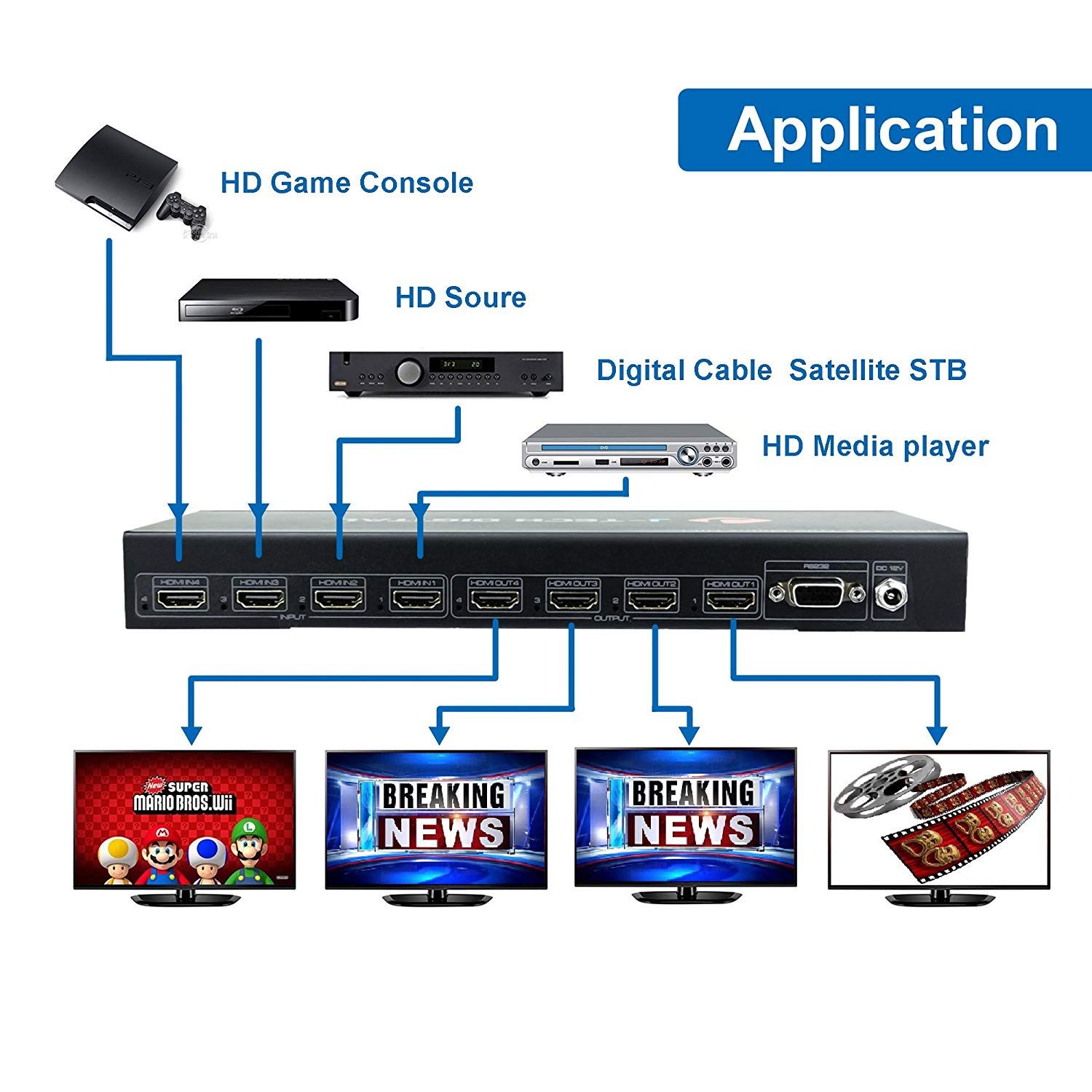

Create a fully customizable video setup with this 4x4 HDMI Matrix Switch, featuring 4 HDMI inputs and 4 HDMI outputs. Route any source to any display—or all displays simultaneously—for flexible video distribution across multiple screens.

Enjoy crystal-clear visuals with support for up to 4K@30Hz resolution, fully HDCP 1.4 compliant and backward compatible with 1080P and 720P signals.

Supports premium HD digital audio formats, including LPCM, DSD, DST, and DTS, for rich, high-quality sound.

Easily control the matrix via RS232 connection or the included IR remote control. Built-in signal equalization and amplification ensure optimal transmission with no loss in video or audio quality.

Perfect for home theaters, sports bars, classrooms, conference rooms, and digital signage, this HDMI matrix switcher delivers professional-grade performance and versatility.

4x4 HDMI Matrix Switcher 4K 30Hz
4K 30Hz 4x4 HDMI Matrix Switcher with RS232 and IR Control
Sale price $54.99
Regular price $96.99

Specifications

Video

Name Values
HDMI inputs 4
HDMI outputs 4
Resolution 4K@30Hz
3D Video Yes
Video Standard HDMI 1.4 and HDCP 1.4
Deep color 30 bit and 36 bit

Communications

Name Values
Audio Return Channel, CEC function Yes
Control IR remote and RS232

Audio

Name Values
Audio formats HBR, LPCM7.1, AC3, DTS and DSD audio

General

Name Values
Item Weight 1.21 pounds
Product Dimensions 5.3 x 3.2 x 6.9 inches

Resources & Downloads

Category Description Version File
MANUAL User Manual 1.0 jtd-908-user-manual-v1.0.pdf
DRIVER Control 4 Driver 1.0 jtd-908-control-4-driver-v1.0.c4i
COMMAND_LIST RS-232 Command List 1.0 jtd-908-rs-232-command-list-v1.0.pdf
FIRMWARE Firmware 2.5 and PC Software 6.27 2.5 jtd-908-firmware-2-5-and-pc-software-6-27-v2.5.zip
SOFTWARE P8 Driver for Firmware 2.5 1.0 jtd-908-p8-driver-for-firmware-2-5-v1.0.rar

Category: MANUAL

Description: User Manual

Version: 1.0

File: jtd-908-user-manual-v1.0.pdf

Category: DRIVER

Description: Control 4 Driver

Version: 1.0

File: jtd-908-control-4-driver-v1.0.c4i

Category: COMMAND_LIST

Description: RS-232 Command List

Version: 1.0

File: jtd-908-rs-232-command-list-v1.0.pdf

Category: FIRMWARE

Description: Firmware 2.5 and PC Software 6.27

Version: 2.5

File: jtd-908-firmware-2-5-and-pc-software-6-27-v2.5.zip

Category: SOFTWARE

Description: P8 Driver for Firmware 2.5

Version: 1.0

File: jtd-908-p8-driver-for-firmware-2-5-v1.0.rar
