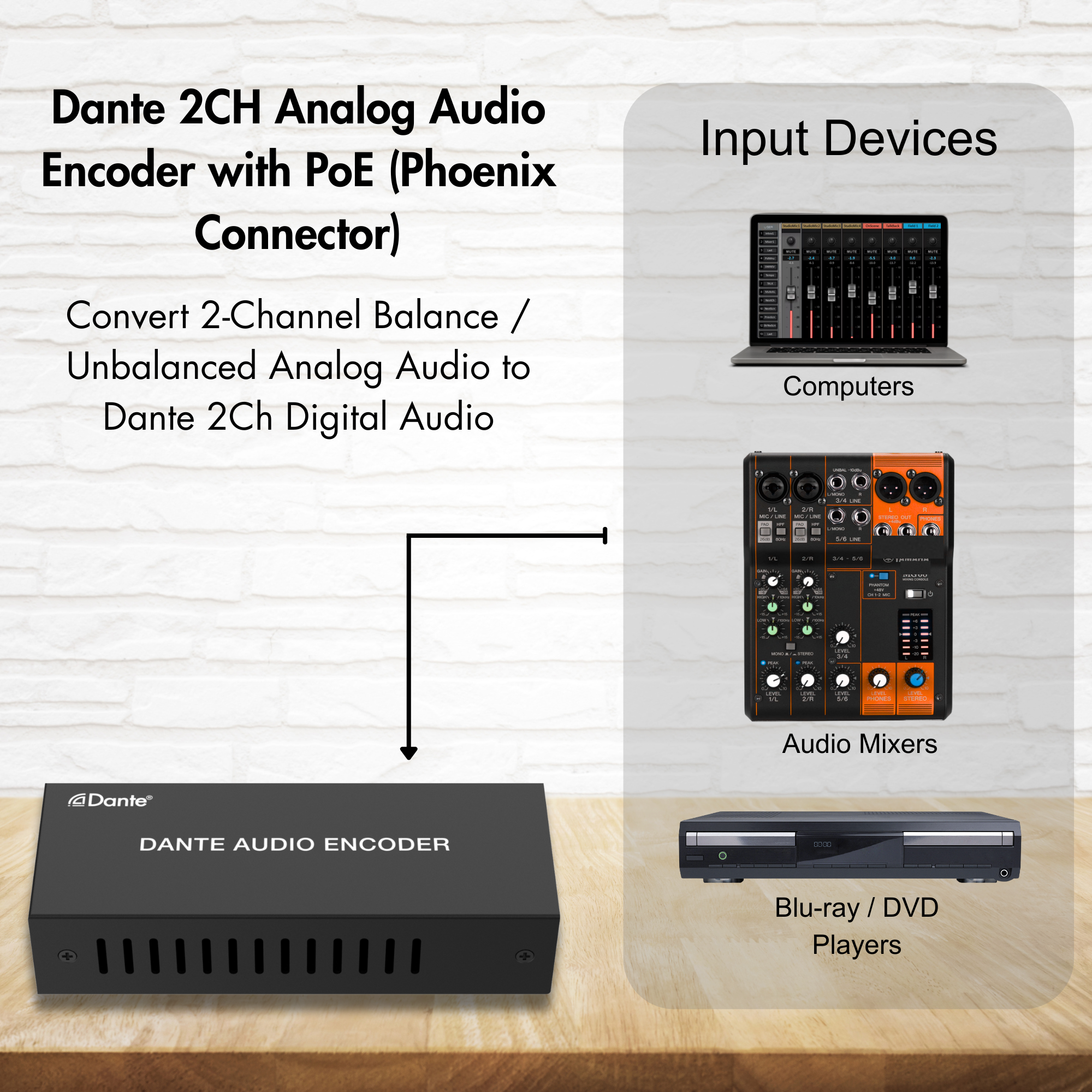

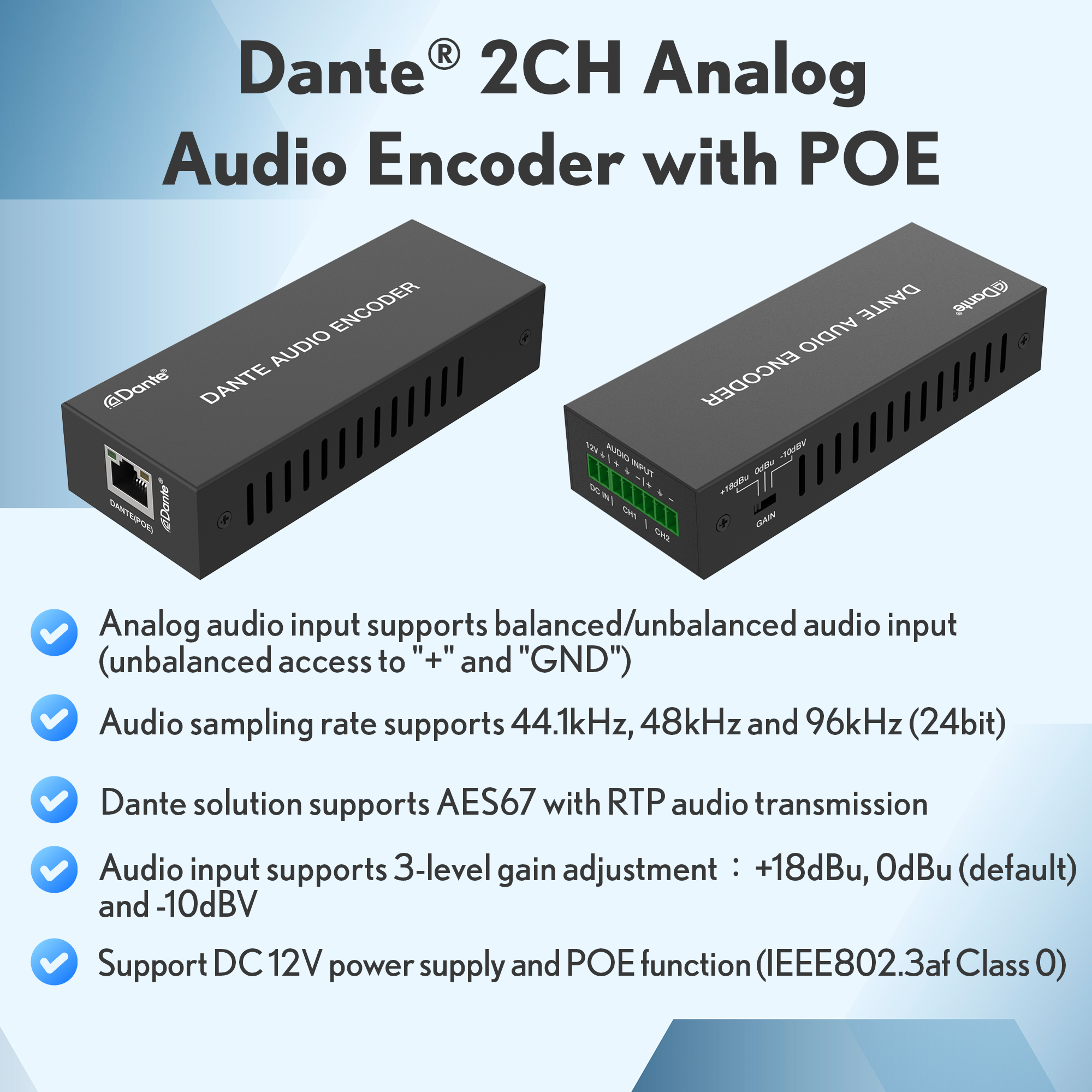

✅ Dante 2CH Analog Audio Encoding: Transmit crystal-clear audio over your network with this Dante Ultimo-based 2-channel analog audio encoder, supporting both balanced and unbalanced audio inputs for versatile connectivity.
-

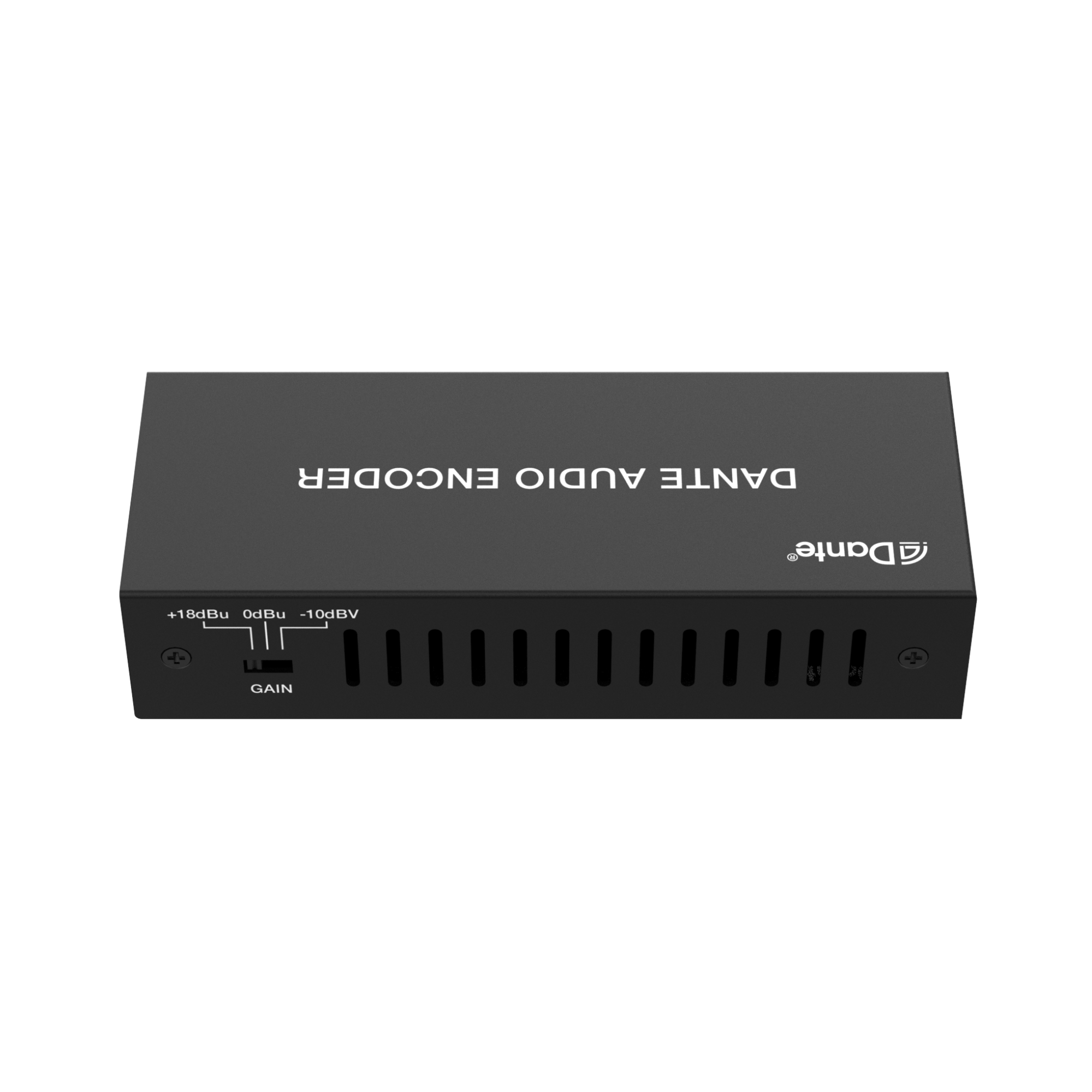

✅ Flexible Sampling & Gain Control: Supports 44.1kHz, 48kHz, and 96kHz (24-bit) audio sampling rates with 3-level gain adjustment (+18dBu, 0dBu, -10dBV) to ensure optimal sound performance in any setup.
-

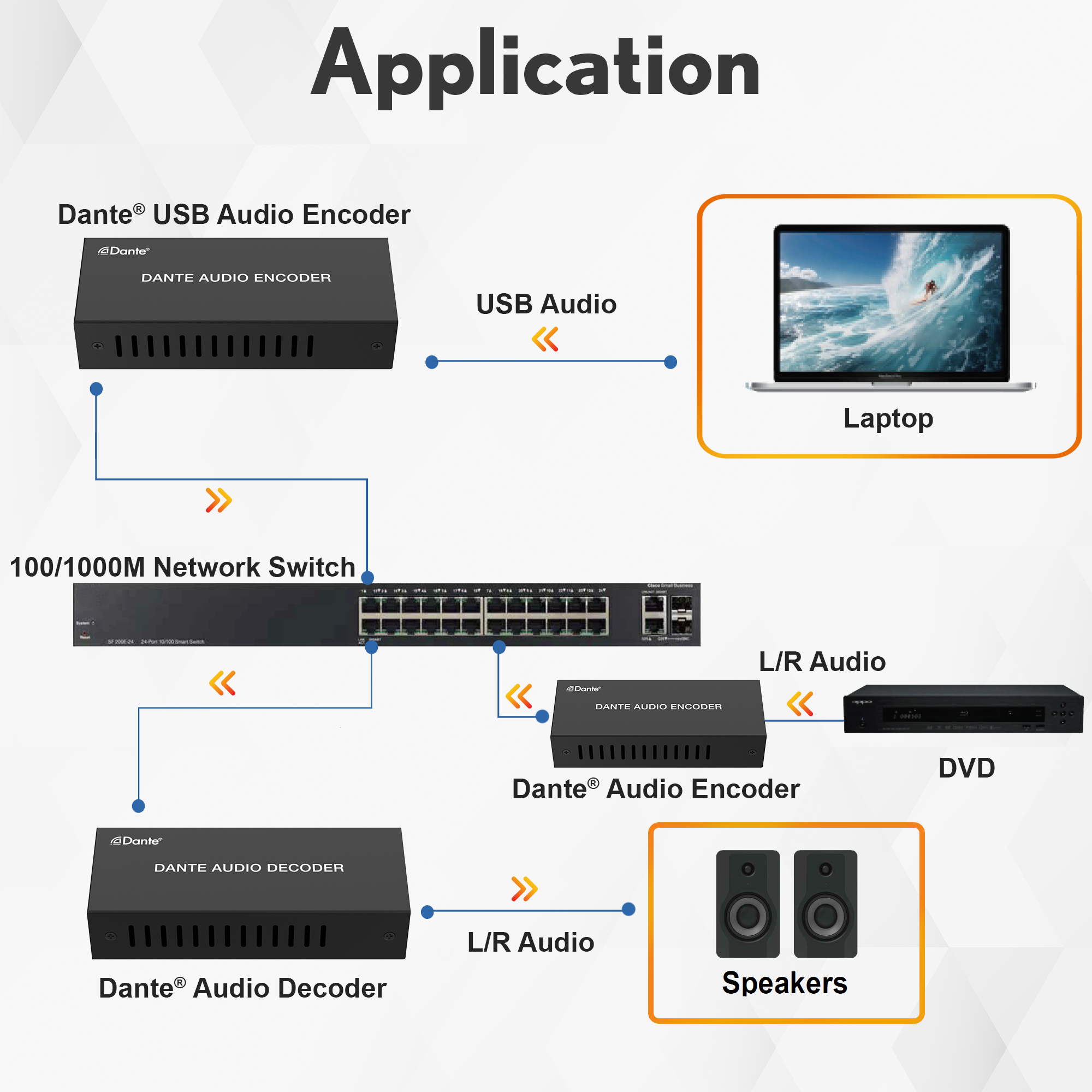

✅ Seamless Network Audio Transmission: Built-in Dante and AES67 RTP protocol compatibility delivers reliable, low-latency audio streaming over standard IP networks for professional installations.
-

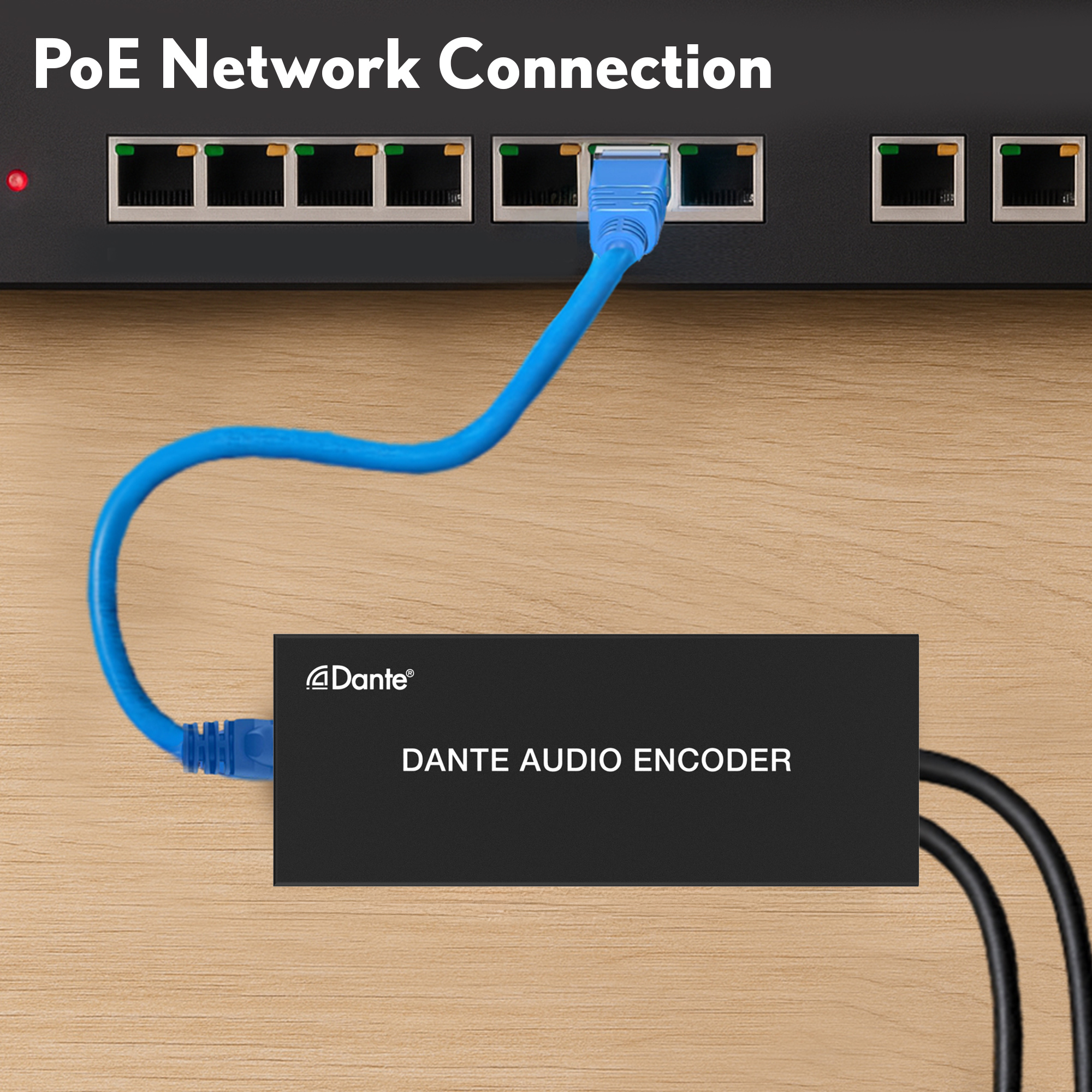

✅ Dual Power Options with POE Support: Operates with DC 12V power or via PoE (IEEE 802.3af Class 0), providing flexible installation options without compromising performance.

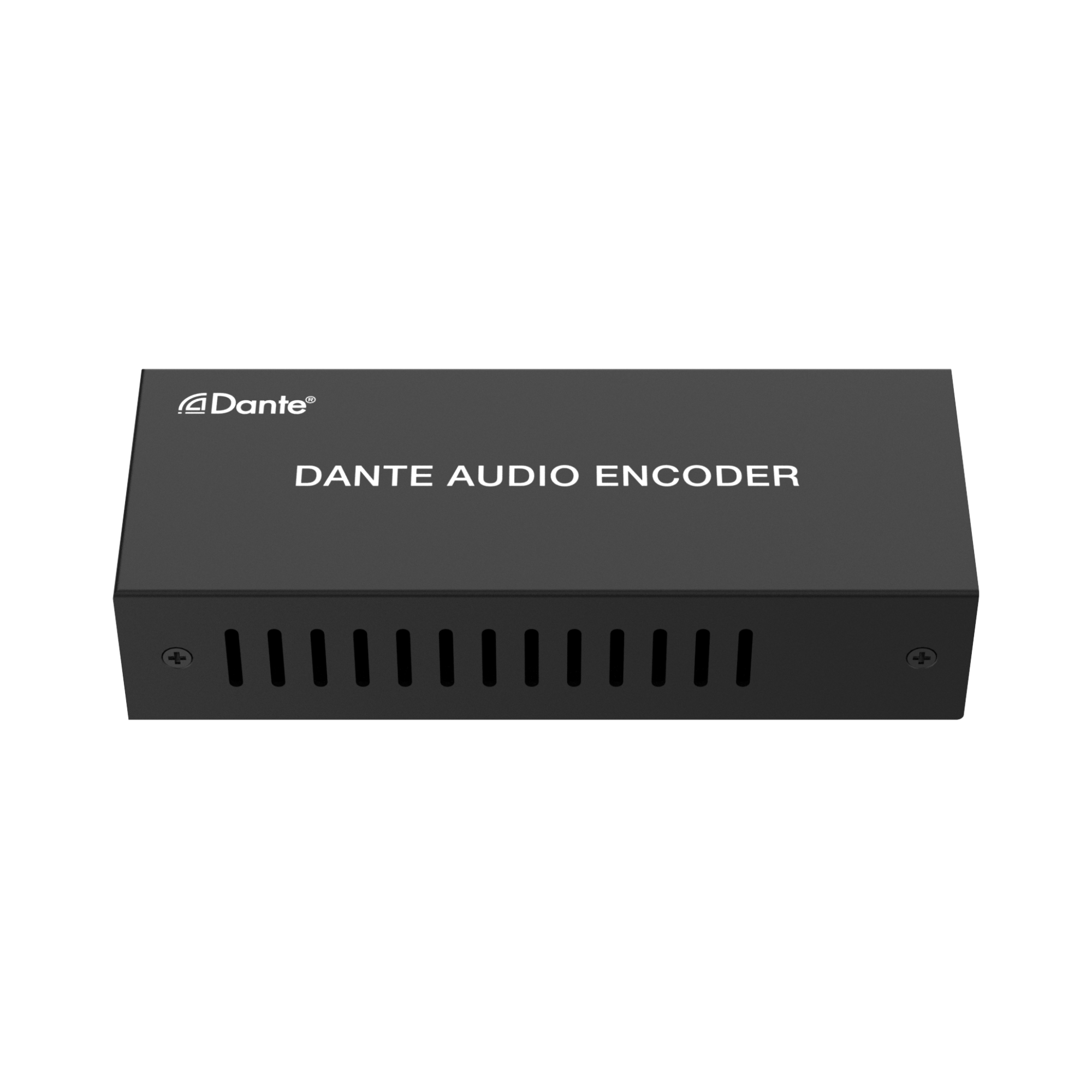

2-Channel Dante Analog Audio Encoder with PoE
Regular price
$169.99
Sold out
Specifications
General
| Name | Values |
|---|---|
| Video Network Bandwidth | 100M |
| Audio Formats | PCM 2.0 44.1kHz/48kHz/96kHz up to 24bit |
| Transmission Distance | 100m (CAT6/6A) |
| Control Method | Dante Controller |

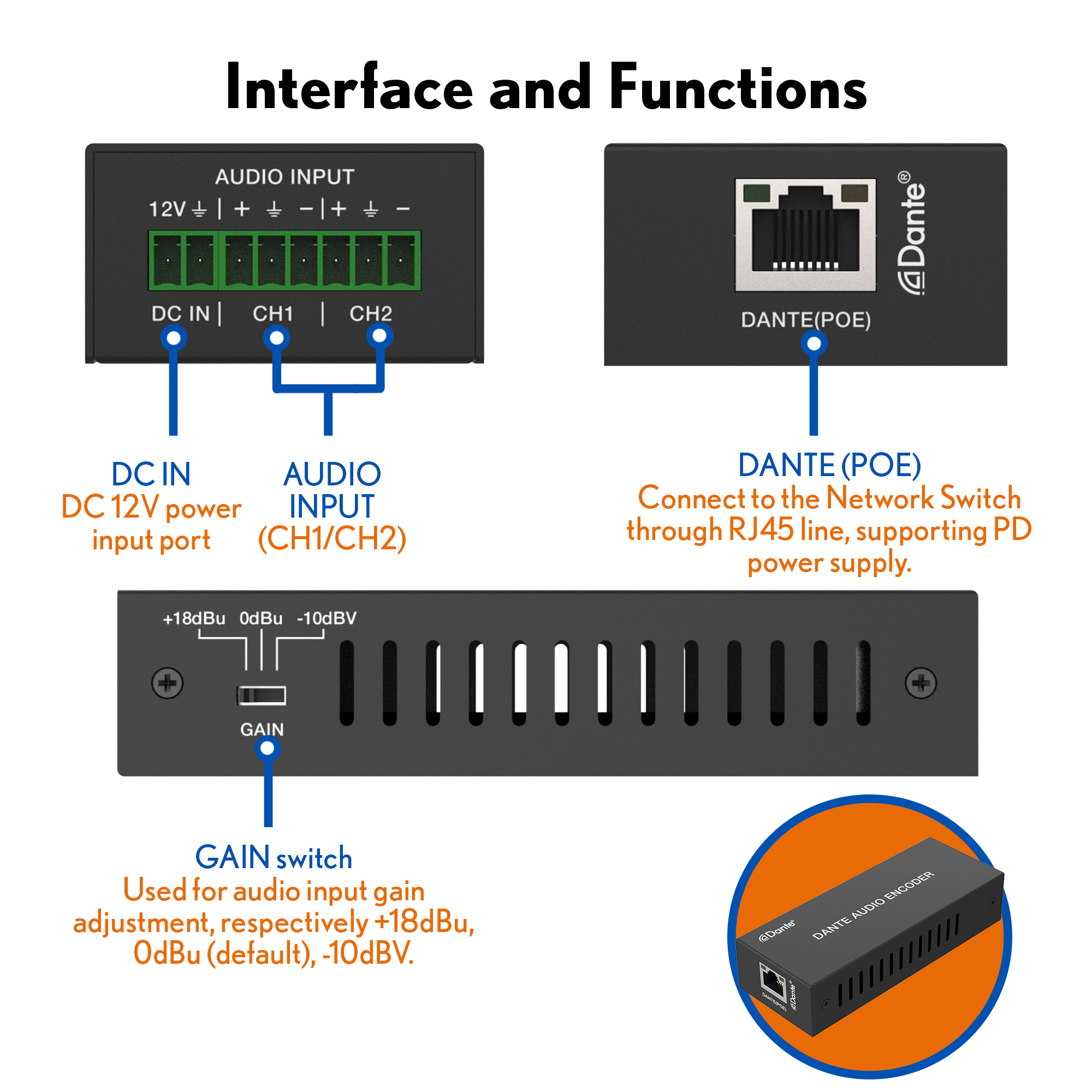

| Inputs |
|

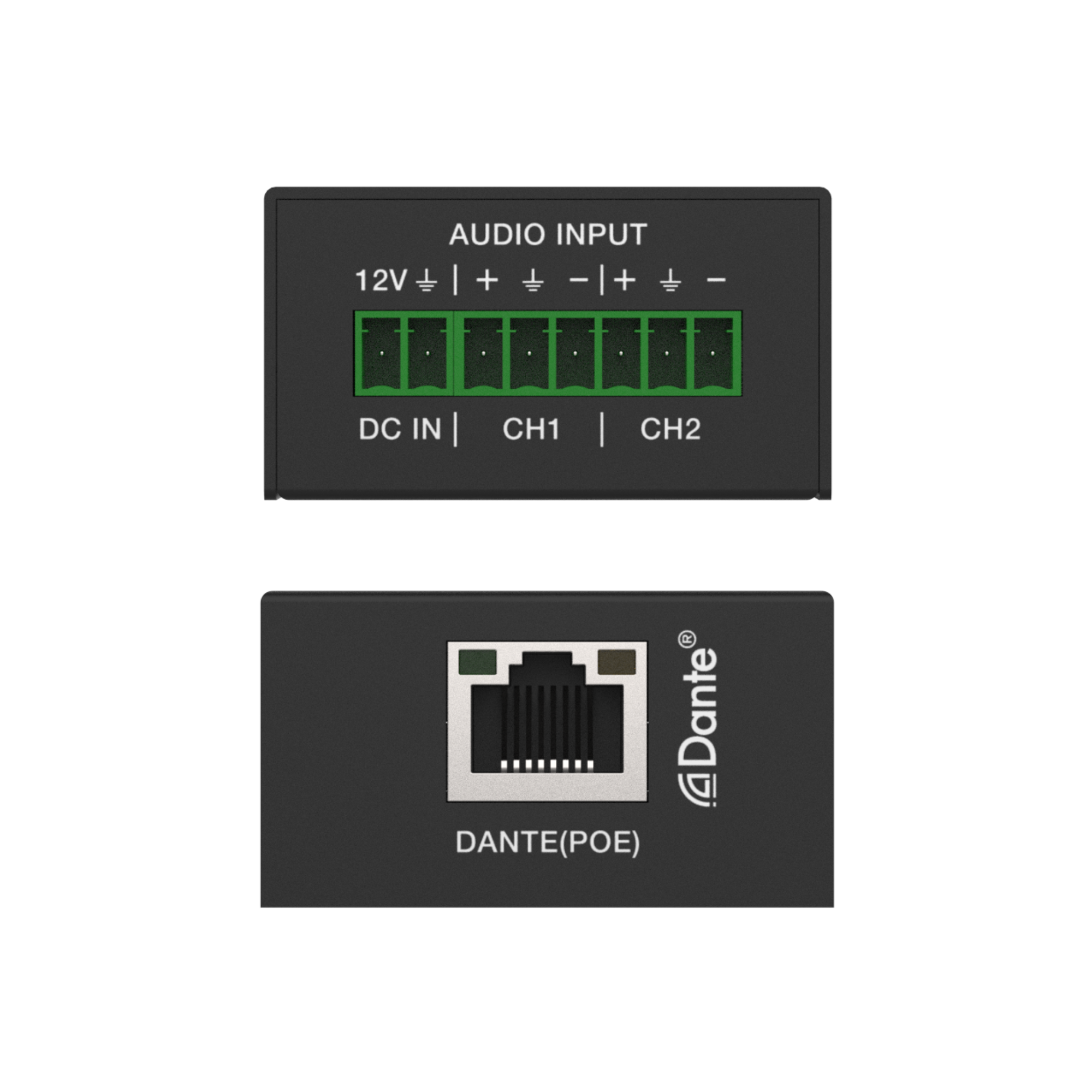

| Output | 1x DANTE [RJ45 connector, POE] |
| Dimensions | 120mm[W] x 47mm[D] x 26mm[H] |
| Weight | 186g |
| Power Supply |
|
| Power Consumption | 1.2W |
| Operation Temperature | 32 - 104°F / 0 - 40°C |
| Storage temperature | -4 - 140°F / -20 - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
